24-Bit HX710 Weighing Display Instrument – Intelligent Sensor Module Supports TTL/Modbus for Accurate Digital Scales

The weighing acquisition module is a high-performance and multifunctional electronic weighing device that adopts advanced weighing sensing technology. It can measure the weight of an item in real-time and display it on a five digit digital tube. It also has an upper and lower limit alarm function, enabling precise weighing control and monitoring. At the same time, the product also has a TTL communication interface and MODBUS RTU communication protocol, which can conveniently and quickly communicate with devices such as PLCs and computers, achieving the transmission and remote control of weighing data. In addition, it also supports Type-C power supply and button debugging functions, improving the convenience and stability of use.

Features:

1. High precision weighing sensor, achieving precise weight detection and numerical display.

2. Five digit digital tube display, intuitive and clear, can achieve high-speed weighing, suitable for efficient weighing processes.

3. The upper and lower limit alarm function facilitates early warning and strict control, improving quality.

4. Supports TTL communication interface and MODBUS RTU communication protocol, enabling convenient and fast data transmission and remote control.

5. Type-C/5V power supply and button debugging function, easy to use and strong stability.

6. Lightweight and portable, easy to install and move, saving space and costs.

In summary, the weighing collection module is a practical, high-performance, and multifunctional electronic weighing device that can be widely used in weighing measurement and control applications in various production lines and logistics warehousing situations, achieving remote transmission and precise control of weighing data. It is an important supporting equipment for modern production lines and logistics warehousing operations.

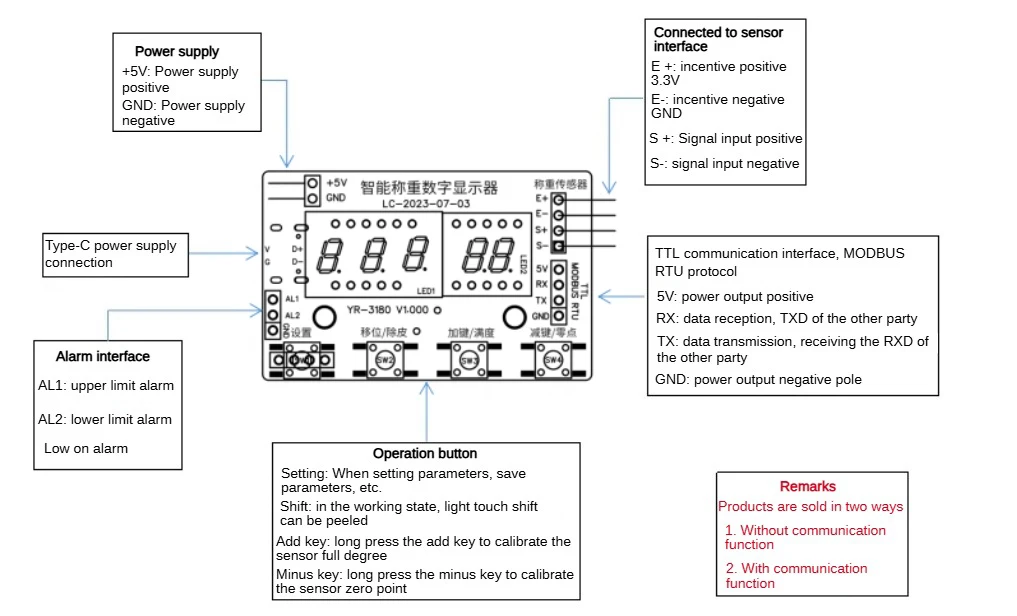

Wiring Instructions
