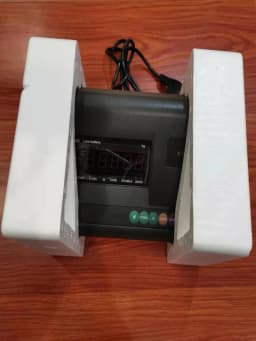

No Battery A12E LED A12 LCD English Panel Weight Indicator Load Meter Weighing Controller XK3190-A12/A12+ELED Display

weighing indicator

basic function:

High precision A/D conversion, the readability of 1/30000;

The code calls convenient display, observation and analysis of weight tolerance instead of feeling;

Special software technology, enhance the system's ability to resist vibration;

Zero tracking range, zero (boot / manual range, respectively);

Digital filtering speed, amplitude and the stability of the time can be set;

With the weighing counting function; (a power-off protection unit weight)

A variety of optional backlight mode;

Random charging; undervoltage indication and protection device;

Random allocation of 6V/4AH maintenance battery （customer have to buy the battery himself)

Large screen 20mA matching the current loop communication port;

Non standard varieties recommended restructuring:

Reorganized with kg/lb conversion function; (foreign trade for the product)

With automatic calculation of average value of reorganized function; (applicable to animal husbandry scale)

Reorganized with 2 custom output function; (suitable for low speed weighing test)

technical parameter:

A/D conversion mode: sigma delta conversion

A/D conversion rate: 20 times / sec

The maximum A/D conversion number: 20bit

Input signal range: 10mV ~ 15mV

Input sensitivity: more than 1 V/e

The sensor bridge power supply C5V; I = 150mA

Connect the sensor number: 4 350 sensors can be connected.

Connection: 4 wire sensors

Verification of indexing number: 3000

The maximum number: 30000

Maximum resolution: 300000

Division value: 1/2/5/10/20/50 optional

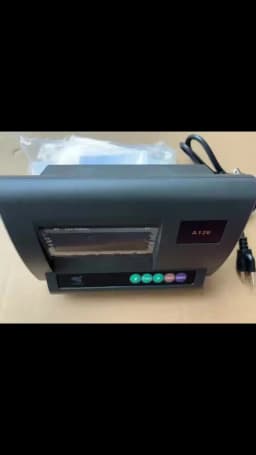

Display mode (A12): 6 LCD LCD, 6 state indicator

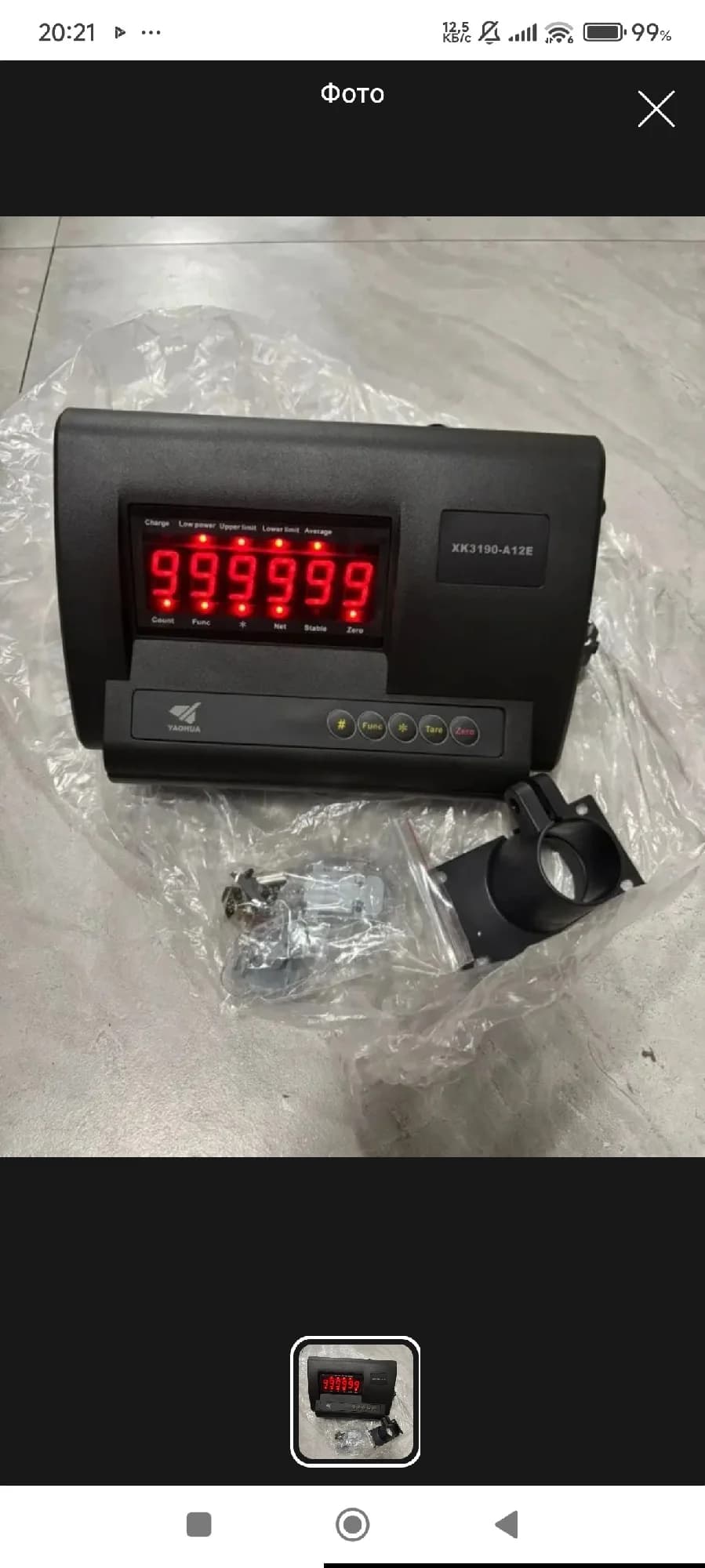

Display mode (A12E): 6 LED digital tube, 6 state indicator

Display range: -2000 ~ 150000 (e=10)

Large screen interface (optional)

Output mode: serial output signal

Signal: current loop signal

Baud rate: 600

Transmission distance: the current loop signal is less than 100 meters

The serial communication interface (optional)

Baud rate: 1200/2400/4800/9600 optional

Communication mode: automatic continuous mode / instruction mode

AC power supply: AC187 ~ 242V 49 ~ 51Hz;
