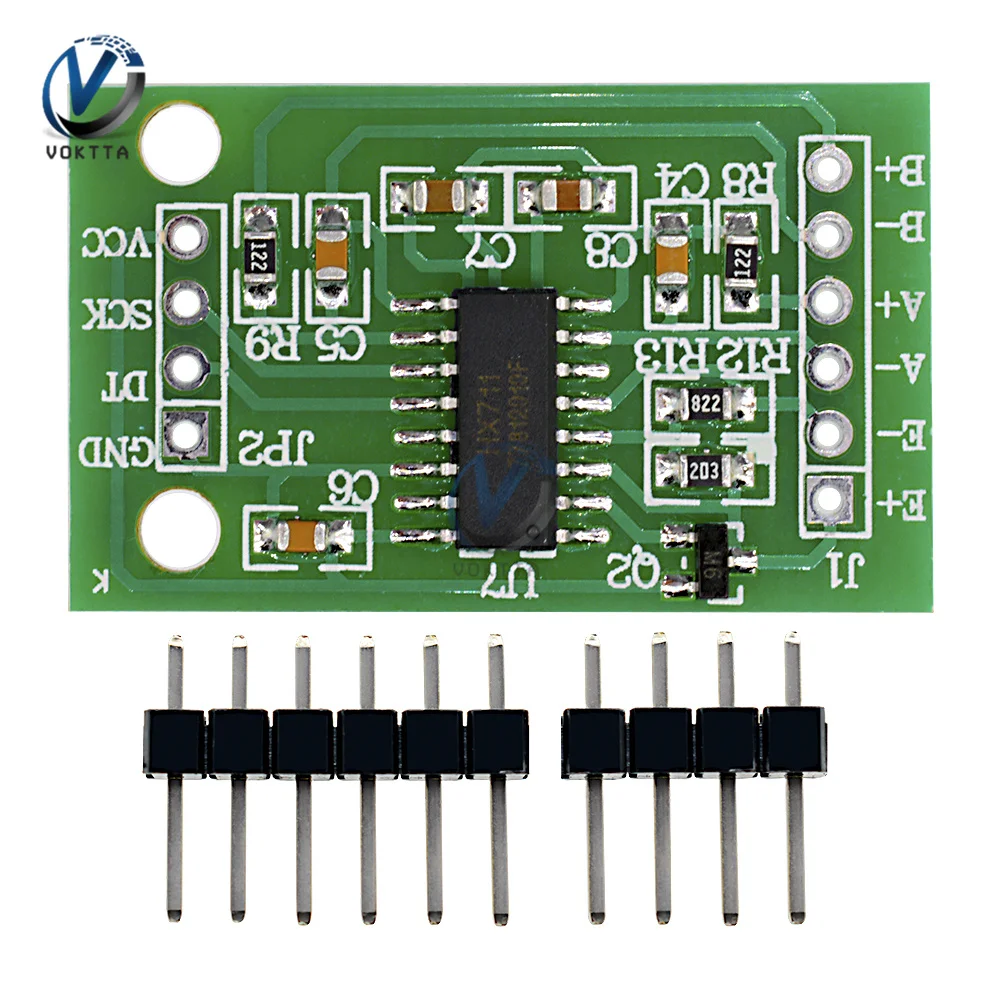

HX711 Pressure Sensor Weight Pressure Sensor AD Module Digital Display Electronic Scale Weighing Pressure Sensor Module

HX711 Pressure Sensor Weight Pressure Sensor AD Module Digital Display Electronic Scale Weighing Pressure Sensor Module

Parameter:
The module is designed for wide voltage, and the power supply range is DC 3~5.5V.
There are 2 power supply methods. USB cable for power supply or wire it yourself (leave the interface).

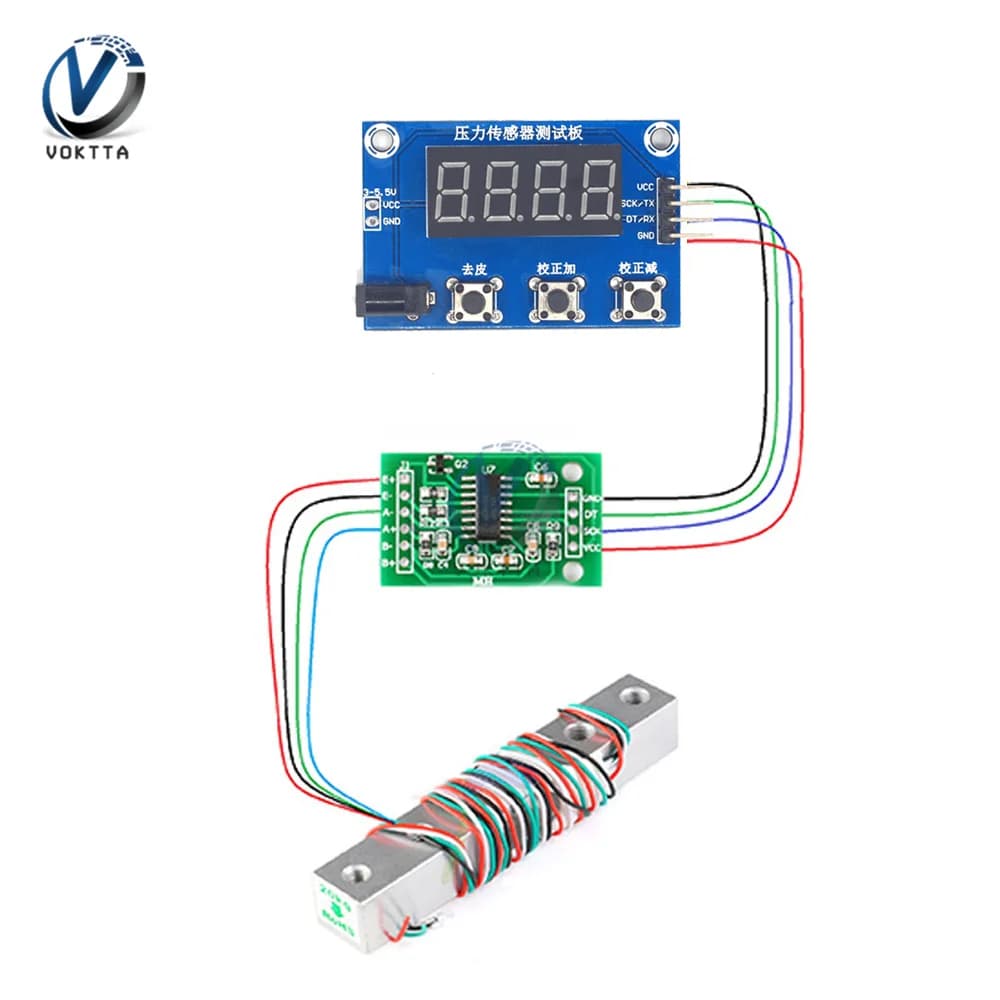

The module is connected to the pressure sensor first, and then powered on for use. After connecting to the pressure sensor for the first time, a calibration calibration is required. The board has functions such as peeling, calibration, etc. The parameters are saved after power off, and there is no need to calibrate again for future use.

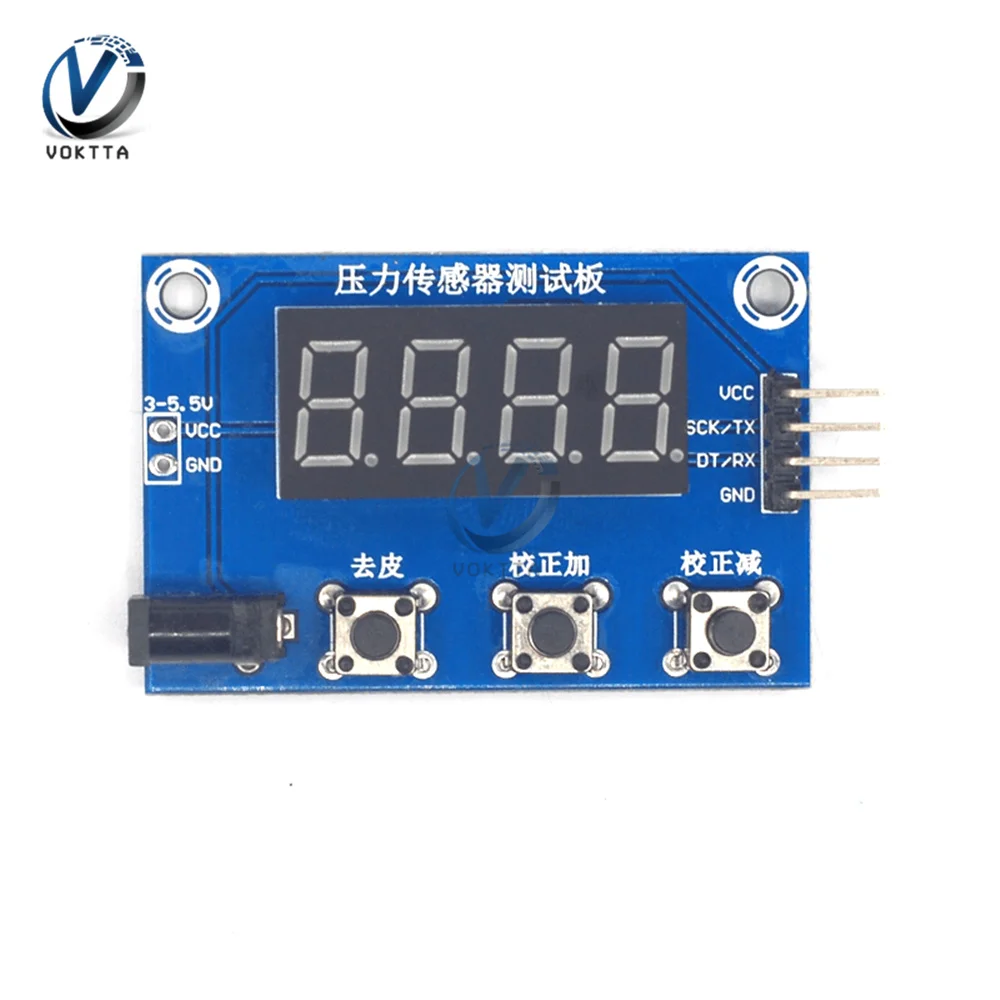

Module size: 50*33*10mm, displayed by 4-digit digital tube. The maximum can display 9999g. It can be connected to a common 5KG or 10KG pressure sensor. Generally, the accuracy of the sensor with a 5Kg range fluctuates around 1g. If the fluctuation is large, it may be caused by the unstable power supply. Please try changing the power supply. (Calibration is required after the first connection)


Package list:
Pressure sensor*1
