RF433 Wireless Remote Control Outlet US Plug, Smart Remote ON OFF Electrical Socket for Lights Fans TVs, Home RF Remote Switch

**Socket parameters:

Working voltage: 100-240V, 10A, 50/60Hz

Operating frequency: 433MHz

Learning code: EV1527

RF Operating mode:ASK superheterodyne wireless reception

APP: Not supported

Applicable: TV, Computer, Fan, Lighting, Switch, etc

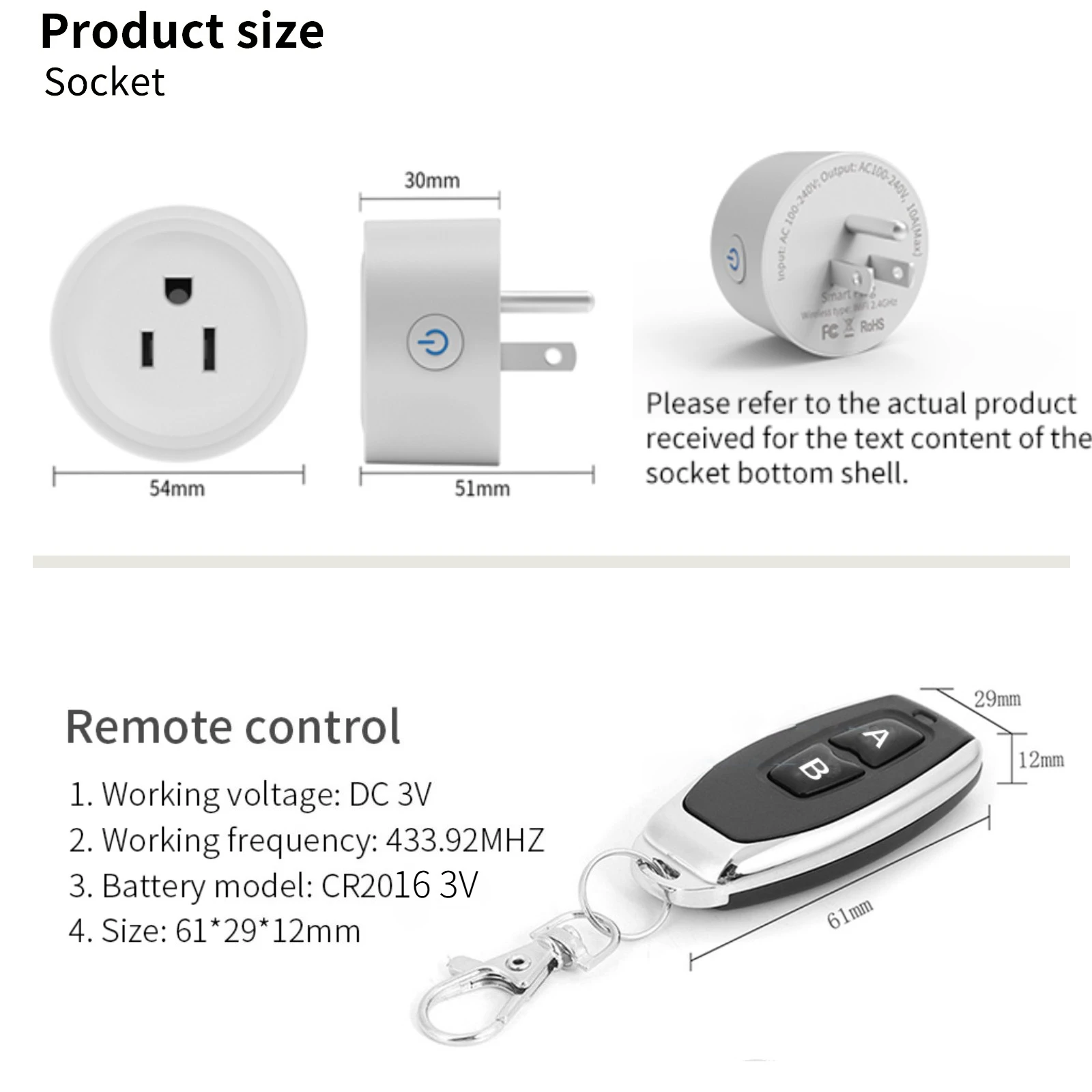

Size: 54x54x51mm

**Remote control parameters

Working voltage:DC 3V

Battery Model：CR2016

Operating frequency: 433MHz

Learning code: EV1527

Size:61X29X12mm

**Circular wireless switch parameters

Working voltage:DC 3V

Battery Model：CR2032 3V

Operating frequency: 433MHz

Learning code: EV1527

Size:50X50X13mm

Features:

1:Without WIFI, you can use wireless remote control to control home appliances, especially for the elderly and children.

2: 10 Amps relay: Can meet the needs of small household appliances.

3: Two control methods: Remote control or socket power button control.

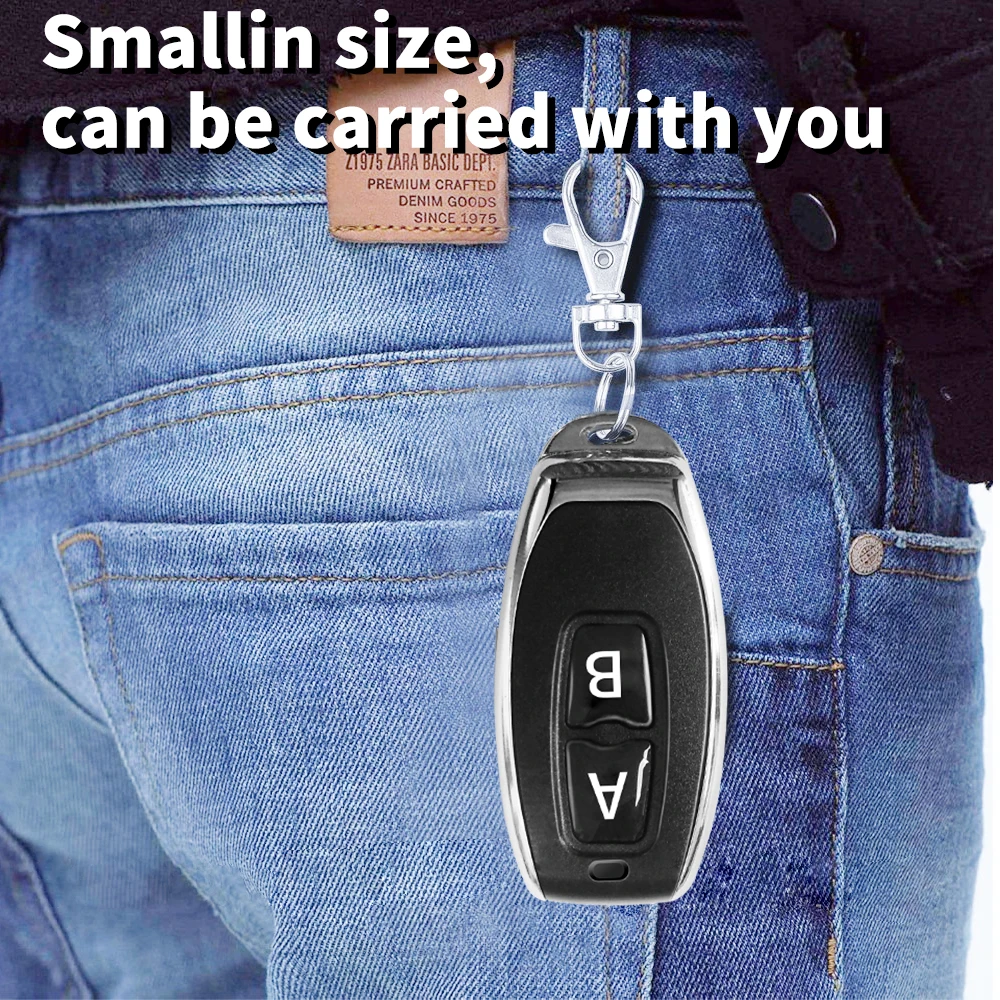

4:There is a hook on the mini AB remote control, you can hang it on the surface of the object at will.

Learning Settings

The set of products has been paired before leaving the factory, so this operation is not necessary. If you need to add or replace the remote control switch,refer to the following operating steps.

If you receive a set of products and the socket does not respond when pressing the remote control switch, please try pairing the socket with the remote control switch

The method is as follows:

1.Matching method

Press the receiver button twice continuously, the indicator light will light up. Press the remote control switch, and the receiver indicator light will flash,indicating successful code matching.

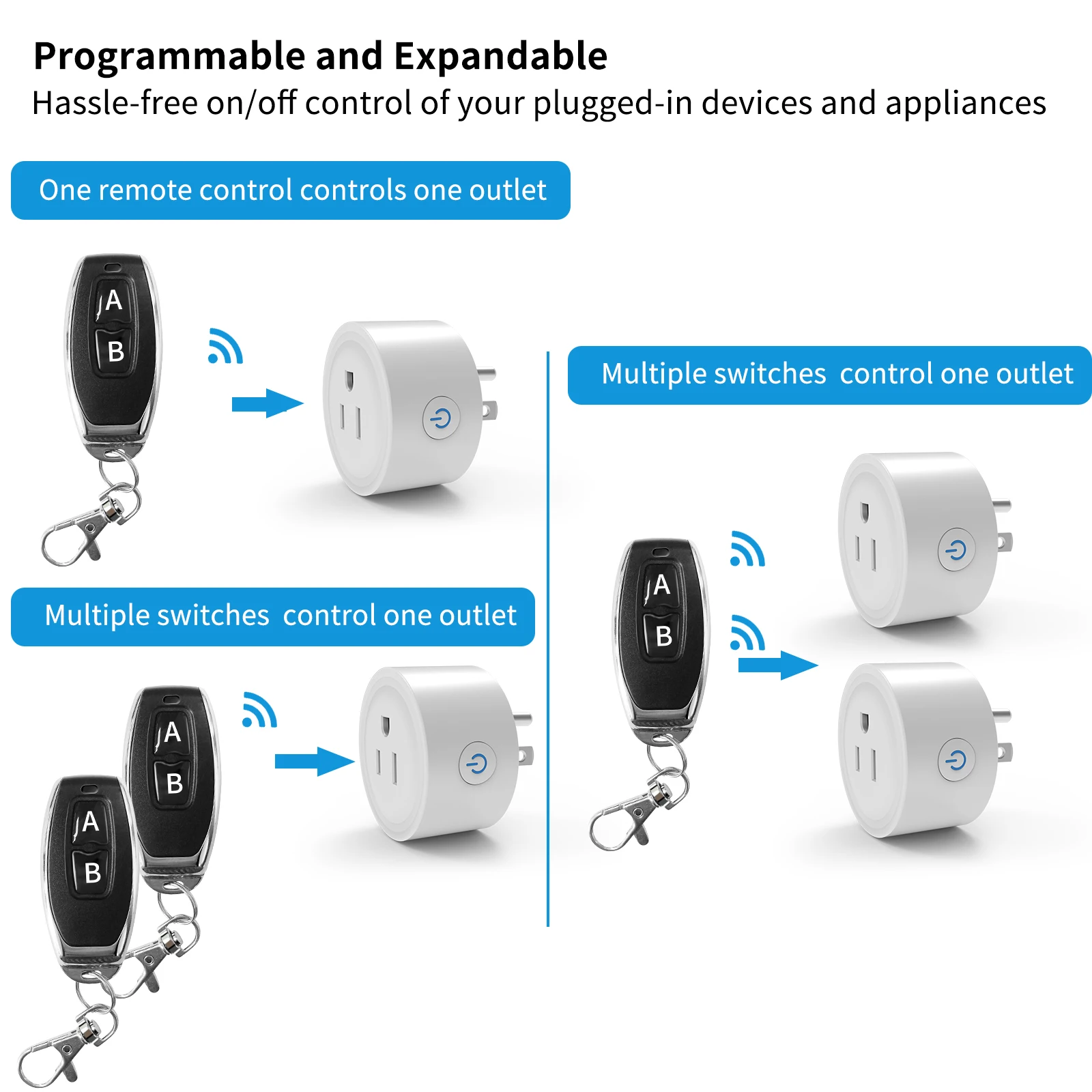

Note: The receiver stores 5 sets of buttons (remote control switch). If the number of buttons exceeds 5 sets, the first set of data will be automatically overwritten

2.How to clear the pairing code

Pressing the receiver button 8 times continuously and the indicator light flashing indicates successful code clearing

(After clearing the stored code in the receiver,all remote switches must be re paired with thereceiving device to be used)
