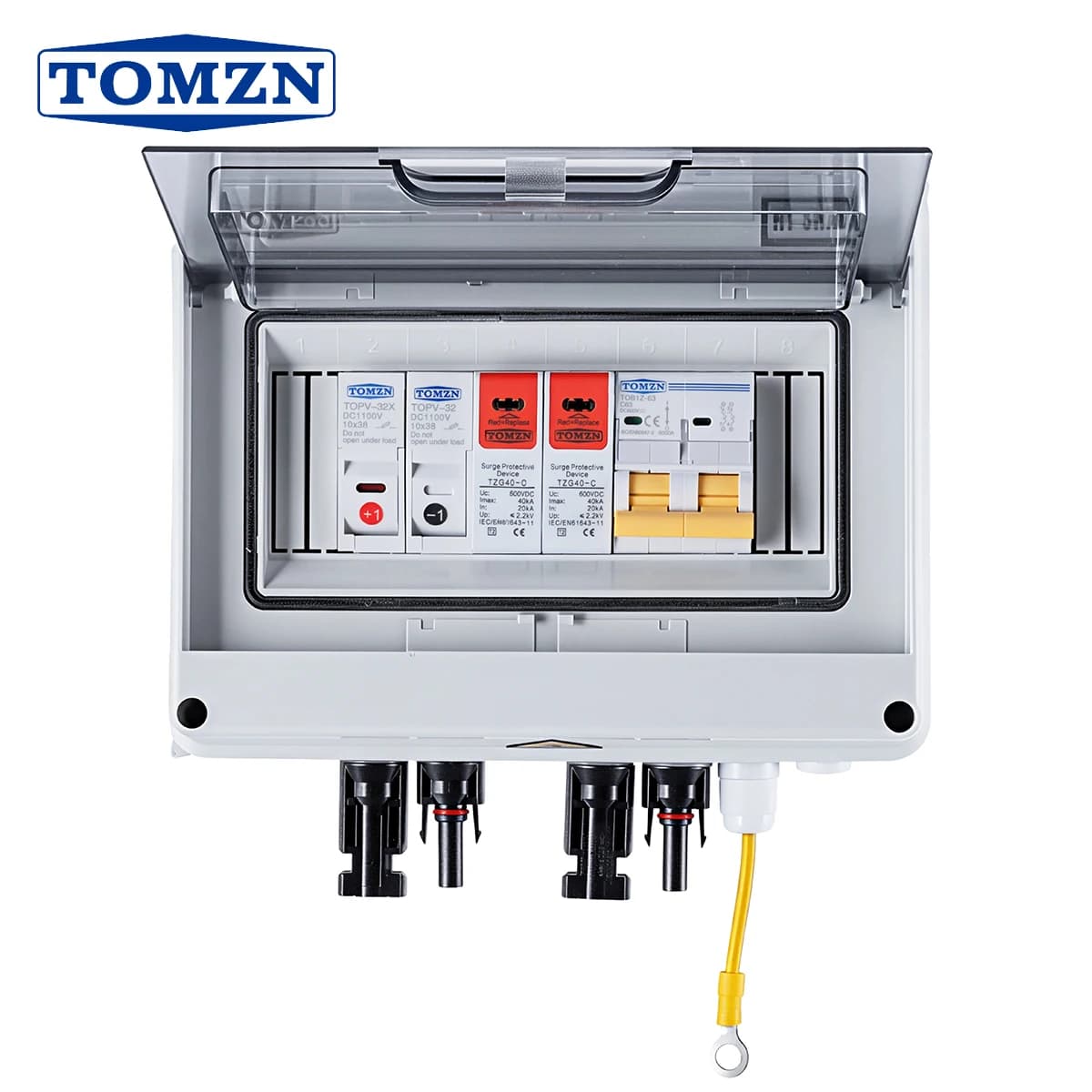

TOMZN HT 8WAY IP65 Photovoltaic Distribution Box 2P 600VDC 16A 20A 25A 32A 40A 50A 63A 1input 1output Fuse SPD MCB Combiner Box
34.1$
31.37$
Quantity:
1
Availability:
Rated Current
Poles Number
Card Payments
Crypto Payments
Easy return
Reliable Shipping
HT-8WAY Photovoltaic distribution box
2P 600VDC 16-63A
1 input 1 output
General
TOPV8HT-2-1 is an integrated protection solution designed for demanding DC power distribution scenarios. Featuring a compact enclosure, it consolidates multiple protective functions—including overload, short-circuit, and surge protection—into a single unit, ensuring safe and reliable management from power input to load output. Its core advantage lies in its "three-in-one" integrated design: the built-in DC circuit breaker provides switching and overload protection; the fuse bank ensures precise short-circuit protection for individual branch circuits; and the surge protective device (SPD) effectively safeguards equipment against lightning strikes and overvoltage transients. With an IP65-rated enclosure, it guarantees long-term, stable operation in outdoor or harsh industrial environments, offering excellent protection against dust and water jets. It is an ideal terminal distribution and protection unit for photovoltaic systems, energy storage equipment, DC charging piles, and industrial DC circuits.
Product Technical Specification
Model：TOPV8HT-1-1-600V
Rated voltage：600VDC
Rated current：16A 20A 25A 32A 40A 50A 63A
Mode of connection：1 input 1output
Customer Reviews
103 ratings
high quality (11)
fast delivery (8)
meets needs (4)
well-packaged (4)
well-organized (2)
slow delivery (2)
Customer photos (25)
E***Z
August 22, 2026
Variant: Rated Current:25A Poles Number:HT 600VDC 1IN1OUT
Very good Distribution Box.
Buyer from United States
August 11, 2026
Variant: Rated Current:40A Poles Number:HT 600VDC 1IN1OUT

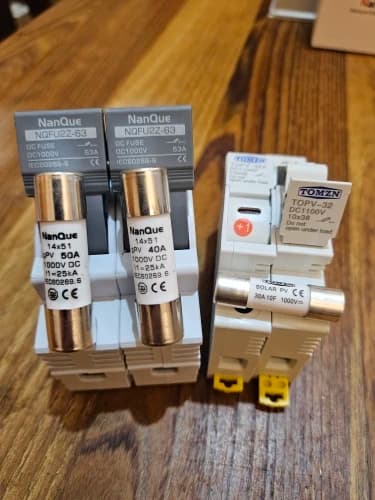

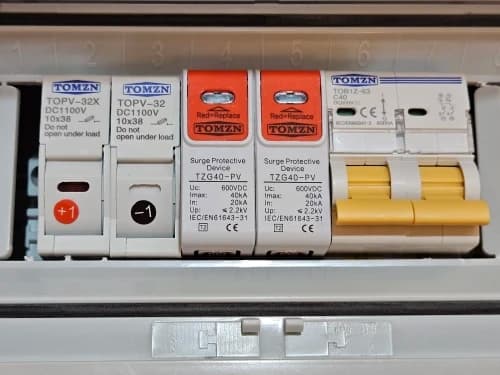

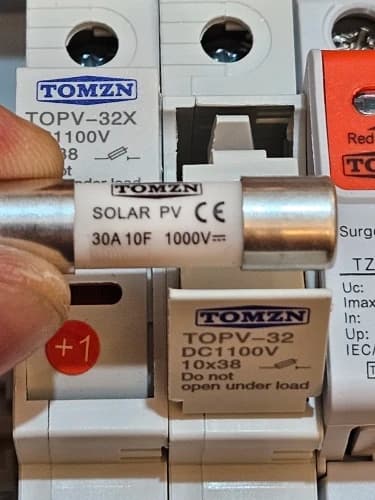

It i a good and usefull product, and it is the second time i'm purchasing it! But there is one problem... it is not realy 40 amp rated! (see pictures) to be rated for 40 amps, all the components must be rated for at least! 40 amps.. not less. The auto fuse is rated for 40am. And holds under constant 40amp load. But the fuse holder is rated for only 32 amp! And has a 30amp fuse in it! And it burns out under a 40 amp load! Not as described 40 amp! I had to buy a 63amp fuse holder and a 50 amp fuse, and cut the plastic electric box to make the larger fuse holder fit in, so that the auto fuse will trip over 40amps, and not blow the fuse constantly, as it is supposed to be. The fuse is only for emergency high amp overload, above and beyond the rating of the auto fuse. Why couldn't they get this right ? ? ?
Buyer from United States
June 1, 2026
Variant: Rated Current:40A Poles Number:HT 600VDC 1IN1OUT

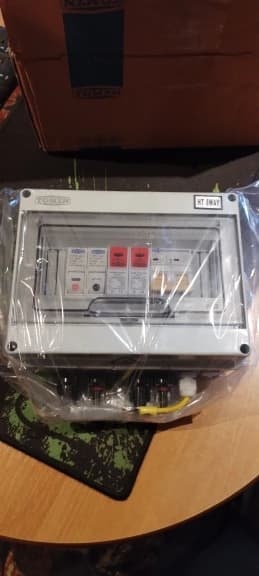

the item is as described. looks good! was verry well packaged! and arrived fast! I haven't tried it yet, but it looks to be a good product.
Buyer from Latvia
October 13, 2026
Variant: Rated Current:16A Poles Number:HT 600VDC 1IN1OUT
Fast delivery. The box is made of high-quality plastic and is sturdy. The overall impression is pleasant. Thanks to the seller, I recommend him.
d***r
October 8, 2026
Variant: Rated Current:20A Poles Number:HT 600VDC 1IN1OUT

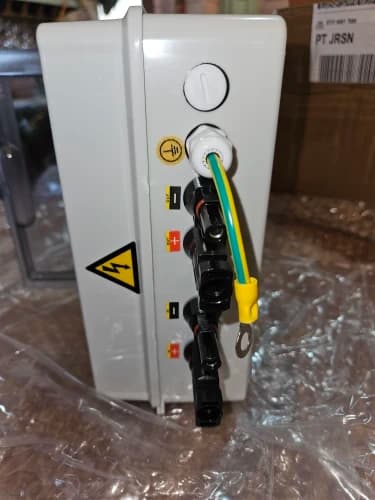

The output connectors should be flipped over, but it's very easy to do so. Very good product.
p***r
October 3, 2026
Variant: Rated Current:32A Poles Number:HT 600VDC 1IN1OUT
It arrived in great condition... excellent packaging... looks to be of very good quality.
