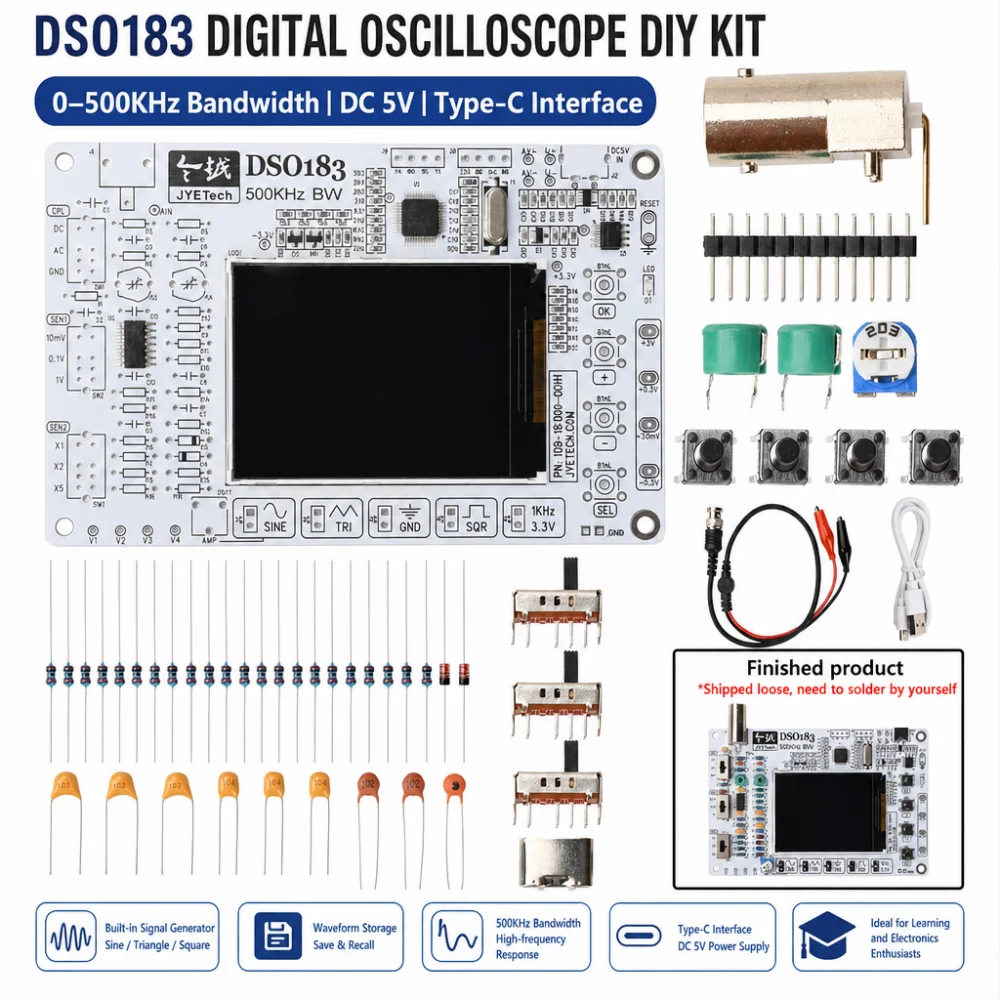

DSO183 DC 5V Digital Oscilloscope DIY Kit, 0–500 kHz Oscilloscope Electronics Soldering Kit, Type-C Connector
12.38$
5.94$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Product Features:
1. Single-board design: A compact, integrated structure that is easy to install, highly stable and suitable for a wide range of experimental environments

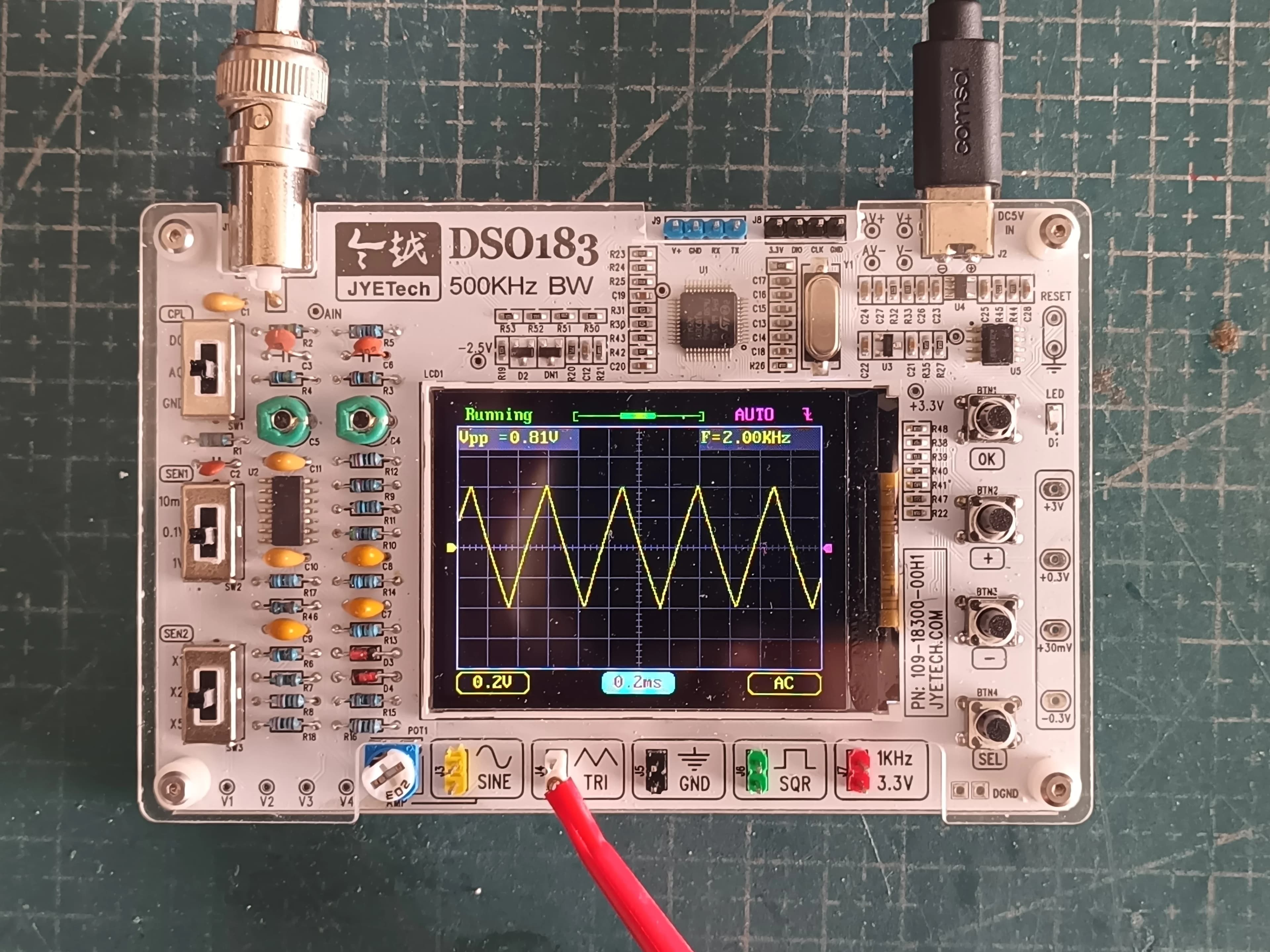

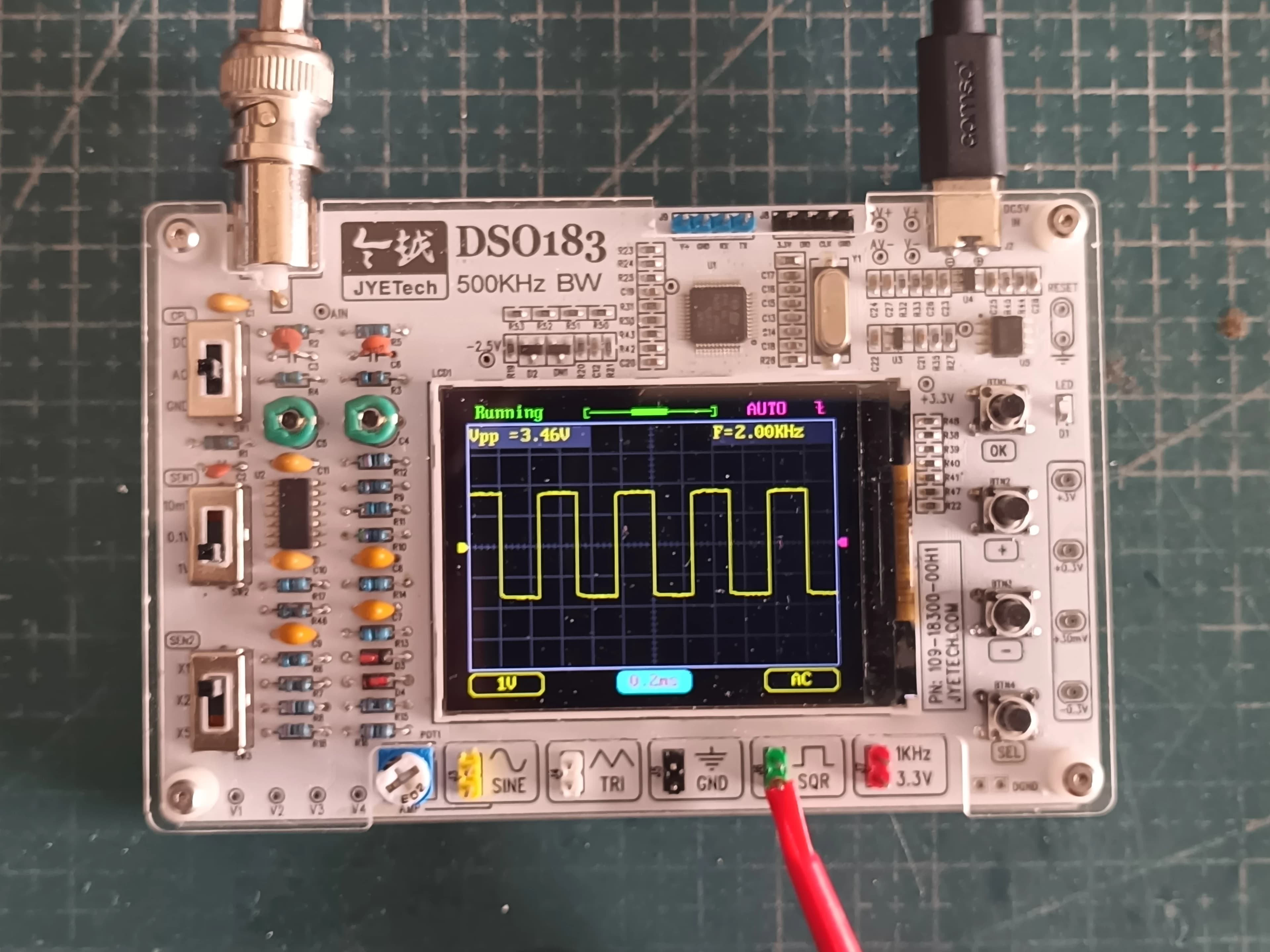

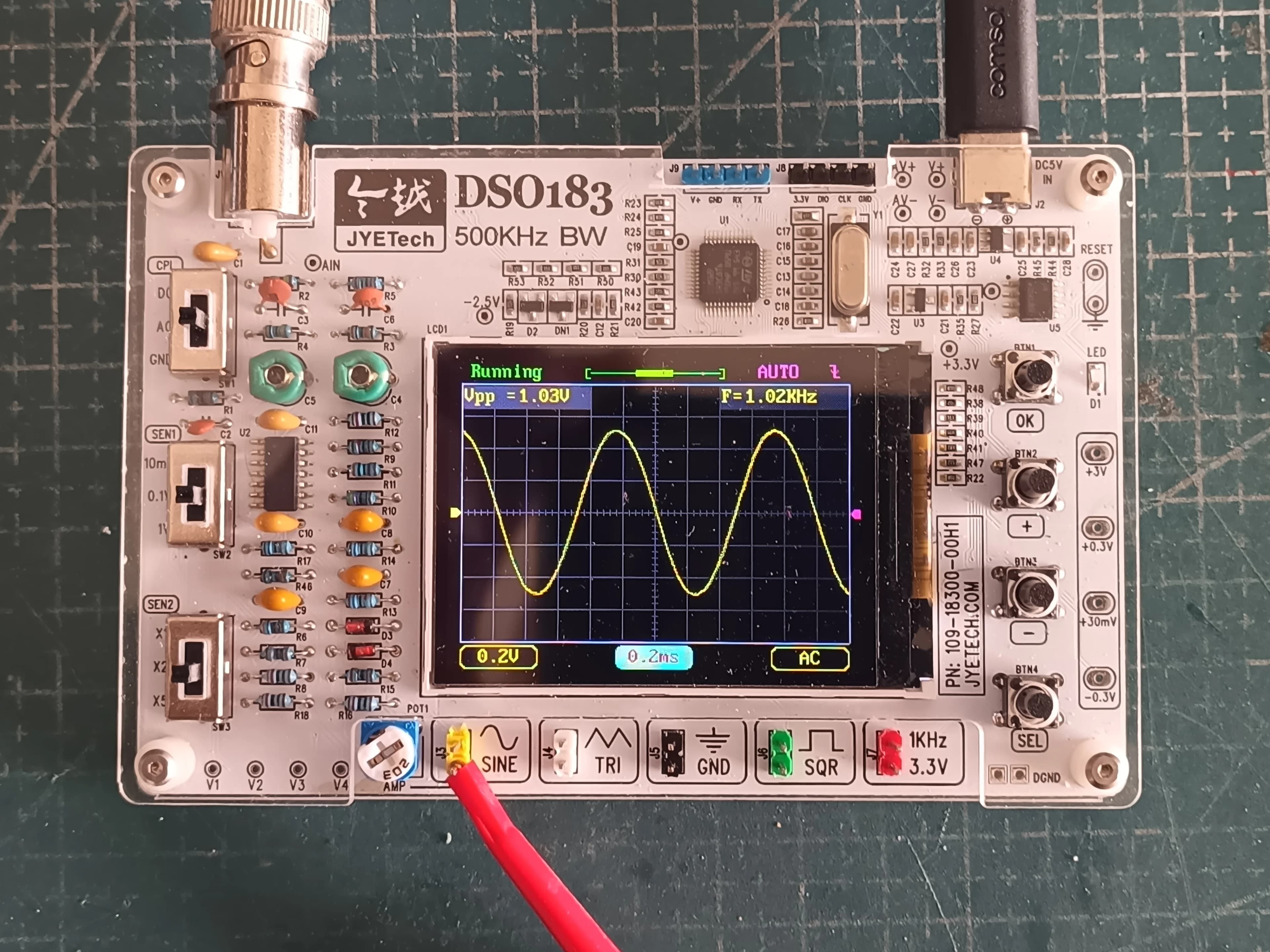

2. Built-in signal generator: Integrates multiple waveform output functions, including sine and triangle waves, to meet diverse testing requirements
3. Waveform storage and recall: Supports waveform saving and quick recall, facilitating comparative analysis and reuse
4. 500 kHz high bandwidth: Offers high-frequency response capability to accurately capture the details of complex signals
5. The ideal tool for electronics enthusiasts: Simple to operate and packed with powerful features, it is a valuable aid for learning electronics and exploring the world of circuits
Product Specifications:
Bandwidth: 500 kHz
ADC resolution: 12-bit
Real-time sampling rate: 1.5 Msps
Waveform buffer length: 1024 points
Vertical sensitivity range: 10 mV/division – 5 V/division
Input impedance: 1 MΩ
Maximum input voltage: 50 Vpk
Coupling modes: DC, AC, GND
Horizontal time base range: 1 µs/division – 500 s/division
Trigger modes: Auto, Normal, Single
Trigger edge: 1 µs/division – 500 s/division
Power supply: 5 V DC (powered via USB [Type-C port])
Current consumption: <100 mA
Product dimensions: 118 × 76 × 12 mm
Package contents:
List 1: DIY kit components × 1
List 2: Single shell × 1
Customer Reviews
270 ratings
adequate functionality (16)
easy to assemble (14)
deceptive packaging (13)
well-packaged (11)
fast delivery (11)
Customer photos (30)
Buyer from United States
September 28, 2026
Variant: Color:Single Shell

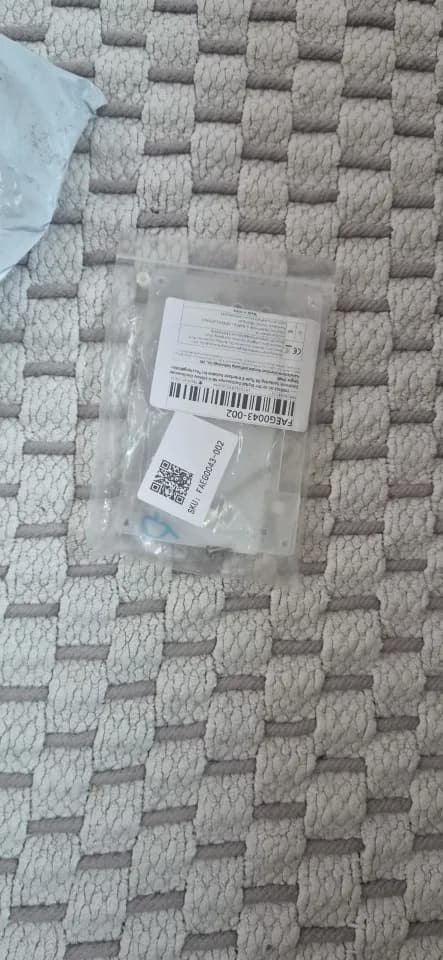

the case arrived with OUT the oscilloscope kit!
J***s
August 17, 2026
Variant: Color:DIY kit

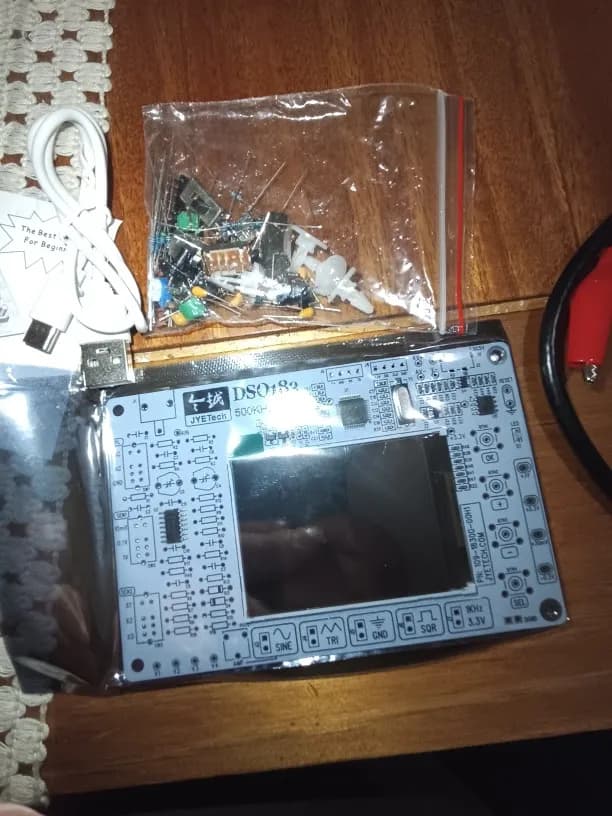

It is a perfect oscilloscope and well described to assemble. I have been really surprised by its capabilities and many functions. Really my compliments to the developer/supplier.
T***y
August 14, 2026
Variant: Color:Single Shell
Item description is very deceptive. On original item description, it showed as a diy kit for the oscilloscope. Then all that shipped was a single shell. You have to scroll the pictures to get the correct price. Very deceptive tactic.
Buyer from United States
July 10, 2026
Variant: Color:Single Shell
when I placed order 4th July sale all indications lead me to belive I was getting the scope itself and instead I got plastic housing for it kinda disappointed. even my order showed scope not the case. wish I snap shouted a picture of the order. these sellers make it extremely difficult to distinguish just what I your going to oder. show photo and console price then you start looking closer only to discover the actual thing your wanting is not what the big sale price is. nothing wrong with item just not what I needed at this time. ill keep it only 1.00
Buyer from United States
May 28, 2026
Variant: Color:Single Shell
be careful when you order. the low price item it defaults to is just the back plate of the case
T***d
May 13, 2026
Variant: Color:Single Shell
Do not recommend Seller or Product false advertising.
