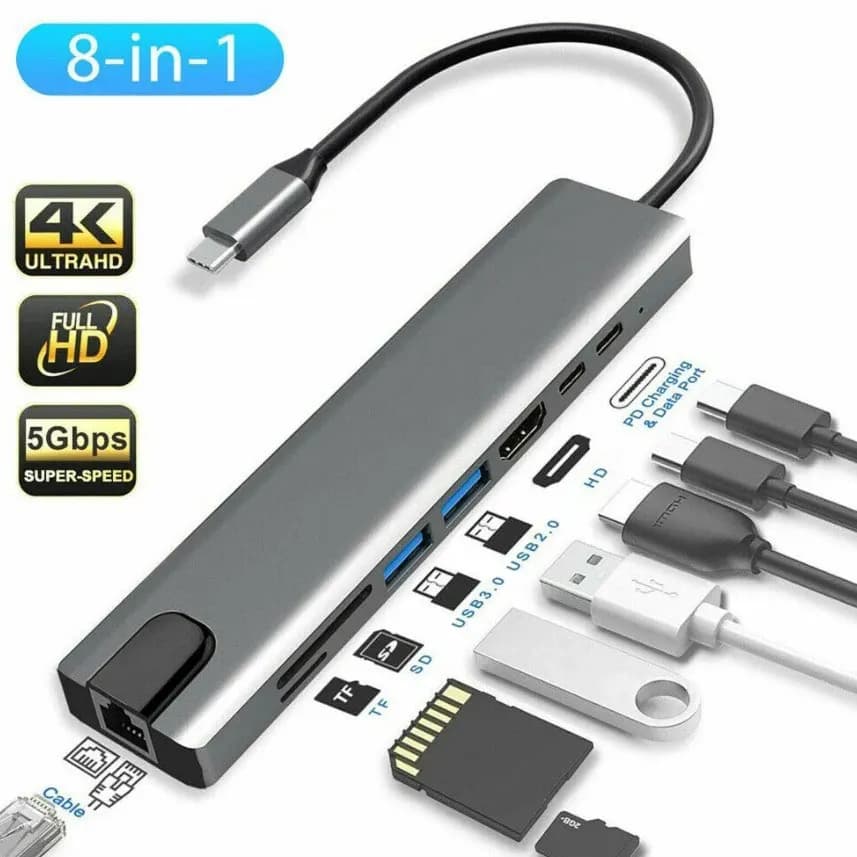

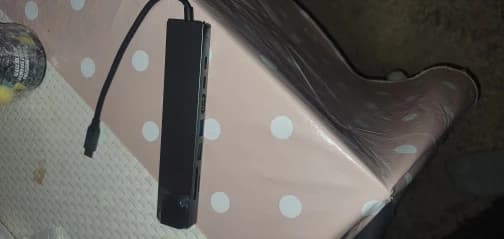

USB C Hub 8 In 1 Type C 3.1 To 4K HDTV Adapter with RJ45 100Mbps SD/TF Card Reader PD Fast Charge for MacBook Notebook Laptop

1、 Overview of Core Functions

• Supports HDTV high-definition video output

Equipped with USB 3.0+USB 2.0 data interface

Integrated RJ45 100Mbps Ethernet port for stable networking

• Supports PD 100W high-power reverse charging, charging while using

• Fully functional USB Type-C input interface, compatible with multiple devices

2、 Detailed technical parameters 1 input interface

Interface Type: USB Type-C Male (24Pin)

• Supported protocols: USB 3.1 Gen1, USB PD 3.0, DisplayPort Alt Mode

• Supports forward and reverse plugging, compatible with Thunderbolt 3 and USB-C video output devices

2. Video output interface

Interface type: HDTV 1.4b

• Highest resolution: 3840 × 2160 @ 30Hz (4K UHD)

• Backward compatibility: 1920 × 1080 @ 60Hz (1080P), 1280 × 720, etc

• Supports synchronous transmission of audio and video, compatible with HDTV audio devices such as speakers and televisions

• Applicable scenarios: external displays, projectors, televisions, conference presentations, etc

3. Data transmission interface

USB 3.0 interface x 1

• Transmission rate: up to 5Gbps

• Supports hot swapping, compatible with USB flash drives, portable hard drives, keyboard and mouse devices, etc

Interface color: Blue (standard USB 3.0 logo)

USB 2.0 interface x 1, PD2.0 x 1

• Transmission rate: 480Mbps

Suitable for low-speed peripherals such as keyboards, mice, printers, etc

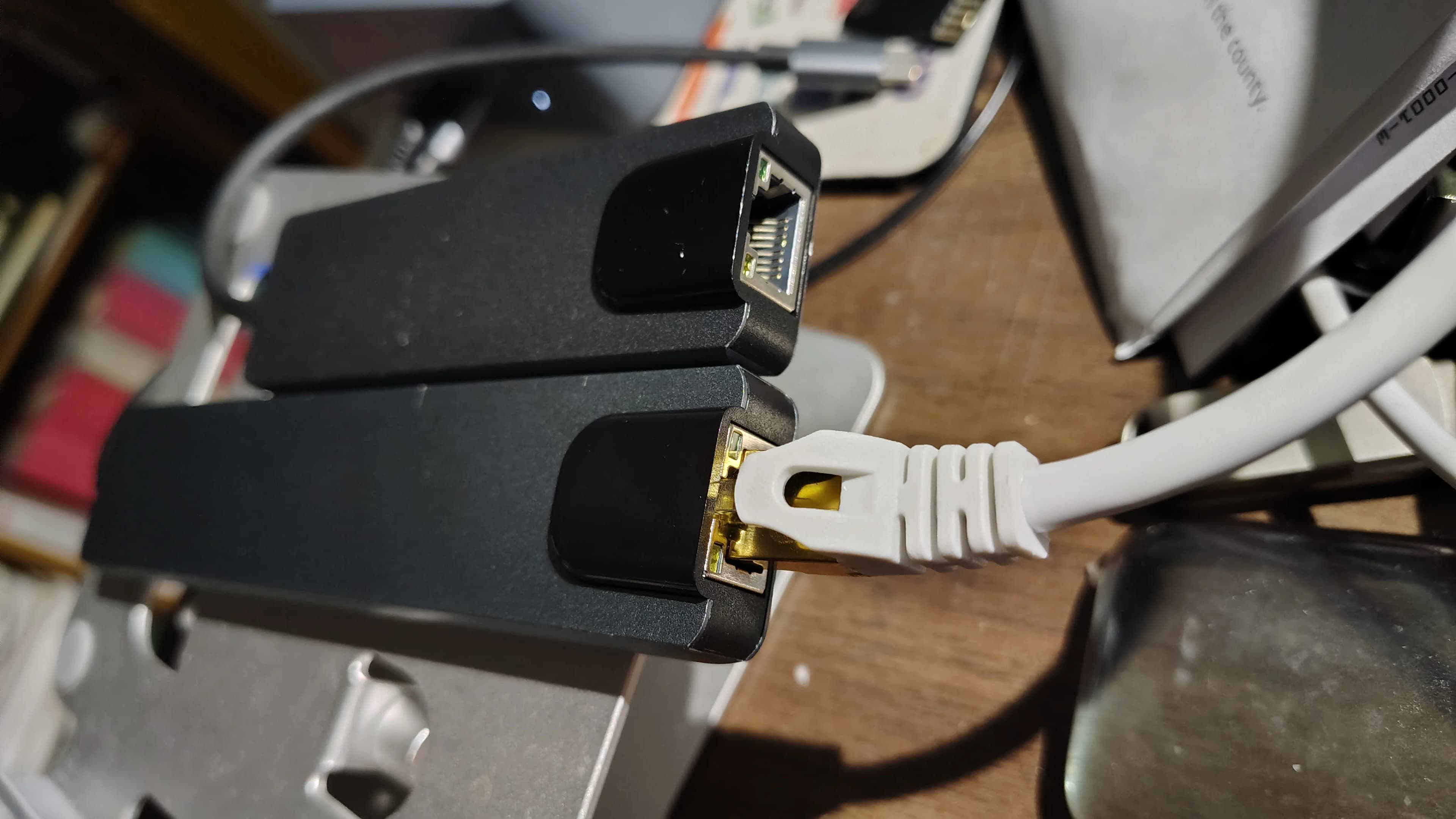

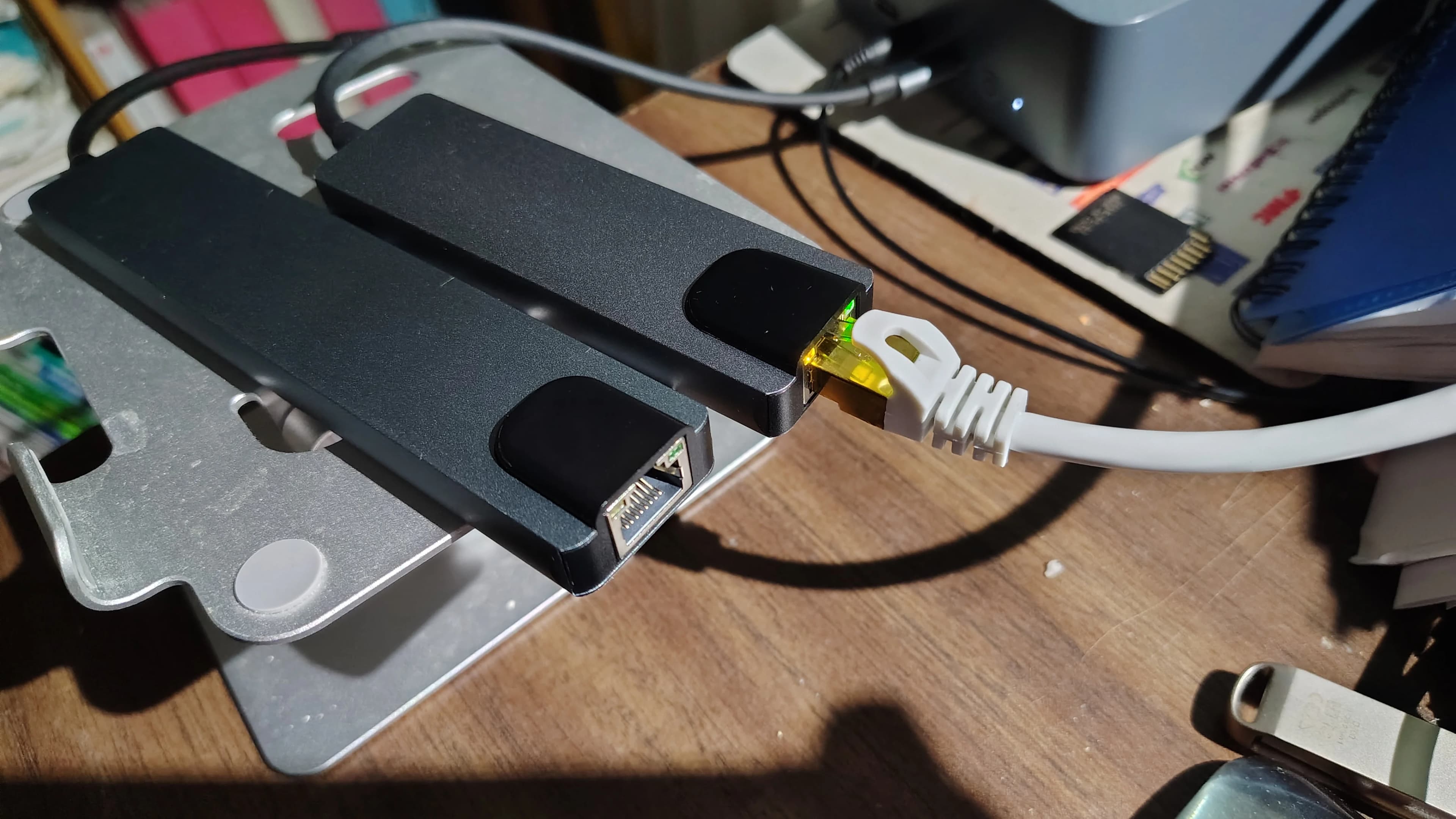

4. Network interface

Interface type: RJ45 Ethernet port

• Network speed: 10/100Mbps adaptive (100Mbps network)

• Supports IEEE 802.3/802.3u protocol

• Applicable scenarios: live streaming, remote meetings, file downloads, and other scenarios that require stable wired networks

5. Power transmission (PD charging)

• Supports USB Power Delivery 3.0 protocol

• Maximum input power: 100W (20V/5A)

• Supports charging while expanding, providing continuous power supply for devices such as laptops and tablets

Charging runs synchronously with data and video without slowing down or interruption

Recommend using original or certified power adapters that support PD 100W output

6. Compatibility

• Operating System:

•Windows 10/11

MacOS 10.12 and above

•Chrome OS

Android 6.0 and above (some devices require OTG enabled)

• Applicable equipment:

•MacBook Air/Pro（M1/M2/M3）

Huawei MateBook, MatePad

Lenovo ThinkPad, Yoga

Dell XPS, Inspiron series

Xiaomi, Samsung, OPPO and other phones/tablets that support USB-C video output

3、 Instructions for use

No need to install drivers, plug and play

Suggested connection sequence: Connect Type-C to the host first, and then connect the peripheral device

If charging is required, please use a power adapter that supports PD 100W to plug into the docking station for power supply (some models support independent power ports)

Video output requires the host to support DP Alt Mode or Thunderbolt 3
