Waveshare ESP32-S3 1.8inch AMOLED Touch Display Development Board, 32-bit LX7 Dual-core Processor, 368×448, ESP32 With Display

Description
ESP32-S3 1.8inch AMOLED Touch Display Development Board, 32-bit LX7 Dual-core Processor, 368448 Pixels, Accelerometer And Gyroscope Sensor, ESP32 With Display

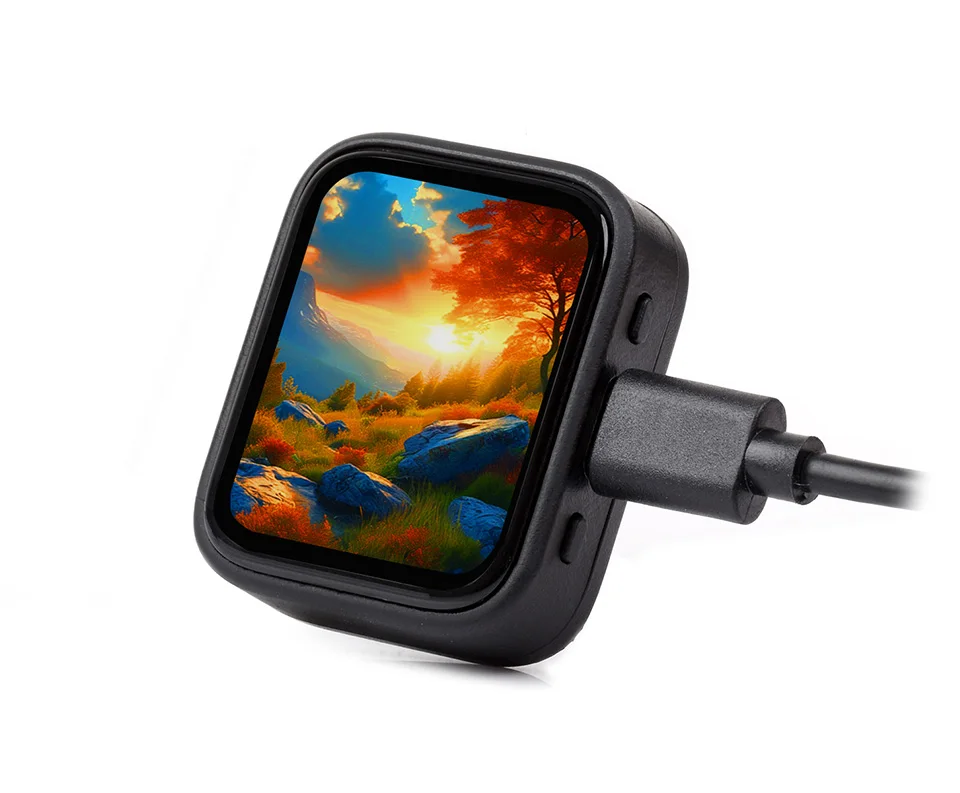

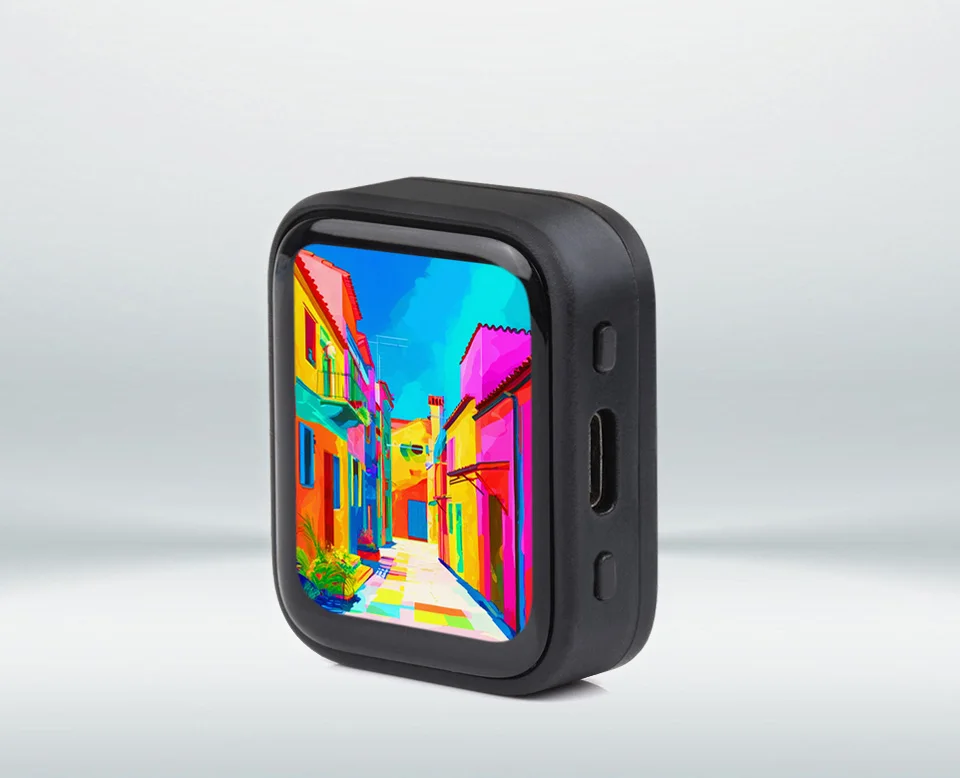

ESP32-S3-Touch-AMOLED-1.8
Embedded with SH8601 Display Driver and FT3168 Capacitive Touch Chip

Version Options

ESP32-S3-Touch-AMOLED-1.8-EN
Standard version, without Lithium battery

ESP32-S3-Touch-AMOLED-1.8
Comes with a 3.7V MX1.25 Lithium battery
(can be installed inside the case)
Features
ESP32-S3-Touch-AMOLED-1.8is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.8inch AMOLED display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate it into the products quickly.

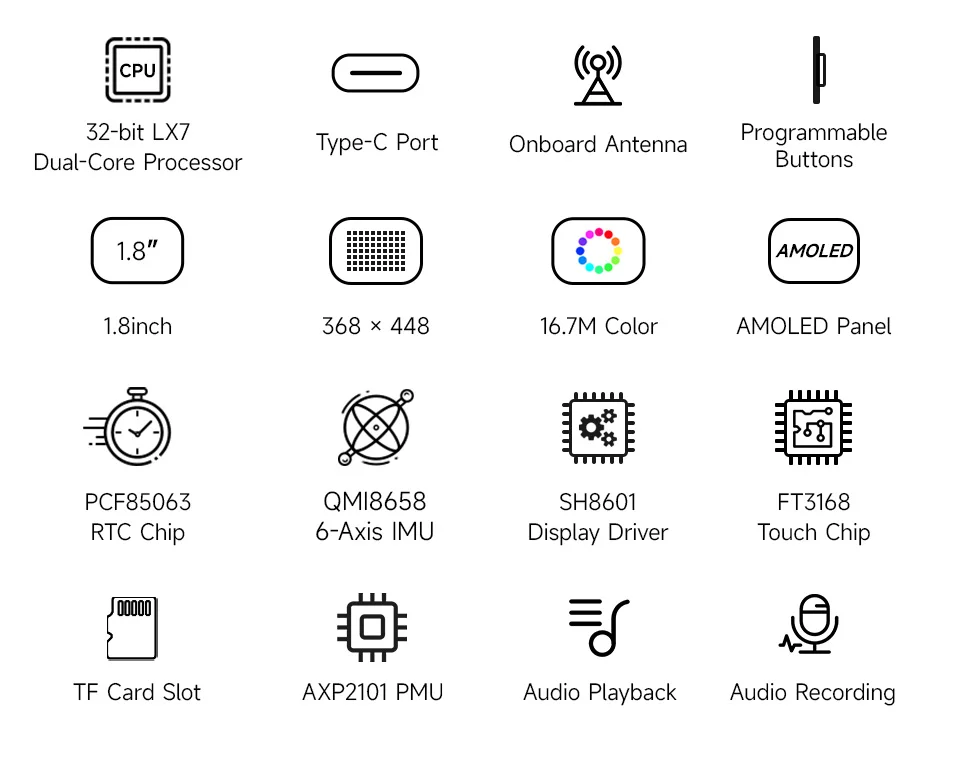

Key features include:
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use
Onboard 1.8inch AMOLED display for clear color picture display, 368 448 resolution, 16.7M color
Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads for connecting a backup battery, ensuring RTC function during the replacement of the main battery
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header, optional for 3.7V Lithium battery
Reserved pads of 7 GPIO, 1 I2C, 1 UART, and 1 USB interface, for connecting peripherals and debugging
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
AMOLED parameters
Display Panel
AMOLED
Display Size
1.8 inch
Resolution
368 448 pixels
Display Colors
16.7M
Brightness
350 cd/㎡
Contrast Ratio
100000:1
Communication Interface
QSPI
Driver IC
SH8601
Touch
Supported
Touch IC
FT3168
Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function. Supports installing battery* inside the case for independent operation.

* Note: the Lithium battery is optional.
Adopts AMOLED screen
The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image

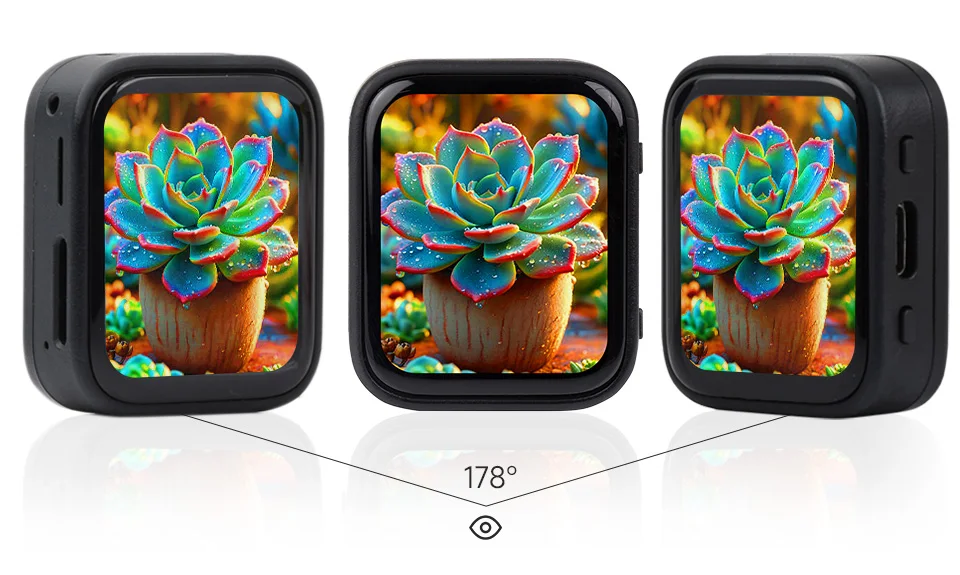

178 wide viewing angle
Excellent Display Performance, 16.7M color, wide viewing angle

Onboard audio codec
Supports high-quality audio processing, providing clear and high-quality audio input and output

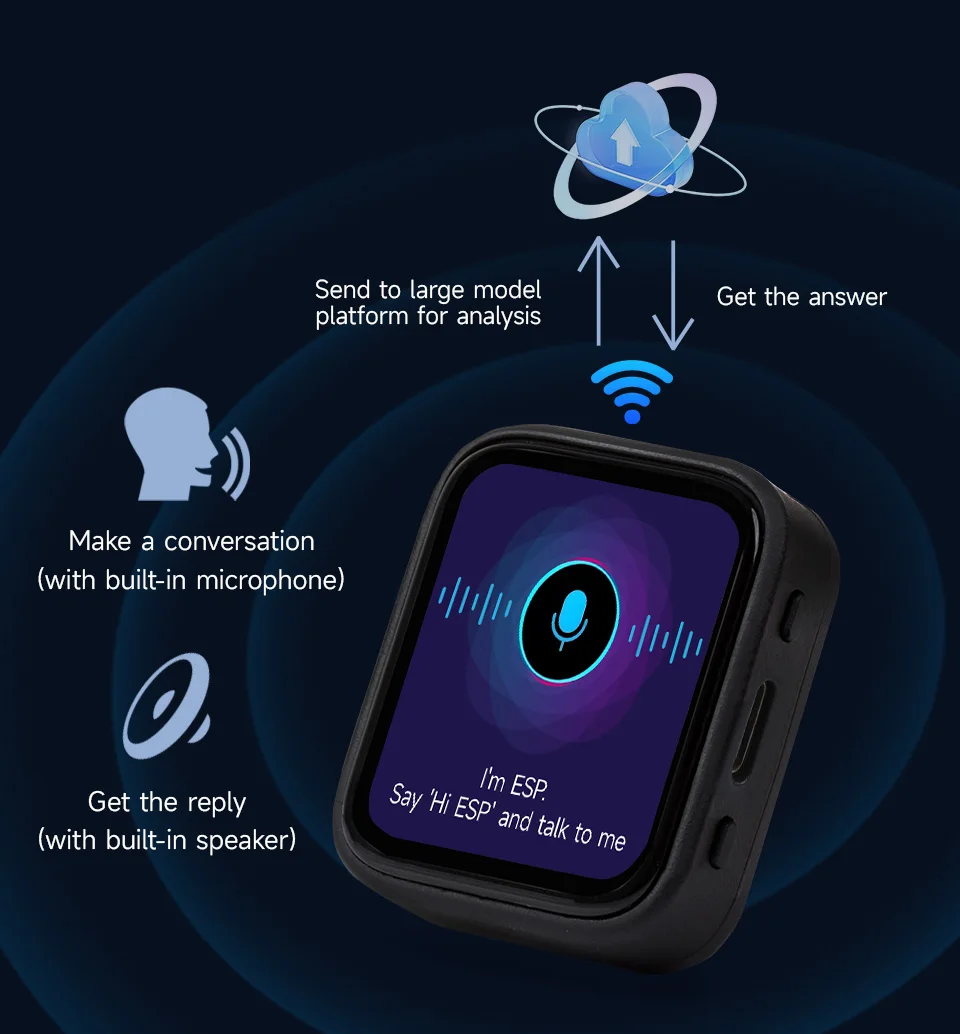

Supports Offline Speech recognition and AI Speech Interaction
Allows access to online large model platforms to support more AI application scenarios

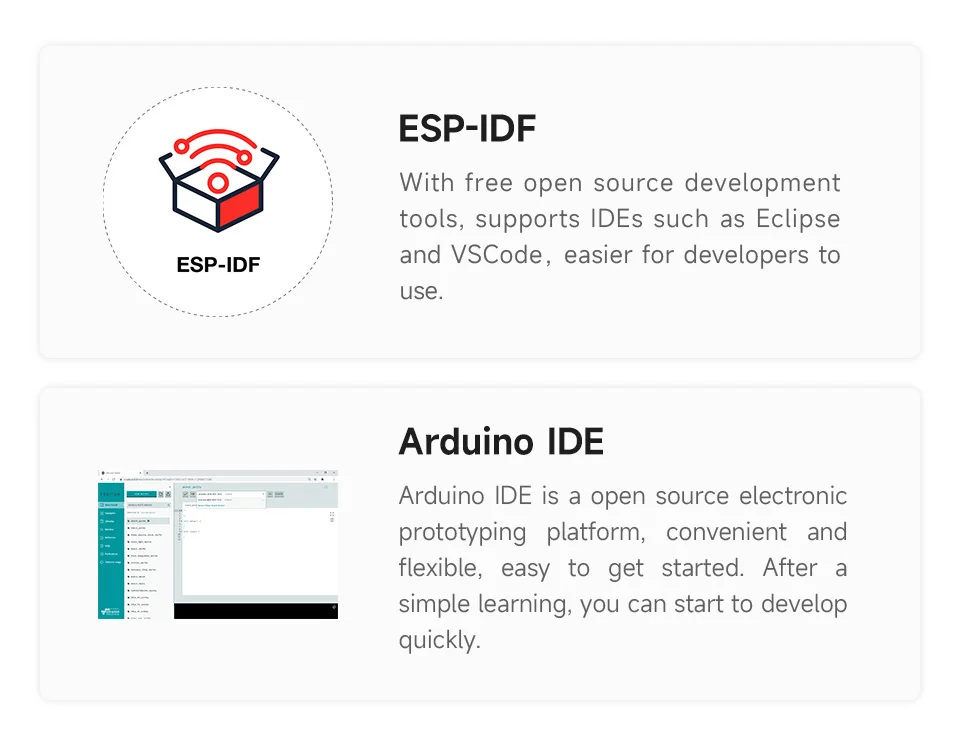

Supports ESP-IDF, Arduino
Comprehensive SDK, dev resources, tutorials to help you easily get started

Wi-Fi and BLE 5 support
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

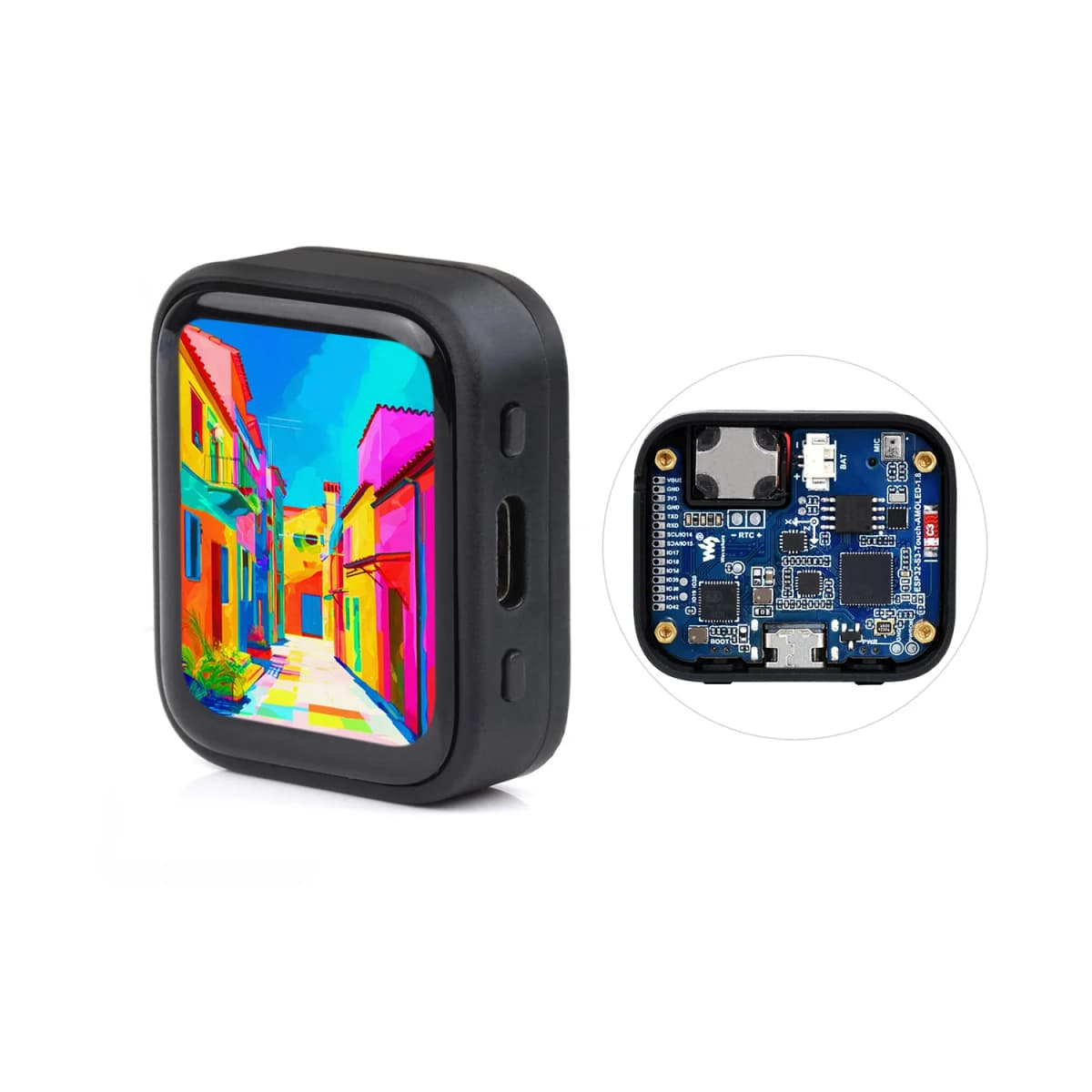

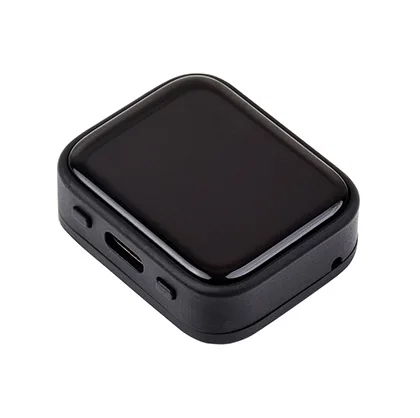

Dedicated black case, unique design
with removable back cover for easy embedded into the projects and DIY design

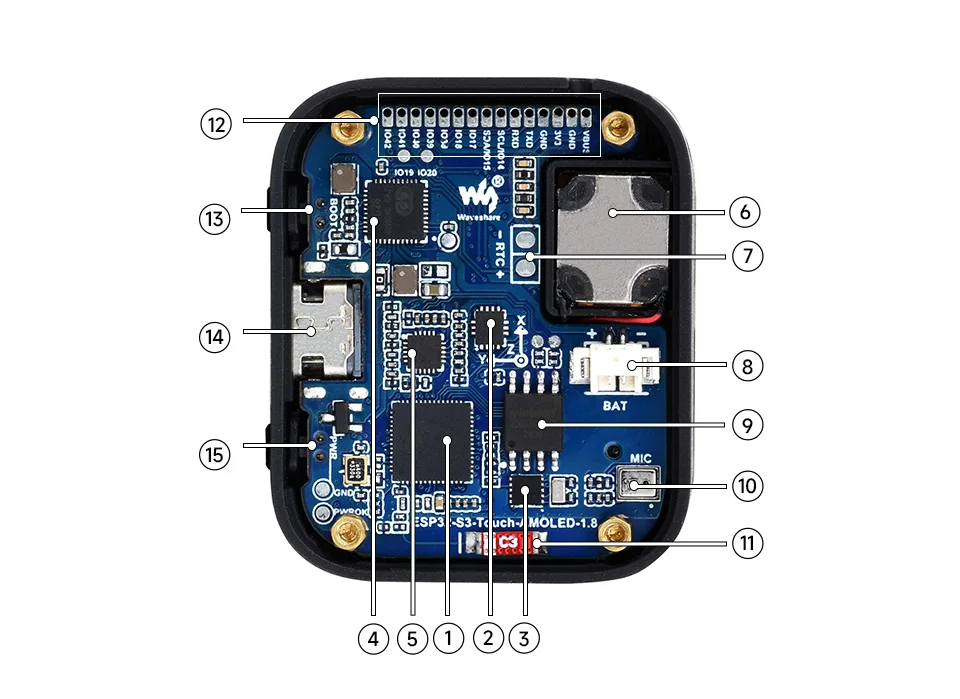

What's On Board

ESP32-S3R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
PCF85063
RTC chip
AXP2101
Highly integrated power management IC
ES8311
Low power mono audio codec
Speaker
Backup battery pads
for connecting backup battery, ensuring RTC function during the replacement of the main battery
MX1.25 Lithium battery header

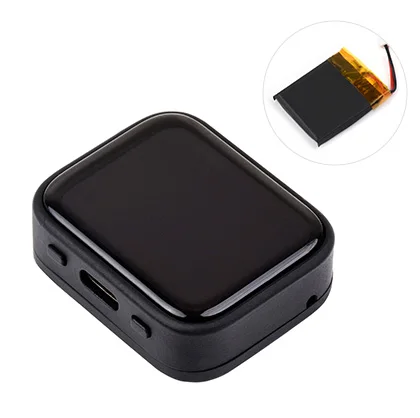

MX1.25 2P connector, for 3.7V Lithium battery (optional), supports charging and discharging. (To fit inside the case, a battery size of 3.85 24 28 mm is recommended)
16MB NOR-Flash
for storing data
Microphone
Onboard antenna
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
Reserved GPIO pads (pitch 1mm)
Adopting available IO function pins for easy expansion
BOOT button
for device startup and function debugging
USB Type-C port
ESP32-S3 USB interface, for programming and log printing
PWM button
for system power supply ON/OFF, supports custom functions

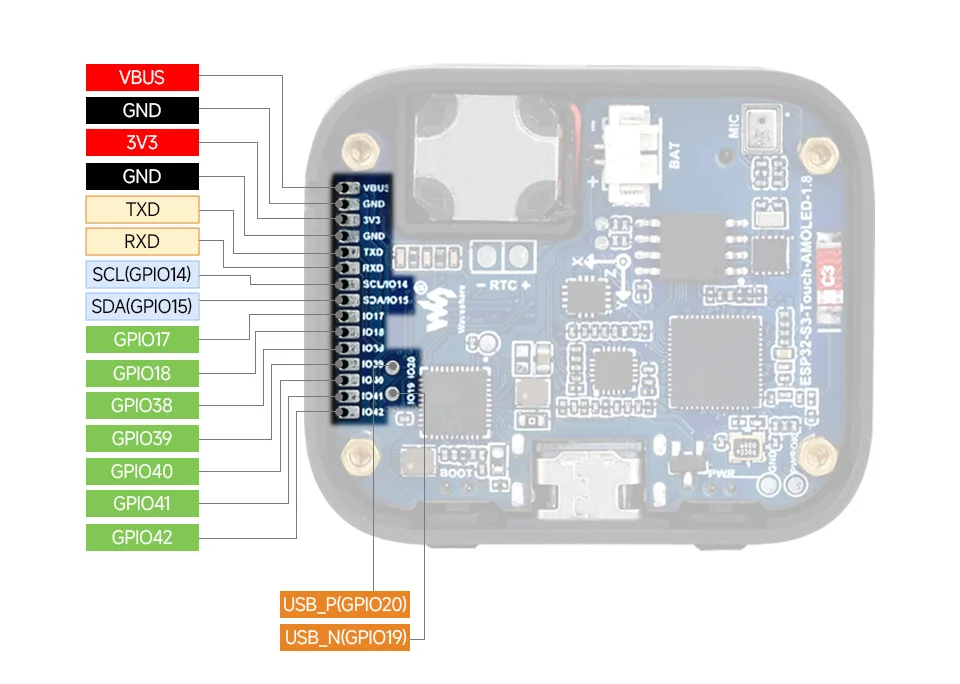

Pin Definition

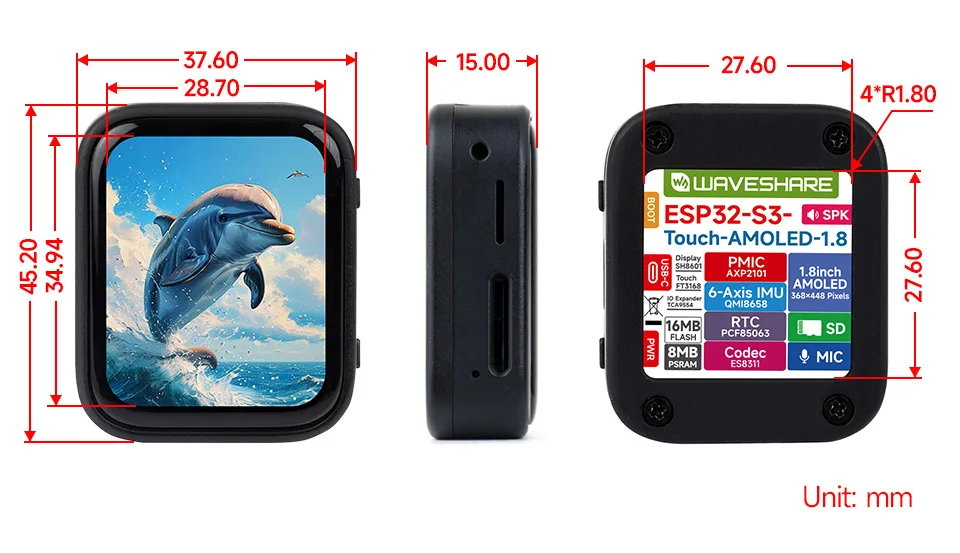

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/ESP32-S3-Touch-AMOLED-1.8
Package Content
Weight:0.024 kg
ESP32-S3-Touch-AMOLED-1.8 x1
OPTIONS3.7V MX1.25 Lithium battery 1
1

2
