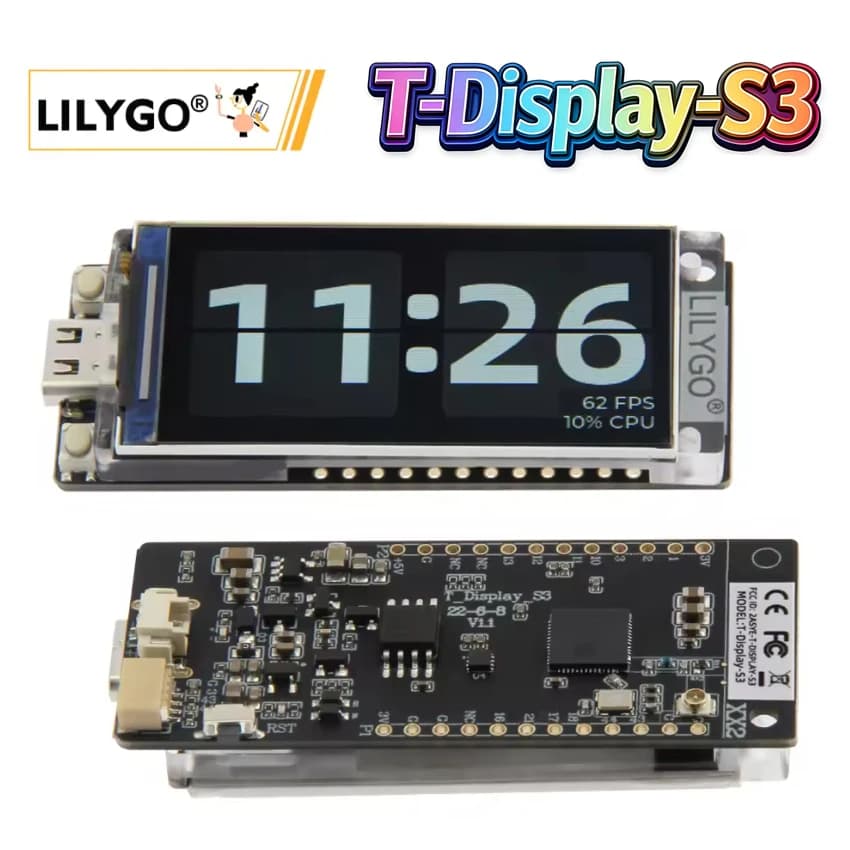

LILYGO® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution

T-Display-S3 Introduction

Introducing the latest addition to the T-Display series - the T-Display-S3. Equipped with the latest ESP32-S3 and Bluetooth 5.0, this model boasts a larger 1.9 inch screen and features an acrylic plate for added stability.

The T-Display-S3 maintains the sleek and modern design of the T-Display series.

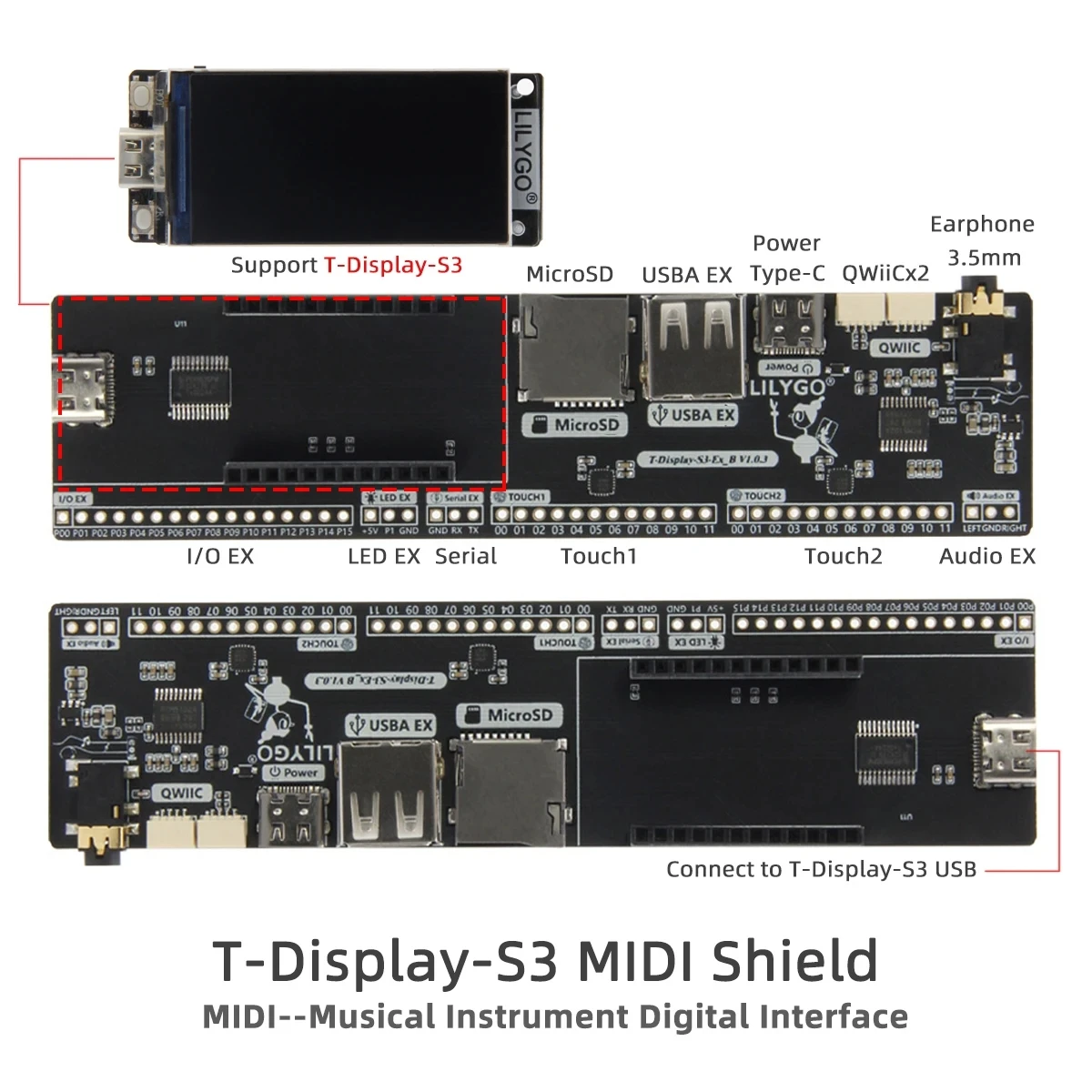

There are MIDI expansion boards for use with the T-Display S3

Connect it to headphones or a stereo and playback the simulated sound!

Compatible with T-Display S3

Basic Version

 and

Touch Version

.

⚠️[Please note that the package does not include the T-Display S3 device, only the MIDI Board; please select the appropriate version of the S3 to use with the MIDI Board according to your needs].

What engineers have done with T-Display-S3

Car Dashboard/Controller, Game, Monitors....

1.9 inch ST7789V IPS TFT LCD

Drive Chip

ST7789

Resolution

170(H) x 320(V)

Screen Size

1.9" Diagonal

Interface

8-Bit Parallel

Screen Type

TFT IPS LCD

Pixels Per Inch(PPI)

260

Screen Color

Full color

Color

White

Support USB/Li-Po Battery Dual Power Supply
