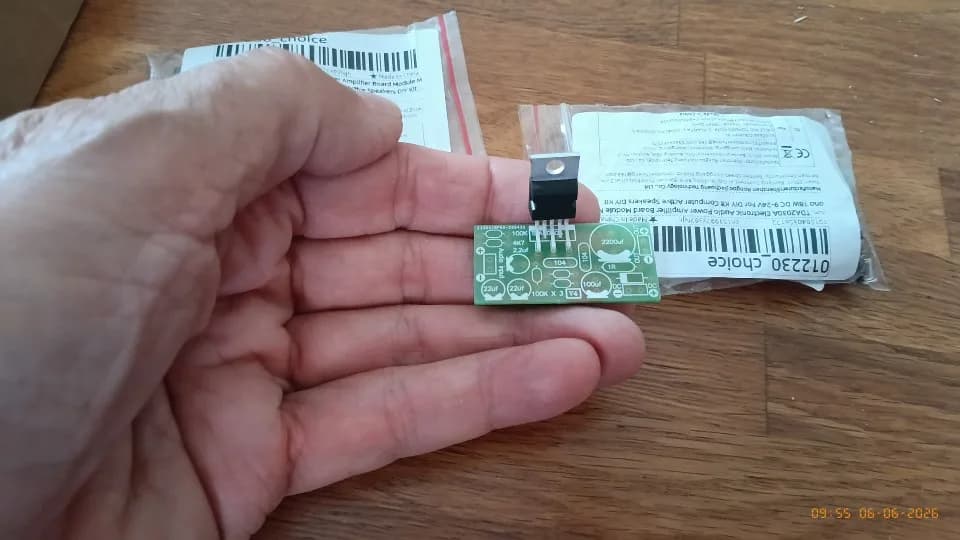

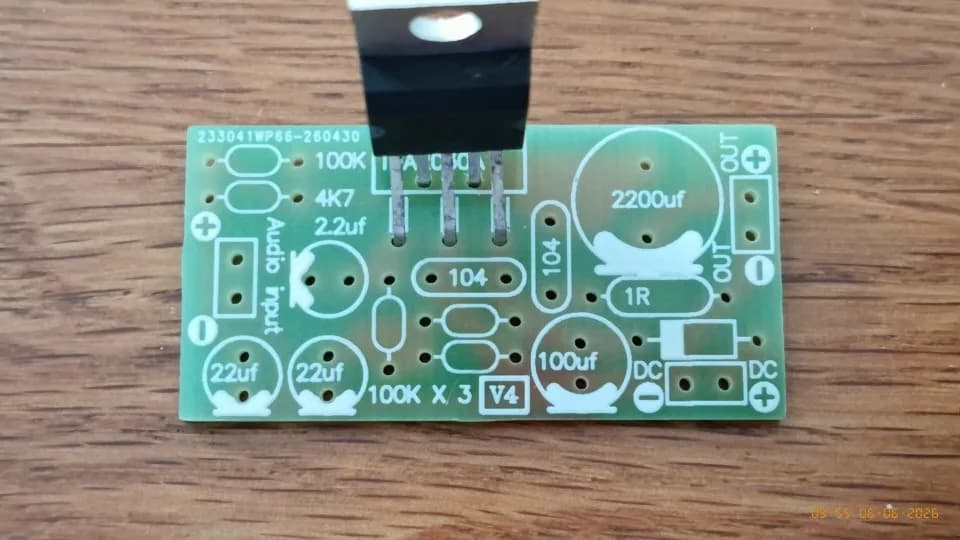

TDA2030A Electronic Audio Power Amplifier Board Module Mono 18W DC 9-24V For DIY Kit Computer Active Speakers DIY Kit

TDA2030A Electronic Audio Power Amplifier Board Module Mono 18W DC 9-24V For DIY Kit Computer Active Speakers DIY Kit

Features:

TDA2030A is widely used as Hi-Fi amplifier manifold in many computer active speakers.
Easy Installation.
It has the function of thermal shutdown, current limiting.
Minimum transmission distortion

Specifications:

Output Power: Maximum 18W
Supply Voltage: DC 9V-24V( recommended DC 12V, this voltage to the heat sink requirements are very low;
Maximum supply of this board is actually up to 40V, but you need to change the board's own electrolytic
capacitor C1, the capacitor voltage value is higher than supply voltage can be use. )
Static Current: about 25mA( disconnect to tone, connect to 8Ω speaker, 12V power supply. )
Speaker Impendance: 4Ω-8Ω
Total harmonic distortion: THD 0.08%（Po=0.1 to 14W，RL=4Ω）
SNR: 94dB-106dB（1W-15W）
Heat: The higher the supply voltage, the great the volume, the higher the heat

Note: This is DIY kit, you need to solder it by yourself!

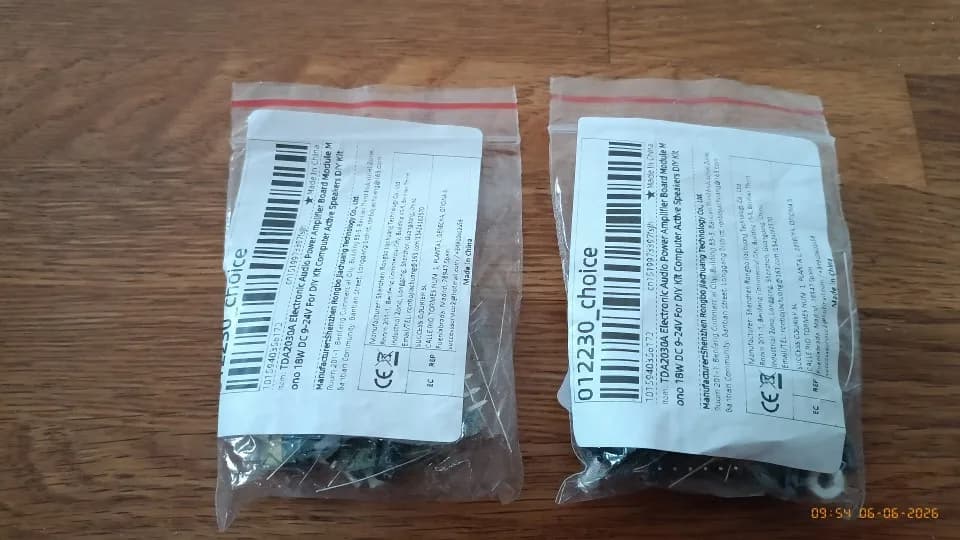

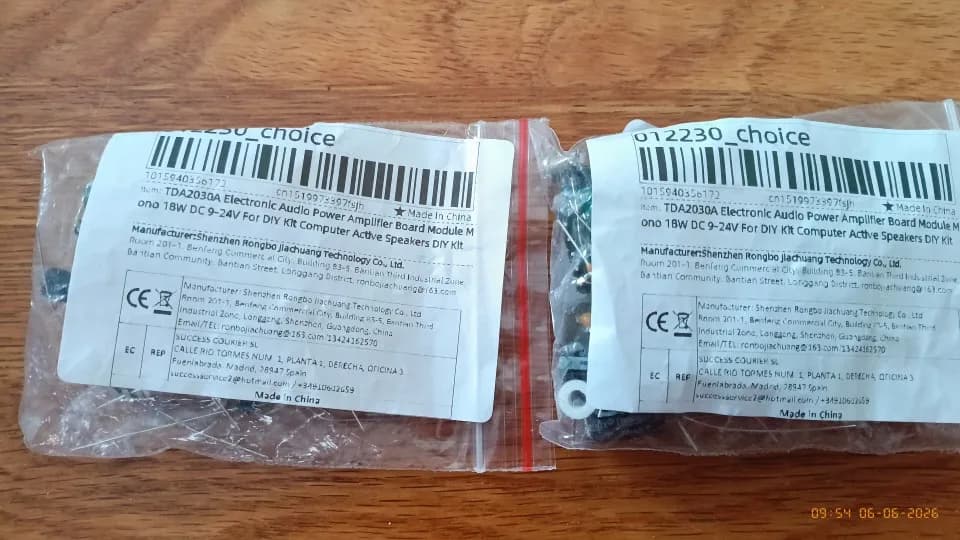

Package included:

1x TDA2030A Electronic Audio Power Amplifier Board Mono 18W DC 9-24V DIY Kit
