Decoding Display Electronic Manufacturing Loose Parts Training and Teaching Kit DIY Welding Matching Skills Simulation

Kit  Parameters:

Power supply voltage: 5V (DC power supply)

Board size: 50 * 50mm

Circuit  Diagram

CD4511 is a commonly used seven segment display decoding driver. In addition to the seven segment decoding circuit, it also has a latch circuit and an output driver part. It has the characteristic of high output current, up to 25mA driving current, and can directly drive LED digital tubes. CD4511 consists of four input terminals ABCD and seven output terminals a~g. It also has an input BCD code latch terminal LE, a light test LT, and a turn off control terminal BI. Among them, ABCD is the BCD code input, A is the low bit, and the input status can be controlled through S1-S4. When the corresponding switch is disconnected (remove the short-circuit cap), the input is low-level "0". When the corresponding switch is closed (put on the short-circuit cap), the input is high-level "1". LT is the light testing end. When the high level is applied, the display will display normally. When the low level is applied, the display will always display the number "8", and each pen segment will be lit up to check if there is a fault on the display. This function can be tested through S5. BI is the hidden function end, and when the low level is applied, it will display 1234567910112131415AABBCCD DEFG LTBI LEIC1 CD4511 R9 1K R10 1K R11 1K R11 1K R12 1K R13 1K R14 1K R15 1K a bc d ef g dp abc defgdp com Ds1 S4 S3 S2 S1 R11KR21K21 R31KR41K LED1 LED2 LED3 LED4 GNDR51KR61KR71KS7 S6 S5 VCC VCC VCC GND GND 12 JP1 C147uF GND R81KLED5GND816 has all pen segments hidden. When displayed normally, the B1 end should be raised to a high level. This function can be tested through S6. In addition, CD4511 has the characteristic of rejecting pseudocodes. When the input data exceeds the decimal number 9 (1001), the displayed glyph also disappears on its own. LE is the latch control terminal, which locks during high battery levels and transmits data during low battery levels. This function can be tested through S7. A~g is a 7-segment output that can drive a common cathode LED digital tube DS1. R1-R4 and R8-R15 in the circuit are the current limiting resistors of the LED

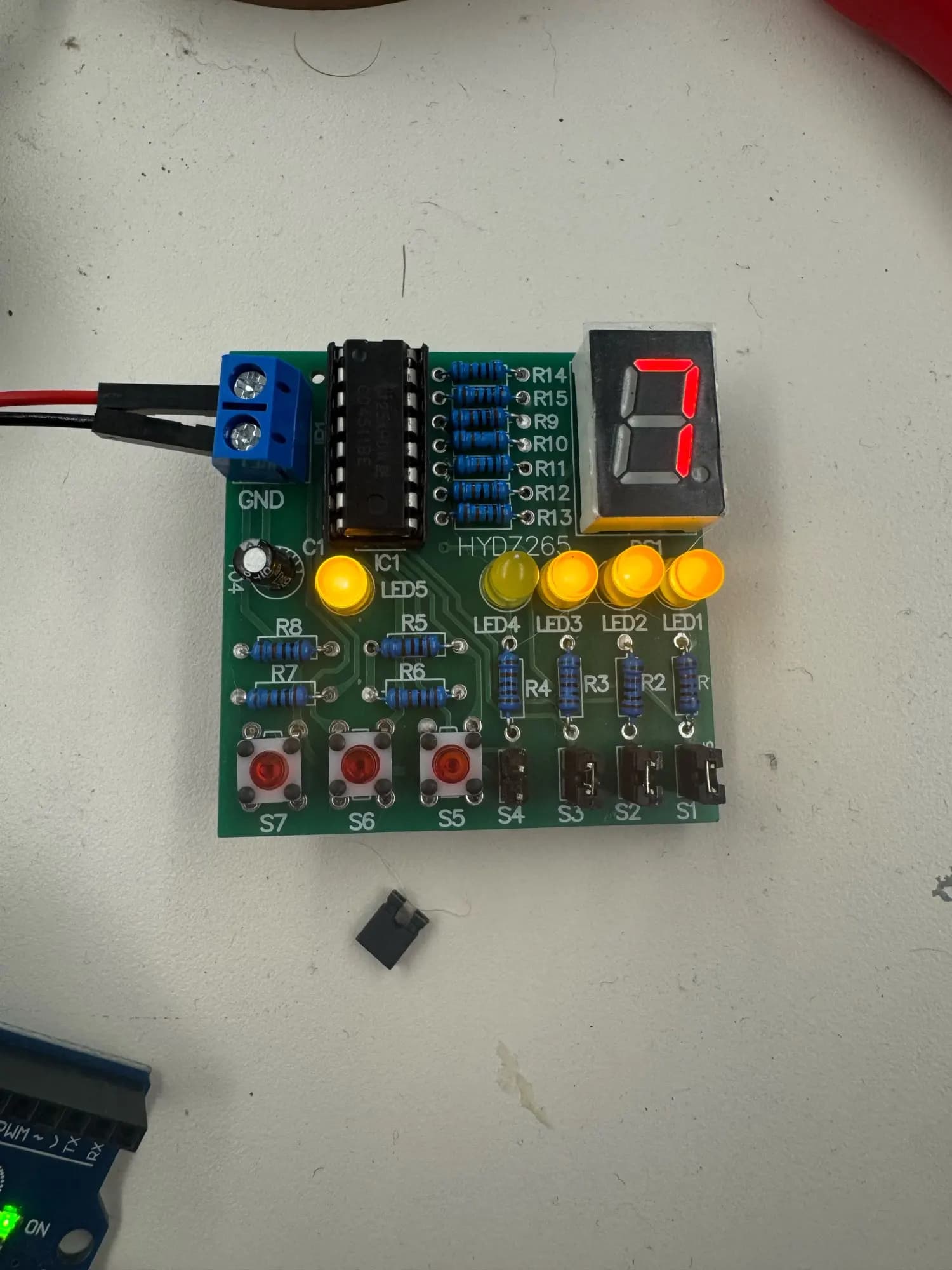

Product Images
