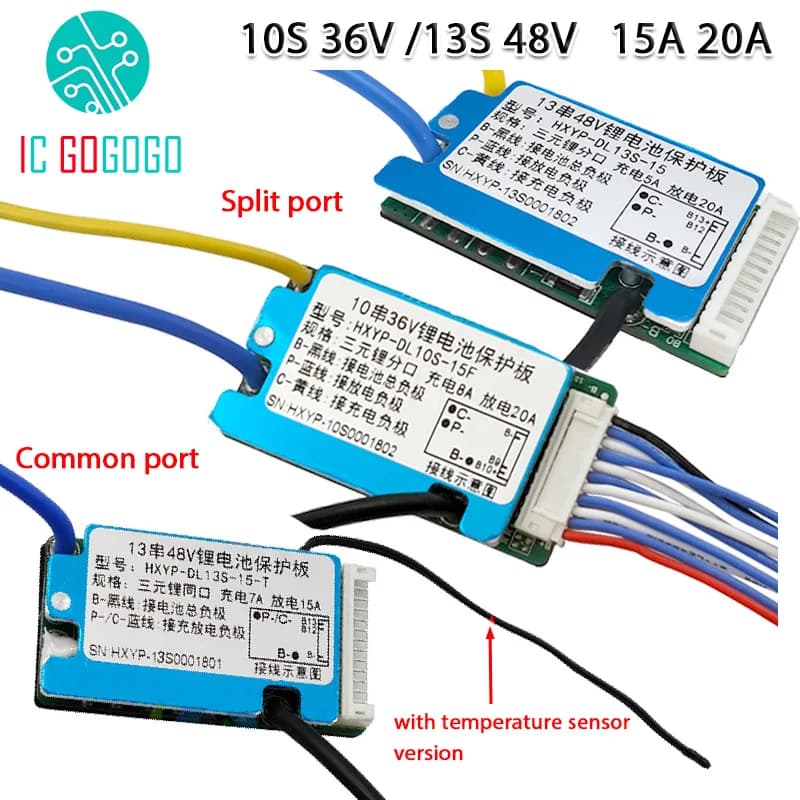

10S 36V 13S 48V 15A 20A Li-ion Lithium Ion Battery Protection Board Common Split Port BMS Temperature Sensor Heat Sink Separated
7.35$
7.35$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
check each version carefully before you placing order :
10S 36V 15A Common Port : No TC temperature sensor
HXYP-DL10S-15
discharge continuous 15A ± 2A
discharge peak : 40A±3A
charge limit voltage 42V
charge continuous limit :8A±1A
charge protection limit 10A ±1ASize :60mm*32.5mm*9mm
over charge voltage :4.25V±0.05V
over charge release :4.15V±0.1V
over discharge voltage :2.8V±0.025V
over discharge release :3V±0.05V
10S 36V 20A Split Port : No TC temperature sensor.
HXYP-DL10S-15F
discharge continuous 20A ± 2A
discharge peak : 40A±3A
charge limit voltage 42V
charge continuous limit :5A±1A
charge protection limit 10A ±1ASize :60mm*32.5mm*9mm
over charge voltage :4.25V±0.05V
over charge release :4.15V±0.1V
over discharge voltage :2.8V±0.025V
over discharge release :3V±0.05V
13S 48V 15A Common Port : No TC temperature sensor
HXYP-DL13S-15
discharge continuous 15A ± 2A
discharge peak : 48A±3A
charge limit voltage 54.6V
charge continuous limit :7A±1A
charge protection limit 10A ±1A
Size :60.5mm*32.5mm*8.5mm
over charge voltage :4.25V±0.05V
over charge release :4.15V±0.1V
over discharge voltage :2.8V±0.025V
over discharge release :3V±0.05V
13S 48V 20A Split Port : No TC temperature sensor
.HXYP-DL13S-15
discharge continuous 20A ± 2A
discharge peak : 48A±3A
charge limit voltage 54.6V
charge continuous limit :5A±1A
charge protection limit 10A ±1ASize :60.5mm*32.5mm*8.5mm
over charge voltage :4.25V±0.05V
over charge release :4.15V±0.1V
over discharge voltage :2.8V±0.025V
over discharge release :3V±0.05V
13S 48V 15A Common Port :with TC temperature sensor
HXYP-DL13S-15-T
discharge continuous 15A ± 2A
discharge peak : 48A±3A
charge limit voltage 54.6V
charge continuous limit :7A±1A
charge protection limit 10A ±1A
Size :60.5mm*32.5mm*8.5mm
over charge voltage :4.25V±0.05V
over charge release :4.15V±0.1V
over discharge voltage :2.8V±0.025V
over discharge release :3V±0.05V
over temperature protection -10°C～70°C
13S 48V 20A Split Port :with TC temperature sensor.
HXYP-DL13S-15-T
discharge continuous 20A ± 2A
discharge peak : 48A±3A
charge limit voltage 54.6V
charge continuous limit :5A±1A
charge protection limit 10A ±1ASize :60.5mm*32.5mm*8.5mm
over charge voltage :4.25V±0.05V
over charge release :4.15V±0.1V
over discharge voltage :2.8V±0.025V
over discharge release :3V±0.05V
over temperature protection -10°C～70°C
Customer Reviews
524 ratings
fast delivery (19)
works well (17)
high quality (16)
satisfactory (15)
as described (10)
acceptable (10)
Customer photos (30)
U***r
August 1, 2026

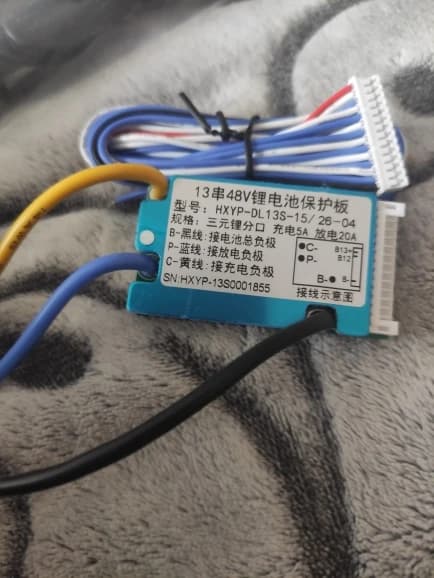

Variant: Color:13S 48V 20A Split
Plugged and play easy to install works great
Buyer from United States
July 13, 2026
Variant: Color:10S 36V 20A Split
Everything is great, thanks!
Buyer from United States
June 17, 2026
Variant: Color:10S 36V 20A Split
item is exactly as described by the website
Buyer from United States
April 1, 2026
Variant: Color:10S 36V 15A common
No sirvio
Buyer from United States
March 23, 2026
Variant: Color:13S 48 15A common

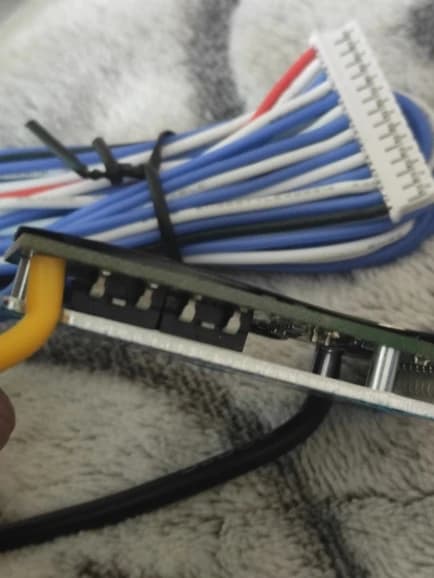

I tem came defective, charging mosfets were bad. I do not recommend.
