NEW Woods Lamp Skin Analyzer For Skin UV Magnifying For Beauty Facial Testing Wood Lamp Light Skin Analysis Detection Skin Care

NEW Woods Lamp Skin Analyzer For Skin UV Magnifying For Beauty Facial Testing Wood Lamp Light Skin Analysis Detection Skin Care

【Scope of application】

It is used to increase the operator's viewing angle and facilitate the observation of object details.

【Product information】

【Product Name】Woods lamp

【Models】DW-A100

【Package size】290mm×150mm×50mm

【Net weight】398g

【Gross weight】505g

【Eyepiece range】Viewing range through equipment eyepiece ≥ 20cm2

【Magnification】≥ 1.5 times

【Working distance】10cm±2cm

【Lens diameter】φ65±2mm

【Light source parameters】band：365nm±5nm；strength：1~10mW/cm2

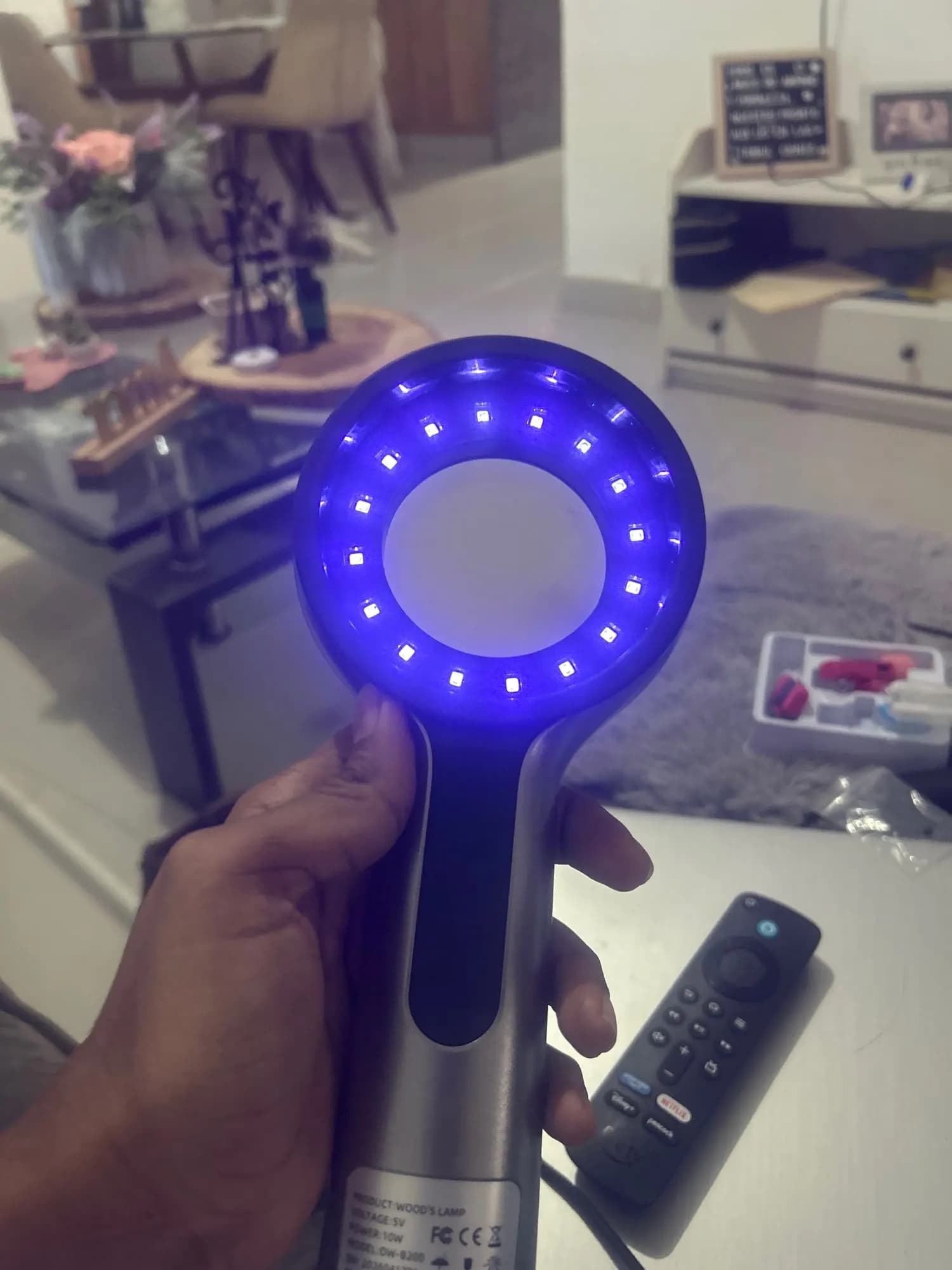

【Light source type】LED ring cold light source

【Number of light sources】16

【Light source life】About 15000 hours

【Product features】

1. No need to preheat, observe and use at any time;

2. Hand-held operation, flexible observation position;

3. Observe the skin lesions, color and fluorescence reaction of vitiligo, psoriasis, acne and other skin;

4. 16 LED light sources with high brightness, uniform light source and long service life;

5. There is no need to worry about the risk of damage of the wood lamp;

6. With charging function, USB/TYPE-C interface;

7. Built-in lithium battery, ultra-long endurance.

【Note】

1. After the instrument is used, please put it in the instrument box and store it in a ventilated and dry place.
2. When there is dust on the lens surface, please gently brush it off with a soft brush or gently wipe it with lens paper. Do not wipe with hard paper or unclean objects, and avoid ethanol-based, amino- or acetone-based cleaners. Never immerse a medical magnifying glass in liquid.
3. Do not use in a high temperature, humidity, full of water vapor or direct sunlight environment.
4. Do not disassemble the medical magnifying glass without authorization.
5. Do not look directly at the light source, patients must close their eyes during facial skin examination.
6. Infants and minor patients should be used under adult supervision.
7. If disinfection is required, please take a small amount of medical grade chloric acid disinfectant with medical absorbent cotton vegetables under the condition that the power key of medical magnifying glass is off, and gently wipe the surface of the shell of medical magnifying glass for disinfection.

【Usage】

1. First, turn on the power button on the handle of the medical magnifying glass and light the ring light.
2. Place a medical magnifying glass close to the skin to observe the skin lesions, color and fluorescence reaction of vitiligo, psoriasis, acne and other skin diseases.
3. After use, press the power button to turn off the power.

【Storage method】

This product should be wiped clean and put into the instrument box, stored in the relative humidity is not more than 80%, no corrosive gas, well ventilated, dry and cool room.
