SucceBuy 15T Hydraulic Gear Puller Adjustable 3 Jaws Wheel Bearing Puller Separator Drawing Machine Wheel Bearing Removal Tool

Product Description

Elevate Your Work with the 15T Hydraulic Gear Puller

Power and Precision in Hydraulic Gear Pulling

"Introducing the SucceBuy 15T Hydraulic Gear Puller, engineered from high-quality steel to deliver exceptional strength and durability. With a robust 15-ton capacity, this tool offers versatile operation in both horizontal and vertical orientations. It's perfect for extracting hubs, flanges, gears, bearings, and a variety of other components with ease and efficiency. Experience enhanced functionality with its adjustable jaws, ensuring a secure grip and precise handling for different pulling tasks. The bidirectional operation capability further enhances its versatility, allowing you to tackle a wide range of pulling jobs effortlessly. Designed with user comfort in mind, its ergonomic features make operation intuitive and comfortable."

Premium steel construction ensures durability and reliable performance.

Two or three jaws allow for efficient extraction of hubs, flanges, gears, and bearings.

Adjustable jaws provide precise and secure grip.

Bidirectional operation enhances flexibility and ease of use.

Key Features

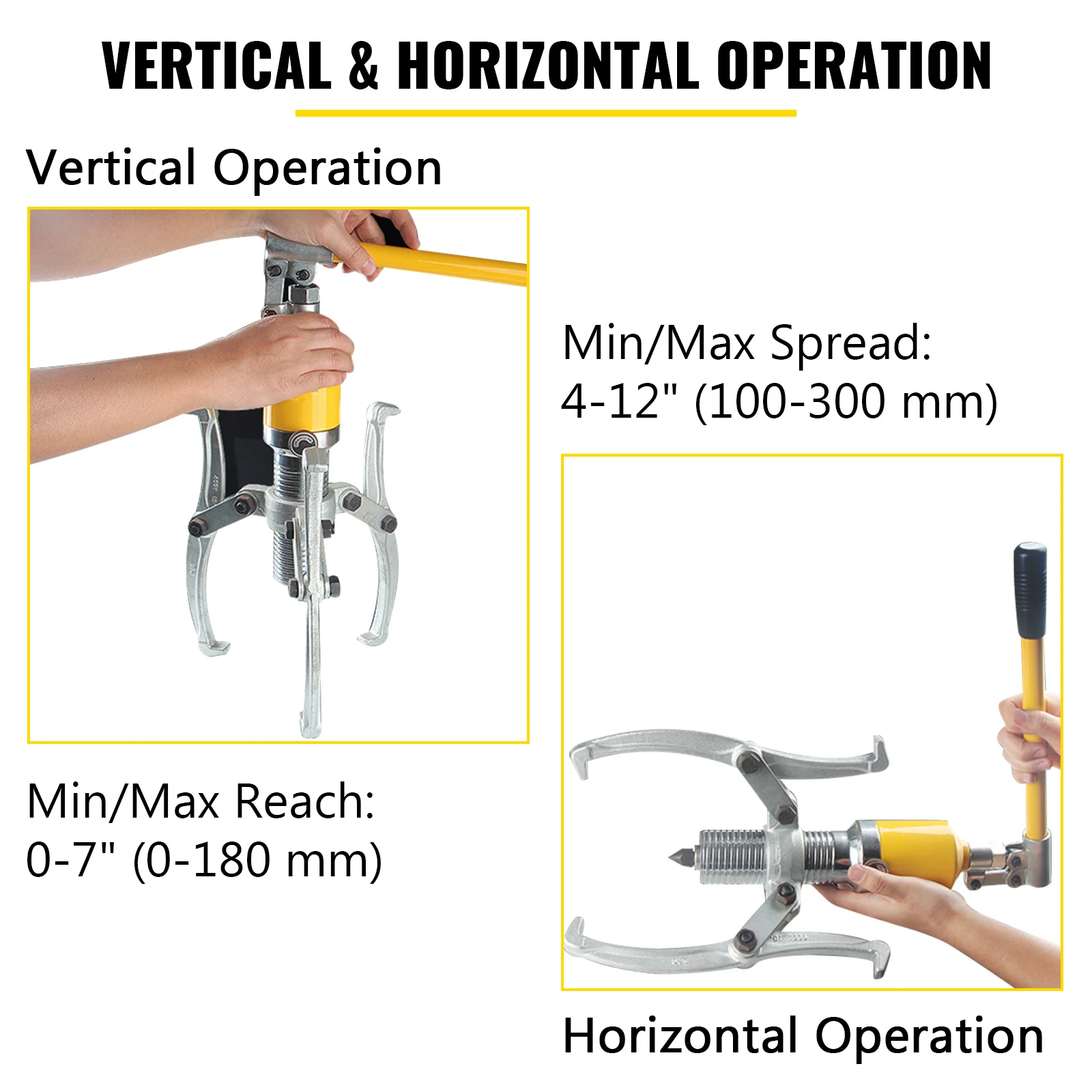

Dual Operational Modes

Designed for both vertical and horizontal operations, the gear puller offers a versatile reach of 0-7" (0-180 mm) and a spread of 4"-12" (100-300 mm), accommodating a wide range of tasks.

Efficient Three-Jaw Configuration

Featuring tapered jaws that excel at accessing confined spaces, the three-jaw design ensures even distribution of loads without causing damage, making it ideal for delicate components.

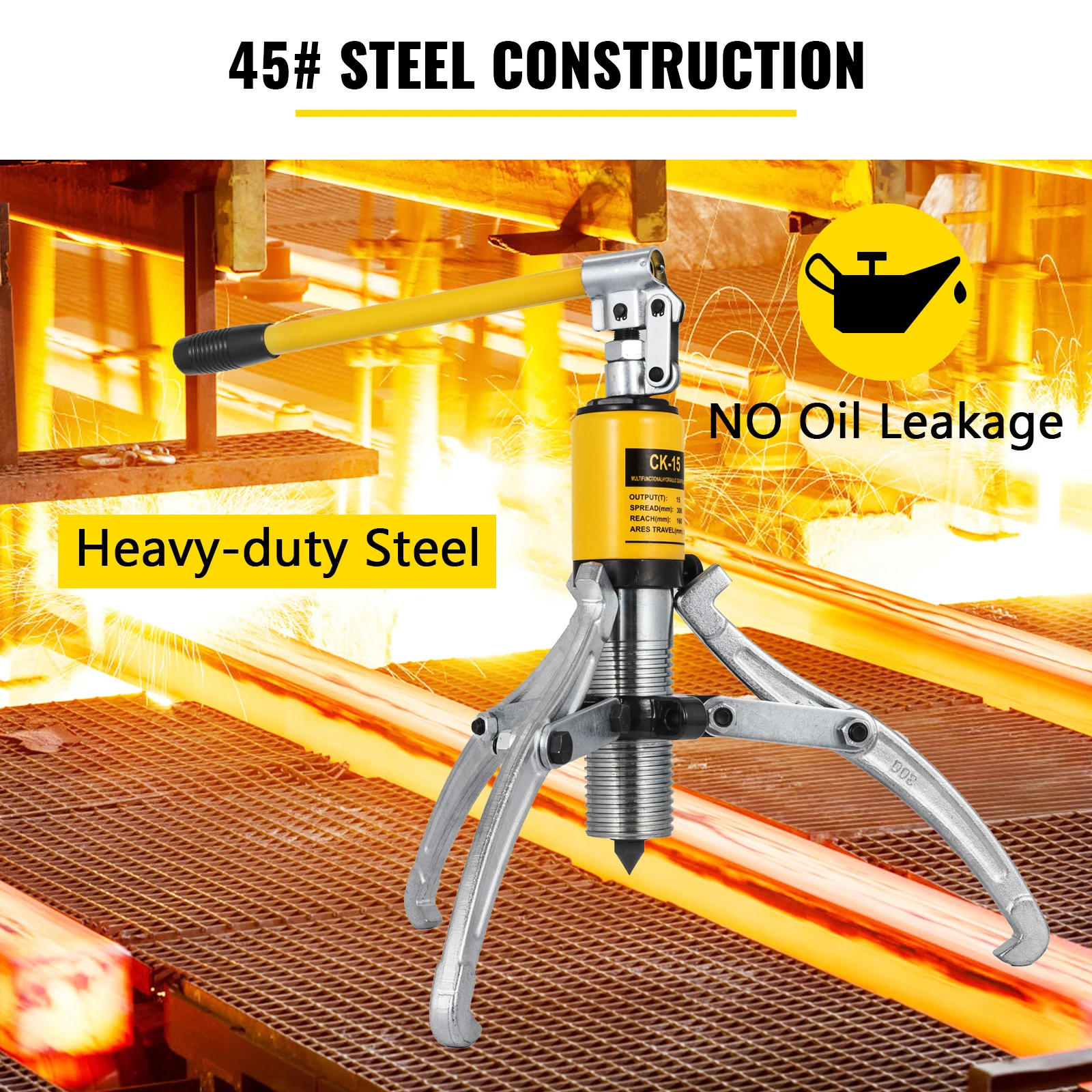

Premium 45# Steel Build

Constructed from high-grade 45# steel, this hydraulic puller delivers exceptional strength and durability, supporting a hefty 15-ton load capacity for reliable performance.

Thoughtful Design Features

Includes a safety relief valve to prevent overload situations. The detachable, wear-resistant ejector pin ensures durability, while the smooth piston rod enables effortless forward movement. The ergonomically designed movable handle features a thickened rubber sleeve for comfortable gripping.

Adjustable Jaws for Versatility

Easily swap between two or three jaws to suit different job requirements. The puller's 360-degree rotary pump head allows seamless adjustment from high to low positions, enhancing flexibility.

Versatile Applications

Suitable for various machinery including bearings, belt pulleys, motors, and gears, this pulley remover is perfect for automotive workshops and garage settings, facilitating efficient repair and maintenance tasks.

Specifications

Max Capacity: 15 tons / 33069 lbs

Jaws: 2 or 3 Adjustable

Axis Travel: 2" / 50 mm

Min/Max Reach: 0 - 7" / 0 - 180 mm

Min/Max Spread: 4" - 12" / 100 - 300 mm

Gross Weight: 26.4 lb / 12 kg

Package Dimension (L x W x H): 17.3" x 12.6" x 4.7" / 44 x 32 x 12 cm

Package Content

1 x Hydraulic Puller
1 x Handle
1 x 2/3 Leg Puller Yoke
3 x Jaws
6 x Link Plates
6 x Screw Sets


Features & Details

Versatile Application: Perfect for extracting hubs, flanges, gears, pulleys, flywheels, bearings, and chucks from shafts. Ideal for automotive maintenance, mechanical shops, and repair workshops.
Durable Construction: Crafted from heavy-duty forged steel, ensuring superior strength and durability with no risk of oil leakage. Capable of handling up to 15T (33,069 lbs) maximum capacity for extended service life.
Adjustable Configuration: Install two or three jaws and adjust the height as needed. The hydraulic bearing puller's pump head rotates 360 degrees, facilitating easy operation and usage flexibility.
Bidirectional Operation: Operate horizontally or vertically without site constraints. Features 2" (50 mm) axis travel, 7" (180 mm) maximum reach, and 12" (300 mm) maximum spread for versatile pulling scenarios.
User-Friendly Design: Equipped with a safety relief valve, piston rod, detachable ejector pin, and movable handle. Compact structure ensures agility and efficiency. The three-jaw design evenly distributes tension, securing clamping and concentric pulling.
