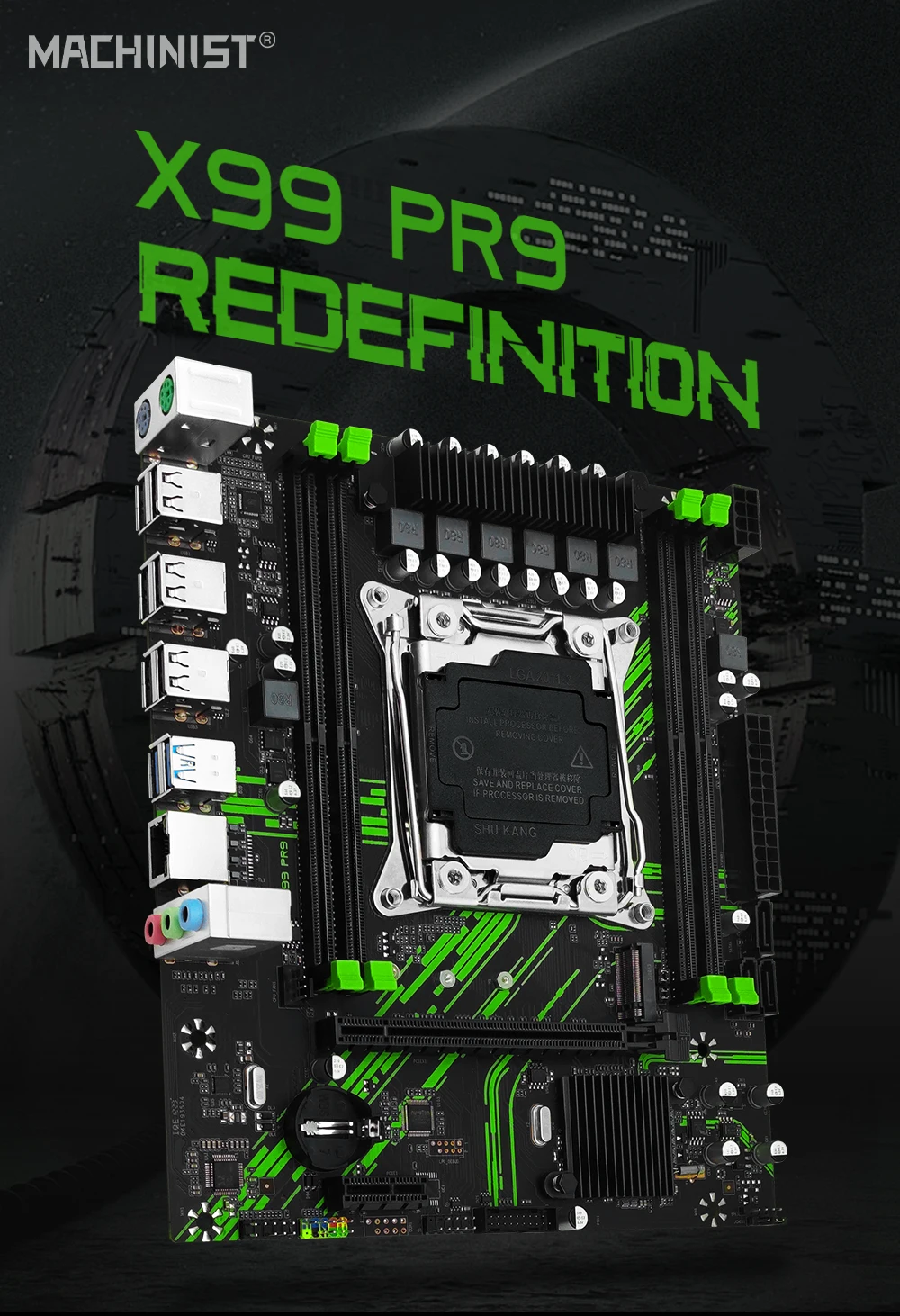

MACHINIST PR9 X99 Motherboard TPM2.0 Module Intel Xeon E5 2680 V3 CPU Support DDR4 RAM Dual-Channel USB3.0 Optional Kit Combo

Due to the fact that the product is in the upgrading stage. Starting from January 30, 2026, new and old versions of the products will be randomly sent out. The specific version cannot be specified. The differences between the new and old models can be seen in the picture (Figure 2).

> >Please pay attention to the bundle options before purchasing. Purchase a single motherboard. We don't send CPU and memory. Please check carefully.

> >It should be noted that the memory slot of this motherboard should be correctly installed in the fifth picture. The memory slots (#2/#3) in the middle of the motherboard cannot work independently. A single RAM needs to be installed in slot #1. Two RAM devices need to be installed in Slot #1 and Slot #4 first.

>Bundle: Motherboard:
Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1Pcs.
>Bundle: Motherboard+CPU:
Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1Pcs.
Processor: Intel Xeon E5 2680 V3 *1Pcs.
>Bundle: Motherboard+CPU+RAM:
Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1Pcs.
Processor: Intel Xeon E5 2680 V3 *1Pcs.
RAM: DDR4 8GB 2133MHz desktop memory *2PCS;

> >Motherboard information:
Brand :MACHINIST.
Motherboard model :X99 PR9.
Processor: Supports LGA 2011-3 series
Chipset :B85/Q87/C226 Chipset.
(Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink bracket *1.
All samples are manually tested and packaged before sending. If any gift is missing, it cannot be used as a reason for a refund. Please understand!

> > Memory

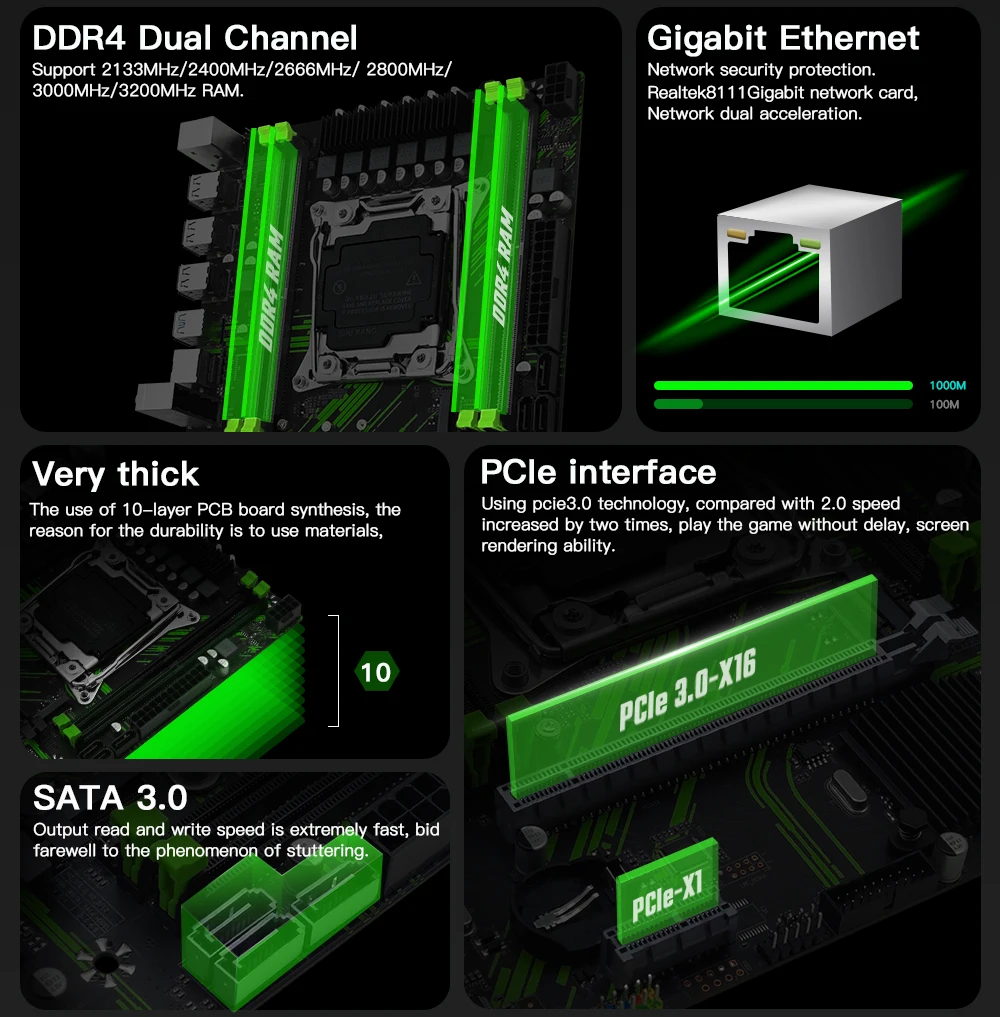

Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ.
The maximum capacity is 128GB (32G × 4).
Memory slot :4 * 288-pin DDR4.
Note #1: Please use international brands such as Samsung, Kingston, Sandisk, and Micron. There is incompatibility among other brands.

>> Post I/O
PS/2: 1 KB interface + 1 MS interface.
USB interface :6 USB2.0 ports; Two USB3.0 ports.
Ethernet: 1 gigabit network card.
Audio :1 (Mic-in, Line-out, Line-in).

>> Others
SATA interfaces :2 (SATA2.0), 1 (SATA3.0).

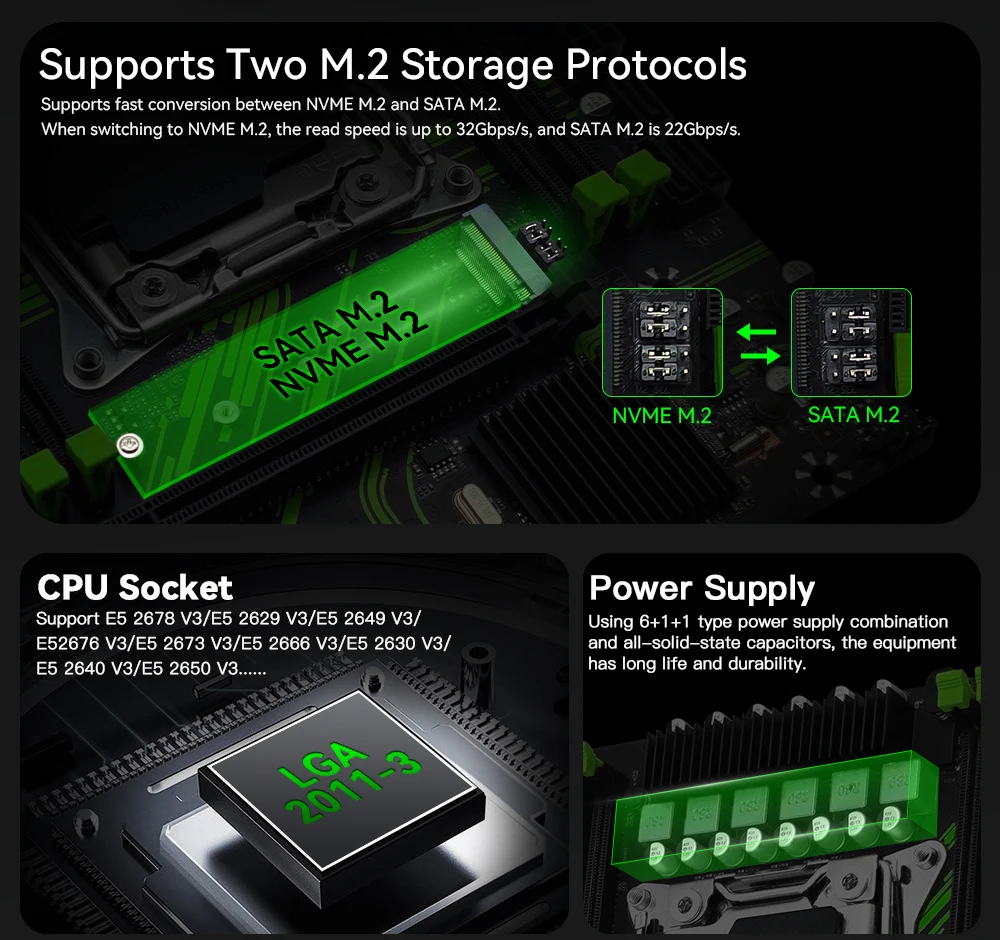

M.2:1 (nvme/sata).
PCIe: 1 PCIe 16x, 1 PCIe 1x.
TPM2.0: FOR ASUS LPC-14pin
Overall dimensions :215mm * 185mm.

>> Regarding the tariff issue, please ensure that you can solve the customs clearance problem by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:
The color of the bottom plate of the tank may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.
(2) Due to manual measurement, an error of 1-3mm is allowed.
(3) Due to different displays and different lighting conditions, the picture may not show the actual color of the object. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics department requires that the use of this battery be prohibited.
