JBD Built-in BT Smart BMS Li-ion LiFePo4 24V 36V 48V 7S 8S 9S 10S 11S 12S 13S 14S 40A 50A BMS UART With Balance Function
52.05$
33.83$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping

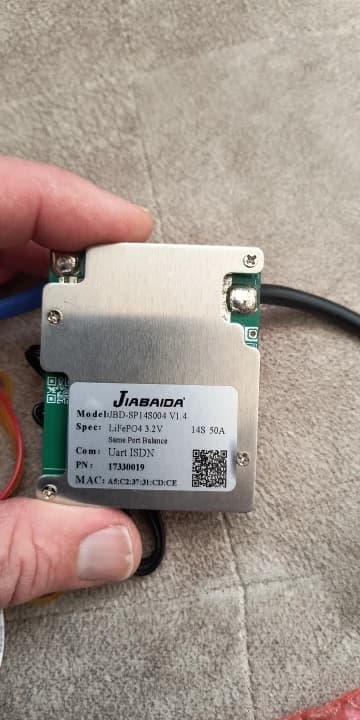

JBD Smart BMS SP14S004 is a software protection board scheme specially designed for 7~14 series lithium battery packs.
The whole system adopts O2 front-end acquisition chip + Bluetooth MCU scheme, and some parameters can be flexibly adjusted through the upper computer according to the needs of customers.

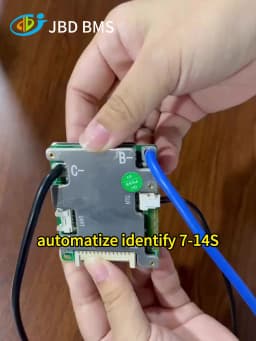

The Smart BMS support automatically identify 7S 8S 9S 10S 11S 12S 13S 14S li-ion or lifepo4 lithium battery pack.
The Smart BMS uart communication port built inside bluetooth,the bms with balance function and temp sensor.
The Smart BMS support to set and monitor datas on app and PC,and support LCD Display monitor parameters.
Product Introduction
Applicable Battery Type:3.7v Li-ion/3.2v Lifepo4 Battery.
Support Number Of Strings:automatically identify strings number 7-14S.
Size in:63*52*12mm.
Continuous current 40A,peak current 120A continue 1s.
Continuous current 50A,peak current 150A continue 1s.
Balance Model:Static/Charge balance.
Balance Current:20-55mA.
Temperature Sensor:1pc Internal,1pc External.
Application For:Electric scooter,Electric scooter,Electric bycicle,Electric Tools,ect.

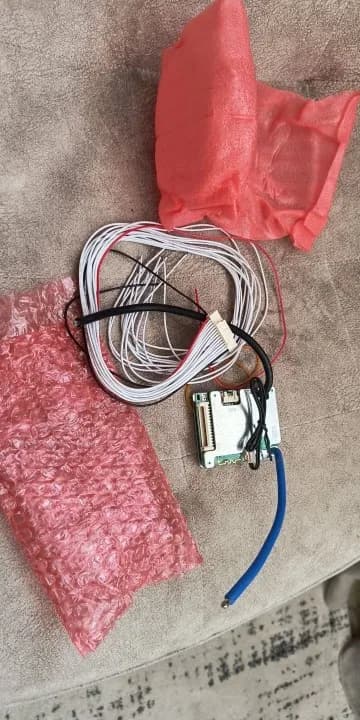

Package included:BMS with Built-in BT*Balance Wires.
Function Introduction
(1)BT-APP in Phone
(xiaoxiangElectric App:
http://www.jiabaida.com/appdown/index.html)
Support Both IOS and Android version,can monitor and change the parameters.(need to be within the specified range).
(2)UART- JBD PC Tool Box-Monitor and Set parameters.
(PC Tool Software:
https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip)
(3)UART-LCD Displayer-Can monitor paremeters on LCD displayer.
Attention
(1)All smart bms has BT and UART function.
(2)The bms built inside bluetooth on the pcb board,needn't buy extra bluetooth separately.
(3)UART smart accessories need buy separately:https://www.aliexpress.com/item/3256804529002284.html
(4)All UART communication can be converted to Canbus communication if needed,only need to buy an UART To Canbus converter module separately.
(5)APP manual/bms specification-pls contact customer service.
Customer Reviews
24 ratings
good quality (4)
fast delivery (3)
well packaged (3)
high-quality (2)
misleading specifications (2)
recommended (1)
Customer photos (13)
Buyer from Brazil
July 15, 2026
Variant: Color:7-14S Li-ion 50A
top product 🔝
9***r
April 5, 2026
Variant: Color:7-14S Li-ion 50A
very good
Buyer from Ukraine
April 4, 2026
Variant: Color:7-14S LiFePo4 50A

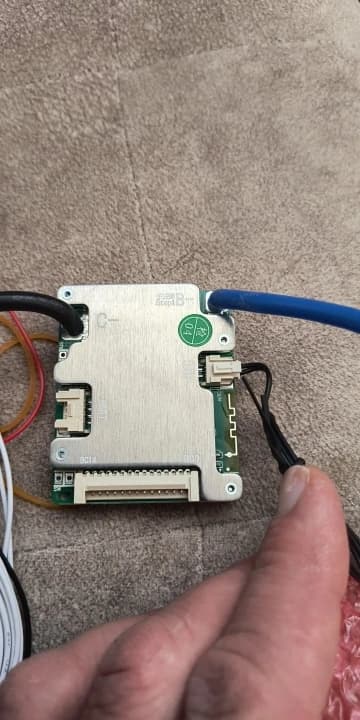

Received quickly. In Odessa in 2 weeks. The BMS board is compact in size. Looks nice and high-quality. Haven't tested it in operation yet, as the batteries are still on the way. Connection is standard. Thank you to the seller!👍🤝
Buyer from Brazil
March 3, 2026

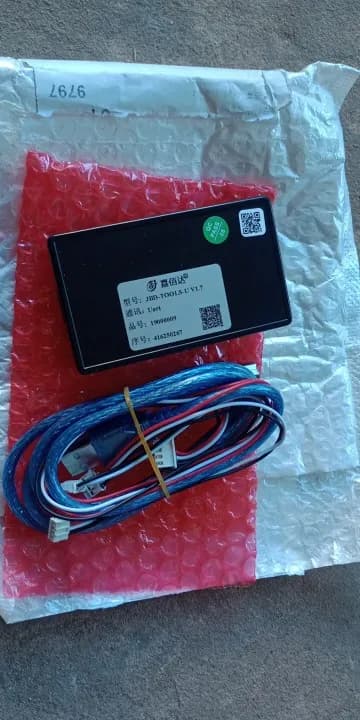

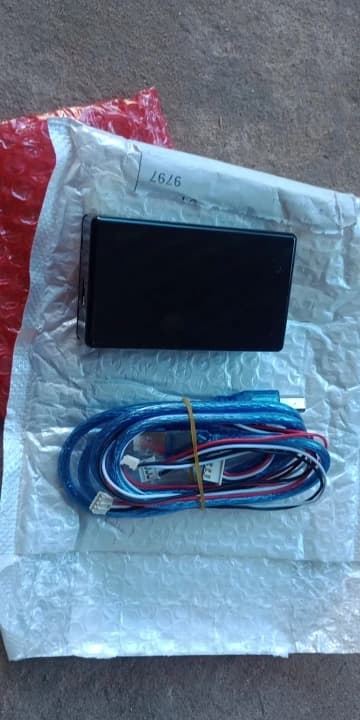

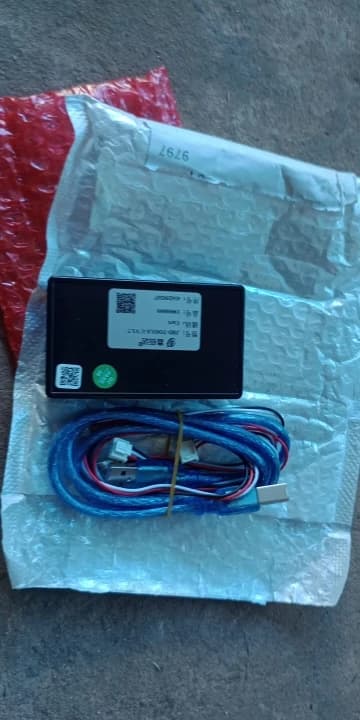

Variant: Color:UART PC Tool Box
It arrived on time, well packaged, and the product looked good. I didn't get to use it because it wasn't what I needed; I bought it to use with another product, but it didn't fit, so I had to cancel the purchase.
Buyer from Brazil
March 3, 2026
Variant: Color:7-14S LiFePo4 50A
It arrived quickly, well packaged, a very interesting product, but it didn't work for me because my battery is a Life Po4 16s and this product only supports 14s, so I had to cancel the purchase. However, I bought another one that supports 16s and I'm waiting for it to arrive.
J***z
February 25, 2026
Variant: Color:7-14S Li-ion 50A
everything OK, yet to be tested
