JiaBaiDa Automized Identify 7s-14s 7S 8S 9S 10S 11S 12S 13S 14S 20A 30A LFP NMC Smart BMS 24V 36V 48V Battery Management System

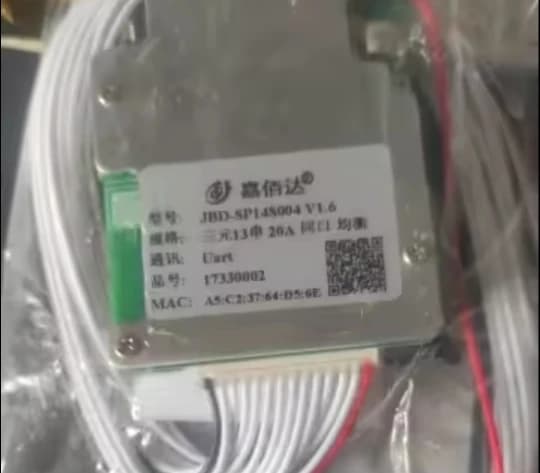

JIABAIDA Smart BMS - SP14S004

JBD-SP14S004 is a software protection board scheme specially designed for 7~14 series lithium battery packs. The whole system adopts O2 front-end acquisition chip + Bluetooth MCU scheme, and some parameters can be flexibly adjusted through the upper computer according to the needs of customers.

① Applicable Battery : Li-ion /LiFePo4

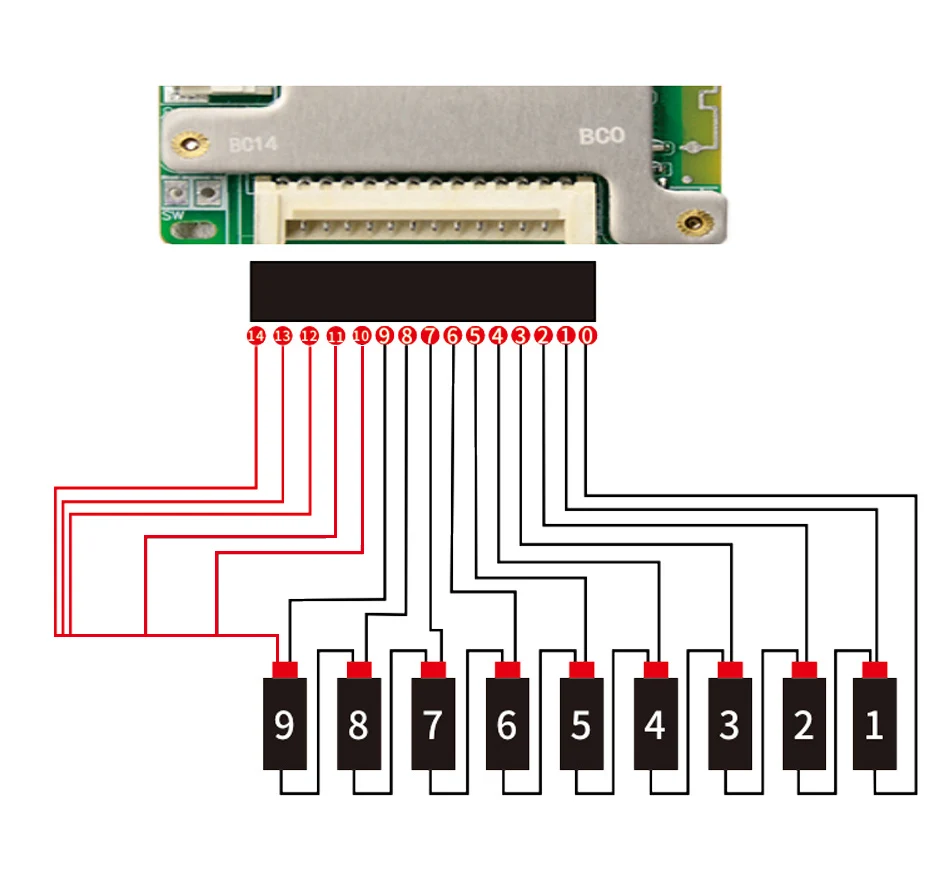

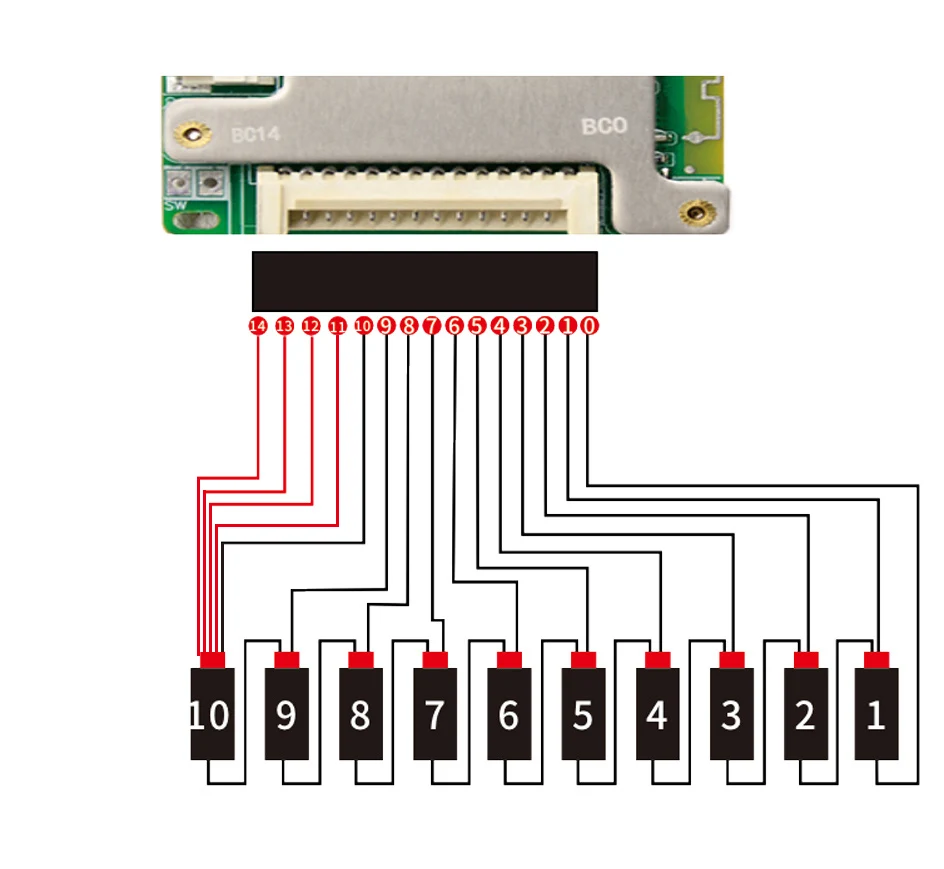

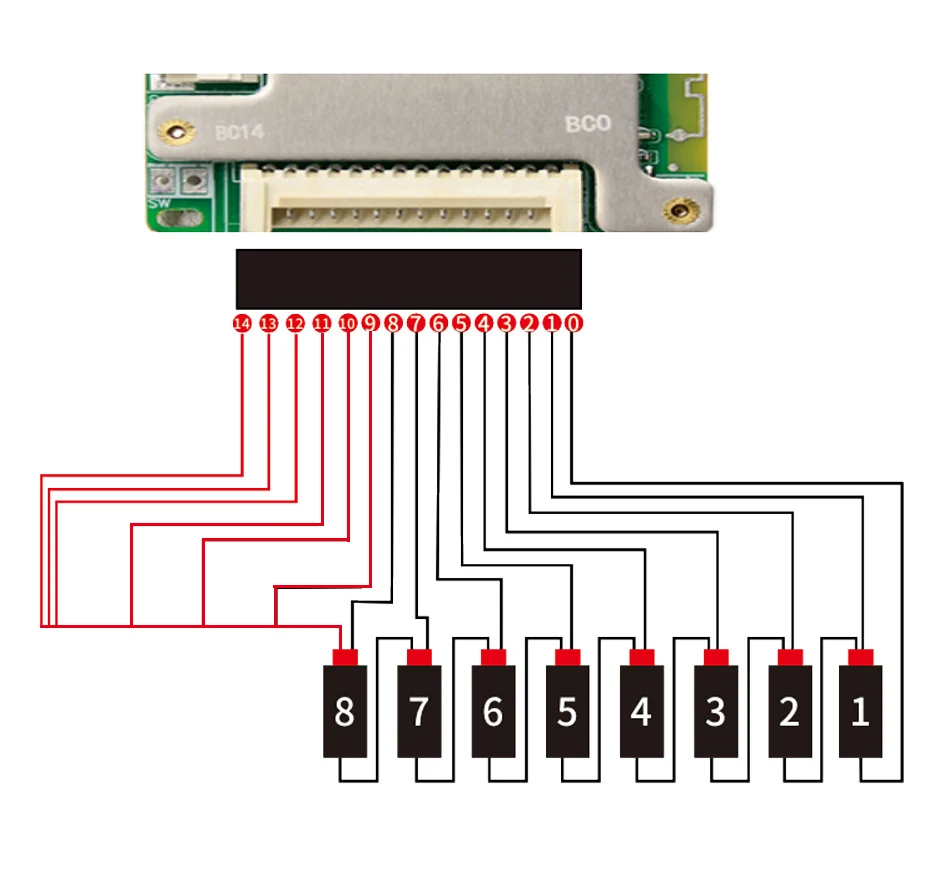

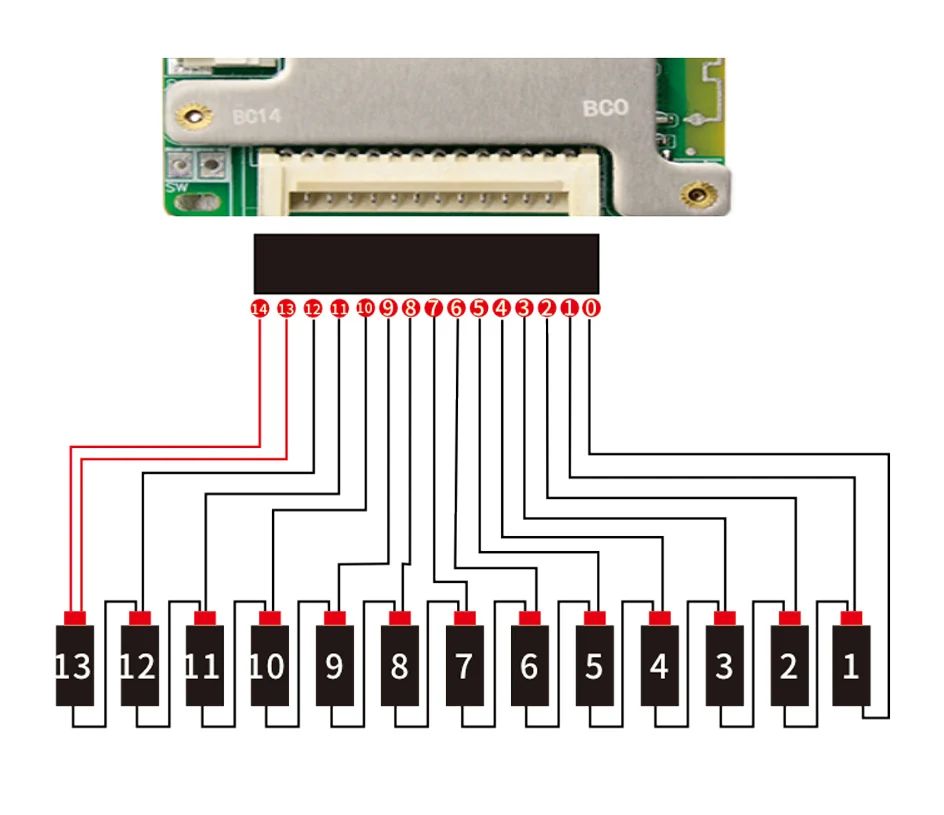

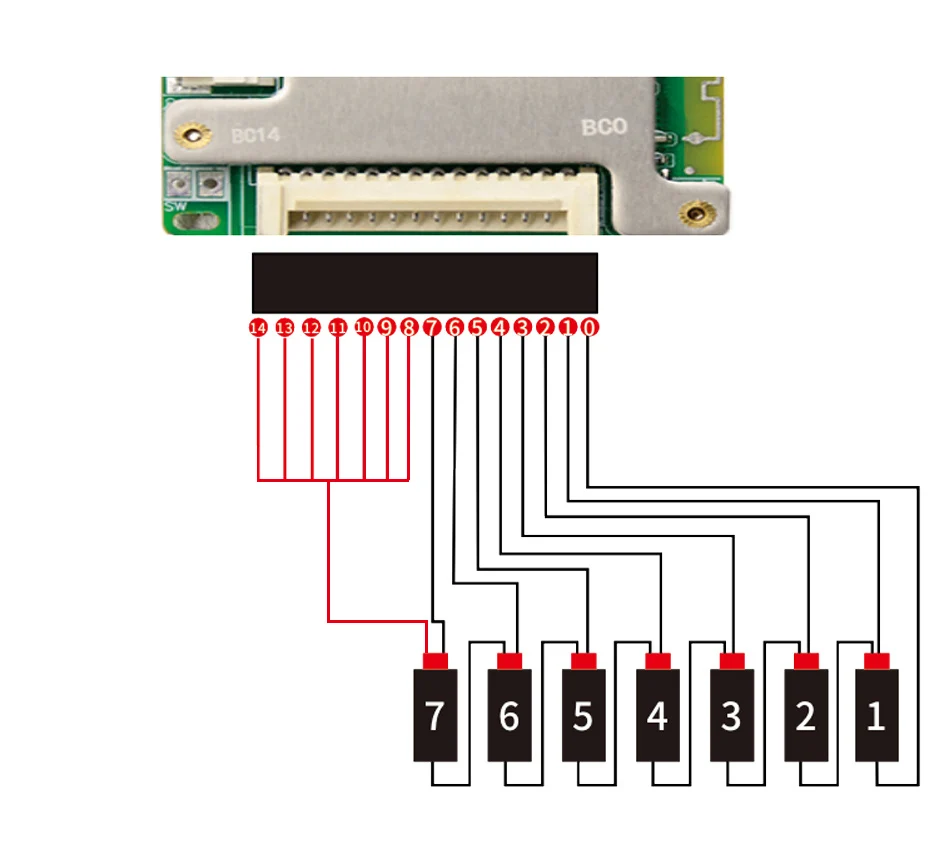

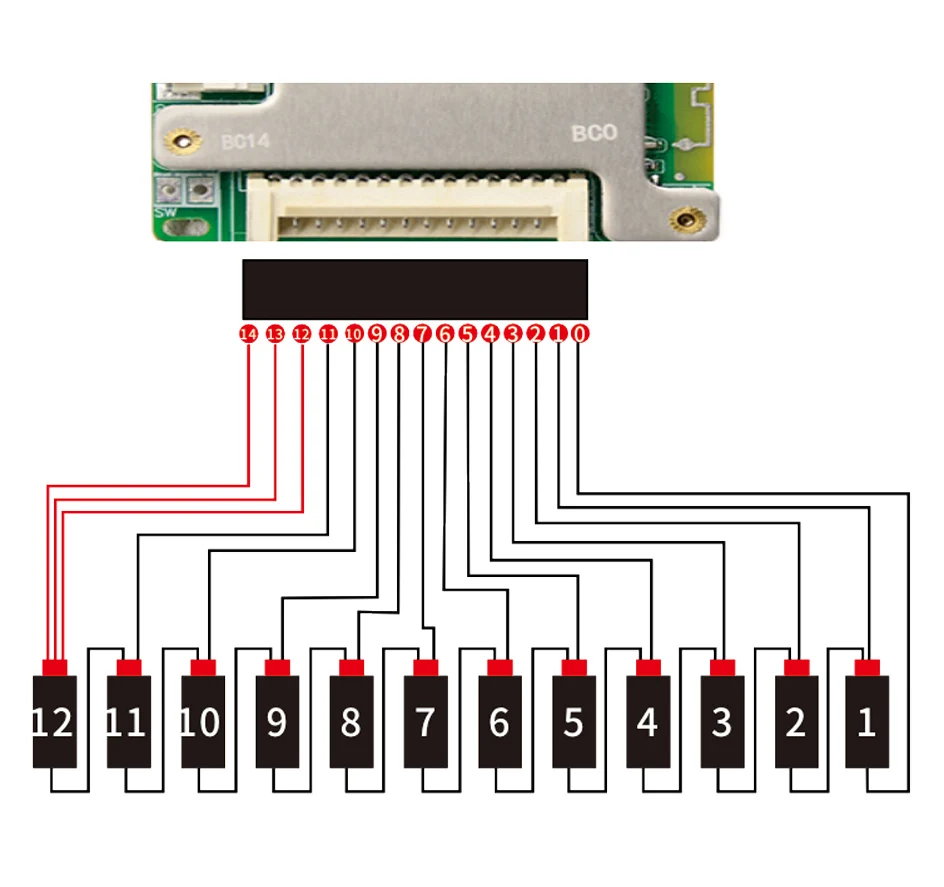

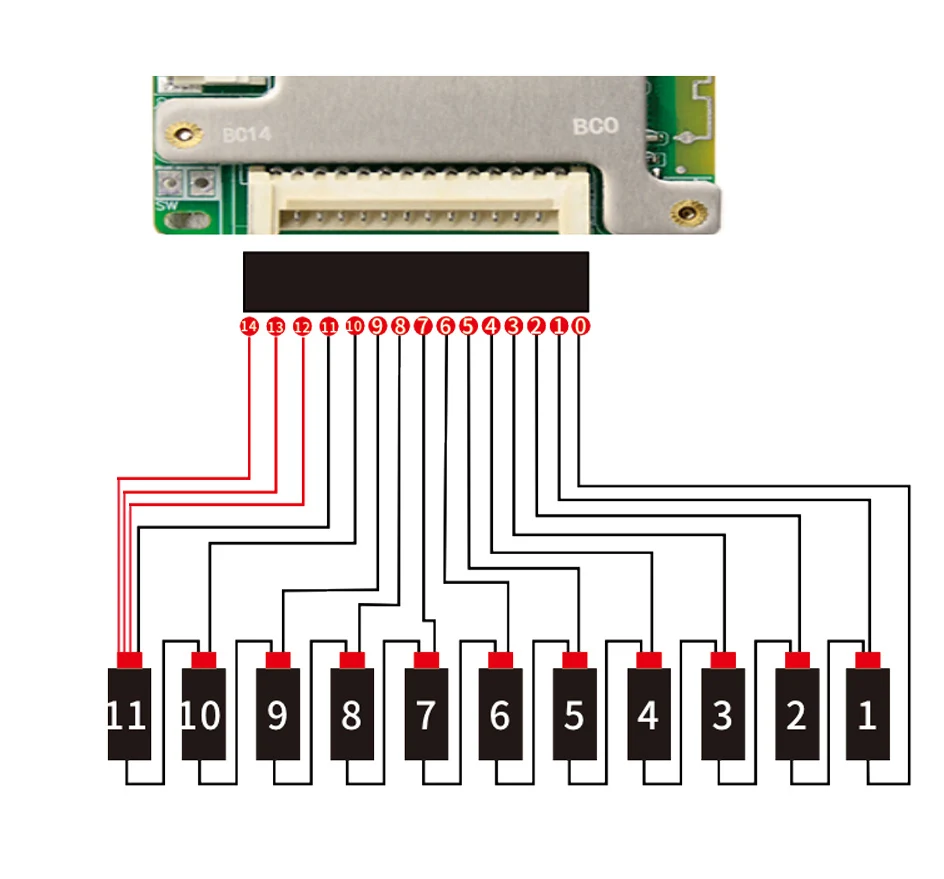

② Automatically Recognize 7S-14S, 63mm * 52mm * 9mm

③ Function Introduction

1) Built-in Bluetooth- Phone

    IOS version needs to pay to change the parameters (need to be within the specified range)

    Android version can change the parameter settings

2) UART - Computer (Set parameters)

④ Download link:

1) Phone-"Xiaoxiang BMS"

     IOS: Search it in the APP STORE

     Android:

https://www.pgyer.com/Bzt1

2) Computer-JIABAIDA Tools (UART)

http://www.jiabaida.com/uploads/soft/xiaoxiangBMS.zip?spm=5261.im.0.0.7e0e4edfdzhzxA&file=xiaoxiangBMS.zip

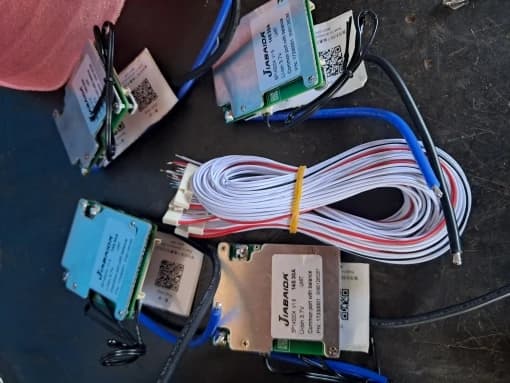

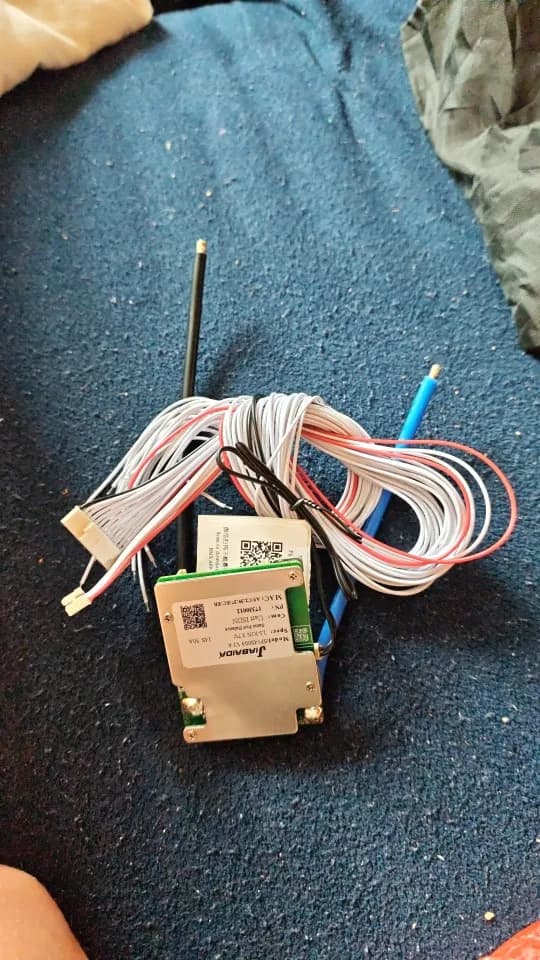

⑤ Package : BMS with built-in Bluetooth * 3 NTC * Wires

⑥ Attention :

1) UART needs buy separately

https://www.aliexpress.com/item/1005002398930415.html?spm=5261.ProductManageOnline.0.0.33714edfbG2RmO
