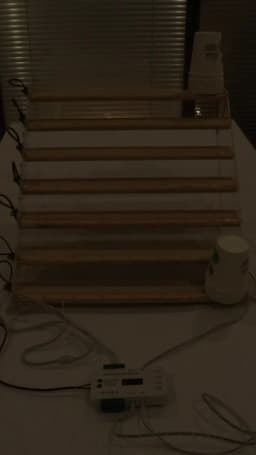

MALIIGAZA 1-40 Steps Motion Sensor LED Stair Light 24V COB LED Strip Stair Lighting Kit With Transformer For Indoor Stairway

NOTE:

This controller does not have the function of lighting on both sides of the stairs.

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.

3- The product is not waterproof.

4- Don't make the +/- pole reversed, or the controller can't work.

【Important Tips!】

Please install the led strips on the main cable at first, after the led strips are all installed, then connect power supply!

Please DO NOT install or take off the led strip when the controller is powered on. This is easy to get the main cable burnt!

How To Use

1. Setting

Long press“Setting" to set Step Numbers, Brightness, Time Delay, Speed, Mode

Short press to“Setting" to enter next setting

After finished all setting, long press“Setting”to save all setting

2. Brightness

Brightness have 99 levels, short press to add 1 level brightness

Digital display: HH01-HH99

HH01------------------2% brightness

HH02------------------3% brightness

HH03------------------4% brightness

HH99------------------100% brightness

3.Time delay

Time delay have 99 levels, short press to add 1 level time delay

Digital display: LL01-LL99

LL01------------------4S

LL02------------------6S

LLO3------------------8S

LL99------------------200S
