PIR Motion Sensor LED Stair Light Easy Insallation Stair Lighting Kit 8mm COB LED Strip With Power Supply For Indoor Stairway

Product description

Product Name: Stair Motion Sensor Switch

Voltage: DC12V / DC24V

Max current: 10A

Power: each step<15w  total<240w (DC12V /120W; DC24V/ 240W Max)

Sensors: 2 PIR Sensoron both sides

Special function: 4PIN main wire for Max 99 steps  Delay Time/Speed / dimmable Lights and 12 Model

PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )

Features: there's a main line cable to conect all strips, no need complicate wiring

Advantage: can control the led strip light step by step

Package Included:

1x Controller

1x ?- step or 20-step main line cable

2x PIR sensor (1 meter)

1 batch of tools and accessories

LED strip and power supply need to choose

NOTE:

This controller does not have the function of lighting on both sides of the stairs.

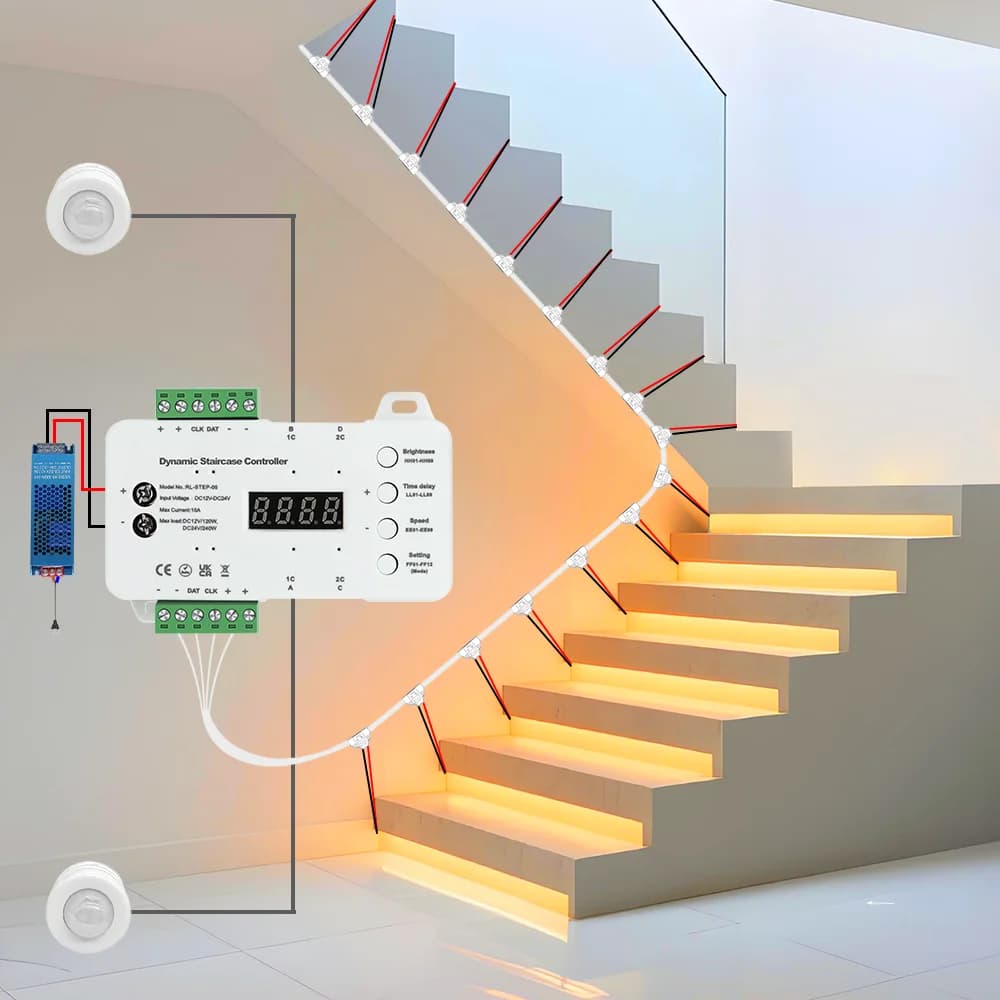

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.

3- The product is not waterproof.

4- Don't make the +/- pole reversed, or the controller can't work.

【Important Tips!】

Please install the led strips on the main cable at first, after the led strips are all installed, then connect power supply!

Please DO NOT install or take off the led strip when the controller is powered on. This is easy to get the main cable burnt!

How To Use

1. Setting

Long press“Setting" to set Step Numbers, Brightness, Time Delay, Speed, Mode

Short press to“Setting" to enter next setting

After finished all setting, long press“Setting”to save all setting

2. Brightness

Brightness have 99 levels, short press to add 1 level brightness

Digital display: HH01-HH99

HH01------------------2% brightness

HH02------------------3% brightness

HH03------------------4% brightness

HH99------------------100% brightness

3.Time delay

Time delay have 99 levels, short press to add 1 level time delay

Digital display: LL01-LL99

LL01------------------4S

LL02------------------6S

LLO3------------------8S

LL99------------------200S

4. Speed

Speed have 99 levels, short press to adjust speed

Digital display: EE01-EE99

EE01------------------150ms fastest speed

EE02------------------175ms

EEO3------------------200ms

EE99------------------2600ms slowest speed

5. Set the working mode of the light strip (12 modes)

FF01------------------The first mode

FF05------------------The fifth mode

FF010------------------The tenth mode

6. Set the number of stairs

1C01 ------------------ 1st Floor, 1st floor stairs

1C05 ------------------ 1st Floor 5 Stairs

1C10 ------------------ 1st Floor 10 Stairs

2C01 ------------------ 2nd Floor, 1 Staircase

2C05 ------------------ 2nd Floor 5 Stairs

2C10 ------------------ 2nd floor 10 stairs
