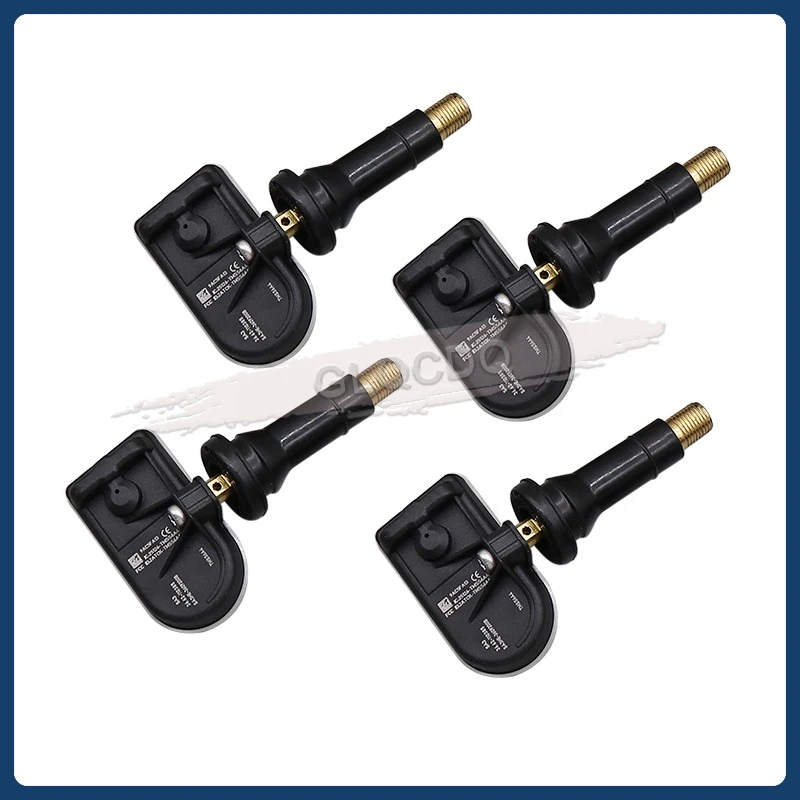

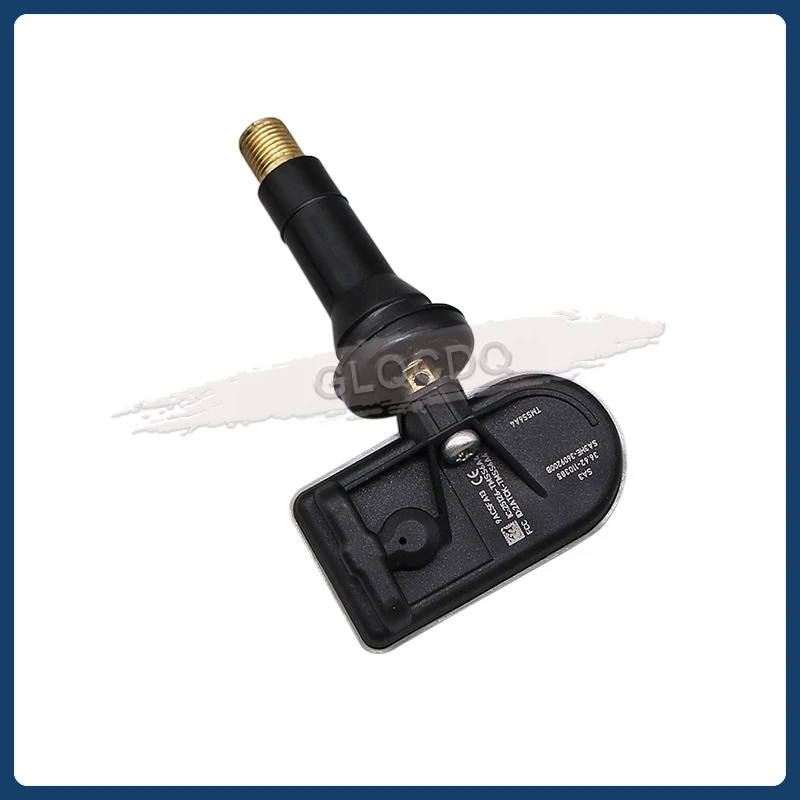

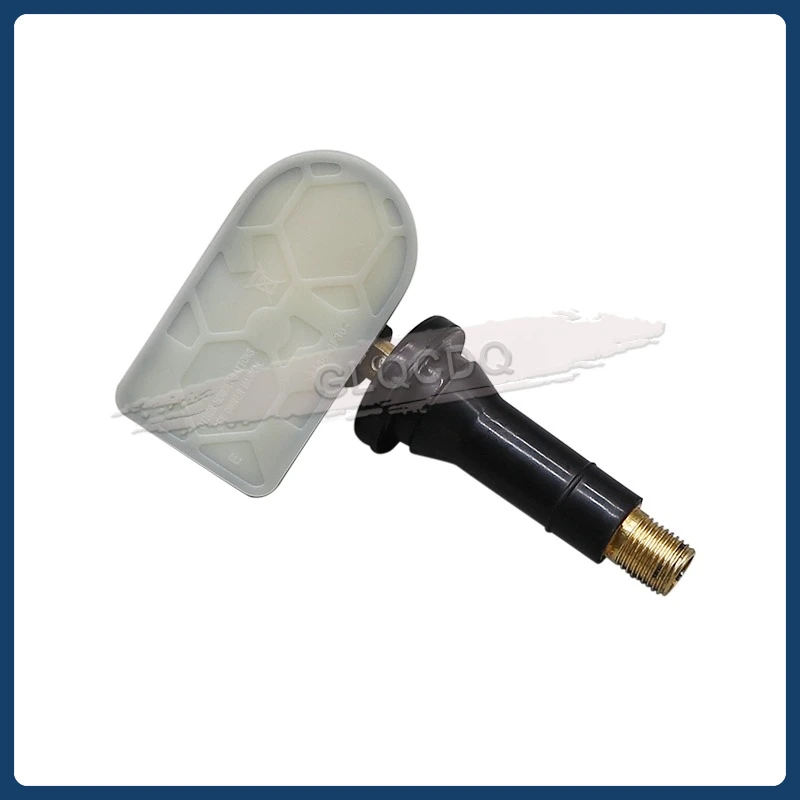

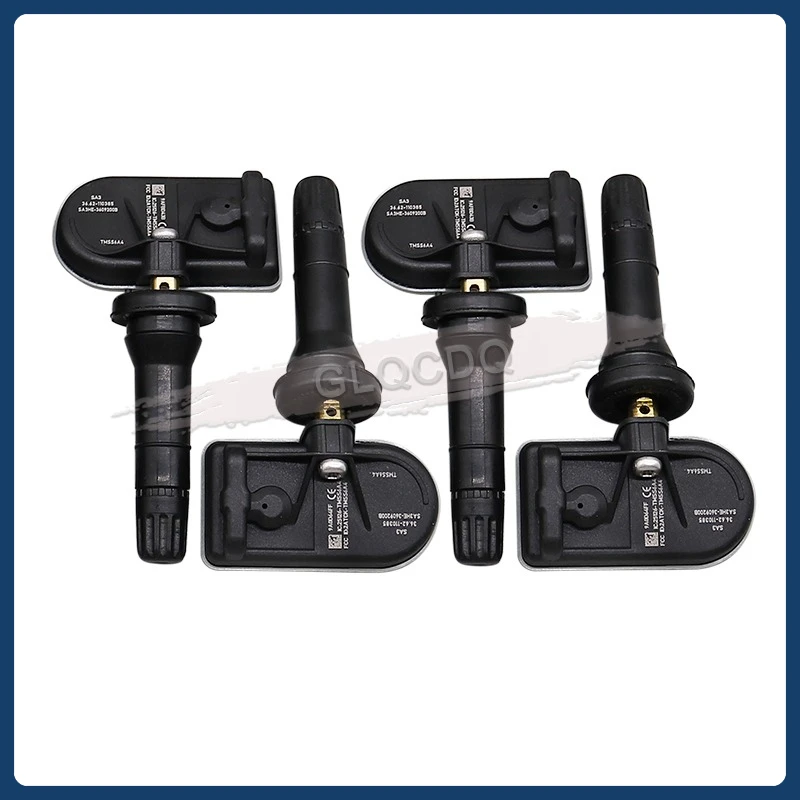

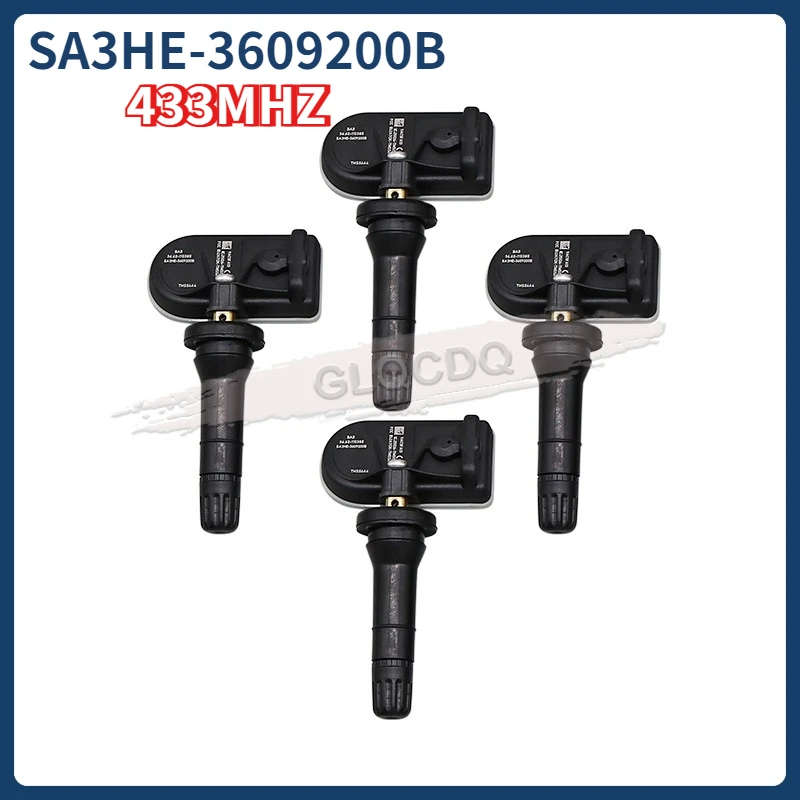

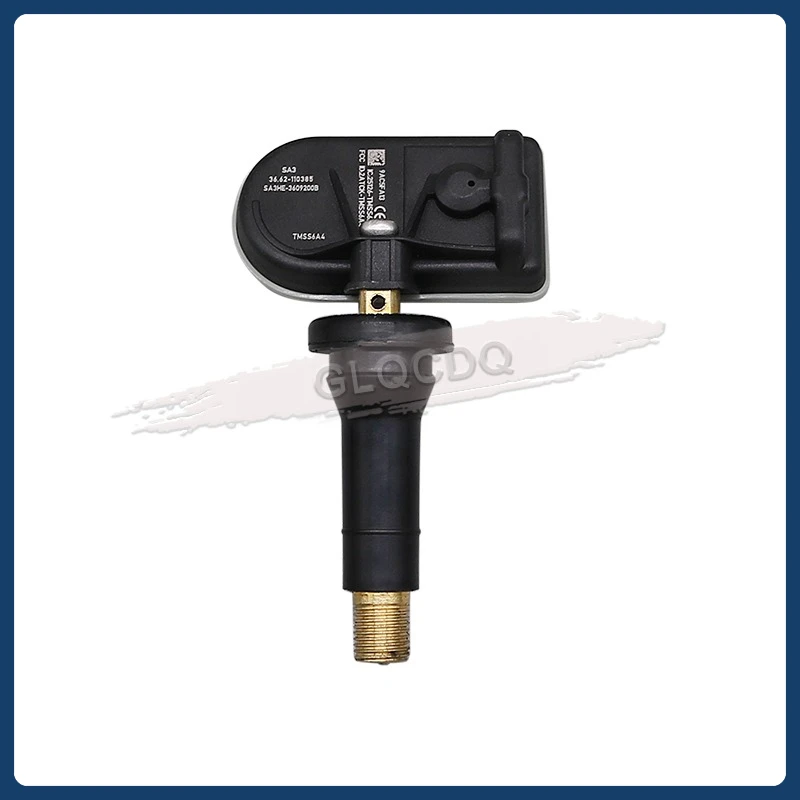

TPMS SA3HE-3609200B Tire Pressure Monitor Sensor 433MHZ For BYD Yuan UP Destroyer 05 Han EV KING 05 Seal Lion 05 DM-i DENZA‌‌ N8

Selling Point
Note1:
Pls Use the vehicle fitment we've provided within the body of the listing to confirm vehicle fitment.If you can not make sure which item fit for your car,please send the VIN CODE to us confirm it before order.
Note2:
【No sensor programming Required】 :
The Tire Pressure Sensor is 100% new and come pre-programmed specifically for your make/model/year of vehicle,need activate them by scal tool or "re-learning".
Simplified Relearn : OBDII required
Installation of TPMS is recommended to be performed only by trained professionals.
SPECIFICATION :
Replace For Part Number: SA3HE-3609200B,SA3HE3609200B,SA3HE 3609200B
Battery Life: ABOUT 3 YEARS
Operating Frequency: 433MHz
PACKAGE CONTENT : NORMAL PACKET
Application
For BYD Song Pro DM-i  2023/05-2025/06
For BYD Song PLUS EV  2023/06-2025/06
For BYD Song PLUS DM-i  2023/06-2025/06
For BYD Song L EV  2023/12-2025/06
For BYD Song L DM-i  2024/07-2025/06
For BYD Yuan UP  2024/03-2025/06
For BYD Yuan PLUS  2022/02-2025/06
For BYD Destroyer 05  2022/03-2025/06
For BYD Tang DM-i  2023/03-2025/06
For BYD Qin PLUS EV  2021/04-2025/06
For BYD Qin PLUS DM-i  2022/01-2025/06
For BYD Qin L DM-i  2024/05-2025/06
For BYD Han EV  2022/04-2024/12
For BYD Han DM-p  2023/05-2024/12
For BYD Han DM-i  2022/04-2024/12
For BYD Frigate 07  2022/09-2025/06
For BYD E6  2020/10-2025/06
For BYD E9  2022/11-2025/06
For BYD KING 05  2022/03-2025/06
For BYD Seal 07 DM-i  2024/08-2025/12
For BYD Seal 06 DM-i  2024/05-2025/06
For BYD Seal 06 GT  2024/10-2025/12
For BYD Seal Lion 07 EV  2024/05-2025/06
For BYD Seal Lion 05 DM-i  2024/09-2025/12
For BYD Seal EV  2022/07-2025/12
For BYD Seal DM-i  2023/09-2024/12
For ‌DENZA‌‌ N7  2023/07-2025/06
For ‌DENZA‌‌ N8  2023/08-2025/06
For ‌DENZA‌‌ D9  2023/08-2025/06
Note 1:
Please confirm the OE number (part number) before purchasing and check if our product is the same as your original one. It's very important!
If you are not sure, please contact us before placing an order; otherwise, we will not refund you
If you place the wrong order, no compensation will be given. Thank you very much!
Note 2:
No sensor programming required: The tire pressure sensor has been programmed
It is recommended that TPMS be installed only by trained professionals
Please confirm the part number before placing an order. Thank you!

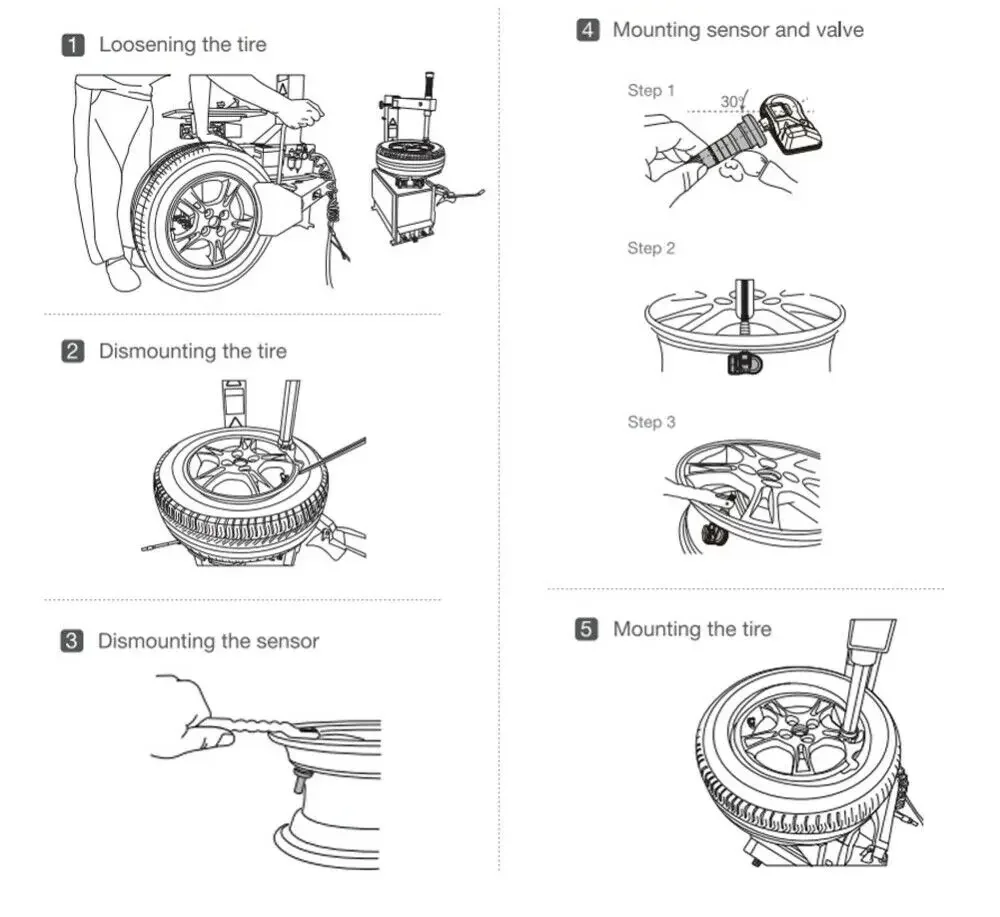

Installation Process
1. Loosen the tire: Remove the valve cap and core and deflate the tire.
2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o'clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.

FAQ
Q:【 Frequently of TPMS sensor】
A: 433mhz
Q: 【Did they tpms sensor need to make program】
A: The Tire Pressure Sensor come pre-programmed specifically for your make/model/year of vehicle,need activate them by scal tool oar "re-learning".
