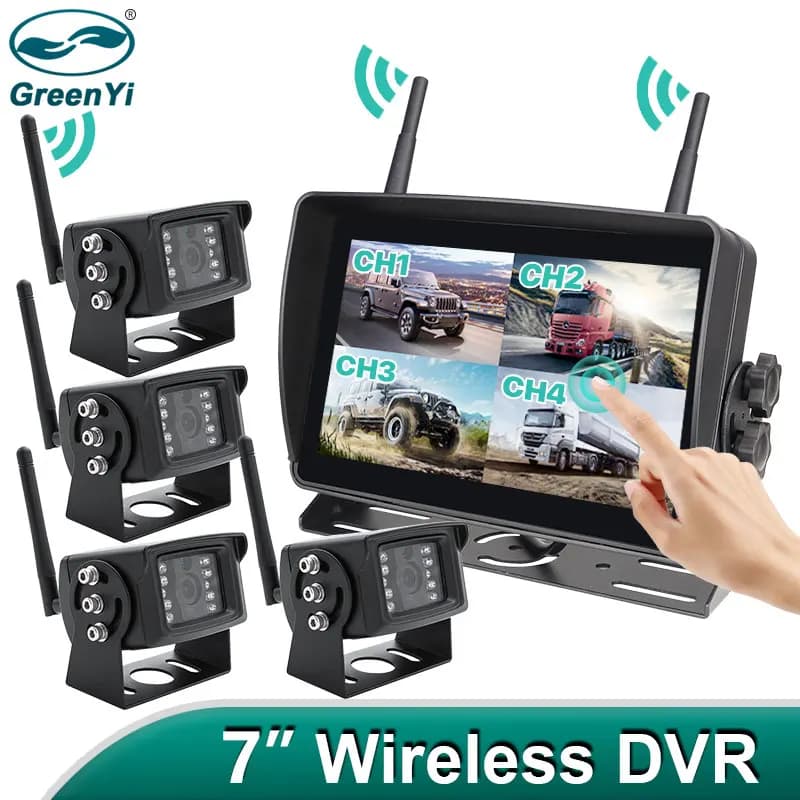

7'' AHD Digital Wireless Touch Screen DVR Record IR Night Vision Reverse Backup Camera 4CH WiFi Monitor For Truck/Trailer/Bus/RV

GreenYi 7'' AHD Digital Wireless DVR Recorder Reverse Backup Camera with WiFi Monitor For Truck/Trailer/Bus/RV/Pickups

Features:

• Wireless 7 Inch touch screen monitor, IPS screen.
• Top Signal transmission distance: 150 meters
• 4 Channels Signal Input , Support for loop recording
• Super easy 1 step installation
• Very low wireless signal delay
• Can support 2 ~ 4 Camera at the same time
• Supports up to 128G card
•Support video playback
•Support split screen function
•Support image mirror and rotate function
•Support automatic dimming function, you can adjust brightness, contrast and color temperature.
•Monitor sounds can be adjusted
•Support language: English, Russian, Korean, French, German, Italian, Spanish, Polish, Finnish, Dutch.
• AHD Technology:
AHD technology can realize reliable transmission of ultra-long-distance high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters.
• Highly integrated AHD front-end chip, high-definition quality products.
• Rearview Night Vision IR Waterproof Backup Reverse Camera with Built-in Wireless Transmitter--Auto Water-Proof Camera Lens, with 18 individual Infrared (IR) LED. Effective range: 15m. It help your view still clearly at night or in bad weather.
• Language:English, Russian, Korean, French, German, Italian, Spanish, Polish, Finnish, Dutch, Chinese, Portuguese

Split screen: Can display 2 ~ 4 screens at the same time

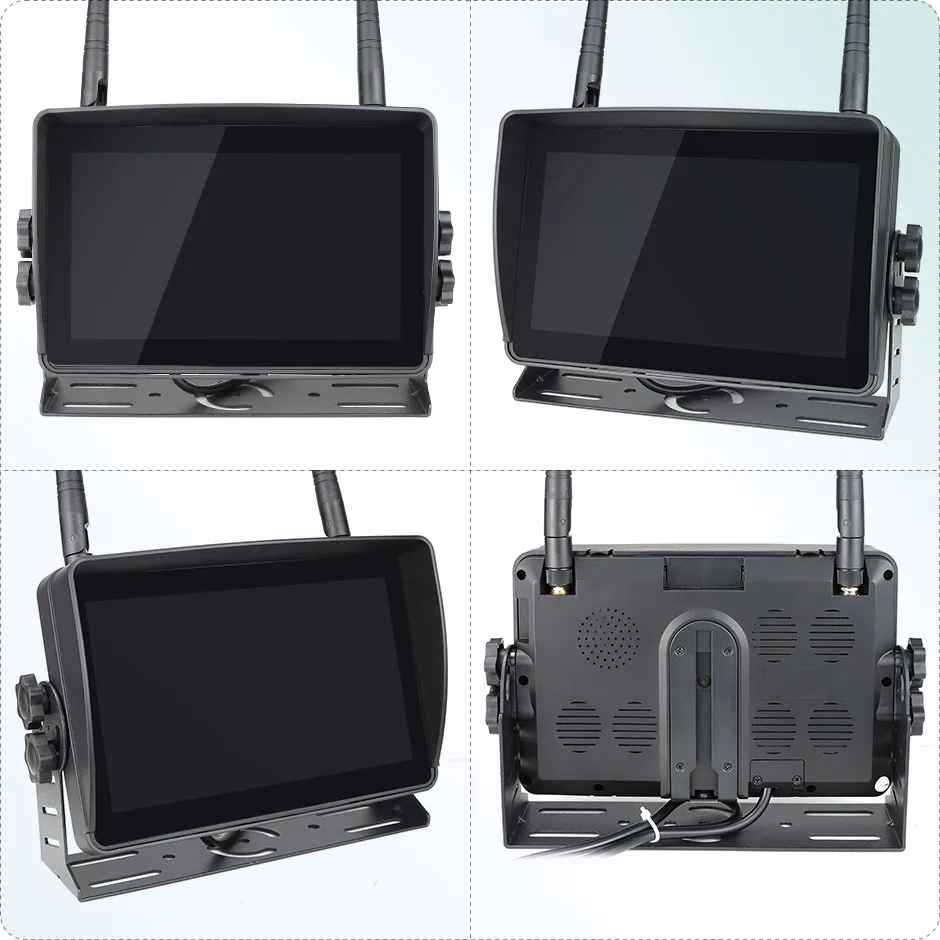

AHD Wireless Car DVR Monitor

Screen size: 7-inch screen

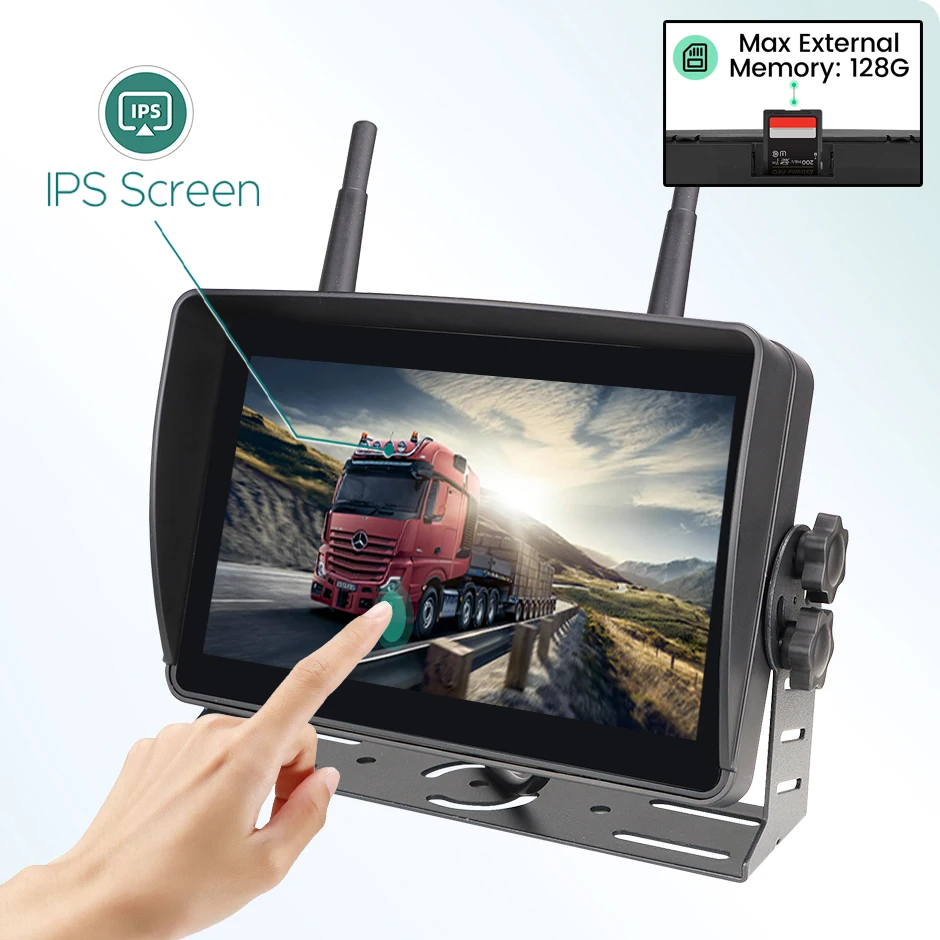

IPS screen: Support
Format: 16:9
Screen brightness: 500CD / M2
Effective pixels of the screen: 1024*600P
Record video pixels: 1280*720P
Loop recording: Support
Split screen: Support
Real-time playback: Support
Night vision image: automatic gain control, automatic white balance.
Power supply voltage: 12V-30V
Mirror function: Support for 4 types of rotated image display

AHD Wireless Car Camera

Effective pixels: 1080P
Image horizontal resolution: 300W pixels
Night Vision: With 18 individual Infrared (IR) LED. Effective range: 20m
Material: zinc alloy
Lens: 14/16MM
Low illumination: 0.01Lux
Signal to noise ratio: ≥69dB
Working power supply: DC12V-30V
Working temperature: -20 ° C ~ +50 ° C

Support IP68 Waterproof

Support IR Night Vision

Installation Steps

1. Click "Pairing" by setting.
2. Then connect the camera to the power supply.
Super easy 1 step installation, up to 150 meters wireless transmission distance, suitable for any vehicle.

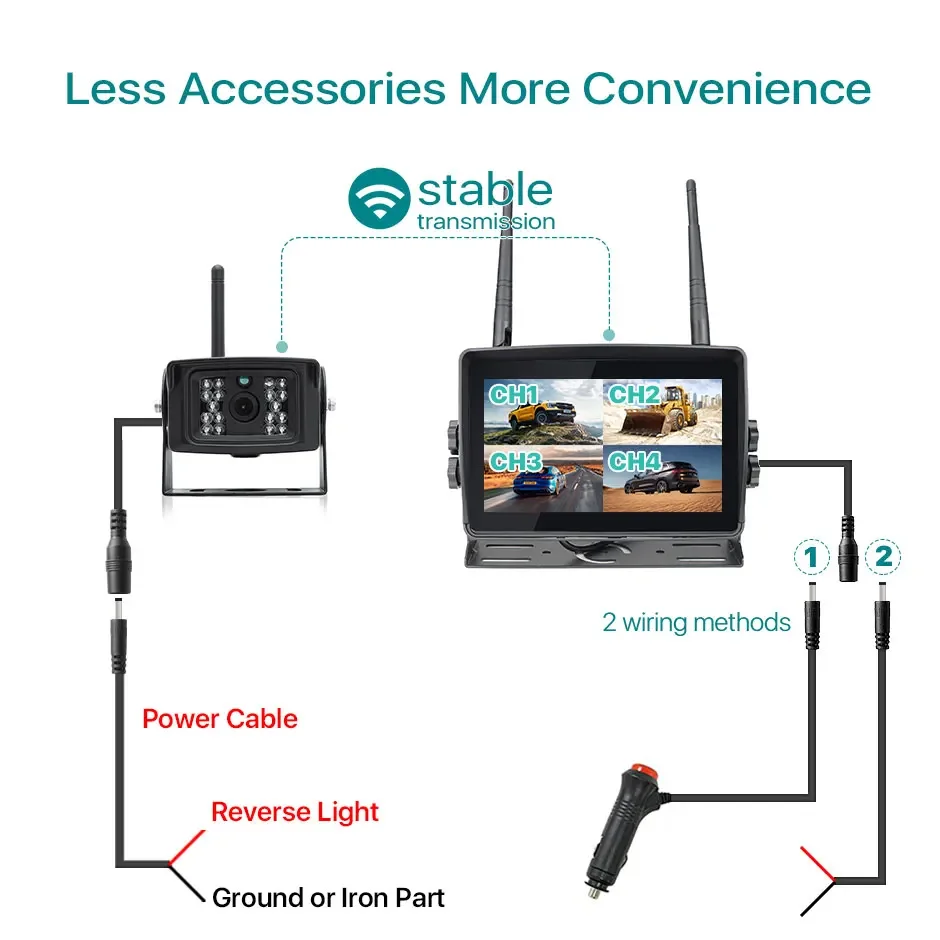

Wiring Diagram

Package Content
