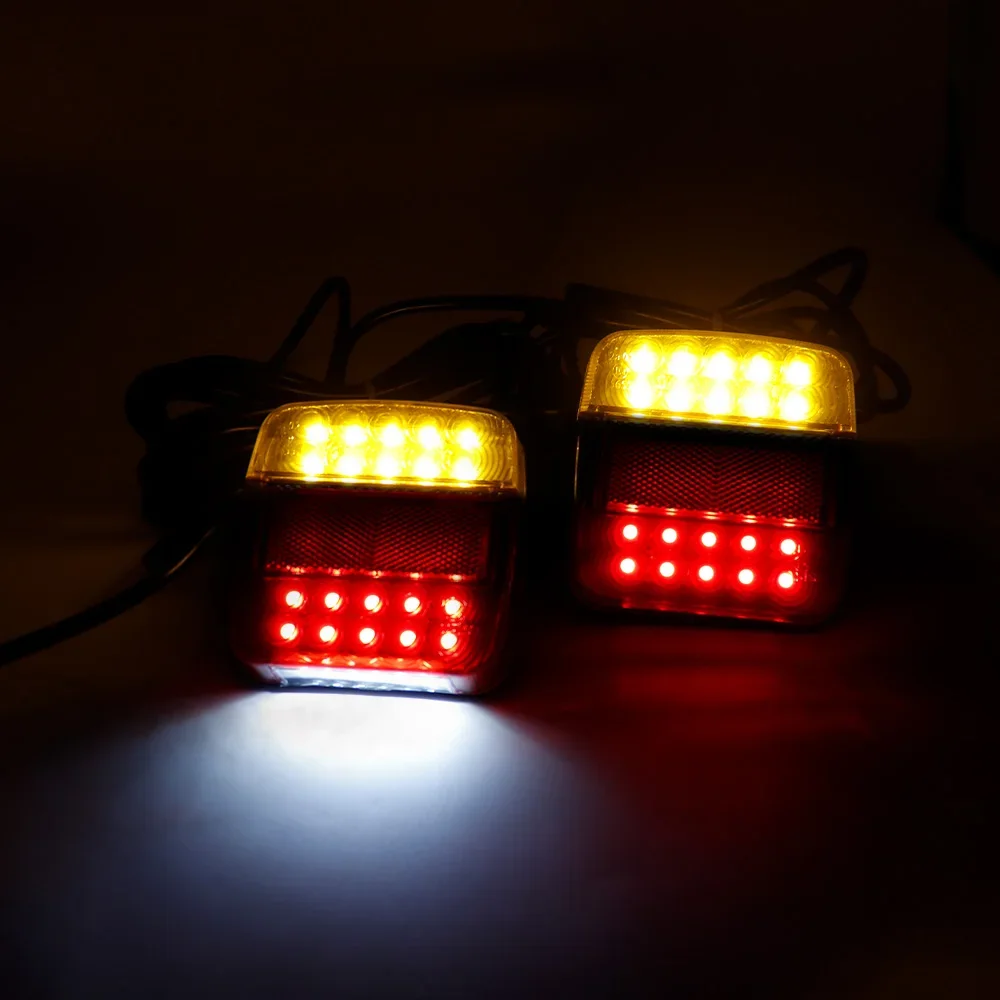

1Set 12V Universal Rear Towing Trailer Tail Light 16 LED 10m Cable 7 Pin Brake Stop License Number Plate Lamp Waterproof Lights

Specifications:
Model:196
Voltage: 12V
LED Service Life: >50000h
Color temperature : 3000-4000k
Waterproof Rate: IP65

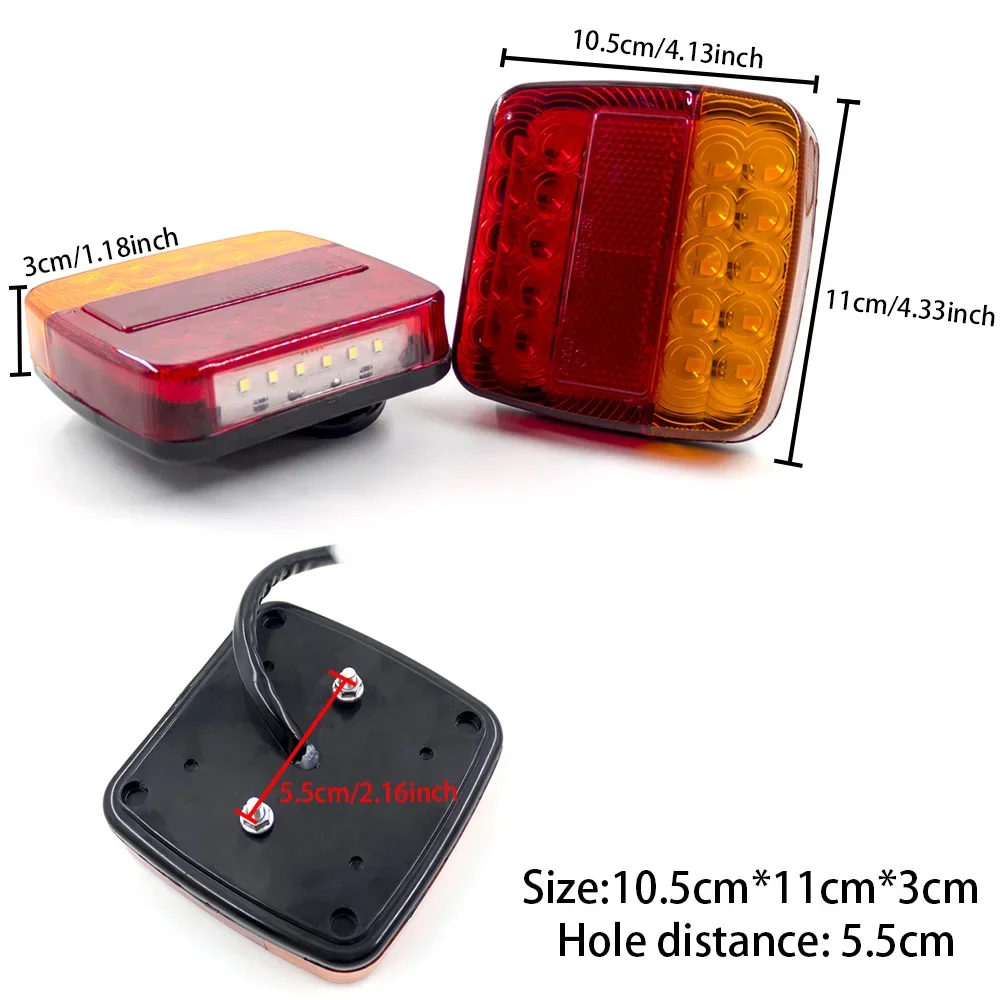

Size: 10.5mm*110mm*30mm (L x W x H)
Suitable for : Universal Truck trailer Van Bus
Color: Red+Yellow+White
Material:ABS Plastic
Line Length: 10M

Wiring:

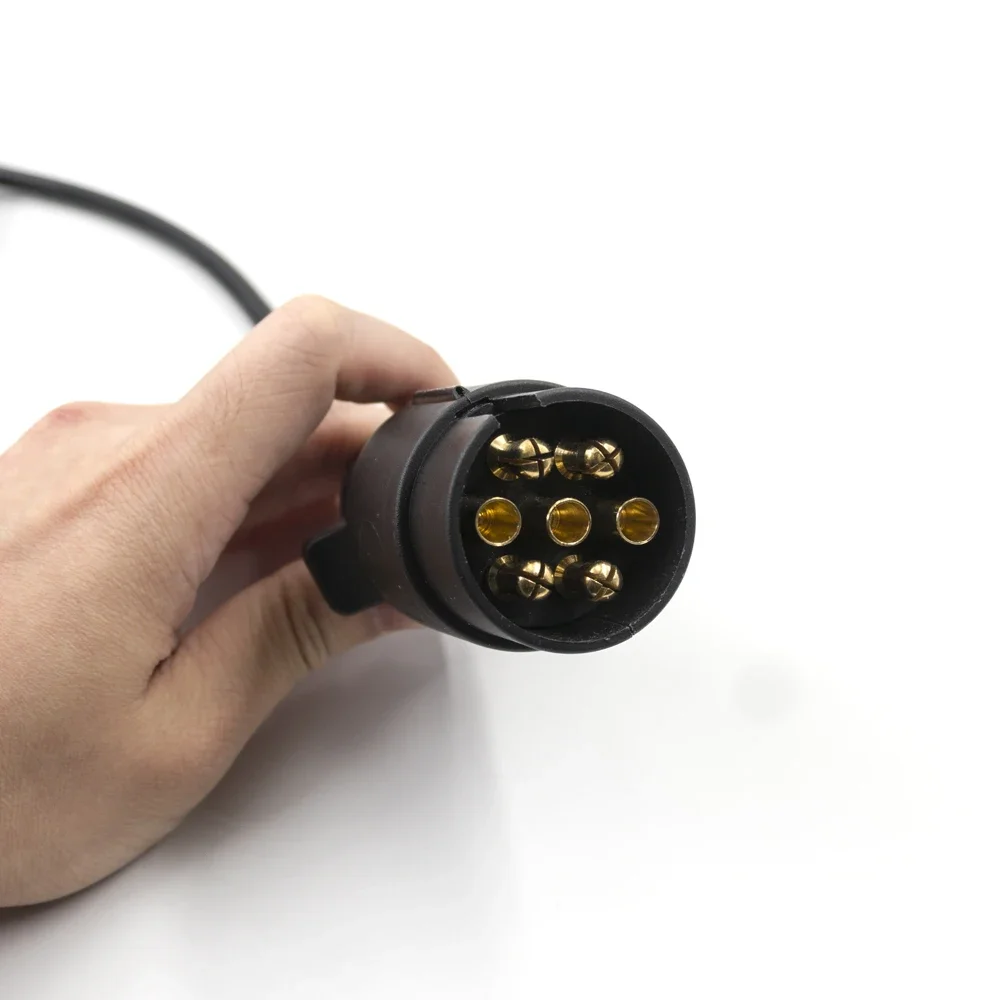

Schematic diagram of the functional layout of European-style 7-core socket
Pin 1 = Yellow wire = Left turn signal
Pin 2 = Blue Cable = Anti-fog
Pin 3 = White cable = Ground or ground connection
Pin 4 = Green cable = Right turn signal
Pin 5 = Brown Cable = Right position light
Pin 6 = Red cable = Brake
Pin 7 = Black wire = Position light left(If your hose is 6 wires, you can make a bridge with Pin 5)

Features:
1.Low energy consumption.
2.Long lasting, impact resistant.
3.Easy installation, bright, durable.
4.Fully waterproof, shockproof.
5.Universal fit any Vehicles with DC 12V.

Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Due to manual measurement, please allow slight data differences.
3.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4.Please perform professional installation under safe conditions.

Package include:
1X 10m line
1X 7 pin plug
2X Tail lights
