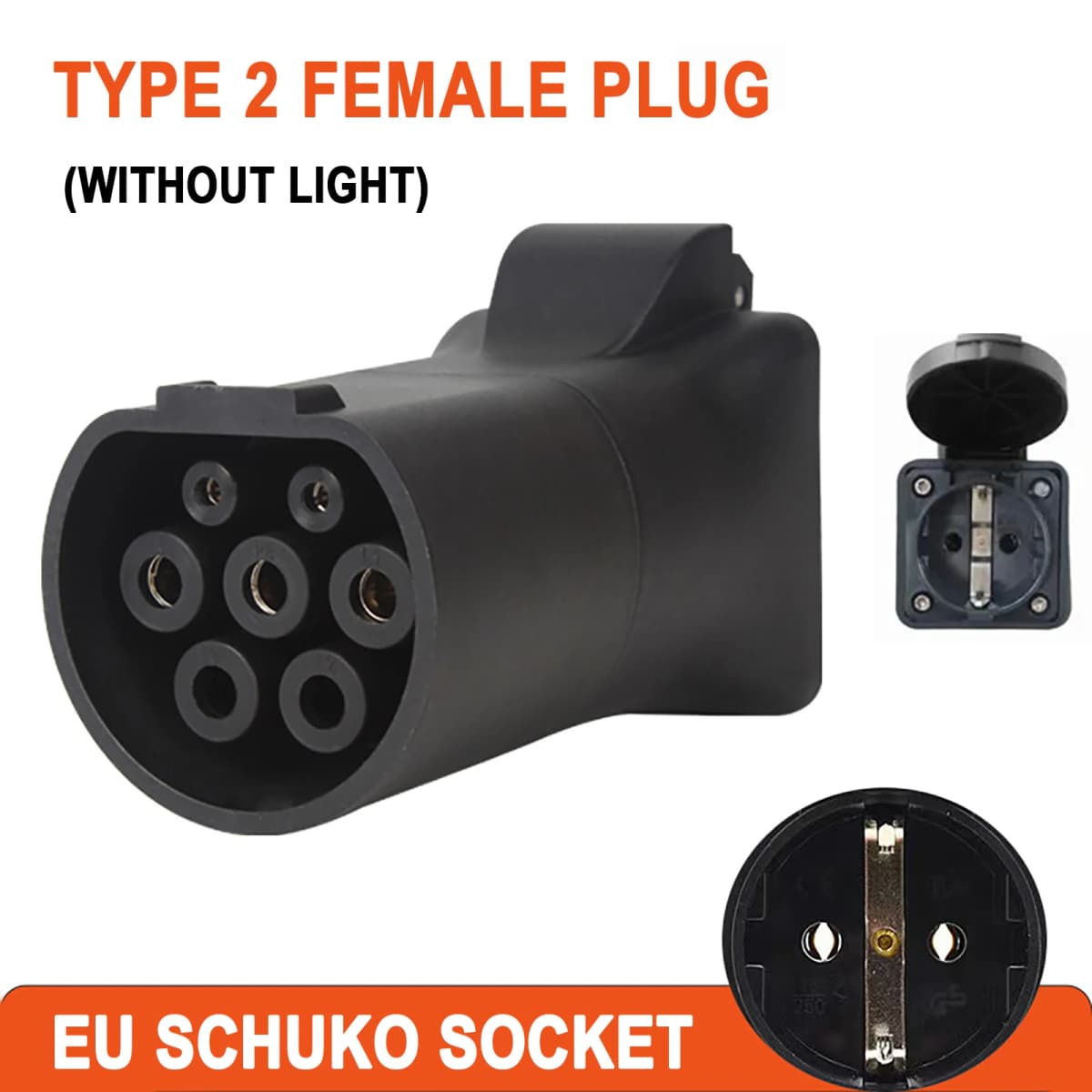

470Ω TYPE 2 Female to Schuko / Universal Socket EV Car Discharge Adapter for MGZS MG4 MG5 Marvel R (Need Car Supports V2L)

Features:

1. Plug-and-Play, suitable for a wide range of electrical appliances.

2. Electrical car connector, discharge anytime, anywhere.

3. Small and portable, travel light for outdoor.

4. Movable electric station for outdoor power supply.

Specification:

Interface standard: IEC 62196-2

Rated voltage: 220V

Rated current: 32A

Resistor: 470Ω

Rated power: 7KW

Insulation resistance: 5000MΩ

Working temperature: -40℃~+130℃

Relative temperature: 95% (at 40℃)

Salt spray level: 500 hours

Mechanical life: more than 10,000 times

Insertion and separation force: ≤100N

Separation force in locked state: ≥300N

Shell material: Thermoplastic engineering plastic, in line with ROHS environmental protection requirements

Contact material: Copper alloy, silver/nickel plated + top thermoplastic

Seal material: Silicone Elastoplast

Socket Standard: Type 2 Female To Universal / Schuko Socket

Applicable Scope: Designed for V2L-enabled EVs，such as for MGZS for MG4  for MG5  for Marvel R. (Needs the support of Vehicle to Load (V2L), or Vehicle to Home(V2H), or Vehicle to Grind(V2G) from your car.Discharge Converter RatedPower 3.5KW Rated Current 16A )

Very Important Tips:

1. Please check with your car manufacturer or car User's Manual to see if the car has the discharge function before purchase,it needs the support of Vehicle to Load (V2L), or Vehicle to Home(V2H), or Vehicle to Grind(V2G) from your car.

2. Please leave a chat message about your car Brand and Type to our customer service as soon as you make the order. We need to get such information to make it compatible with your car.

Packing included:

1 * New Energy Vehicle Conversion Head

Note:

1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
