Anti-Hijacking Intelligent Circuit Cut Off Kit Car Remote Control 12V Keyless Access System Auto Unlock Immobilizer Device

Description：

This is an immobilizer that protects your automobile from being stolen when your car is parked, or when you are forcefully removed from your vehicle. LB-AR028 Permits your vehicle to be safe even while you are away from your car. You can elect, upon installation, automatic vehicle shutoff at 1.5 minutes, or 3 minutes after exiting your vehicle.

Functions：

This system is a device to control engine stall.

When your car is parked, it can protect the car from being stolen; or when you are forced to leave the car by others, it can also protect the car from being stolen.

It can protect the safety of the car even when you are away from the car.

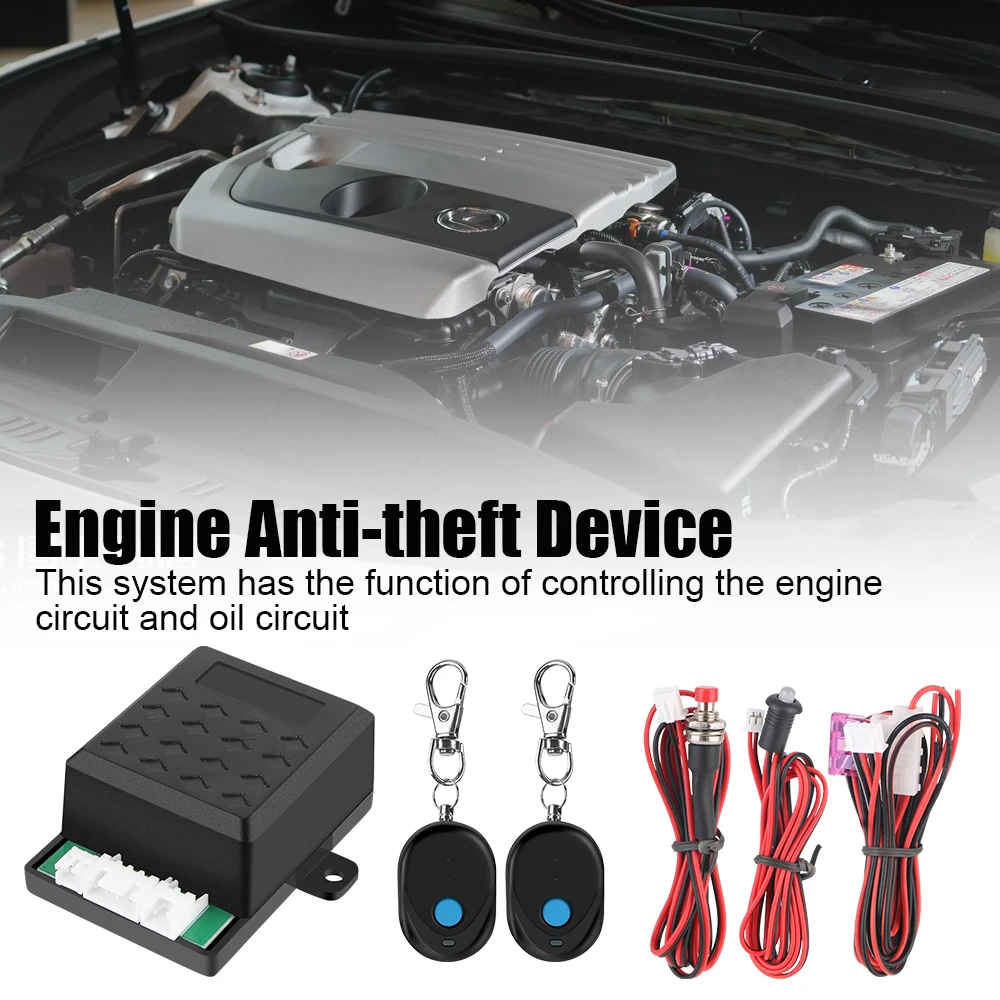

Product function: This system has the function of controlling the engine circuit and oil circuit.

Specifications:

Remote control working voltage: 3V

Remote control working current: 3mA

Remote control frequency: 433.9MHz

Host working voltage: DC 12V

Working current: 6mA

Installation Notes:

Install the main un it inside the vehicle away from moving parts and in a place where it is not visible.

The LED Indicator must be hidden and not visible.

The emergency button must be hidden.

The cable with red/black coloring must be connected to the terminal 86 at the relay and terminal 85 to the positive charge together with terminal 30 and terminal 87A must be connected to the destiny cable.

The cable with black/white coloring must connected to terminal 86 at the relay and terminal 85 must be connected to the original cut together with terminal 30 and terminal 87a must be connected to the destiny cable.

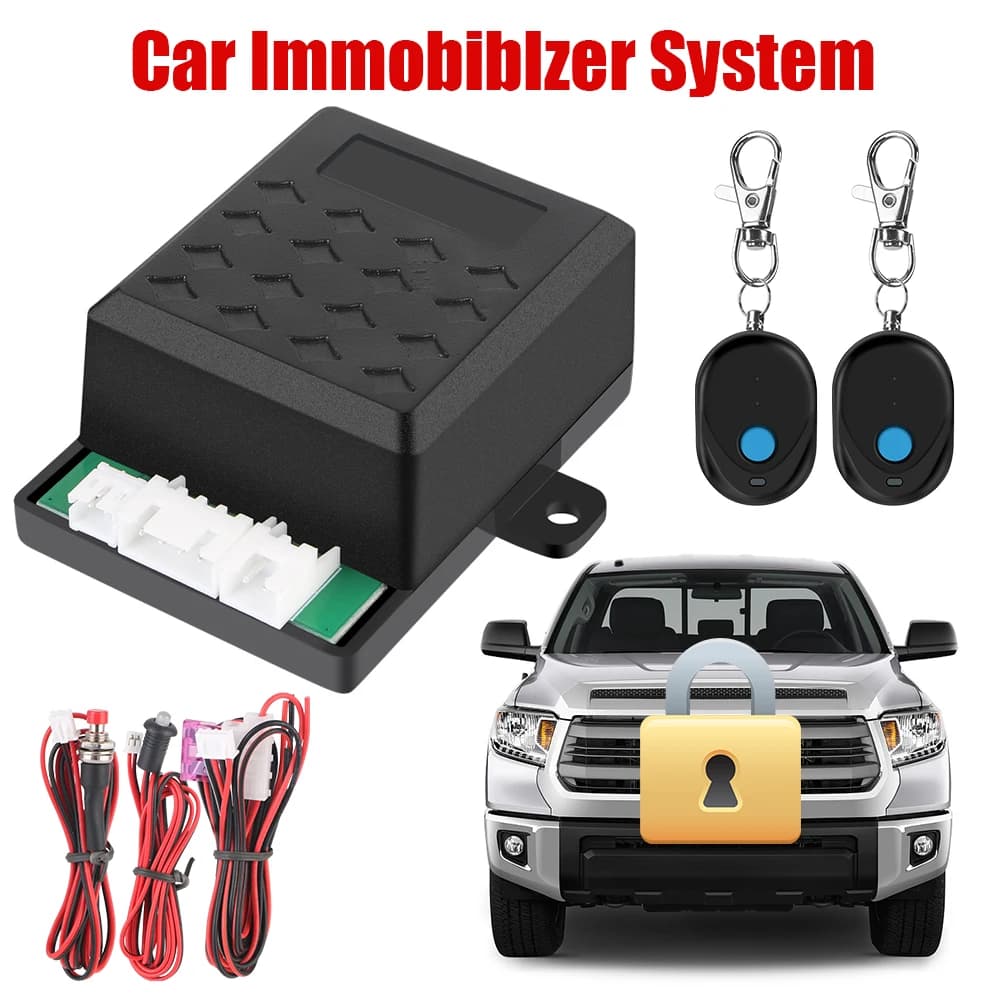

Package included:

1 X Host

1 X Host Connection Line

1 X LED Indicator Line

1 X Emergency Release Switch

2 X Remote Control

1 X Instruction
