12V 22mm Car Parking Sensor Kit AHD Radar Detectors Universal 4 Sensors Buzzer Reverse Backup Radar Sound Alert Probe System

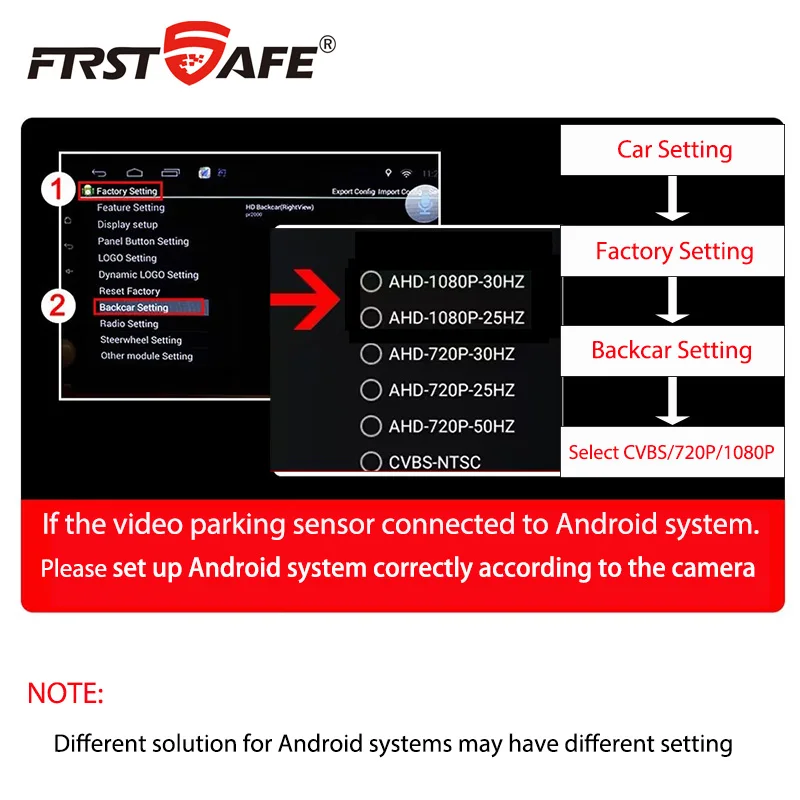

Android System Compatibility

Enjoy seamless integration with your Android device, making it easy to monitor and control your vehicle's parking assistance.

Factory Direct Purchase

Buy directly from the manufacturer for guaranteed quality and competitive pricing, ensuring value for your investment.

Advanced CVBS AHD Technology

Experience superior video quality with the advanced CVBS AHD technology, ensuring clear visuals for safe parking.

Radar Monitor System

The radar monitor system offers real-time feedback, helping drivers avoid collisions and park efficiently.

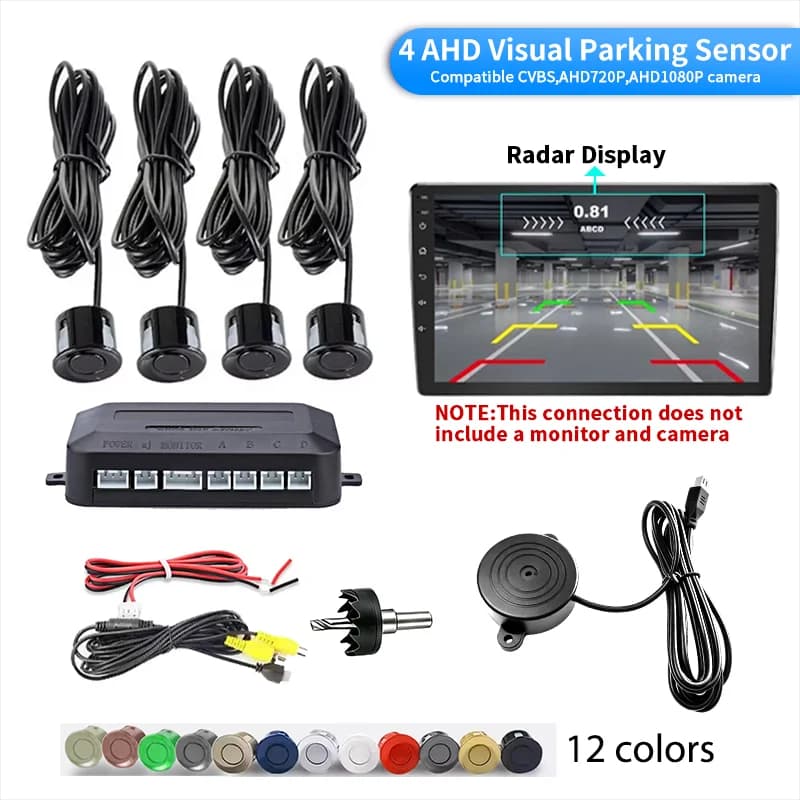

4 Sensor System

The 4 sensor system provides comprehensive coverage, detecting obstacles accurately and enhancing safety while reversing.

Note :

1-This link not included TFT Monitor and Rear View Camera .

2-Please check your monitor has RCA interface

3-Four sensors are the same.

4-Control Box ABCD corresponds to the rear of the car from left to right

5-Sensors height is 50-70cm from the ground

6-This product is only suitable for Installation on 12V cars

7-The sensor of this product is only suitable for installation in plastic housing

8-The product is only suitable for fuel vehicles and not for electric vehicle

9-The sensor of this product is not suitable for metal bumpers

Features:

1. Using Double CPU digital fill image sensor designed for automotive Rear View development design, using digital fill and

software technology, clear image and distance on the monitor.

2. Distance Of Con For Parallel Parking:High-precision ultrasonic Sensor，High-end digital signal processing chip, crisp

images and precise distance readings on your TFT-LCD screen.

3. The alarm volume is graded，the closer the obstacle，the more urgent the sound.

4. Detection（display）distance：0.3--2.5m（large obstacles）

5. Alarm distance：0.3--1.5m

6. High Pressure Water Resistance:Withstands high pressure washing and immersion, thanks to its multilayer waterproof design.

7. Compatible with CVBS/AHD720P/AHD1080P Camera

8. AHD Signal Support:Enhanced clarity with AHD signal support, providing a clear view of your car's surroundings.

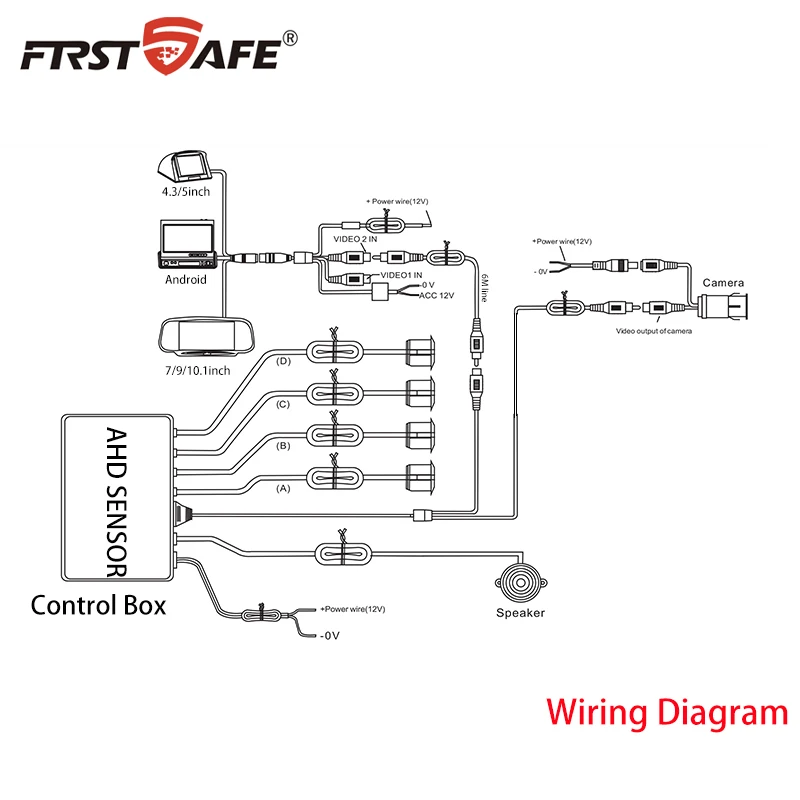

8. Easy Installation:Comes with a drill for sensor installation and a 2.2m video adapter cable connected with any TFT-LCD screen ,

power cable connection car Reversing power supply, Reversing, the monitoring Parking system automatically start working,

you can clearly see the car Rear the distance and Image

9. -30 to +60 temperature range of application, The factory after the high pressure water immersion test and 12 hours

on the electrical aging test, multilayer waterproof design, truly high pressure washing and immersion .

1. Rate Voltage: DC 12V

2. Operating Voltage Range: 9~16V

3. Rate Current: 20~200mA

4. Detecting distance: 0.3 - 2.5m（large obstacles）

5. Ultrasonic Frequency: 40KHz

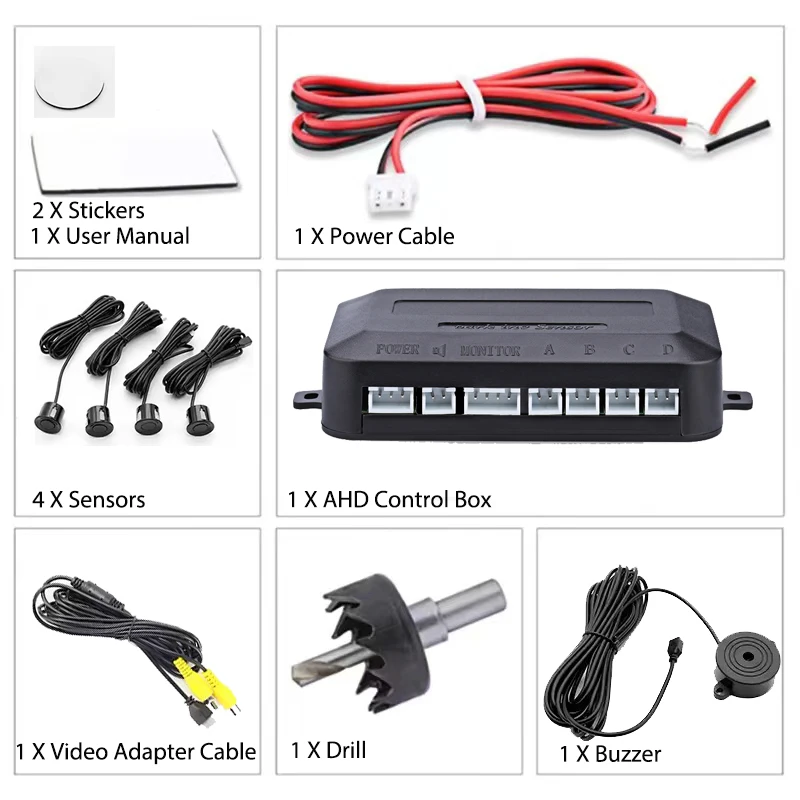

Package:

1 x Control Box

1 x Buzzer with 3m line

4 x Parking Sensors with 2.5m Line

1 x Video Adapter Cable with 2.2m

1 x Power Cable with 0.8m

1 x Drill

2 x Sticker

1 x User manual
