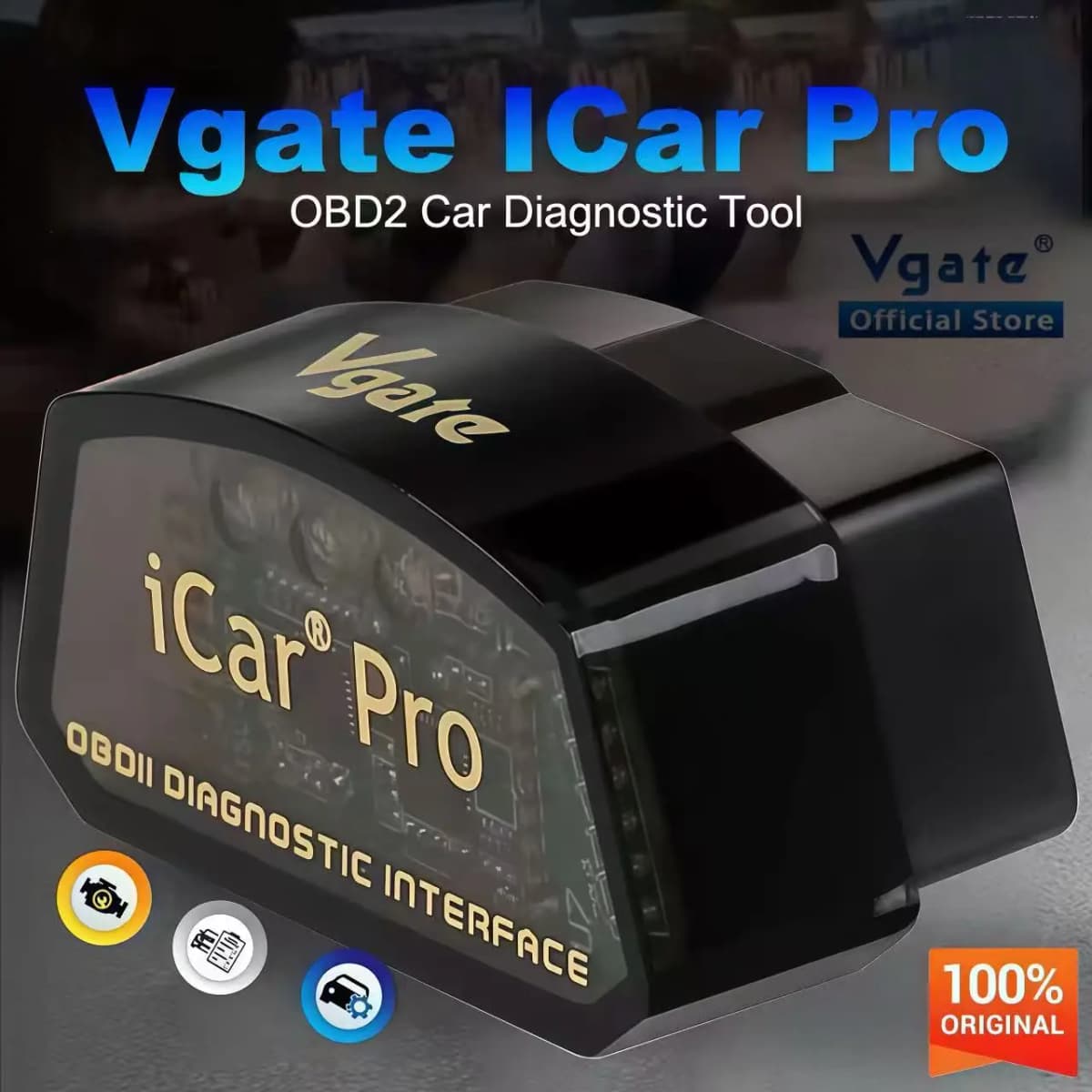

Vgate ICar Pro ELM327 OBD2 Scanner WIFI Bluetooth 4.0 for Android/iOS BT3.0 with Android Car Code Reader OBD2 Car Diagnostic Too

Vgate iCar Pro ELM327 OBD2 Scanner WIFI Bluetooth 4.0 For Android/IOS BT3.0 For Android Car Code Reader OBD2 Car Diagnostic Tools

Purchase Notes：

1.iCar Pro's firmware version has been updated to ELM327 V2.3 for all market in the world,V2.3 adds more instructions to read more data and vehicles,If you received V2.2, please contact us to upgrade to V2.3
2.Official store only sells the original iCar pro,We have Anti-piracy Software to test if is original,Please contact us to get the Anti-piracy Software,Avoid getting fake iCar pro from other stores
3.If your mobile phone is IOS, when you use BT4.0 Ver., please connect to BT directly in the software,Don't connect to BT in phone settingsjust open the bluetooth, then Open the APP, find and connect the bluetooth in APP

Vgate icar Pro Use Tips:

1. Download 'Auto Doctor from the APP Store or Google Store
​2. start the car engine and plug inthe iCar pro to the OBDll interface
​3. Connect to iCar Pro's Bluetooth/WiFi via APP
​4. Refresh the app and connectsuccessfully

Vgate official iCar Pro Connection Method：

1. BT3.0 for Android

2. BT4.0 for Android/IOS

3. WIFI for Android/IOS

Vgate iCar Pro Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
​Clear trouble codes and turn off the MIL ("Check Engine" light)
​Engine RPM
​Calculated Load Value
​Coolant Temperature
​Fuel System Status
​Vehicle Speed
​Short Term Fuel Trim
​Long Term Fuel Trim
​Intake Manifold Pressure
​Timing Advance
​Intake Air Temperature
​Air Flow Rate
​Absolute Throttle Position
​Oxygen sensor voltages/associated short term fuel trims
​Fuel System status
​Fuel Pressure
​Many othershellip

Vgate iCar Pro Support Automatic Start/Sleep (Electric vehicles are not supported this function):

1. When the car is ignited, iCar Pro will automatically start.
​2. 30 minutes after the car stalls, iCar Pro will automatically sleep.

Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)
​SAE J1850 VPW (10.4 Kbaud)
​ISO9141-2 (5 baud init, 10.4 Kbaud)
​ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
​ISO14230-4 KWP (fast init, 10.4 Kbaud)
​ISO15765-4 CAN (11bit ID, 500 Kbaud)
​ISO15765-4 CAN (29bit ID, 500 Kbaud)
​ISO15765-4 CAN (11bit ID, 250 Kbaud)
​ISO15765-4 CAN (29bit ID, 250 Kbaud)
​SAE J1939 CAN (29bit ID, 250 * Kbaud)
​USER1 CAN (11 * bit ID, 125 * Kbaud)
​USER2 CAN (11 * bit ID, 50 * kbaud)
​* Default Settings (User Adjustable)

Vgate iCar Pro Specification:

Supply Voltage: 11.5V-15V
​Supply Current: <200Ma
​Standby Current: <30Ma (TONWON Pro = <3Ma)
​Operating temperature: -40 ℃ - 85 ℃
​Operating Humidity: 5% - 95% RH Non-Dewfall
​Hardware version：V2.3
​Supported systems：Android/IOS
​Connection method：BT3.0/BT4.0/WIFI

Software Display:

Packing List:

1 x Vgate iCar Pro OBDII
​1 x User manual
