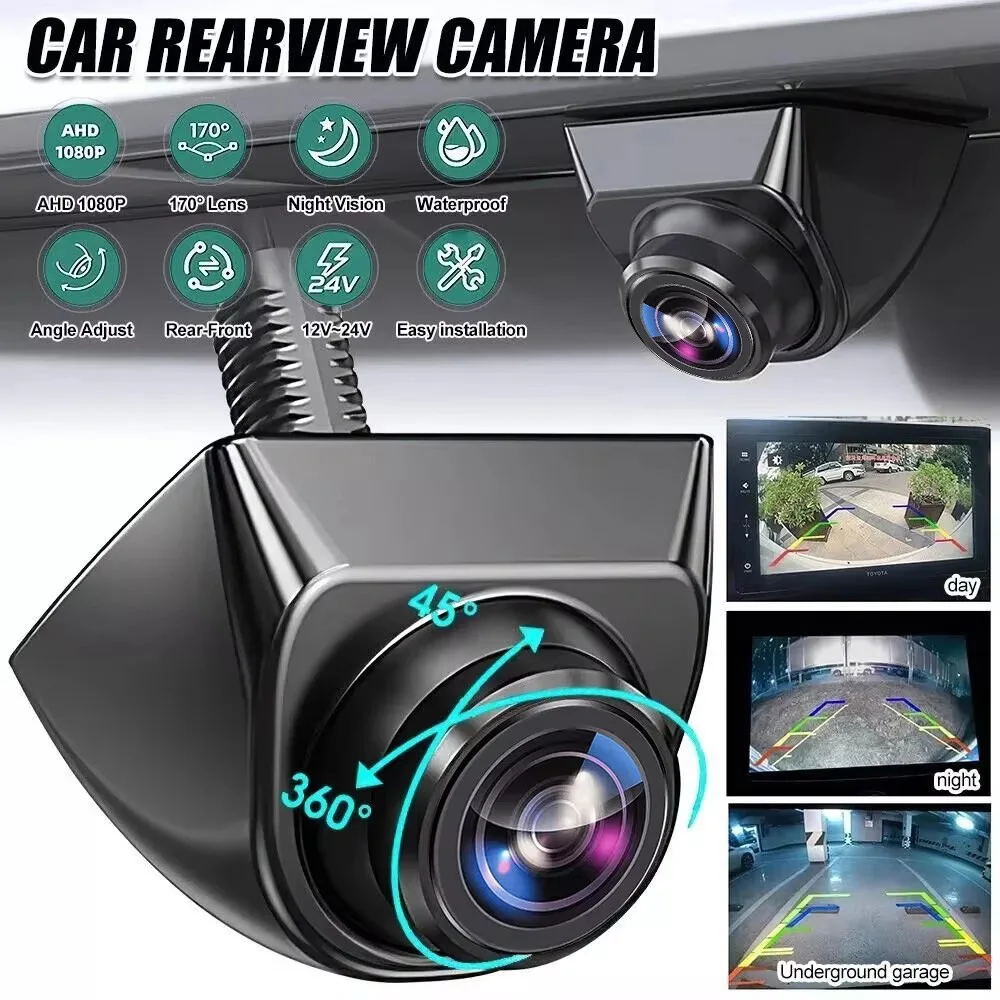

Car Rear View Camera CVBS AHD 1080P Full HD Reversing Rear Camera 170° Wide Angle Night Vision Fisheye Len Car Reversing Camera

💡💡Technical data:

Image sensor: CCD AHD Chip

System TV: NTSC

Resolution: 1920*1080 pixels

Viewing angle: 170 degrees

Signal-to-noise ratio: ≤48 dB

Water resistance class: IP68

Supply: DC 12-24 V

Minimum illumination: 0.01 Lux/F1.5

Working humidity: 80% RH

Operating temperature: -22℉—+140℉

Storage temperature: -40℉—+176℉

Starlight Night Vision - excellent visibility at night

💡💡The package contains:

1 * Car Camera
1 * 6-meter double-shielded video cable
1 * 1-meter power cable
1 set of installation tools
1 * User manual
1*Package box

💡💡Features:

✅1080P Crisper Image: The HD 1080P reversing camera features 6 glass lenses and upgraded chips to restore 100% true colors. It delivers vibrant and realistic images even in low-light conditions, ensuring your safe nighttime driving.

✅170° ultra-wide angle, safer driving: The reversing camera utilizes a 170° ultra-wide-angle lens and fisheye correction technology. During real scene restoration, it can also minimize the blind spot area, making reversing safer and driving more confident.

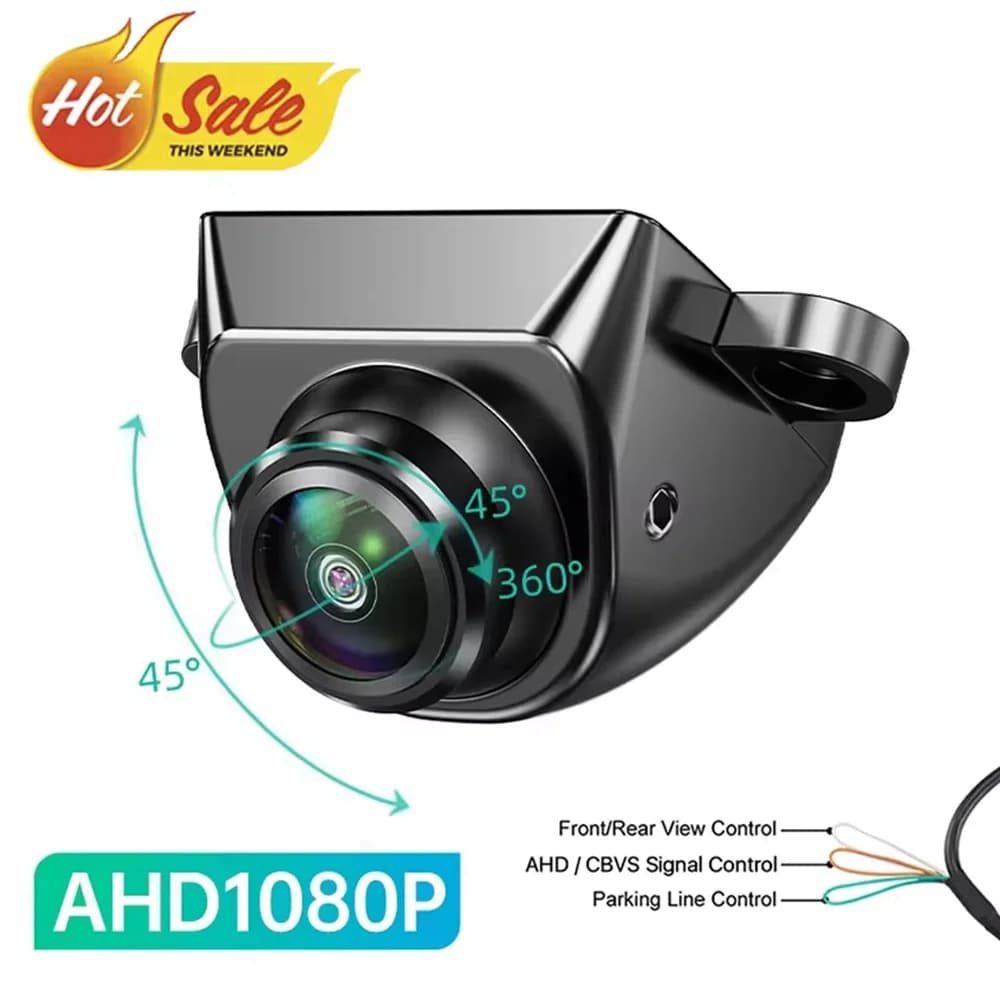

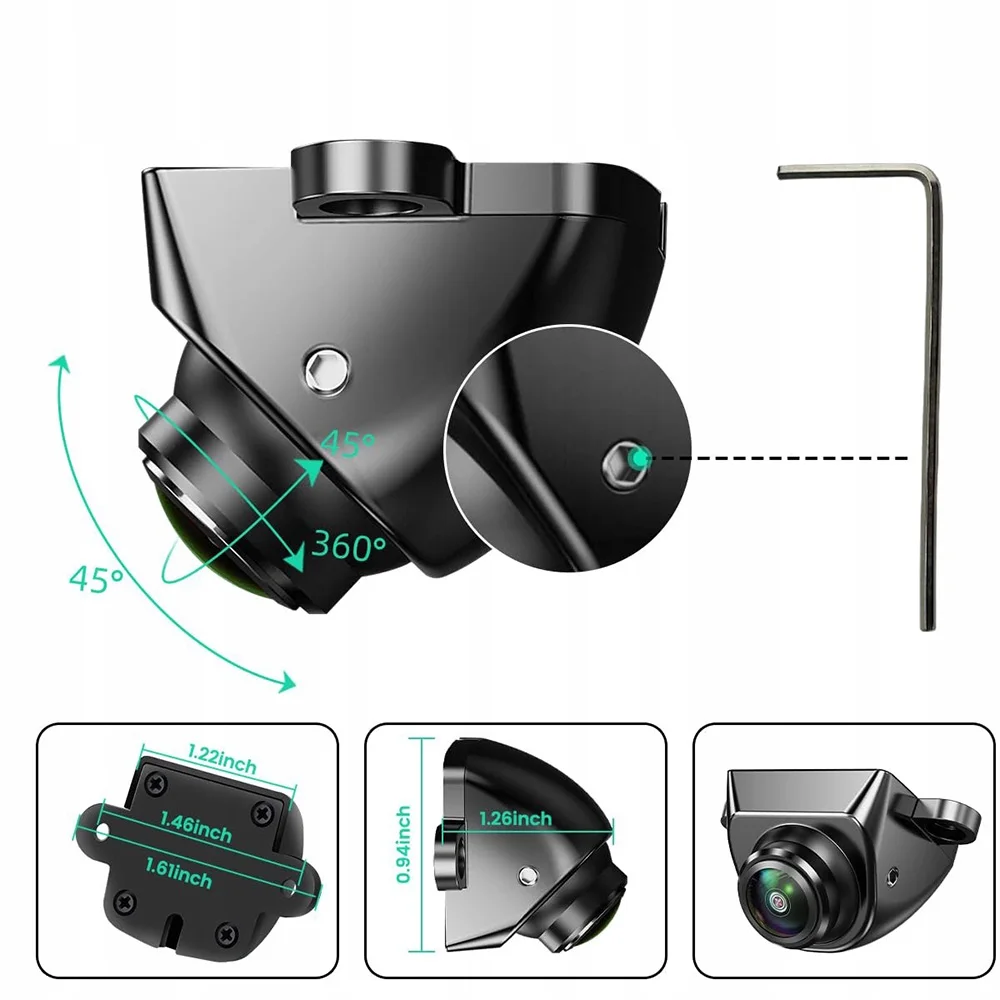

✅Adjust the angle as you prefer and enjoy easier installation: The built-in rotating metal camera housing allows you to rotate the rear pickup camera lens part to find the best viewing angle using a small key. Designed in an OEM style, this reversing camera not only enables direct mounting on the license plate without drilling holes but can also be installed as a front/rear-view camera under the trunk lid, reverse lights, rear door handles, and front bumpers.

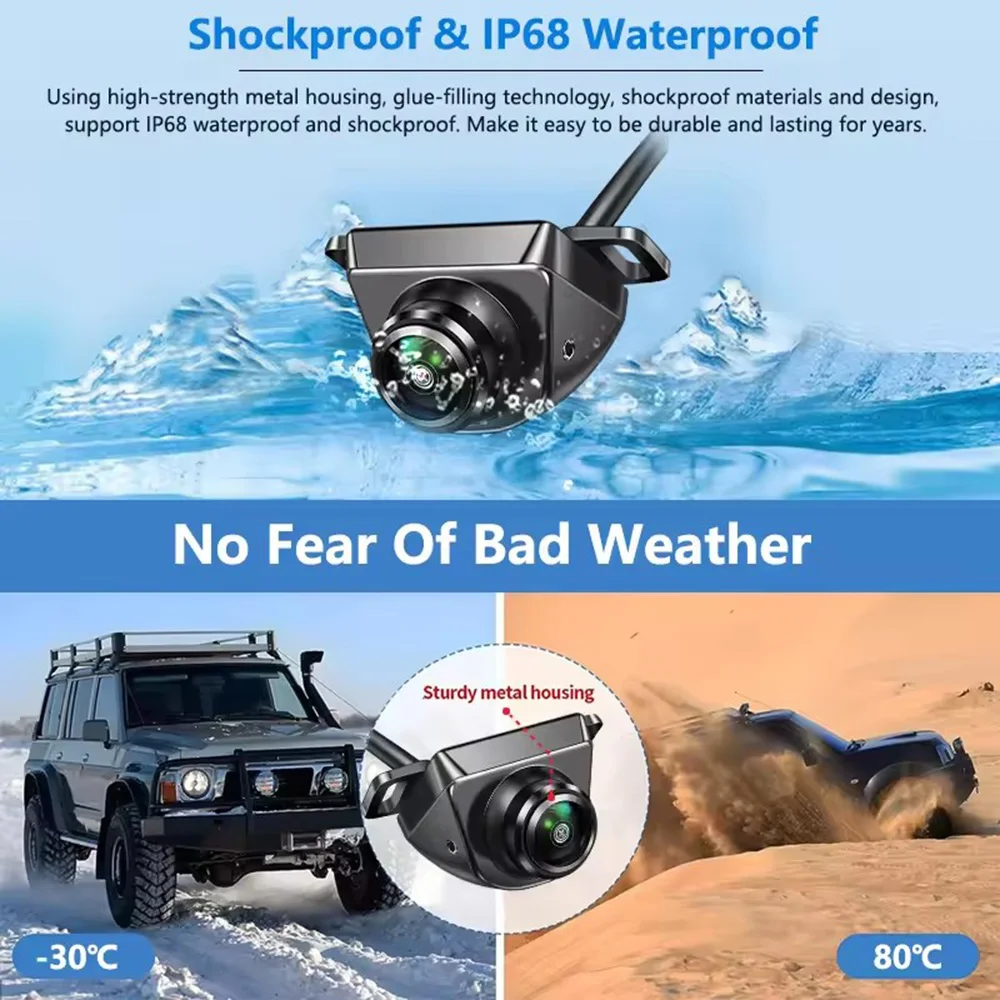

✅More water-resistant and durable: The reverse camera housing is made of solid metal, and the fully sealed structure filled with adhesive achieves the international water resistance standard IP68. Whether it's rain, snow, or other bad weather, you don't have to worry about water, fog, or ice—the reverse camera is always in place and functions stably.

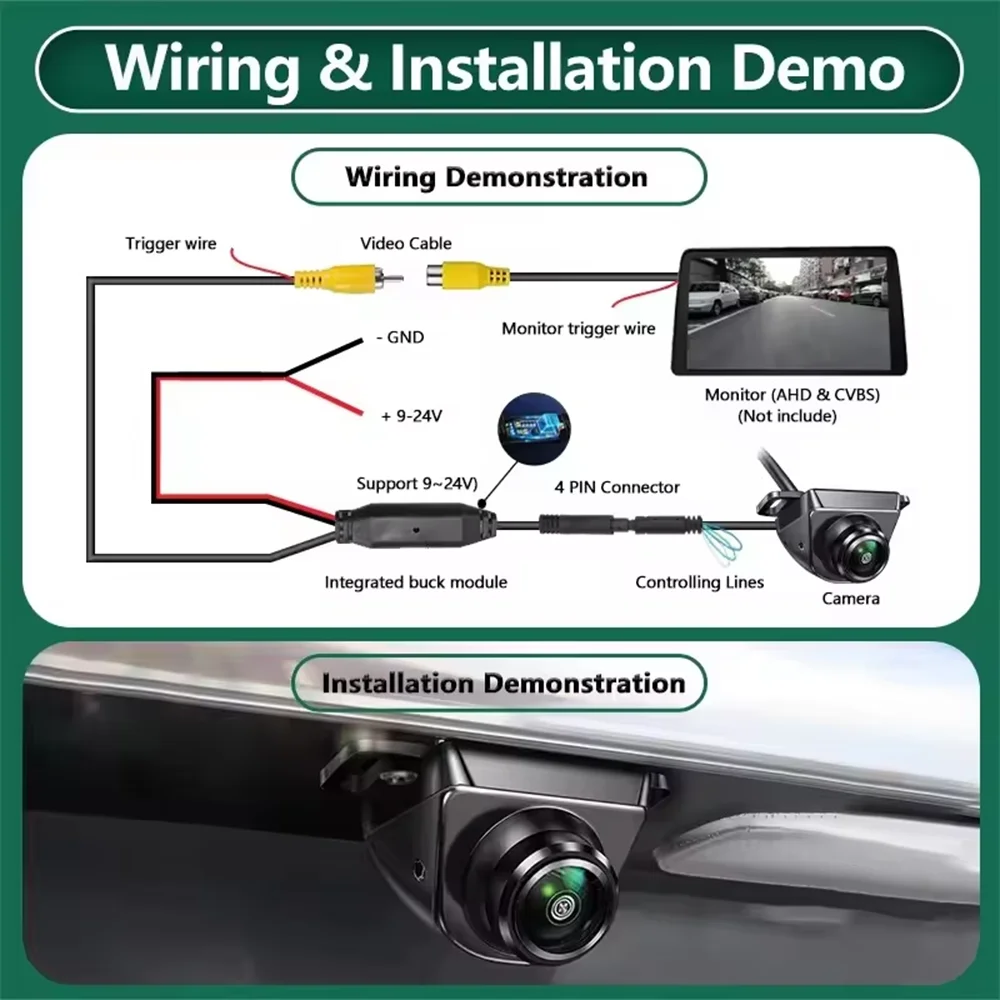

✅Wide compatibility: The car reversing camera accepts CVBS/AHD signals and RCA video ports, supporting connections with radios, DVD players, OEM navigation systems, or any display with RCA video input. It fits vehicles of various lengths, including sedans, pickups, SUVs, campers, trucks, and vans (vehicles longer than 24 inches require a separately purchased extension).

💡💡Attention:

🔍Our AHD reversing camera only supports AHD 1080P 25HZ. Ensure your monitor/monitor unit supports the AHD 1080P 25HZ/PAL video signal format. Otherwise, you can only use the CVBS video signal.
🔍The camera can only be connected via RCA. The pin header is not used for direct connection.

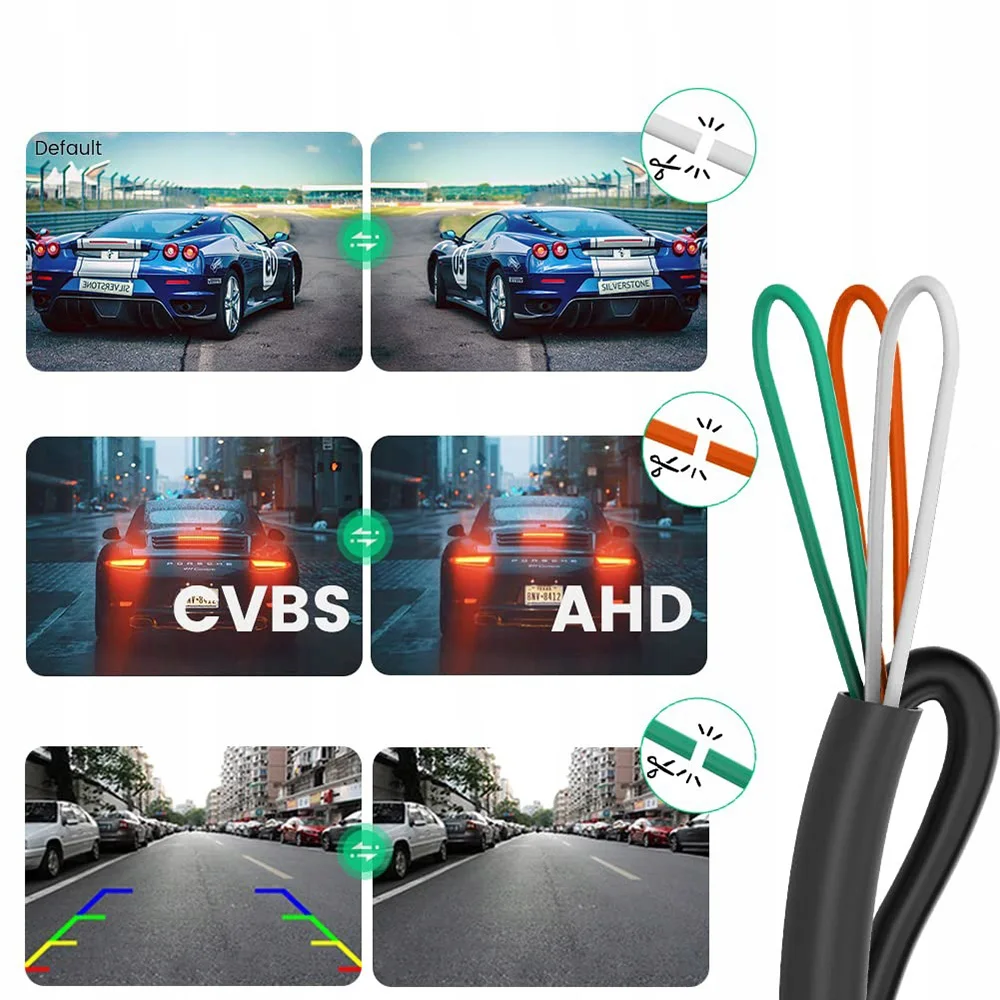

💡💡Camera with three switch cables:
1. Cut the white cable to switch from the mirror image (rear view) to the non-mirror image (front view).
2. Cut the orange cable to switch the CVBS video signal to the AHD video signal. If your monitor supports AHD 1080P 25HZ (PAL) video settings, you can try it.
3. Cut the green cable to disconnect the line. Reconnect the power after cutting any cable, and you can also reconnect it after cutting the cable if necessary.
