Thinkcar BD6 OBD2 Scanner Full System Diagnostic Tool 5 Reset Lifetime Free Wireless Car Code Reader For Android Iphone VS BT200

Why Choose THINKCAR BD6 Bluetooth OBD2 Scanner Reader?

【One Scanner for All Cars】 Thinkcar BD6 scan tool support full OBD2/EOBD test modes on Engine System. It can reads and clears codes on all system diagnosis for almost All OBDII/EOBD Cars.

【All Cars Full Systems Diagnosis Lifetime Free】Full OBD2 Functions Lifetime Free. .It can access all available system modules and read ECU information to facilitate the vehicle diagnosis such as Engine, ABS, SRS, Transmission, TPMS, SAS, BMS etc.

【 5 Resets Lifetime Free 】It included BLEED/BRAKE/ETS/IMMO/OIL

【Support 12 Languages】English, French, Spanish, German, Russian, Italian, Portuguese, Polish, Turkish, Greek,Traditional Chinese..

【Support 106+ car Model】Works on 99% of vehicles covering Asian, European, American, Russian, Malaysia, India vehicles.

Warm Tips

1) Before place order please check compatibility first. Send your car brand model and release year to seller.for example(Audi,A3, 2020)

2) Support Mobile Phone & Tablet Computer download : Android:5.0 Or Above (not support Android 12) , IOS:9.0 Or Above

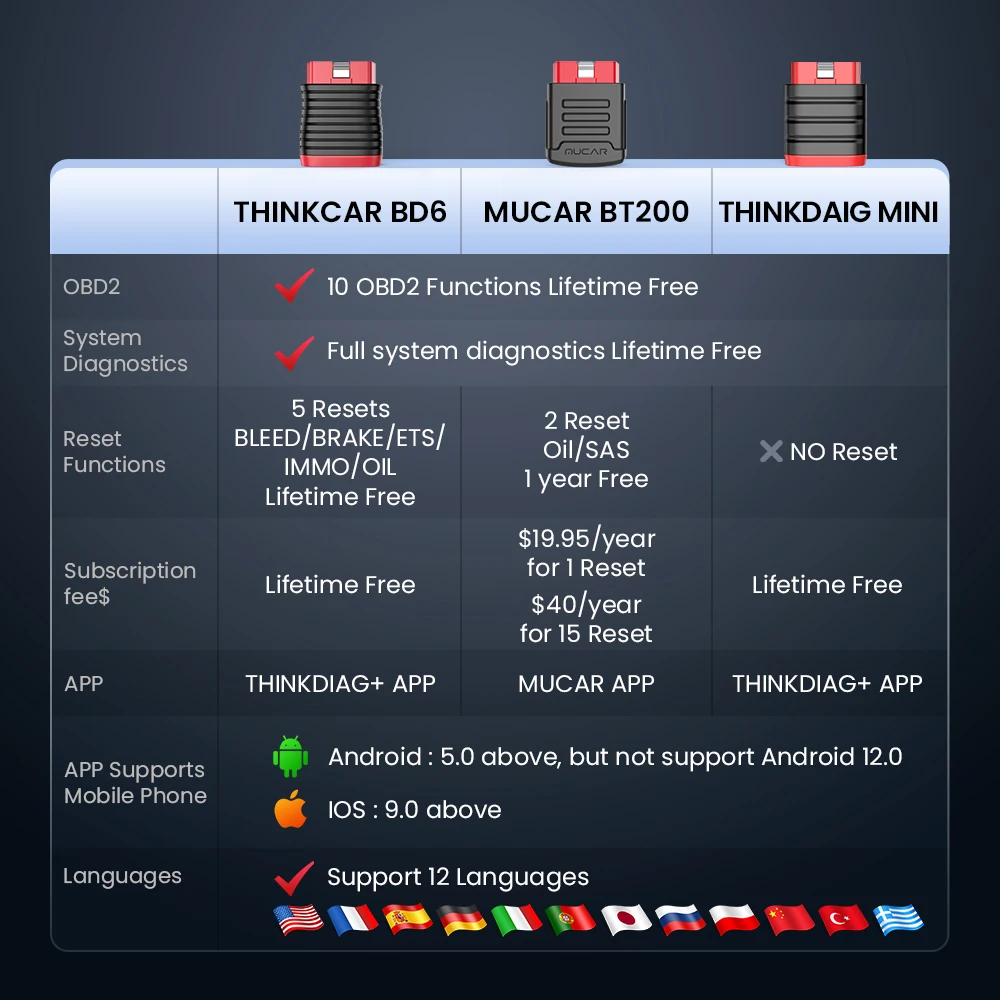

What is difference between THINKCAR BD6,MUCAR BT200,THINKDIAG MINI ?

THINKCAR BD6

5 Resets BLEED/BRAKE/ETS/IMMO/OIL Lifetime Free
No Subscription Fee

MUCAR BT200

2 Reset OLI/SAS 1 Year Free
$19.95/year For 1 Reset
$40/year For 15 Reset

THINKDIAG MINI

No Reset Function
No Subscription Fee

Full System Lifetime Free

With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ ECU information to facilitate the vehicle diagnosis.

1) Examinate your car like a professional mechanical technician

2) Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;

3) Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;

4) Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;

5) The active test used to access vehicle-specific subsystem and component tests.

Lifetime Free Full OBD2 Functions

Supported OBDII protocol & EOBD protocol

Supported Agreement:ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)

Mode 1:Read live data stream
Mode 2:Read freeze frame data
Mode 3:Read DTCs(diagnostic trouble codes)
Mode 4:Clear dtcs
Mode 5:Oxygen sensor monitoring
Mode 6:System monitoring
Mode 7:Read pending DTCs
Mode 8:Control operation of on-board system
Mode 9:Read vehicle information
Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information

5 Resets Lifetime Free

1) Oil Reset

If the oil maintenance light is on, the car needs to be maintained. After the maintenance, the driving time and other data should be reset to zero, so that the maintenance light will be turned off, and the car system will enable a new maintenance cycle.

2) Brake Reset

When the brake is used to a certain thickness, the brake sensor line will be worn, and the brake pad sensor line will send a signal to the car computer to prompt the replacement of the brake pad. After replacing the brake pads, the brake needs to be reset, otherwise the car will still alarm.

3) IMMO Key matching

When replacing the ignition switch key, ignition switch, combined instrument panel, engine control unit (ECU), body control module (BCM) and remote control battery, IMMO key matching is required.

4) ABS Bleeding

In the case of replacement of ABS system, ABS pump, brake pump, brake line and brake fluid, it is necessary to bleeding the ABS system through the ABS bleeding function.

5) ETS Learning(throttle matching)

Need to perform throttle matching: Replace the electronic control unit, power off the electronic control unit, replace the electronic throttle assembly, replace or disassemble the intake port, clean the throttle.

Support 106+ Car Brands

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian

for Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

Support 12 Languages

English , French , Spanish , German , Italian , Portuguese ,Japanese , Russian , Polish , Traditional Chinese , Turkish , Greek

Intelligent Wireless Diagnostics

1) Live Data Steam
2) DTC Lokkup
3) Reading Of Fault Codes
4) Diagnostic Feedback
5) Print Diagnostic Report
6) Auto Vin Scan

Quick Setup Guide Compatible with Android & IOS

Step 1 : Download Thinkdiag APP

Step 2 : Connect Thinkdiag MINI in APP

Step 3 : Download Software

Step 4 : Turn On Your Car

Step 5 : One-click Via Bluetooth

Step 6 : Start Diagnosis

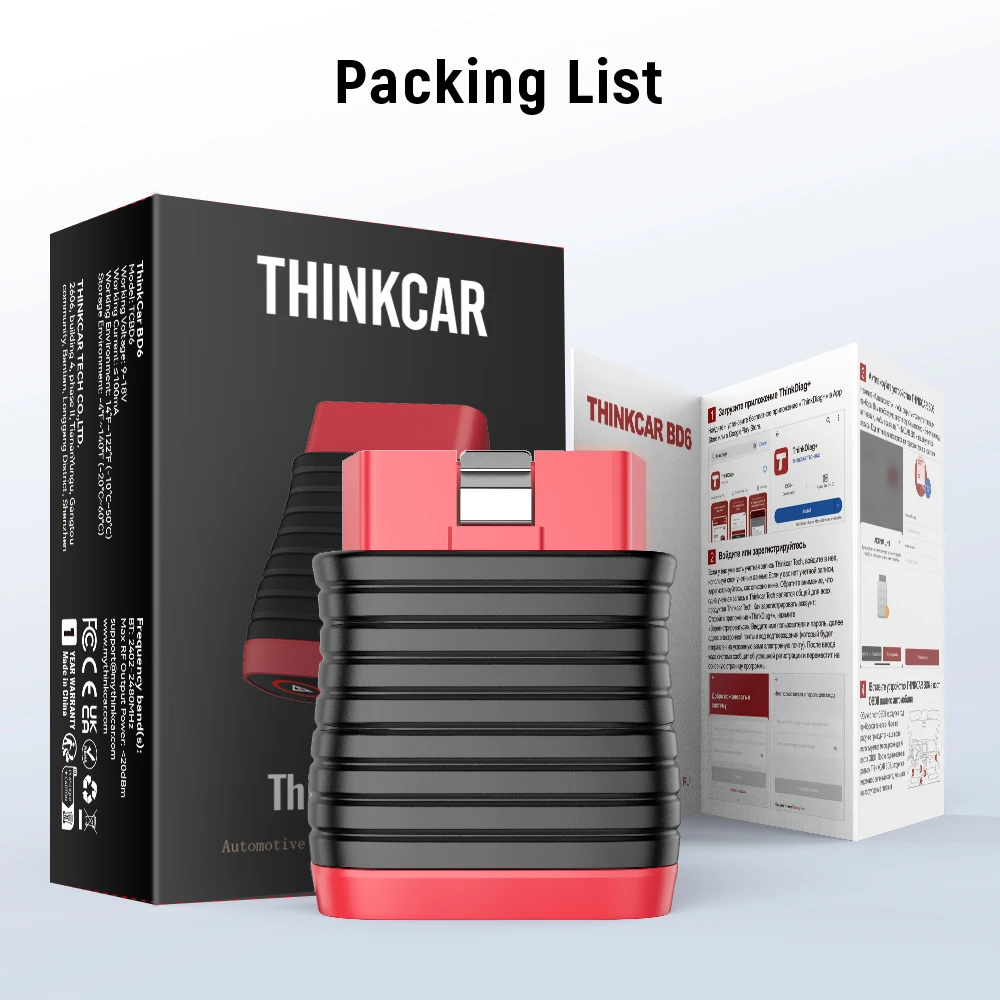

Packing List

1*THINKCAR BD6 OBD Scanner

1*User Manual

Q : What do different lights on Thinkcar BD6 indicate ?

A : There are 3 different lights on Thinkcar BD6

Continuous green light : The device is powered on

Continuous blue light : Bluetooth is connected

Flashing blue light : Bluetooth is communication
