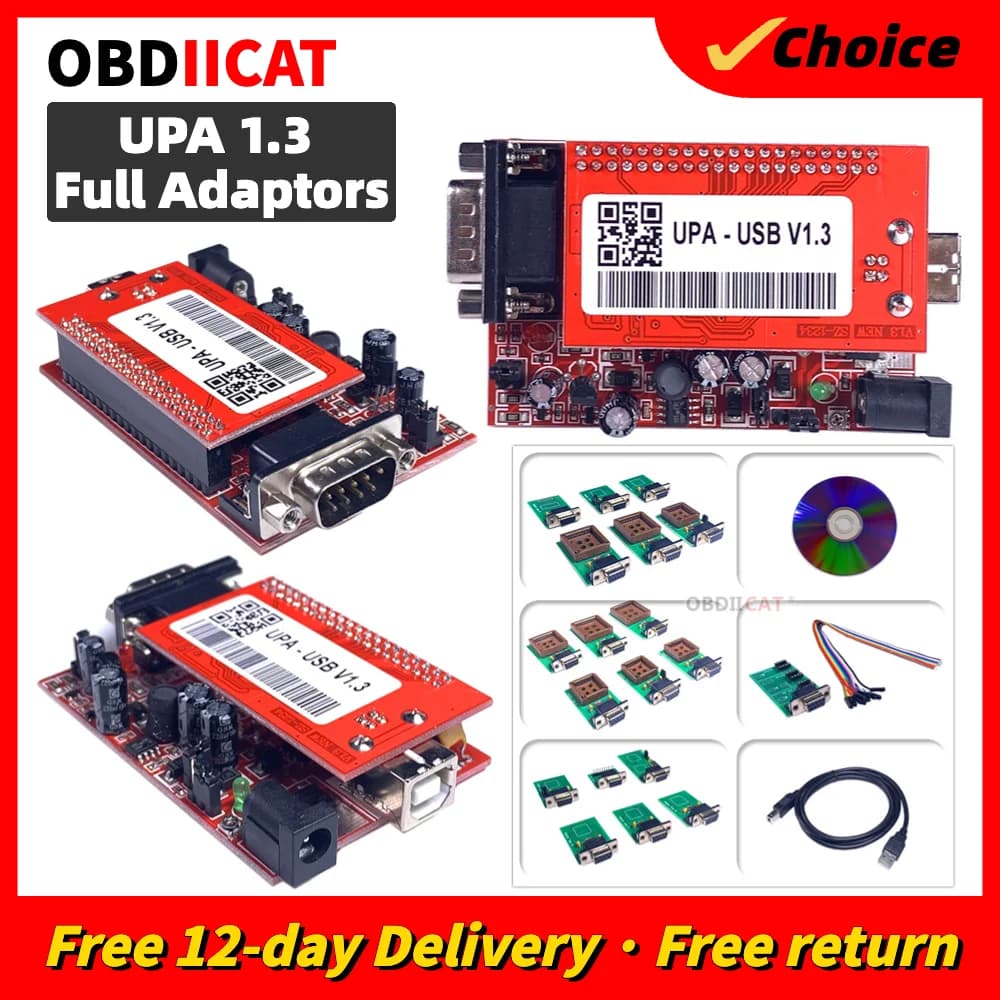

New Arrival UPA USB With 1.3 Eeprom Adapter UPA-USB V1.3 Main Unit ECU Chip Tunning ECU Programmer OBD2 Diagnostic Tool

New arrival UPA USB Device 1.3 Eeprom Adapter ECU Programmer Diagnostic-tool UPA-USB ECU Programmer V1.3 With Full Adapter UPA

UPA-USB Device Programmer V1.3 Update Info:

Added MC9S12HY64/HA32 support

Added Serial Flash memory support:

A25L512/010/020/040/080/016/032,SST25VF512A/010A/020B/040B/080B/016B/032B,

S25FL004A/008A/016A/032A/064A

Added 24C1024, 24C1025 support

Added Bulk erase data memory to PICs 16F913-7/946, 12F629/675

Added script function GetPage

Added script function AutoBaudRateDevice (hc08 devices only)

Added script function GetProgrammerFrameChildCtrl( AChildCtrlName: string): TControl

Added script function EnablePicMemoryAreas ( AProgram, AID, AConfig, ACalibration, AEEPROM: boolean ): boolean;

Fixed bug with script functions ProgramDevice, ReadDevice ... when used with PICs

Fixed bug with SetHC08SecurityBytes (SecBytes: string) function

Fixed bug with 68hc11 reading if Oscillator is not set to Auto

Updated script example files

UPA software contains V1.2 and V1.3 in one CD .

V1.3 must be installed with XP system.

Top 4 Reasons to Get the UPA USB Programmer

1. Language: English. 2. Hardware Version: V2014 3. Software Vesion: V1.3 4. Support Nec Function

The main Device further includes a 10 pin ISP connector where the included ISP Adapters

can be connected using a standard 1:1 flatribbon cable (included).

The included PLCC ISP Adapters are to be put directly over the soldered chip of the target

device making the work convenient and safe compared to soldering or using clips

connecting up all manually. (Power from the UUSP to the ISP target can be enabled or

disabled by a jumper next to the 10 pin ISP connector)

UPA 1.3 Full Adapters

UPA 1.3 Five Adapters

UPA 1.3
