Car Panorama Sunroof Sunshade Curtain Roller Blind For Audi Q5 VW Tiguan Touran 2008 2009 2010 2011 2012 2013 2014 2015 2016

Car Sunroof Sunshade Curtains Skylight Shutter Model

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

If you are a wholesale customer, please contact with me, I can give you a better price.

For Audi Q5 2009-2016

For VW Golf 2007-2014
For VW Jetta 2008-2009
For VW Touran 2011-2016
For VW Tiguan 2008-2016
For VW Passat 2011-2015
For VW Variant 2011-2015
For VW Sharan 2011-2016
For VW Santana 2011-2015
For VW 4Motion 2011-2016

For Skoda Yeti 2010-2018
For Skoda Superb 2008-2015

For Seat Leon 2013-2016
For Seat Alhambra 2011-2016

Descriptions

100% brand new and high quality

Sunroof sunshade clip clip curtain slide block for V-W Sharan New style Tiguan Audi Q5

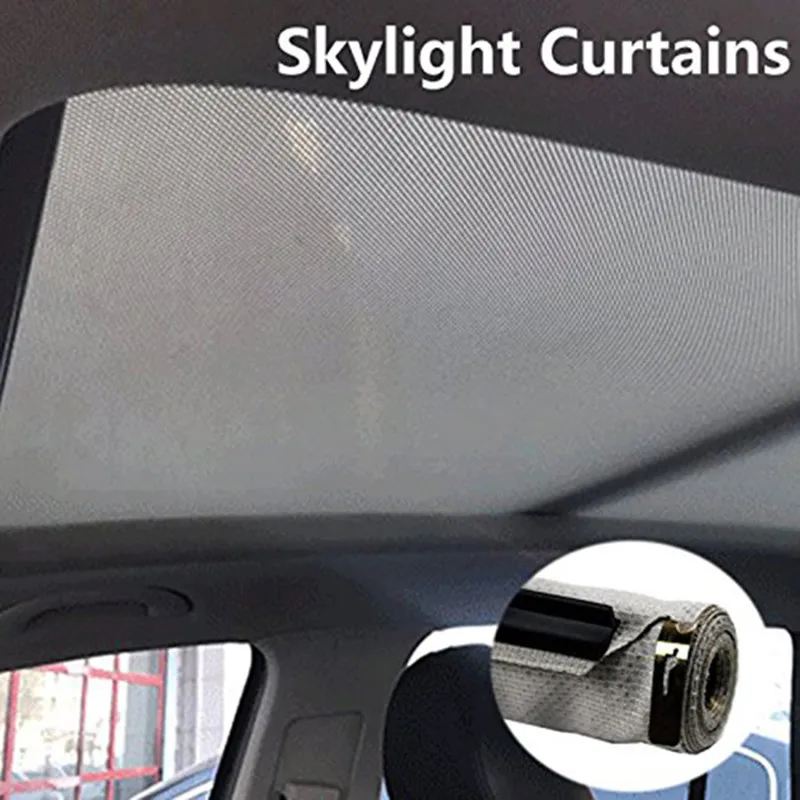

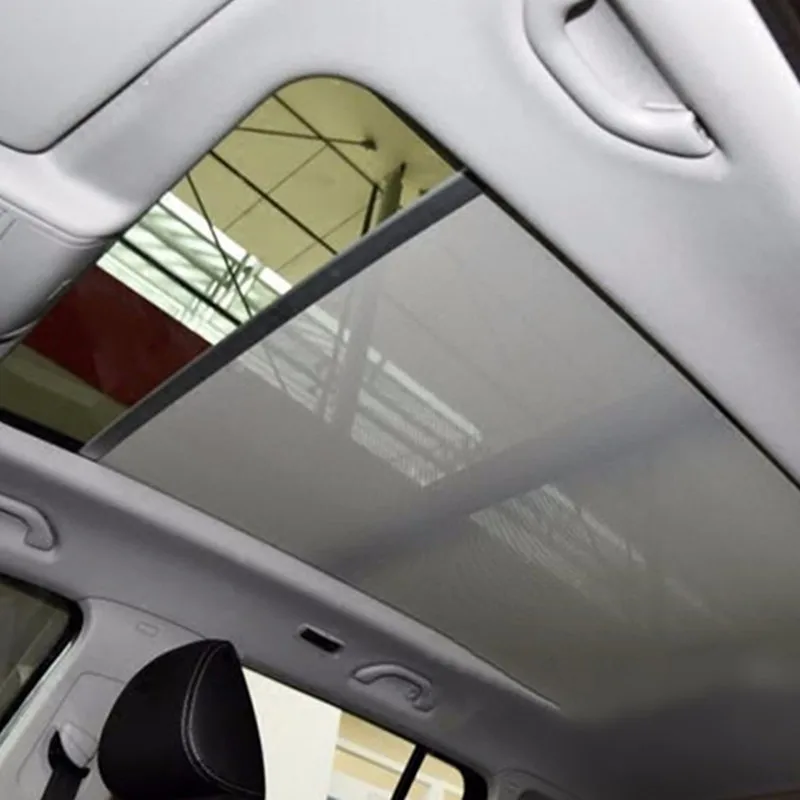

This Car Window Curtain is made of high quality cloth, heat insulation and sunshade, it can effectively keep car interior temperature. Moreover, it can protect your privacy inside the vehicle. With it's skillfully manufacture and beautiful design, enhance the unique style for your car, elegant and fashionable. Easy to install and convenient to use.Perfectly replaces your old broken one

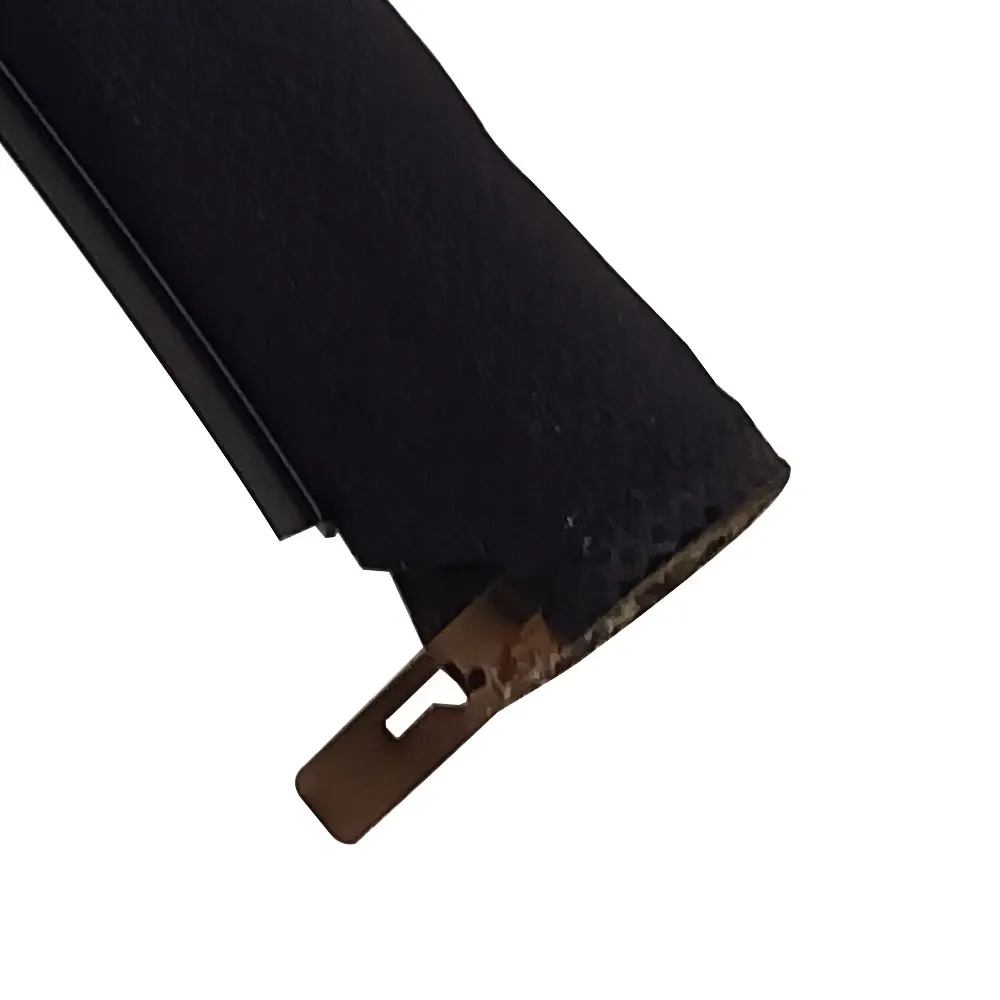

Material: Cloth+metal

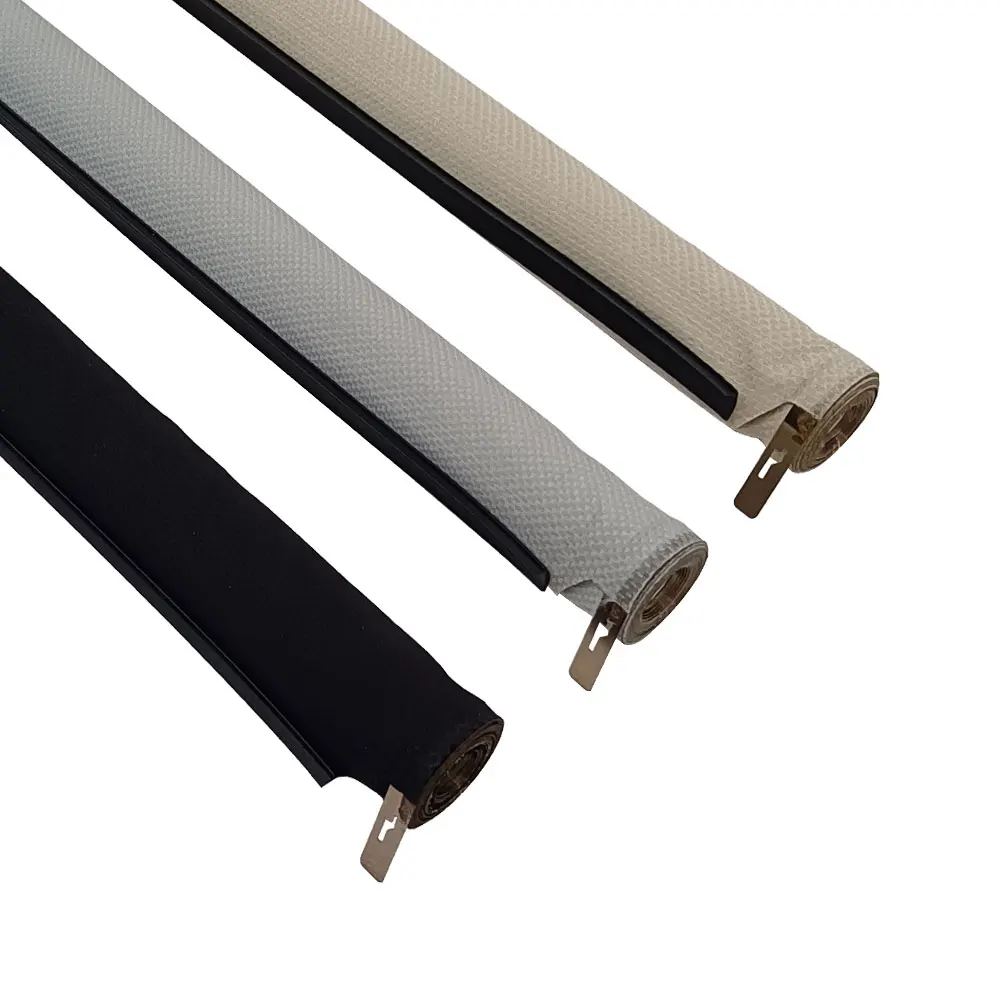

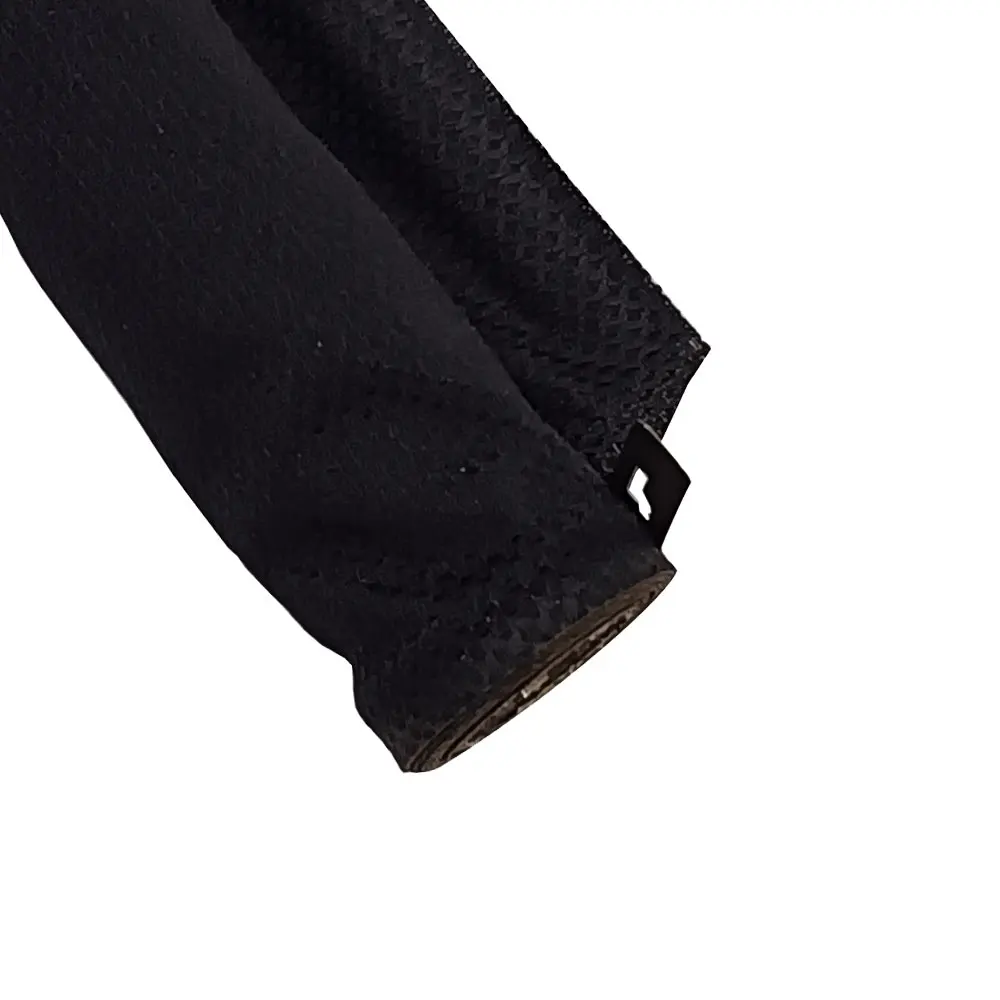

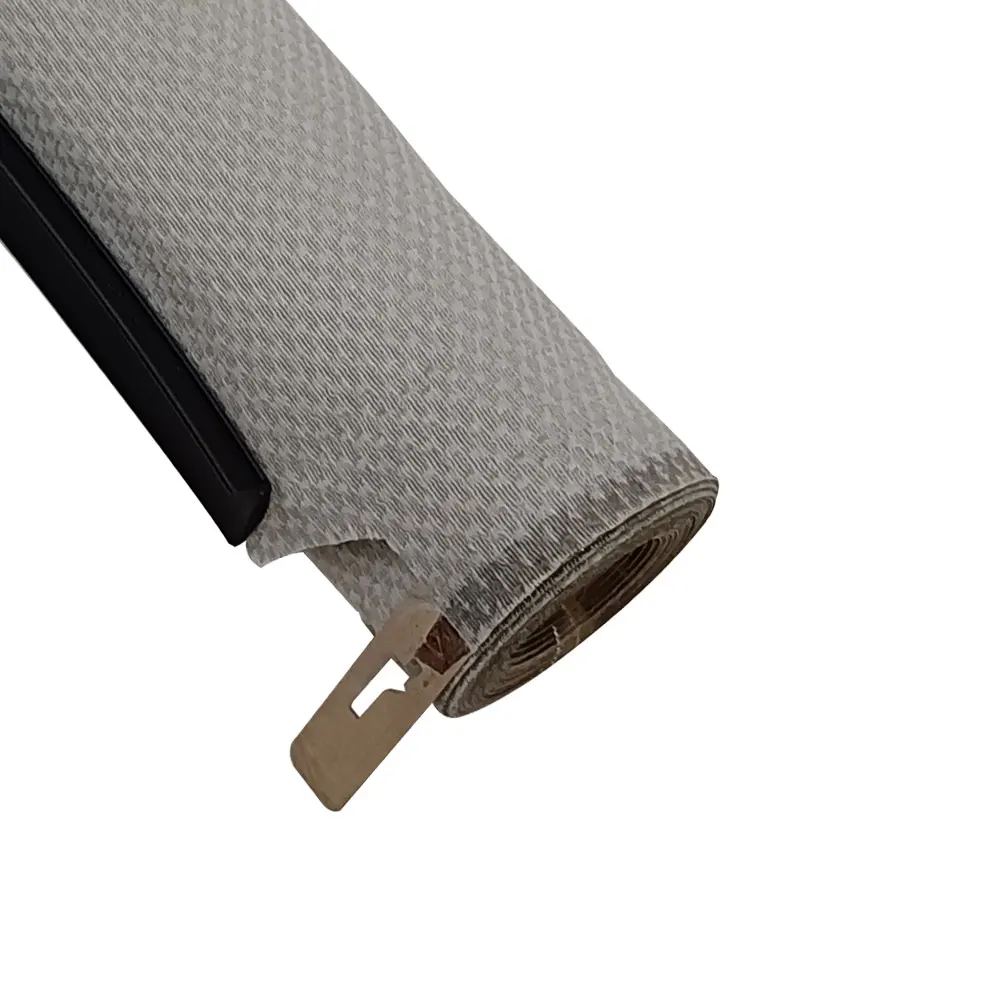

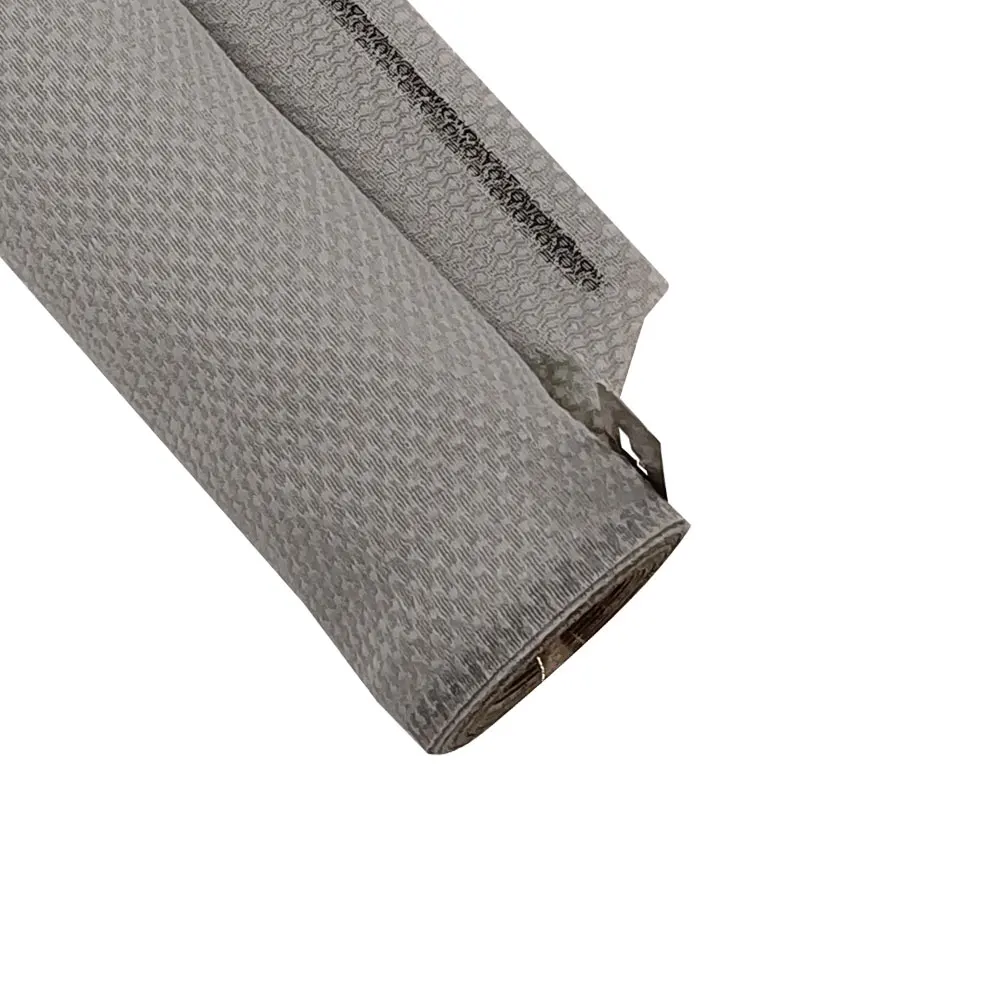

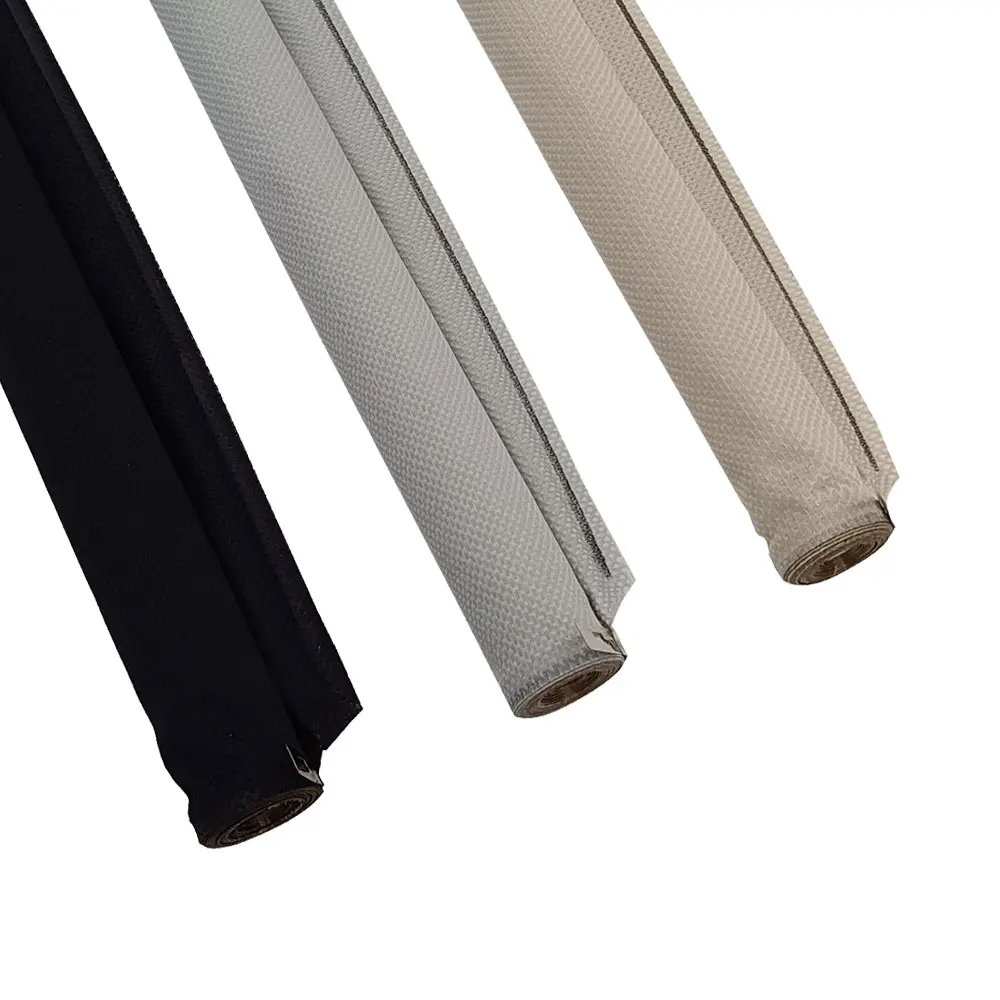

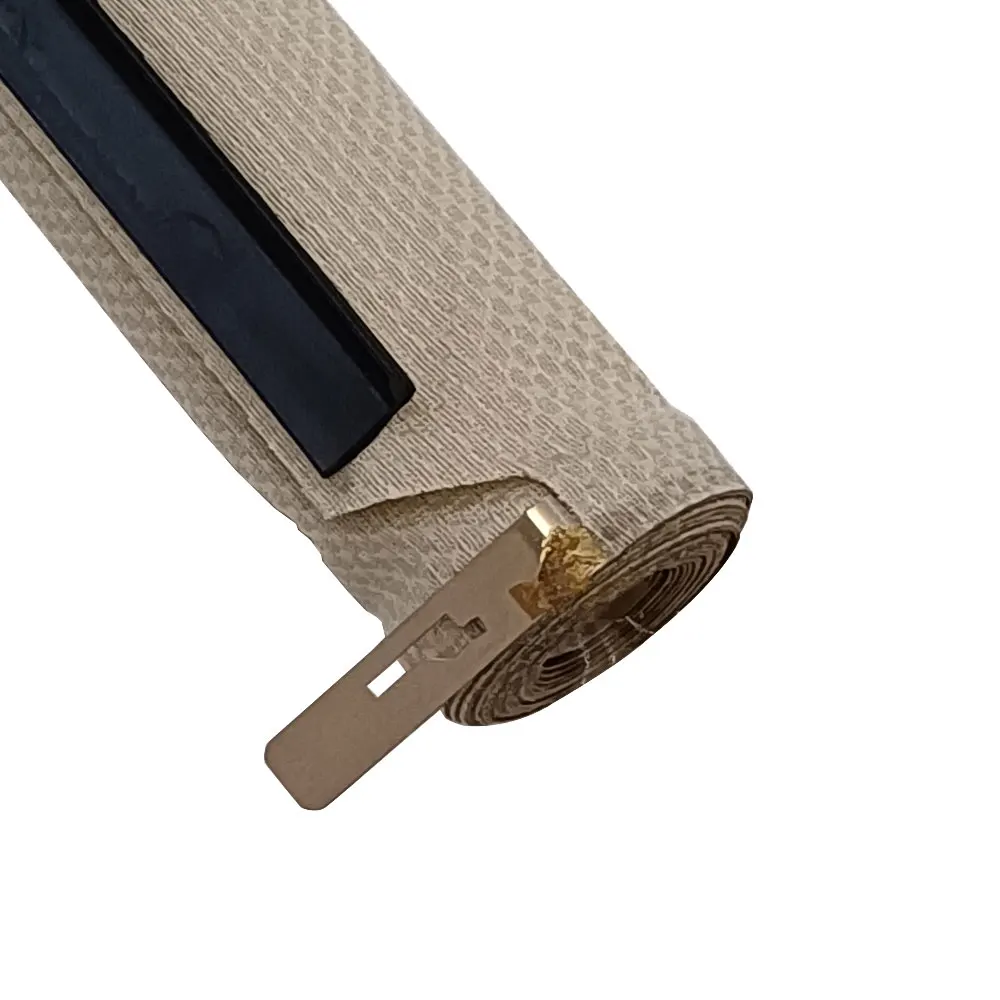

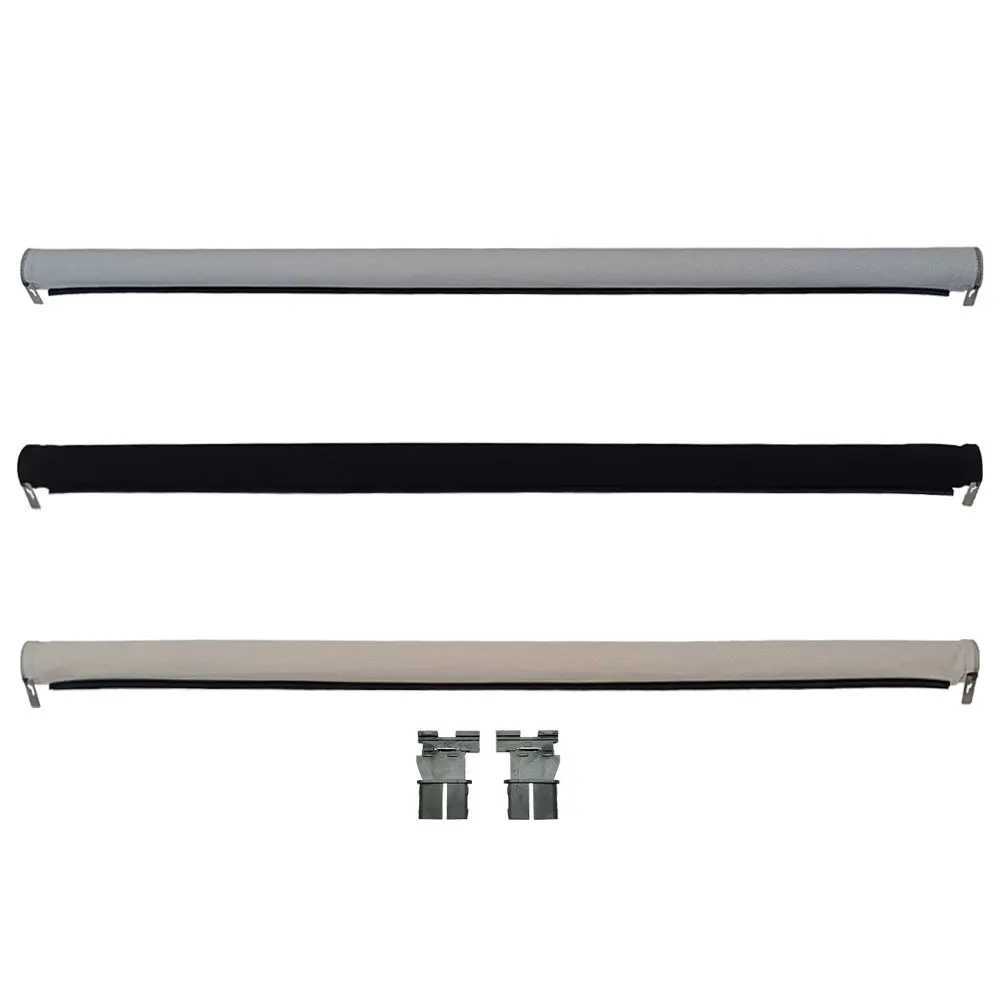

Color: Black / Beige / Grey skylight curtains

OE: 1K9877307 , 1K9877307A，1K9877307B，1K9877307C，5ND877307, 1K9898912B, 1T0 877 307, 1T0877307A, 1T0877307B

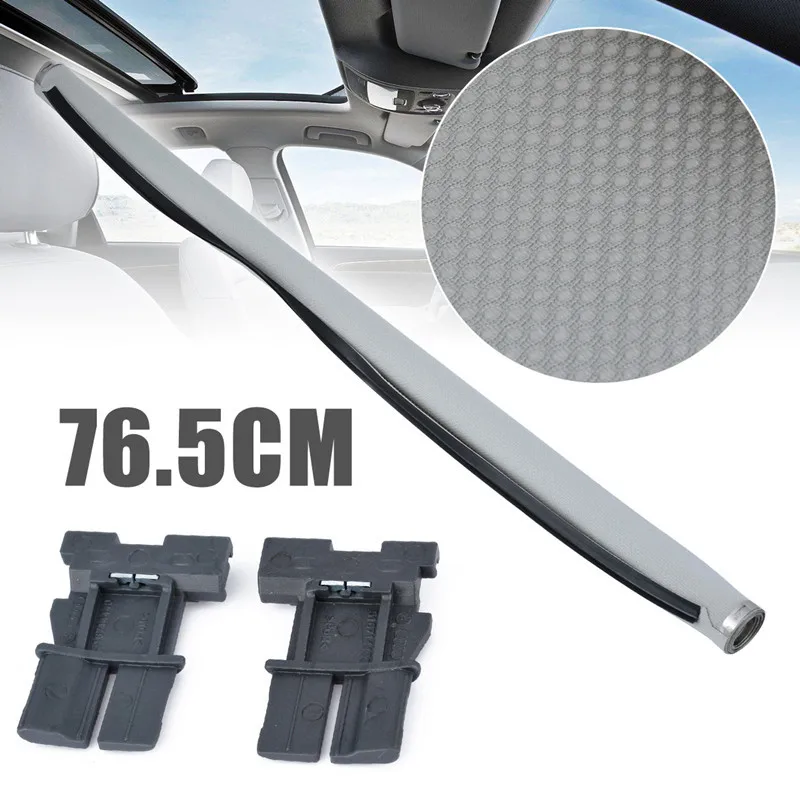

Length (After Rolled Up): 76cm / 29.92in

Package Weight: Approx. 210g / 7.4oz

Package Included

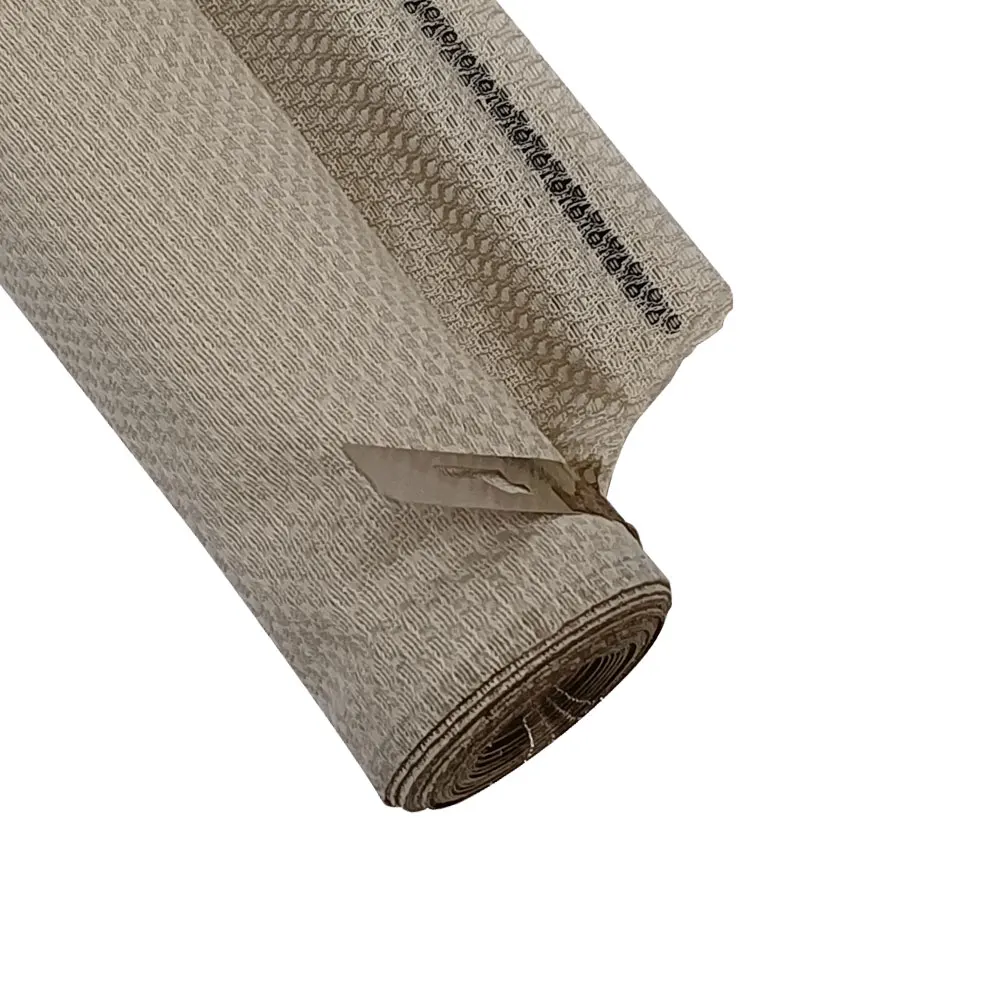

1 * Curtain Cloth (plastic tube not included in the roll)

2 * Clip

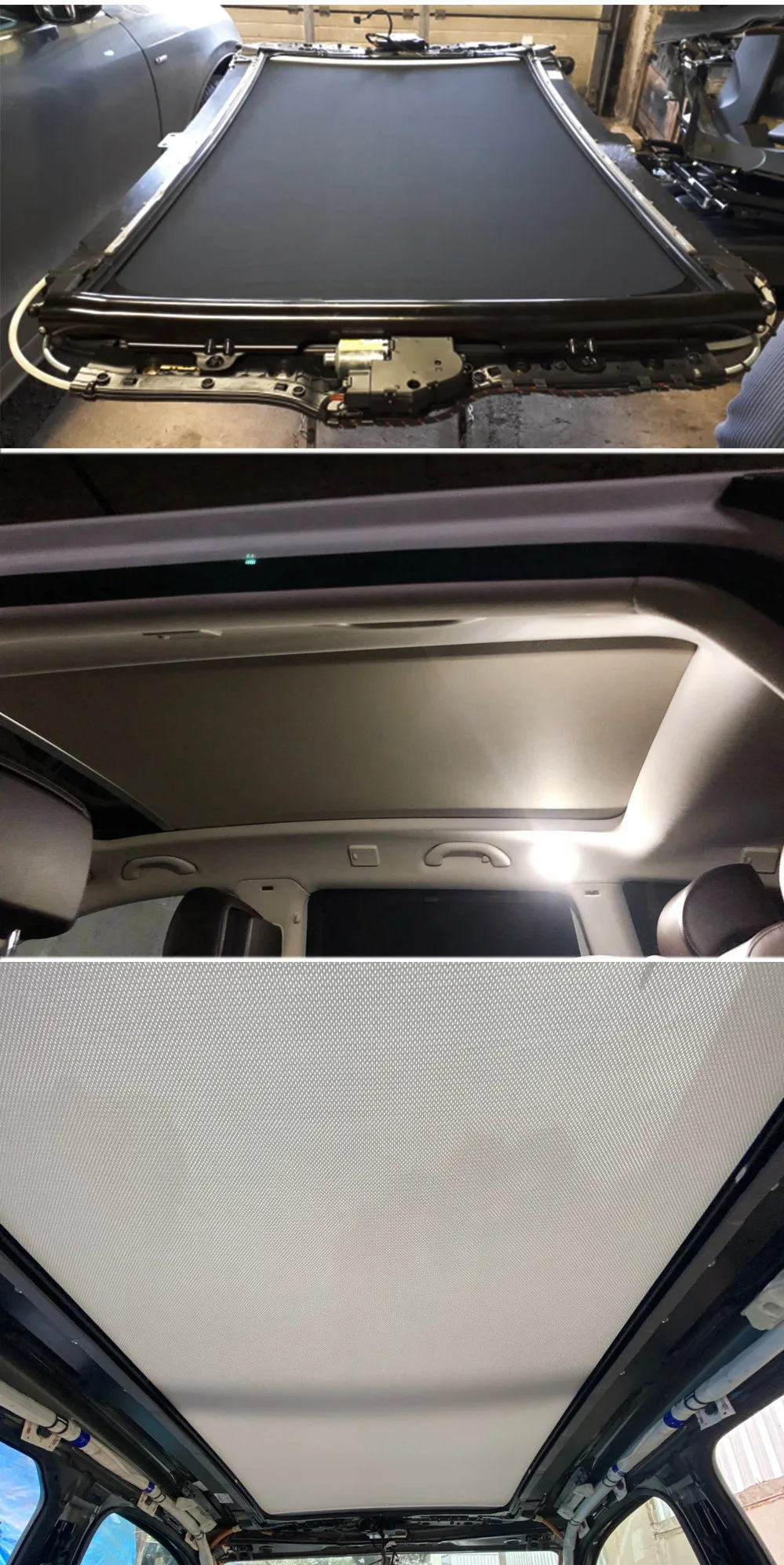

Installation Steps

Note：it is not necessary to remove the sunroof frame completely to install the sunroof shutter.

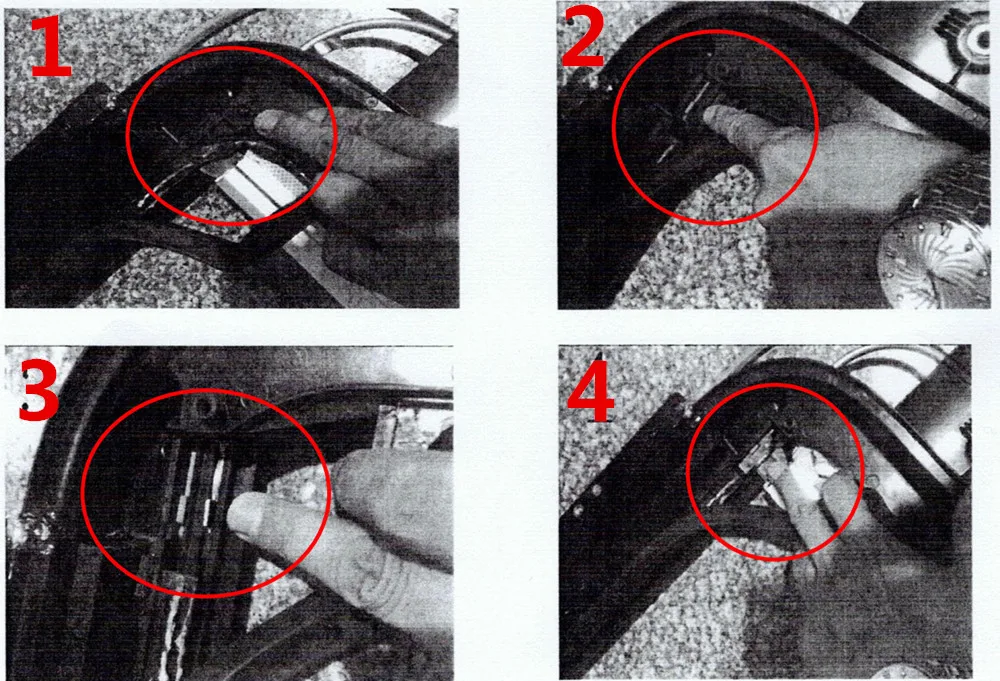

1: Jack up the front glass of the sunroof instead of opening it. There are two screws on the left And right sides between the front and rear glass.
2: Remove the interior ceiling. There are two screws on left and right sides of rear glass. (Figure 1) in the sealing strip, you can see it by breaking it slightly. Remove the rear glass andRemove the two fixing screws on the back.
3: Pull the left and right coil springs of the damaged sunshade back evenly to the back with the naked blue button(Figure 2).

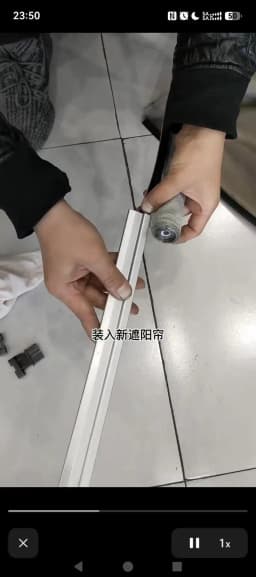

4: Remove the roller shutter, replace it with a new one, with two clips ( Note: the two small Metals inside are removed to fasten the coil spring), and insert the coil spring into the track (Figure 3).
5: Align the buckle with the metal buckle and the blue track buckle, and connect it into the roller shutter(Figure 4).
6: Lock the roller shutter, close the roller shutter to the front, and lock the two screws in the roof sealing strip.
7: Install the glass, the interior, connect everything. Press to reset the sunroof and roller shutter.
