ANCEL BD500 OBD2 Bluetooth 5.0 Scanner All System Car Code Reader with EPB /Throttle Learning for VW Audi Service Seat Skoda

ANCEL BD500 obd2 Bluetooth 5.0 Scanner All System for VW Audi Seat Skoda Car Code Reader with EPB /Throttle Learning/Service

ANCEL BD500 specializes in diagnosing Volkswagen Group vehicles (For VW / AUDI / SKODA / for SEAT), it can do all systems diagnose (such as ABS, Transmission, SAS, SRS, ESP, TPMS and other systems) and special functions (such as Service Reset; Replace the brake pads (EPB Reset); Throttle learning (ETC Reset)) for VAG vehicles. It has 6 display languages and feedback function. It can diagnose your vehicle in merely seconds due to its automatic vehicle model identification function. We also provide lifetime free updates to make sure it always has the latest fault code database.

Why Choose ANCEL BD500, what are our advantages?

【MANUFACTURER-LEVEL VAG DIAGNOSTIC】ACNEL BD500 bluetooth OBD2 scanner is specially designed for 2000-2019 for Volkswagen/Audi/Skoda/ for SEAT All Series. It can not only read and clear diagnostic fault codes of the main systems (Engine, Transmission, SRS, TPMS, ABS, SAS, ESP System, etc.), but also supports body, chassis, powertrain and all control modules.

【ADVANCED VAG MAINTENANCE】As one of the most cost-effective OBDII scan tool for Volkswagen vehicles in the market, ANCEL BD500 vw diagnostic tool offers 3 most popular maintenance service for VAG vehicles, including Service reset, EPB Replace Brake Pads and Throttle Learning.

【EXCLUSIVE FEATURES FOR ALL VEHICLES】BD500 volkswagen scanner not only can test the performance of the brakes to stop and make detailed numerical analysis for each trip, but also can graphical display voltage change over at the certain period of time (starting voltage).

【FULL OBD LEVEL DIAGNOSIS】For other Non-VW vehicle models, BD500 car scan tool can only perform engine diagnostics, read and erase the trouble codes that can cause emission problems with your vehicle, turn off the MIL (check your car engine) and I/M readiness, read data stream, vehicle identification Info (VIN, CIN, CVN) and so on.

【POWERFUL COMPATIBILITY】BD500 is not only compatible with all vehicles of the VAG, including VW, Audi, Seat, Skoda, Jetta, Golf, Beetle, Touareg, GTI, Passat, etc, but also support most Non-VAG cars. It support KWP, TP20 and New UDS protocols, as well as all OBD2 protocols. Compatible with iPhone, iPad & Android devices, The latest Bluetooth 5.0 version allows your car to seamlessly connect with your smartphone, making it easier to read data from ECU and greatly improving the user experience.

【LIFETIME FREE UPDATE】you can enjoy life-time Free software upgrade, which let you stay current with the latest technology and add newest vehicles.

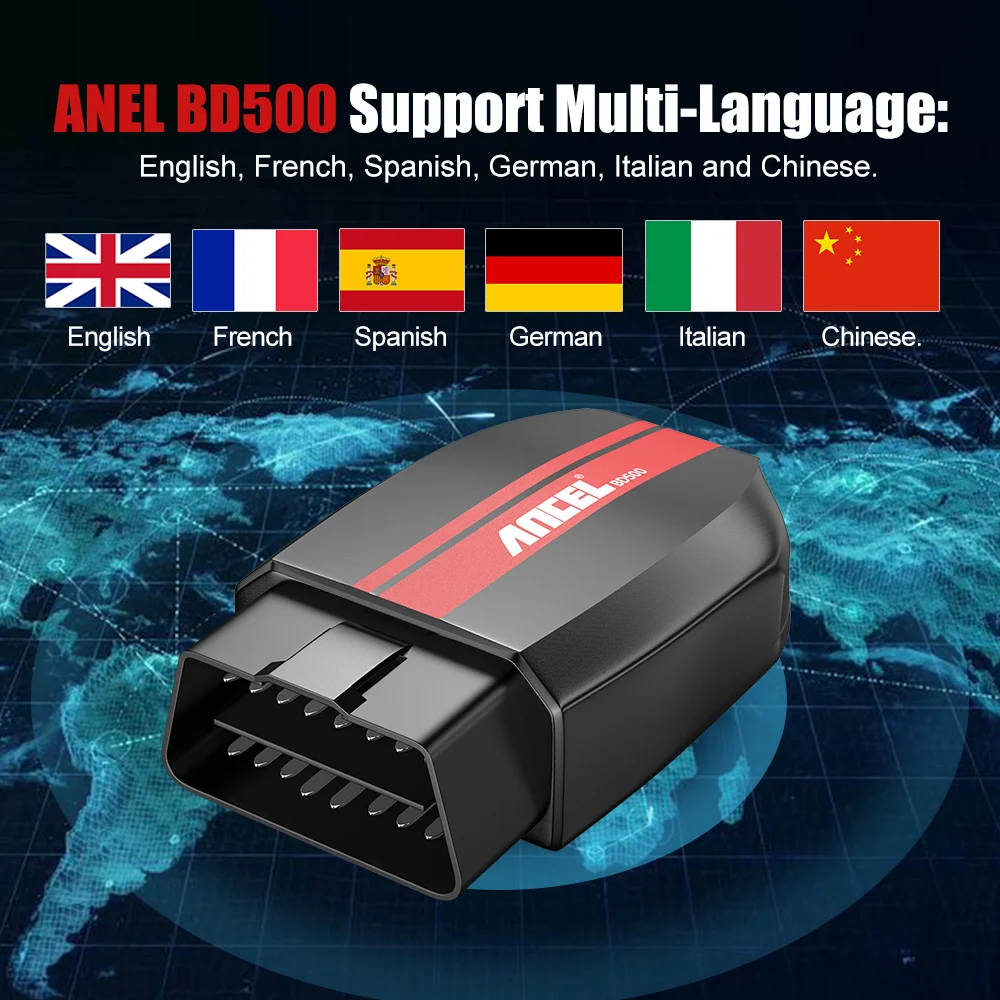

ANEL BD500 Support Multi-Language:

English, French, Spanish, German, Italian and Chinese.

ANCEL BD500 can support All OBDII Functions:

1. Read Code

Read DTCs (Diagnostic Trouble Codes) to locate the issues

2. Erase Code

Clear DTCs to turn off the Check Engine Light after certain repairs

3.Data Stream

Display real-time data of the emission-related Engine system

4. Freeze Frame

View the data recorded when an emission-related fault occurs

5. I/M readiness

Read I/M readiness status to have a vehicle inspected for state emissions compliance

6. O2 Sensor Test

Read the result of the O2 sensor test to find out the O2 sensor malfunctions;

7. On-Board Monitor Test

Retrieve the test results for emission-related powertrain systems and components that are not continuously monitored to figure out on-board monitor issues

8. EVAP System

Allow you to initiate a leak test for the vehicle’s EVAP system.

9. Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Special Functions: 4 Resets

1.Oil Lamp Reset Service :

allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.Replace the brake pads (EPB Reset)

Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

3.Throttle learning (ETC Reset))

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

4.BAT Test (Battery Test)

Vehicle battery voltage inspection is conducive to finding problems in time and ensuring driving safety

ANEL BD500 Support car types:

VW menu support models

for Volkswagen Sedan Series (2000-2019)

for Audi full range (2000-2019)

for Skoda full range (2000-2019)

for All Seat Departments (2000-2019)

for Volkswagen Commercial Vehicles, Truck Series:

for Caddy 2000-2018

for Caddy Pickup 2002-2002

for Crafter 2006-2017

for Crafter NF 2017-2018

for Transporter 2003-2018

for Amarok 2010-2018

for Multivan 2003-2009

for TGE 2017-2018

BENTLEY:

for Continental 2004-2019

for New Continental GT 2012-2018

for Continental Supersports 2012-2018

for Continental Supersports Convertible 2012-2018

for Continental Fying Spur 2012-2019

for Continental Flying Spur Speed 2012-2019

for Bentayga 2016-2019

for Mulsanne 2011-2019

for Brooklands 2009-2010

for Azure2000-2010

for LAMBORGHINI:

for URUS 2018-2019

for Gallardo 2008-2014

for Gallardo NF/Huracon 2014-2018

for Aventador 2012-2018

for BUGATTI:

for Veyron 2001-2016

for Chiron 2017-2022

OBDII menu support models：

for GM： Works with most 2000 and newer for for Chevrolet，for GMC，for Cadillac，for Buick，for Saturn，for Pontiac， etc.

for Chrysler： Works with most 2000 and newer for Chrysler，for Dodge，for Jeep，for Ram， for Plymouth sold in North America

Ford： Works with most 2000and newer Ford， for Mercury，for Lincoln sold in North America

BMW： Works with most 2000 and newer for BMW and for Mini soldin North America

for Volkswagen： Works withmost 2006 and newer for WW， for Audi，for Bentlevsold in North Armerica

for Mercedes ： Works with most 2000 and newer for Mercedes andsmart

for Nissan： Works with most 2005 and newer for Nissan，for Infiniti，for &Renault

for Mazda：Works with most 2005 and newer for Mazdas

for Toyota： Works with most 2005 and newer for Toyota，for Lexus，for &Scion

ANCEL BD500 is easy to use

1.Download "ANCEL" app

2.Plug in the device

3.Start the app

4.Start the vehicle

5.Enable bluetooth

6.Automatic device connection

ANCEL BD500 supports Android and IOS systems, supports mobile phones and tablets

APP name: ANCEL

Precautions for use:

• The Android phone must have Bluetooth and location information turned on,

Allow location permissions

• The iPhone must have Bluetooth turned on, and Bluetooth must be turned on in the privacy settings

• Pairing is classic Bluetooth, which has been phased out, and is now BLE, which does not require pairing.

• BD200/BD300/BD500 bi-color light (red and green), red light indicates normal power-on, green light indicates normal Bluetooth connection

Product Parameters:

Operating voltage：DC8-18V

Operating current: <24mA@DC12V

Bluetooth frequency: 2.4GHz

Bluetooth version： Bluetooth 5.0

Dimensions： 77mmx23mmx47mm

Weight： NW：0.037kg (0.081lb)

Working temperature:-30℃-70℃ (-22F~158F)

Storage temperature：-40℃-85℃ (-40F~185F)

Product List:

1pcs ANCEL BD500

1pcs Carton

1pcs User Manual
