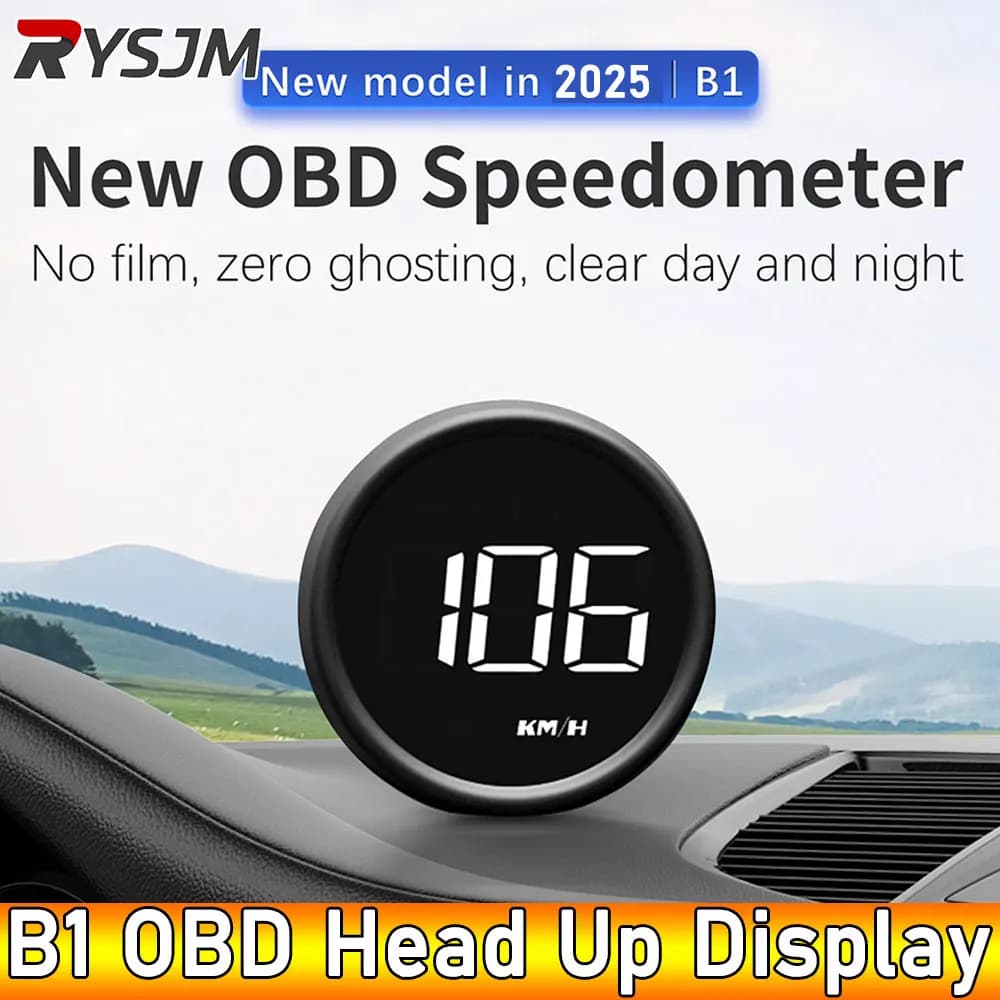

AD B1 Head Up Display OBD2 HUD Speedometer Car Projector Alarm EOBD Auto Fuel Consumption Volt Meter Water Temperature Gauge

NOTE!!Common Incompatible Vehicles for OBD2:

- US Vehicles (Incompatible): For Dodge, for Jeep, for Chevrolet Sail, for Chrysler, and for vehicles produced in 2004 or earlier.
- French and Italian Vehicles (Incompatible): For Fiat, for Maserati, for Lamborghini, for DS, for Peugeot, for Citroën, for Renault, for Simca, for Abarth, etc.
- Japanese Vehicles (Incompatible): For Suzuki, for Mazda 6, for Infiniti (QX50, Q50, Q50L), for Toyota for Avanza 2013, for Lexus (IS250, RX250, ES300h), for Honda (Jazz, CR-V), and for vehicles produced before 2008.
- Korean Vehicles (Incompatible): For some models for Kia and for some models for Hyundai (for Hyundai for Sonata 2013, for Kia for Soul 2017 , etc.).
- Incompatible Vehicle Types: For hybrid and diesel-powered vehicles, for pickup trucks, for RVs, for vehicles with modified ECUs, and for all brands under Swiss for Volvo, for Chrysler Group, and for Fiat Group.
(Note: These OBD HUDs are not applicable to any of the vehicles listed above!)

Auto-match models, Plug and Play

According to OBD or EUOBD,( the on-board auto-matic diagnosis system) plug and play.

- Judgment method:

Open and find the sticker under the hood.

lf OBD2 CERTIFILE can be installed (as shown in Figure 1)Or check whether there is an automobile diagnosis port under the steering wheel (as shown in figure 2)

(u.s. cars can be used after 2003 and most other cars after 2007.)

OBD Troubleshooting:

1.The screen without any display, and no power

Please do these operations:①If OBD cable is tight enough,pull the OBD cable down several times②Try another car to test③Please maintain the OBD interface if it is damaged.

2.When HUD power on, HUD only shows the voltage and be automatic power off after 30 seconds driving.

HUD just available for cars with OBD2 and EU-OBD agreement(European:manufactured after 2003, Other region: after 2007)

HUD Products don’t support JOBD and OBDI, It is recommended to change the trolley test.

3.Wrong operation lead to crashes

If your car equip with other OBD devices or If your car had been modified will cause a crash,unplug other OBD devices and do the factory settings (more details please refer to the menu table)

4.Inaccurate Speed

Please check if the speed unit is correct,the default is KM(speed unit switching reference setting item)

After the power is turned on normally, press the dial button for 2 seconds to enter the system setting. Push right to adjust the speed adjustment and fine-tune it.

(If the dashboard displays 100 Km/h, HUD displays 105Km/h, adjust the default from 107 to 102)

5.HUD turn off when step on the brakes, wait for the traffic lights or automatical start and stop the car.

For Start-stop car, when it been braked, the engine will stop running,then HUD will turn off. Please find menu 13, adjust the default to 180 ( means 180 seconds)

6.HUD can not auto power off(RPM or Speed not at 0)

When HUD is power on,long press in the button for 5 seconds to enter into menu,set to menu 12. Change the voltage from 0 to 13.2V or 13.5V. Once the adjustment finished,long press in the setting button for 5 seconds to save and exit.

7.After HUD power off, restart

Find menu 12, adjust the default voltage to 13.6-13.8 V

Package Included:

1 x Head Up Display

Notice: Based on the actual product, this product must be installed and set according to the instructions before it can be used!
