Topdiag P200 9V-30V P100-2M 12&24V Power Probe Automotive Electric Circuit Tester Relay Injector Activating Car Diagnostic Tool

Please Note:

This link contains two products. Please choose according to your needs.

ITEM 1: P100-2M

Description:

JDiag P100 New Generation Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V

General description tool is the best electrical tester, reducing diagnostic time in all 6-30V at vehicle electrical systems after a simple hook-up of the tool to the vehicles's battery, you can:

1. Determine at a glance if a circuit is positive, negative or open without having to reconnect clips from one battery pole to another.

2. Test for continuity with its built -in auxiliary ground lead.

3. By depressing the own switch of tester electric, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.

4. Test for poor ground contacts of this circuit tracer instantly without performing voltage drop tests, the tool is also short-circuit protected its internal circuit break will trip if it becomes over loaded.

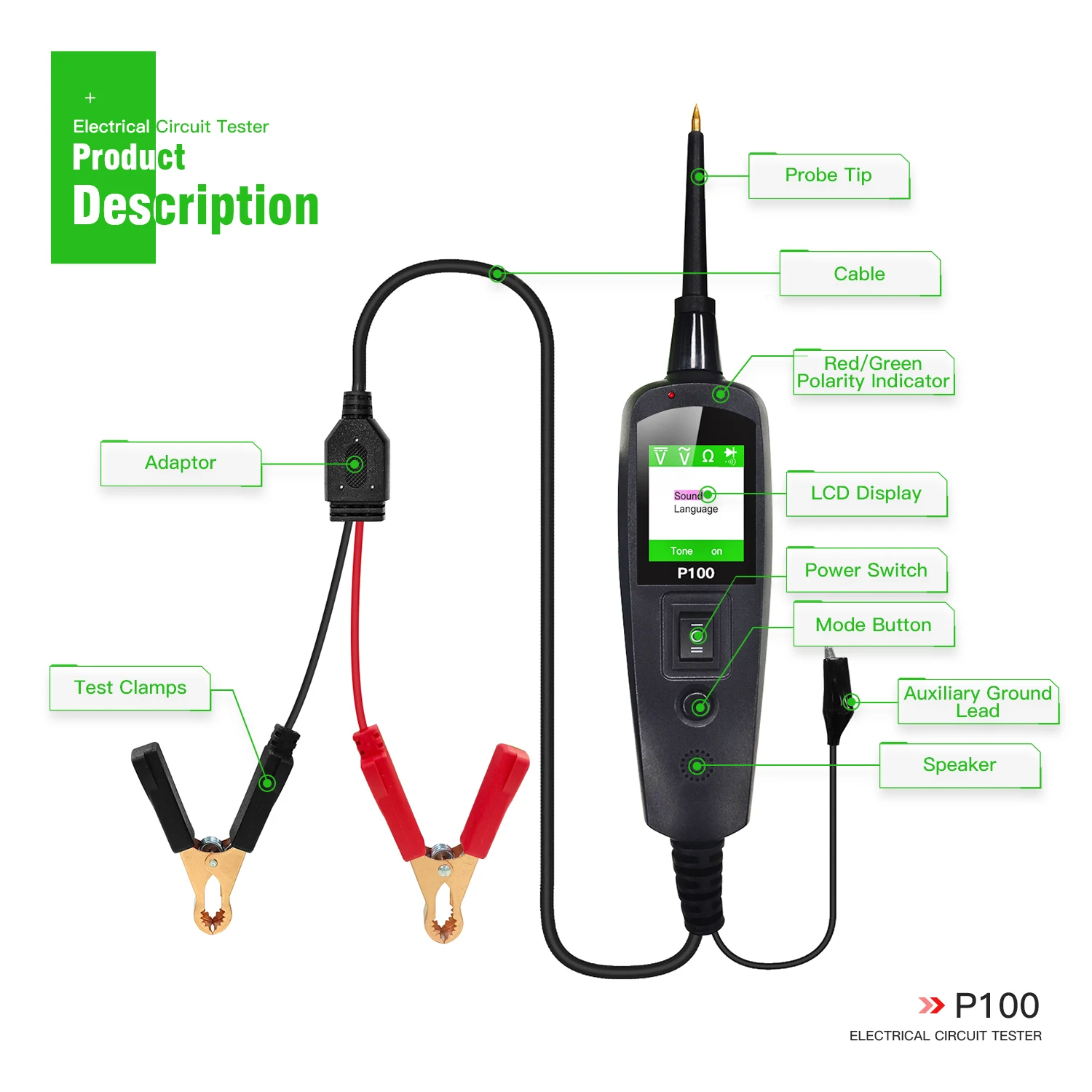

About P100 Automotive Circuit Tester:

Red/Green Polarity Indicator (Positive/negative and tests in different modes will show red/green indicator lights).

LCD HD Color Display (Adopt LCD color screen, the screen is clearer and the data is more intuitive).

Multi Languages Support : English, German, French, Spanish, Italian, Russian, Portuguese.

1. Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.

2. Resistance Continuity Testing- LCD Screen display the value of resistance.

3. AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.

4. Components Activation in your hand, in the vehicle or W/Ground.

5. Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.

6. Checking for Bad Ground Contacts and Locating Short Circuits.

What are the Advantages of the Product？

Purpose of the P100 Power Circuit Probe Kit:

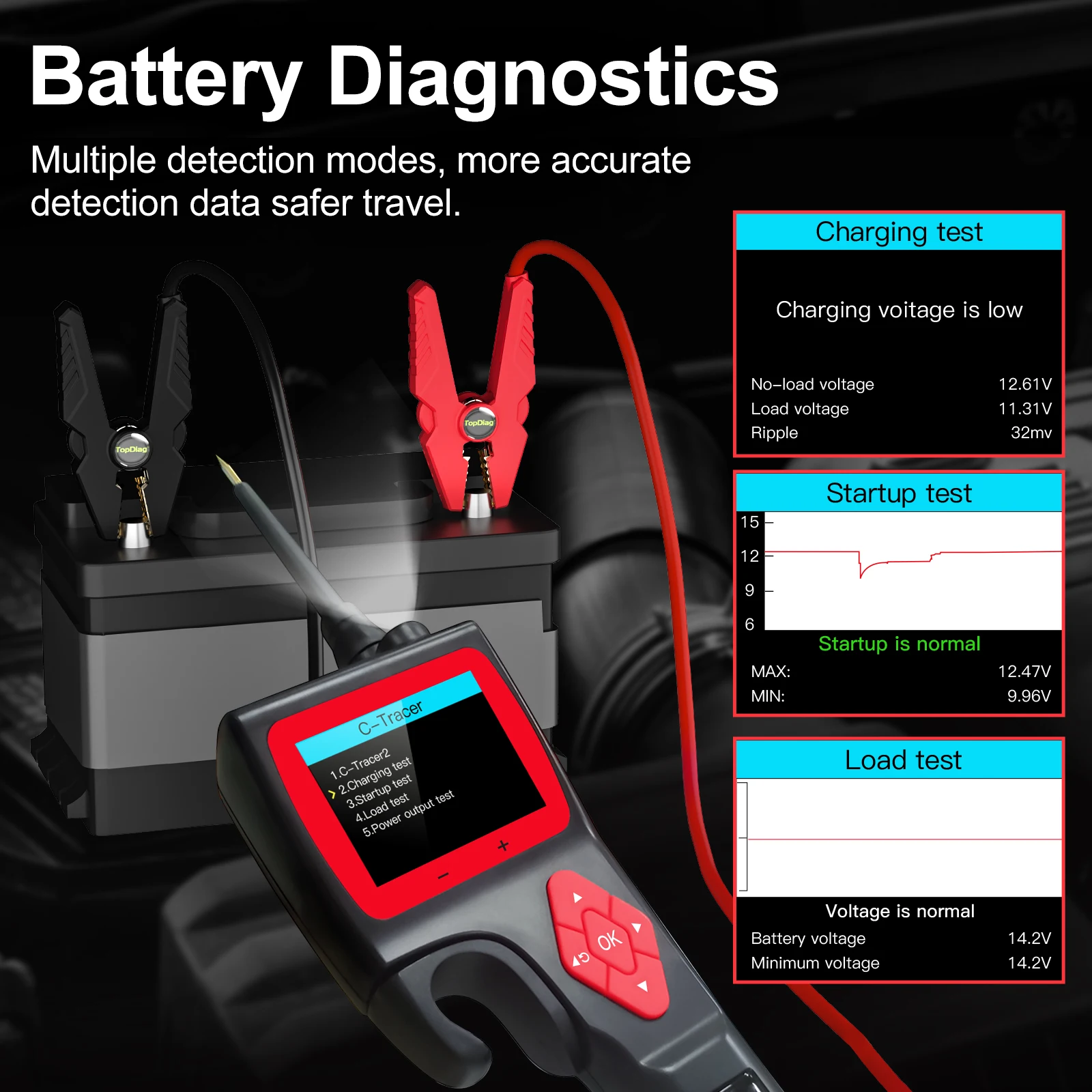

* Diagnose Battery Status

* AC/DC Voltage, Resistance, Diode Test

* Componet Activation

* Find Short Circuit

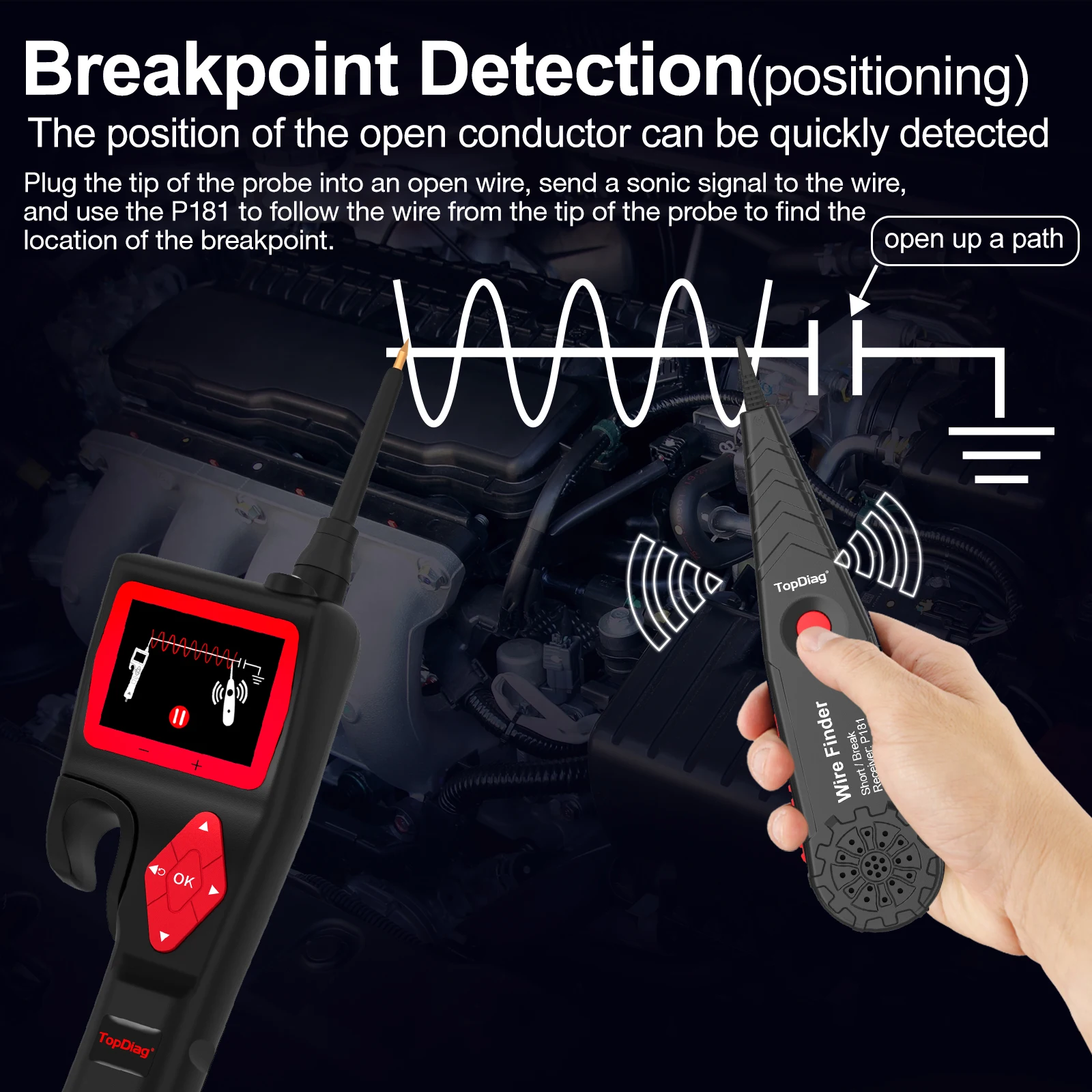

* Find the Broke Wire

* Find the Bad Ground

* Testing Trailer Lights

* Check Continuity

* 20Ft Extension Cable

Specifications:

1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)
4. External Power: 12.0 or 24.0V power provided via vehicle battery
5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm

Test Tool Specifications:

DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp

Testing Standard:

100% current : no trip
150% current : trip in one hour
200% current : trip in 3-30 seconds.
300% current : trip in 0.5-4.0 seconds.

I​TEM 2: P200

Features:

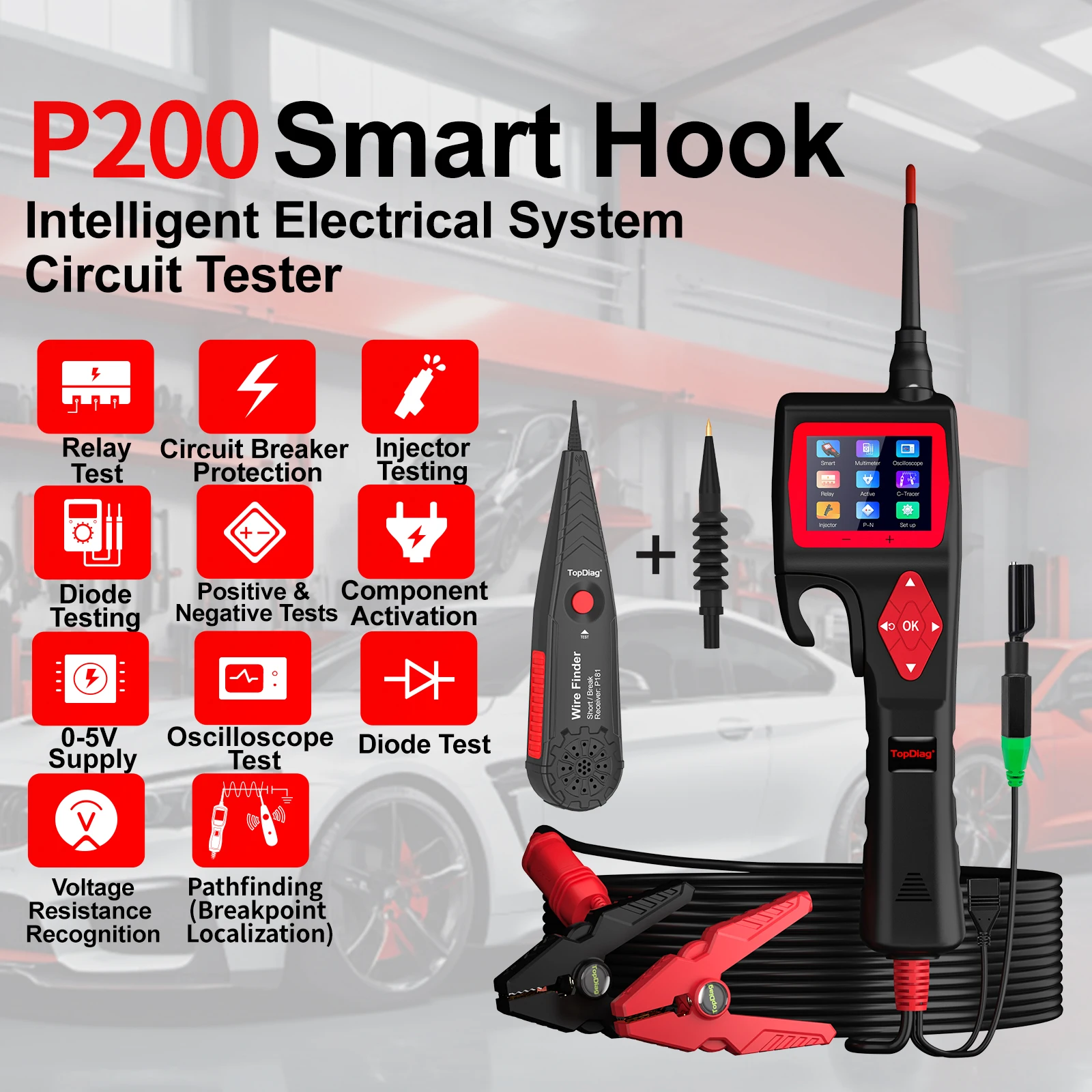

P200 SMART HOOK Powerful Probe new generation of intelligent circuit analyzer is the only one upgradeable circuit tester on the market. It is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!

​1.Intelligent identification of voltage/resistance
​2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
​3.Relay test
​4.Injector test
​5.Diode test
​6.Oscilloscope function
​7.0-5V adjustable power supply
​8. Activation of vehicle components
​9.Positive and negative polarity test
​10.Intelligent circuit breaker protection (adjustable overload)
​11.Screen style background optional
​12.Network online upgrade
​13.Built-in Multi Lingual.

Specifications:

1.Display:............ (320*240 DPI) TFT true color display
​2.Working temperature: ........... 0-60°C (32-140 F°)
​3.Storage temperature:...........40-70°C (-40-185 F°)
​4.External power supply: ... 12V or 24V powered by battery
​5.Minimum working voltage:...9V
​6.Maximum working voltage: 30V
​7.Maximum measuring voltage: 150V
​8.Minimum measuring voltage: .....................0.1V
​9.Resistance measurement range:... 1 ohm~200K ohm
​10.Current measuring range: ..................... 0~18A
​11.Maximum continuous current: ..................... 18A

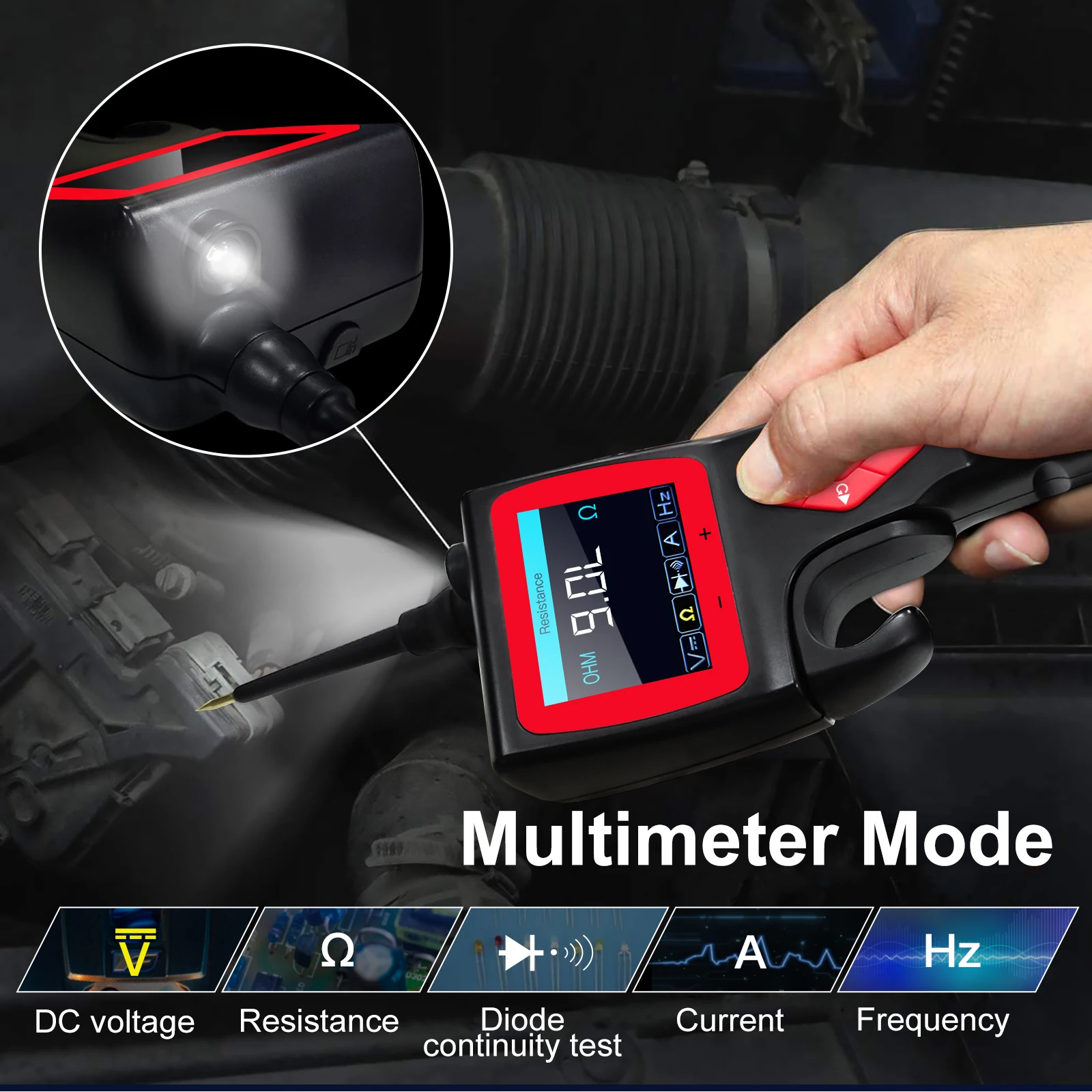

Professional Multimeter Function:

Five Test Mode:
​1.Voltage Test
​2.Resistance Test
​3.Diode/Continuity Test
​4.Current Amps Test
​5.Frequency/Duty Cycle Test

Support Multiple Models:

Smart Hook Circuit Tester with powerful working modes.support all vehicles electrical system, It is designed to diagnose circuit issues for cars,Trucks ,Motorcycles ,Boat,Excavator,Trailer.etc

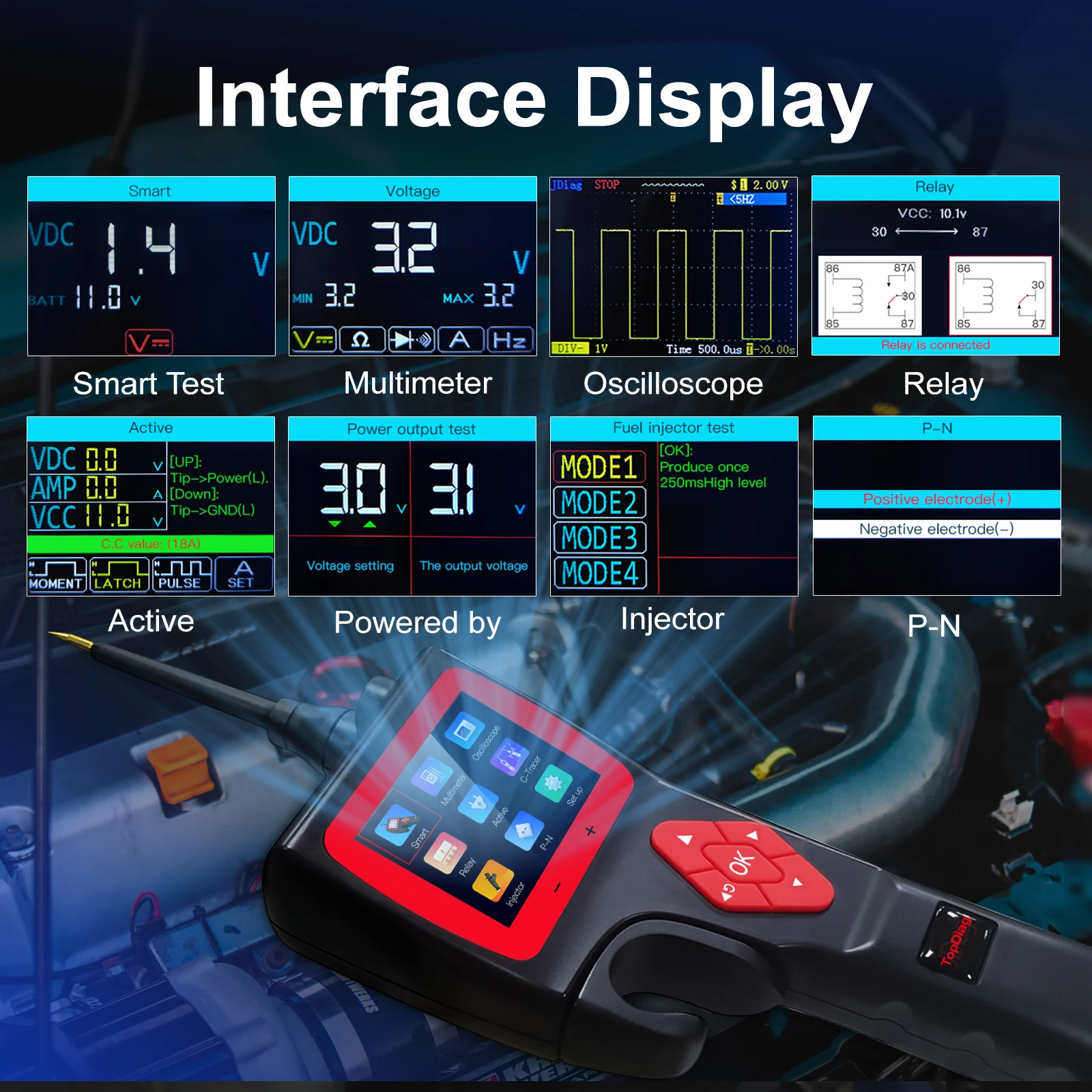

Smart Hook Product Functions:

Relay Test
​Diode Test
​Oscilloscope Test
​0-5V Power Supply
​Component Activation
​Positive&Negative Test
​Multi - Languages
​Online update
​Screen Background Changeable

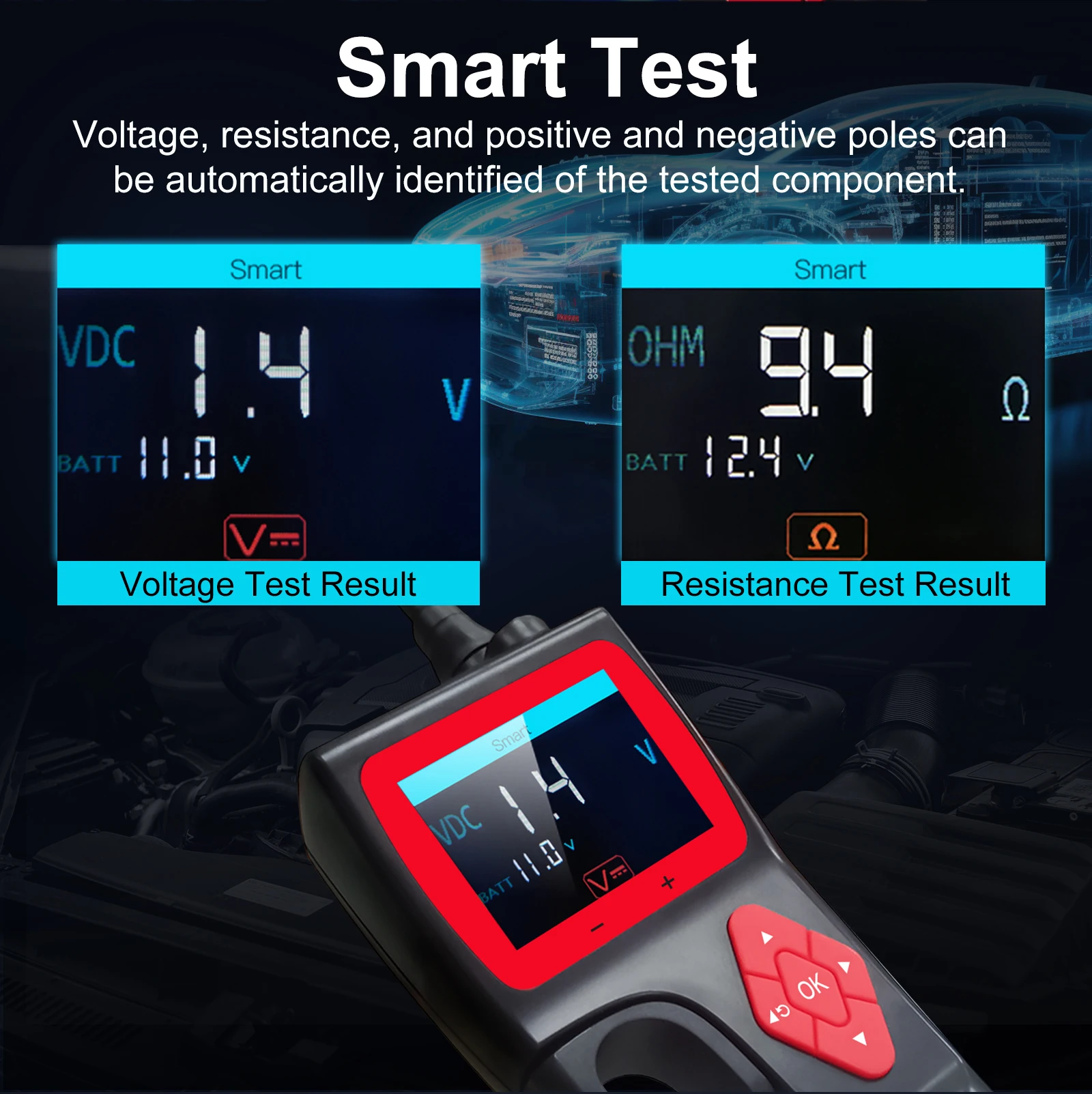

​Smart Test - Auto Detect Volts and Ohms
​Circuit Breaker Protection (Current Adjustable)
​Multimeter Mode (Voltage，Resistance，Diode,Open&Short，Current,Frequency)

Product Packing List:

1) Main unit

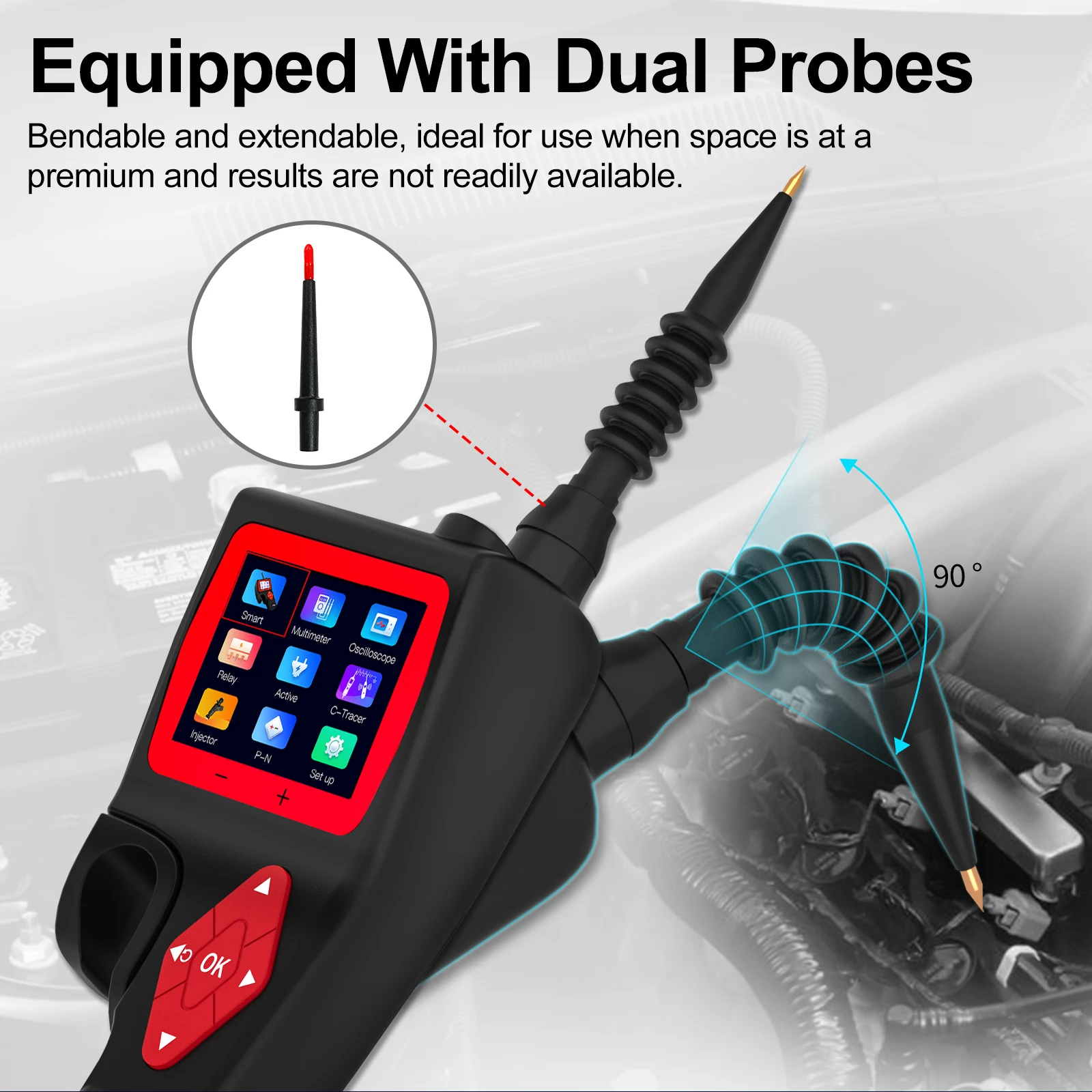

​2) Solid copper test probe
​3) Double pass test connection line
​4) Alligator clip battery cable (Special Design)
​5) Relay test line
​6) Probe adapter
​7) Operation manual
​8) Packing Toolbox
