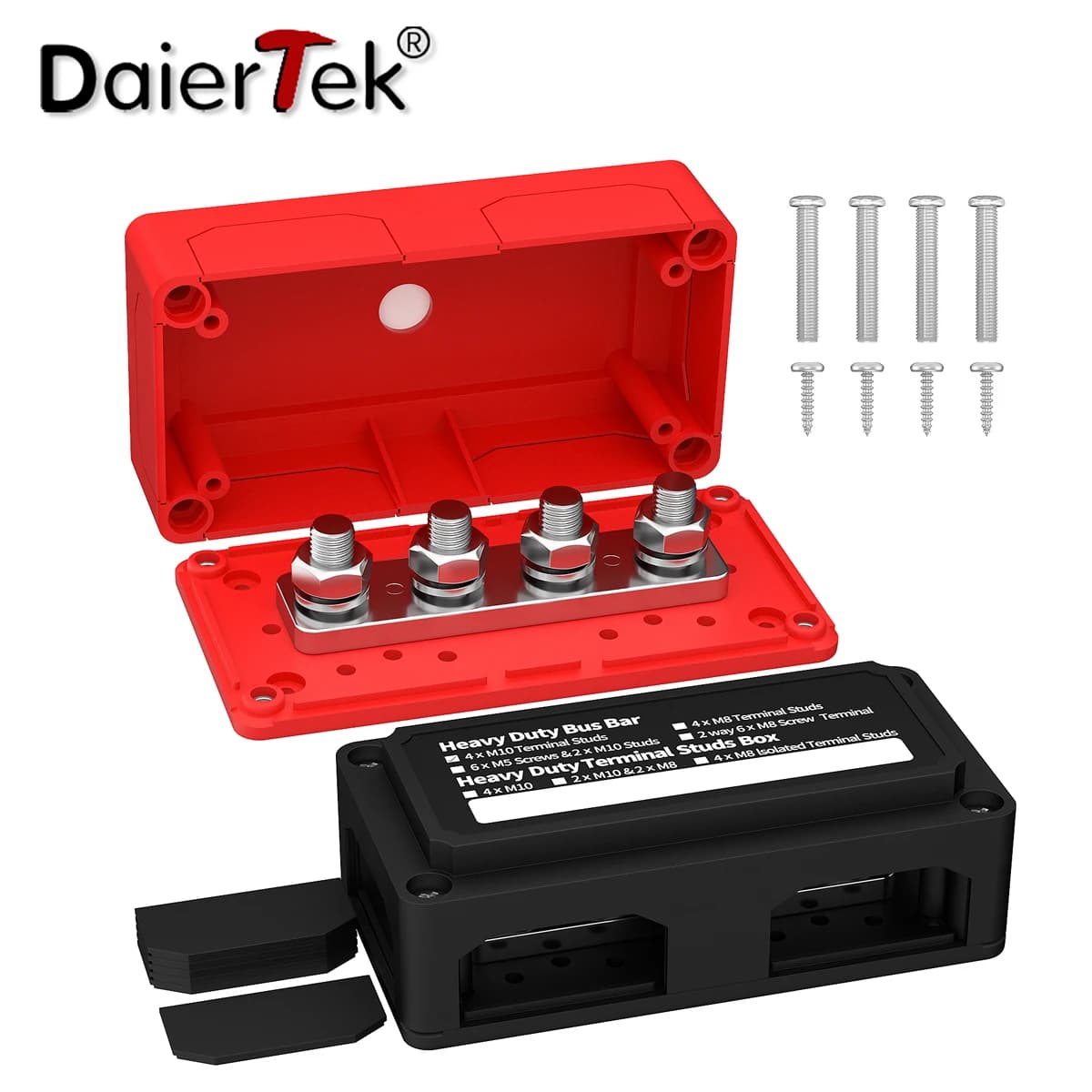

300A Bus Bar Heavy Duty Power Distribution Block Busbar Box Module Design with 4X M8 (5/16") Terminal Studs For Car RV Boat

300A Bus Bar Heavy Duty Power Distribution Block Busbar Box Module Design with 4X M8 (5/16") Terminal Studs For Car RV Boat

About this item

【Brief Info.】Bus Bar Dimensions (L x W x H) | 138 x 69x39mm.Stud size: M8 (5/16")；Max Operating Voltage: DC 48V; Max Continuous Amp: 300A

【Waterproof &Dustproof】Removable windows for unobstructed wiring. Moreover. With four removable side plates and two insulated rear covers, the power distribution block is designed to withstand rain and dust-resist the air and seawater erosion.

【Excellent Design】The base is made of nylon - glass fiber reinforced to protect your safety, ensures great mechanical strength and durability.

【Incredible performance】Bus and screw material: The battery distribution block is made of high-quality brass and nickel plated, with good electric conduct performance.

【Easy Installation】 The surface of the battery distribution block is fixed and installed with screws, and the four mounting holes make it easier to install the terminal block in any direction.

Features:

Highest amperage rated bus bar (300A). With M8( 5/16") terminal studs

Module box design for easy wiring configurations.

Glass Fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability.

Removable windows for unobstructed wiring.

Blank write-on space on the top allows easy labeling for each branch.

Working Voltage and Package List:

Max Amperage: 300 Amps at 12V DC per connection.

Max Voltage: 48V DC

Package Includes:

M8 terminal studs and Cover

What is the 300A Bus Bar Fit for?

The heavy duty 300 Amp Busbar is perfectly fit for your marine, boat, yacht, RV ,car, trucks, tractor, ATV etc.
