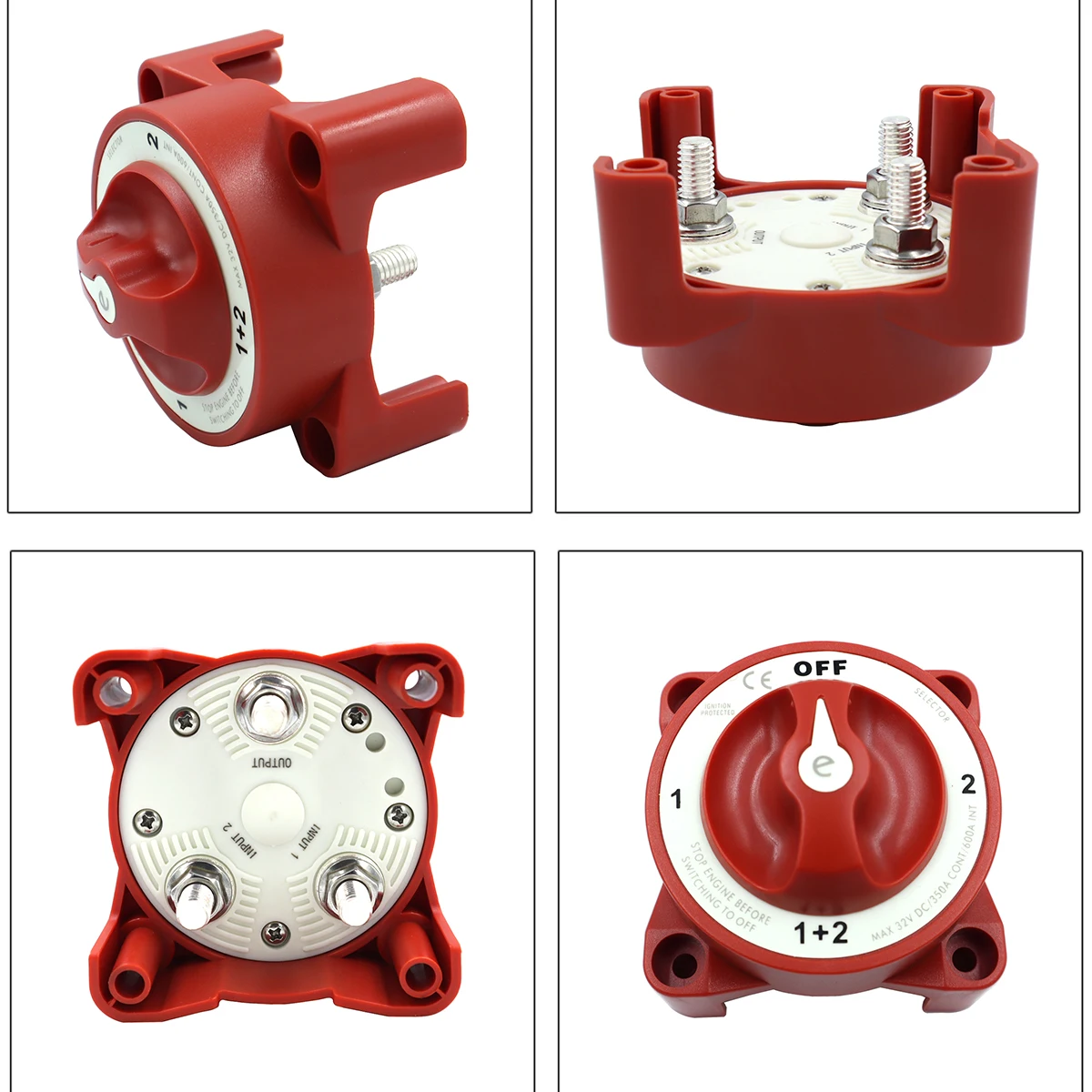

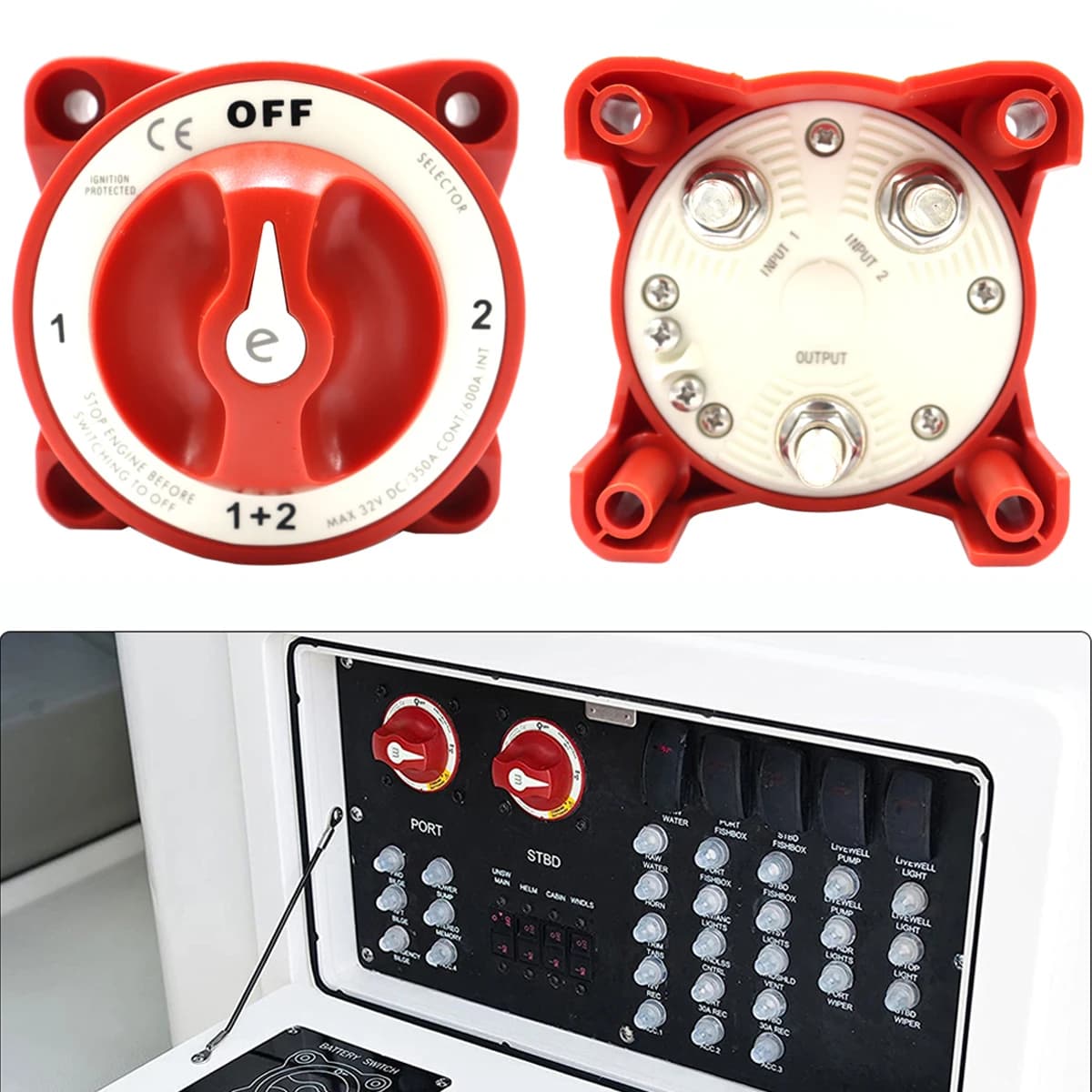

E-Series Water-Proof Ignition Protection 12-48V 350-600AMarine Single-Circuit Battery Isolation Switch Red With AFD

Manual Battery Switches - e-Series

350 Amps continuous rating for inboard gasoline or diesel engines.

Tin-plated copper studs for maximum conductivity and corrosion resistance

Accepts up to 4/0 AWG battery cables

Studs accepts 3/8" (M10) ring terminals

7/8" (22mm) stud length accepts multiple cable terminals

Blue Sea Systems one-piece terminal stud design never loosens over time

Fits most Perko and Guest low amperage battery switch hole patterns

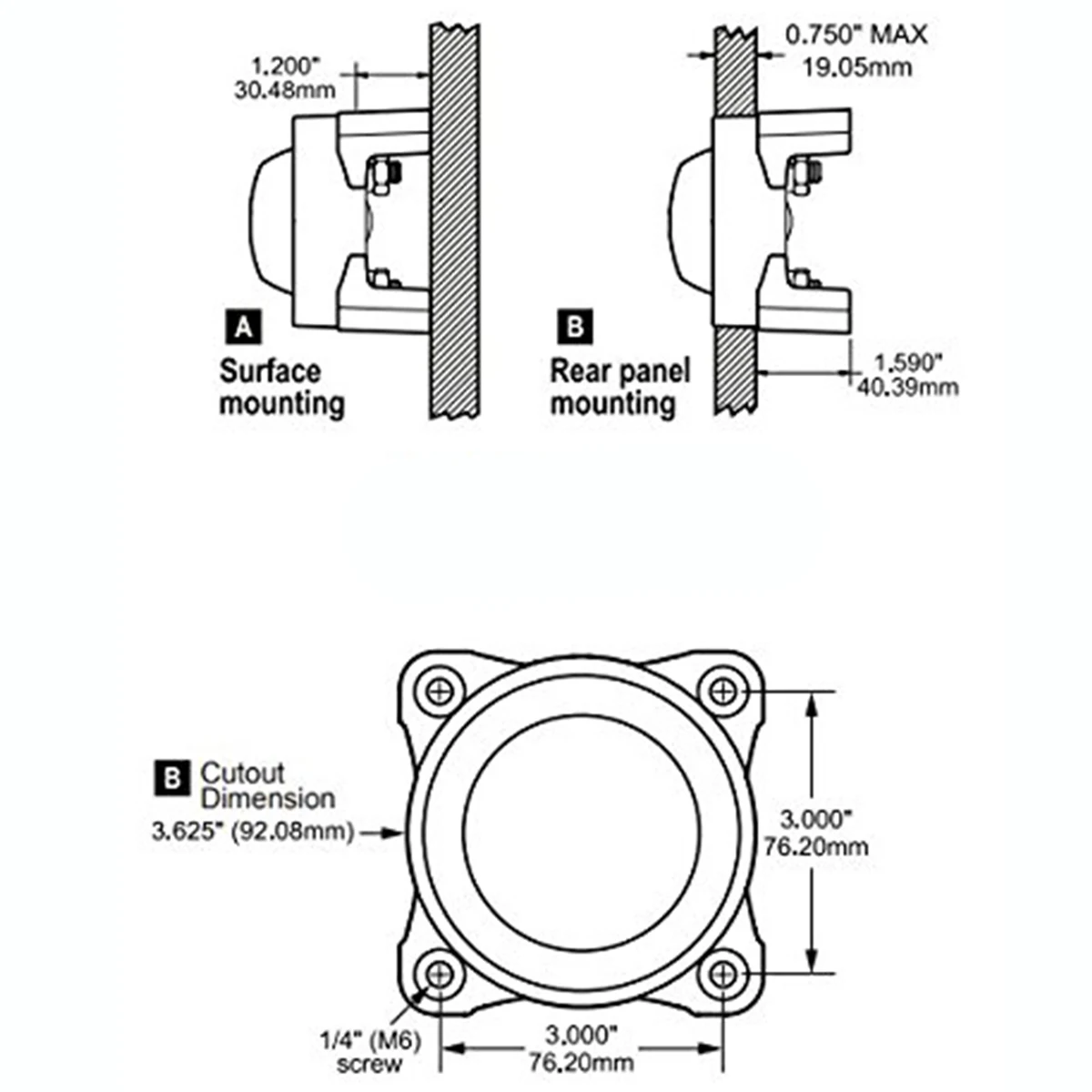

Case design allows surface, rear, or front panel mounting options

Tactile indicator conveys knob position by feel

Waterproof – rated IP66 from water projected in powerful jets

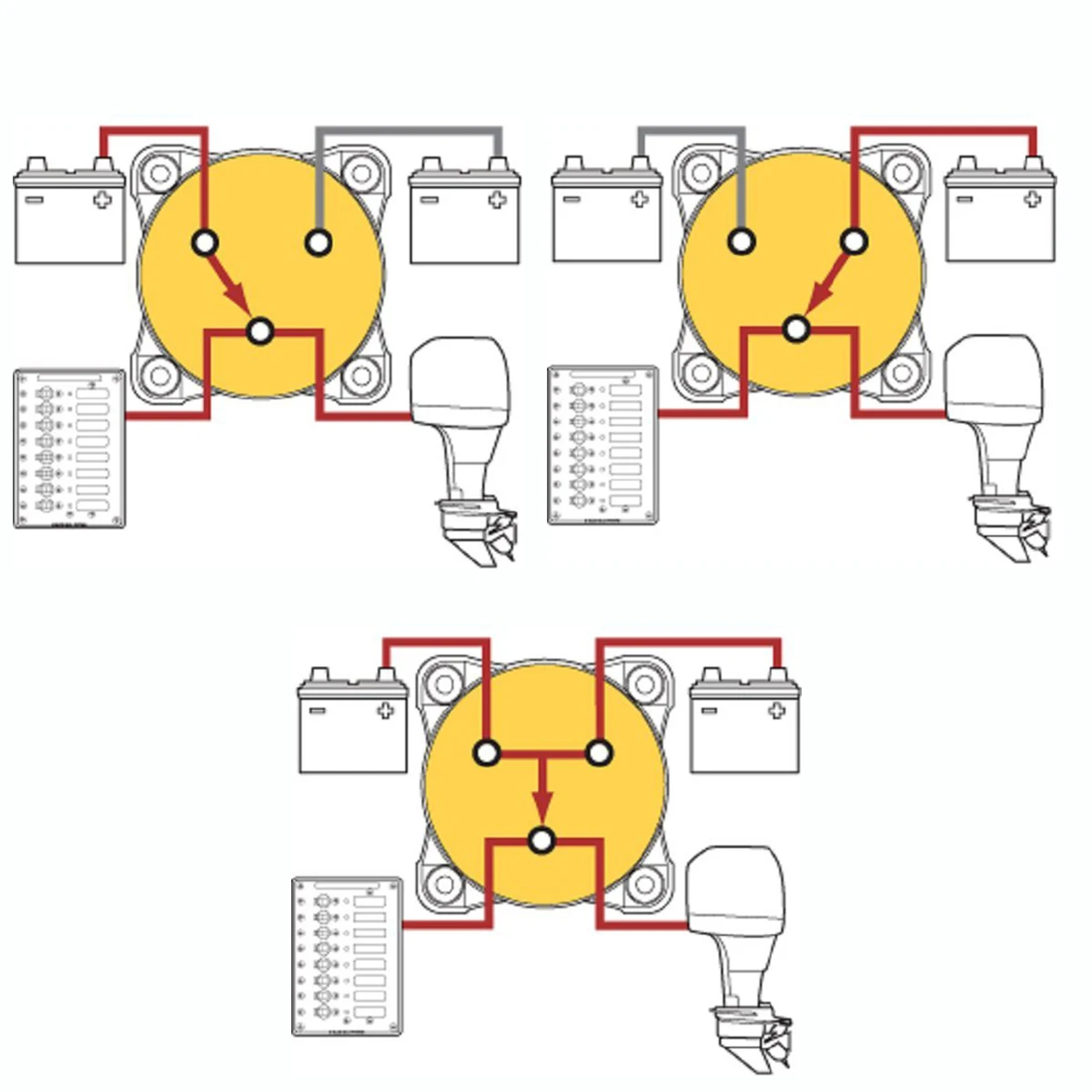

Switch Positions : 4

Battery Combine : Yes

position but OFF : No

Maximum Voltage : 32V DC

Terminal Stud Torque : 140 in-lb (15.82 Nm)

Continuous Rating : 350A

Intermittent Rating : 600A (5 min)

Cranking Rating 30 sec : 1200A

Battery Inputs : 2

Cable Clearance For 4/0 AWG Cables : 1.10in (27.94 mm)

Cable Size to Meet Ratings : 4/0 AWG (120mm²)

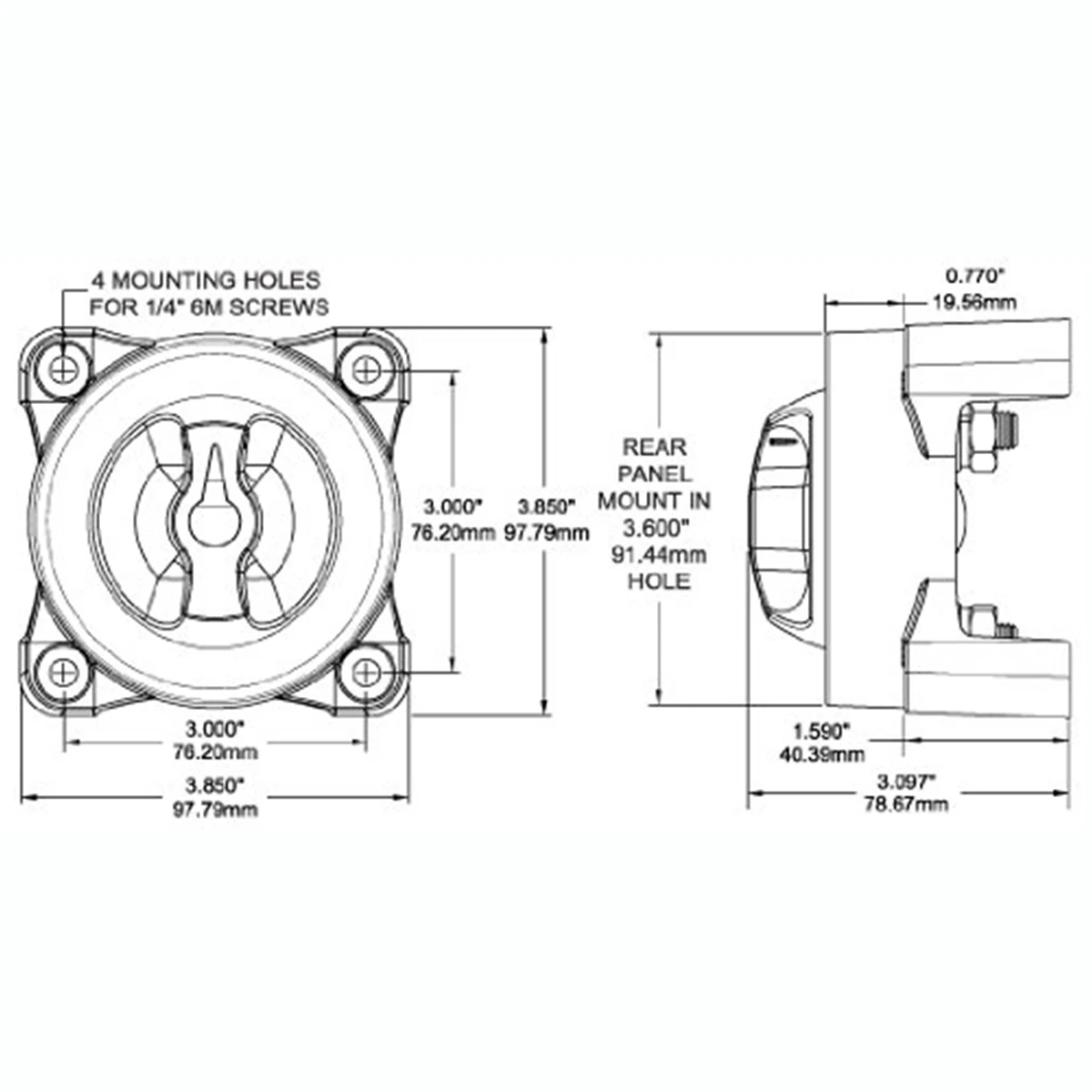

Mounting Holes : Accept 1/4" (M6) Screw

Stud Material : Tinned Copper

Terminal Stud Size : 3/8" - 16 (M10)

Weight : 1.15lb (0.52 kg)
