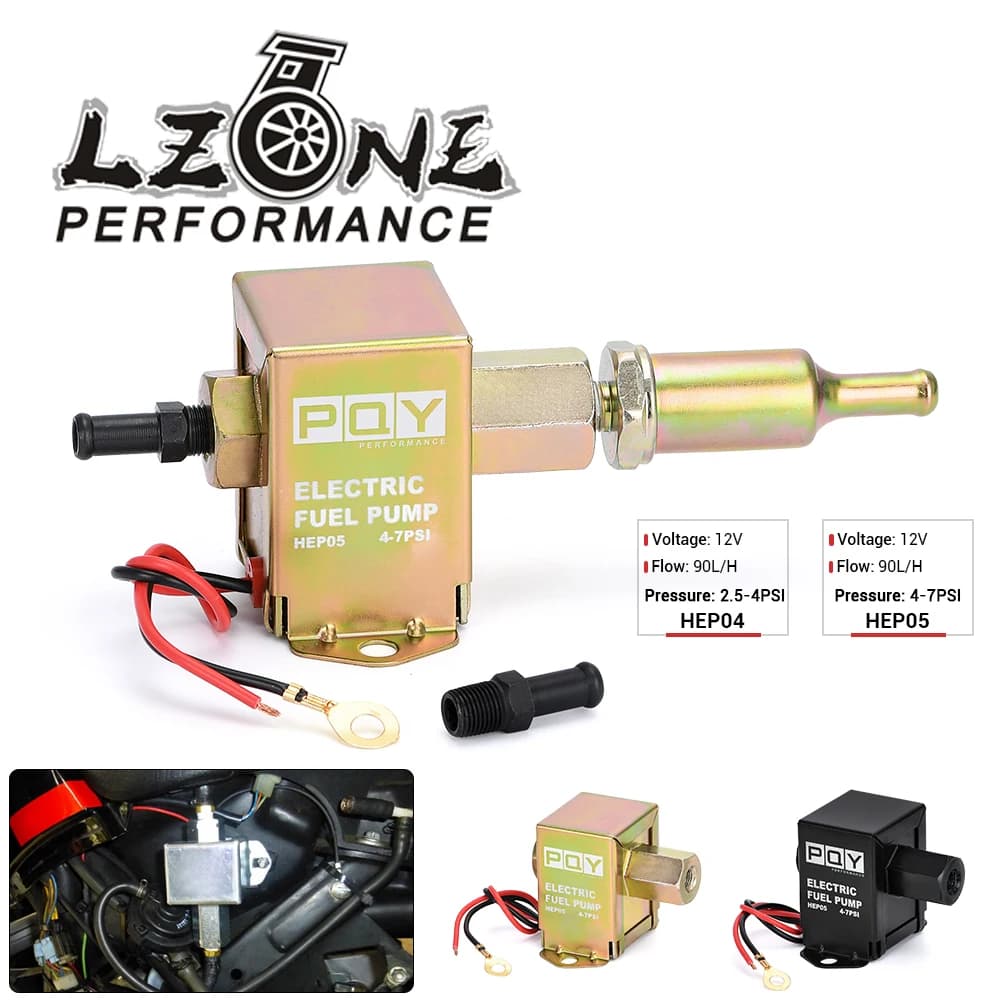

Universal 12V Electronic Inline Fuel Pump 4-7PSI High Pressure 90LPH Gas Petrol Diesel Compatible 40104 40106 40107 P502

Application: • For Auto, Motorcycle, Carburetor, ATV, Lawn Mower, Truck, Boats Generators,etc. Compatible with the following Part Numbers: • FEP12SV, E8012S, FD0002, P60430, EP12S, 6414671. Specification: • 100% quality assurance tested, more responsive, less expensive, easier to install. • Make engine burn fuel more efficiently and cleanly without the resulting emissions. • Superior Impeller outer-case mechanism to maximize fuel flow. • Consistent fuel flow at low range electric Amps. HEP04: • Voltage: 12V. • Pressure: 2.5-4PSI. • Flow: 90LPH. HEP05: • Voltage: 12V. • Pressure:4-7PSI. • Flow: 90LPH. Material & Color: • Material: made of high quality Copper. • Color: as picture. Package Included: • 1x Electronic Fuel Pump； • 1x Fuel Filter； • 2x Fittings.(100% Brand New Never Used Or Installed) Installation Instructions: 1. Disconnect the battery. Uninstall the mechanical fuel pump. 2. Select an area close to the existing fuel lines close to the fuel tank mount the pump. 3. Connect the fuel line from the tank to the fuel filter and the filter to the inlet port of the pump. 4. Connect the carburetor delivery line to the outlet port of the pump. 5. Connect the power lead from the fuel pump to the (P) terminal of the oil switch. 6. Connect the ground wire from the fuel pump to ground. 7. Start the engine to check for leaks. Note: • Avoid routing fuel lines in areas that would cause chafing. Note: • Provide Tracking Number With Every Order, Please Buy With Confidence! • No installation guides are included, we highly recommend to seek professional installation. Any damage during installation will not be refunded. • Will come with everything you see in the picture. Please allow difference due to manual measurement. • Please check that the picture matches before purchase. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding. • For any inquiries or special requests such as larger amount ordering please write to us.
