For J-LINK V9 JLink V9 J LINK V9 ARM Emulator Adapter For STM32 ARM MCU USB JTAG Debug Tools with Switching Board

For J-LINK V9 JLink V9 J LINK V9 ARM Emulator Adapter For STM32 ARM MCU USB JTAG Debug Tools with Switching Board

Features of JLINK V9:

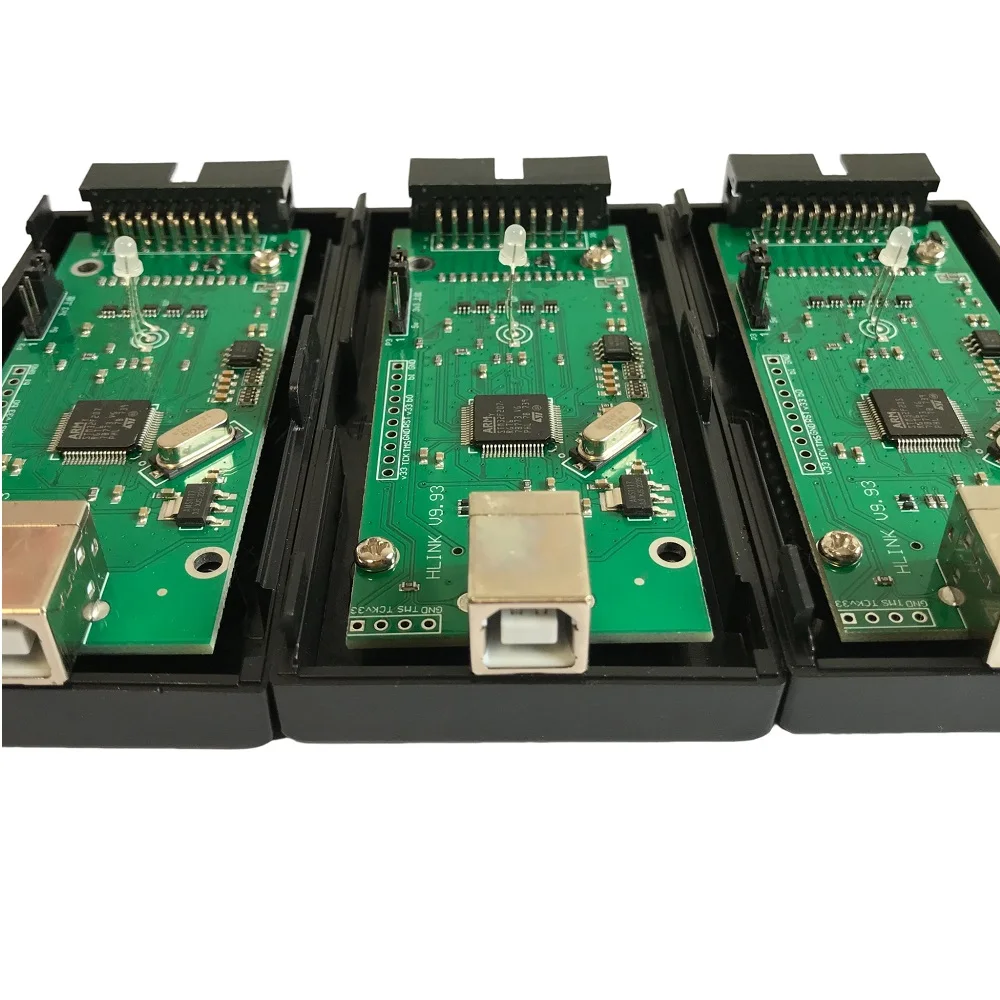

The main control chip is STM32F205, without losing the firmware, and the hardware has been upgraded to the latest version of V9.2

It can provide 3.3V voltage 0.8A current for the development board (The second pin)

Support standard JTAG interface and 2-wire SWD debugging interface. The speed can reach 20M (JTAG)/15M (SWD) per second.

It supports debugging of all ARM chips, MDK or IAR, and compilation environment IDE supported by other standard JLinks.

Supports the latest software.

J-Link Support for ARM Kernel:

ARM7TDMI (Rev 1)

ARM7TDMI (Rev 3)

ARM7TDMI-S (Rev 4)

ARM720T * ARM920T

ARM926EJ-S

ARM946E-S

ARM966E-S

ARM11

Cortex-M3

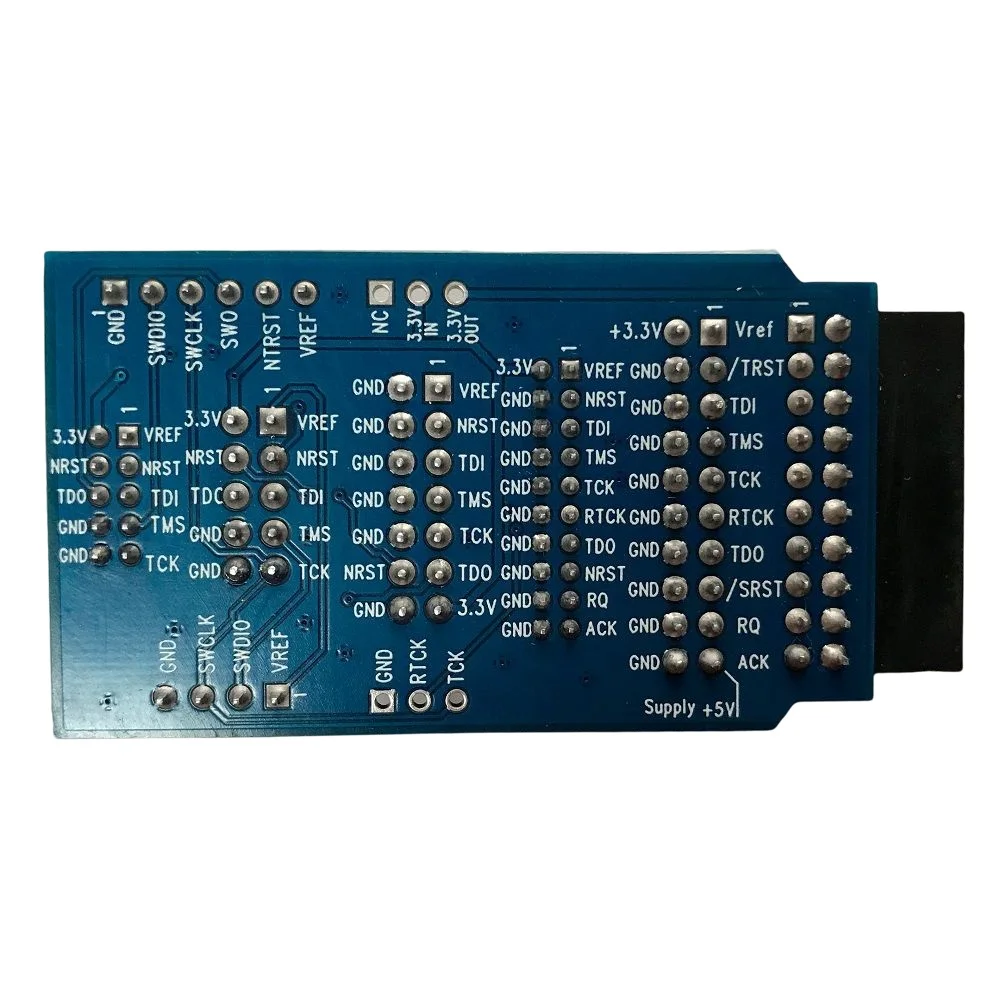

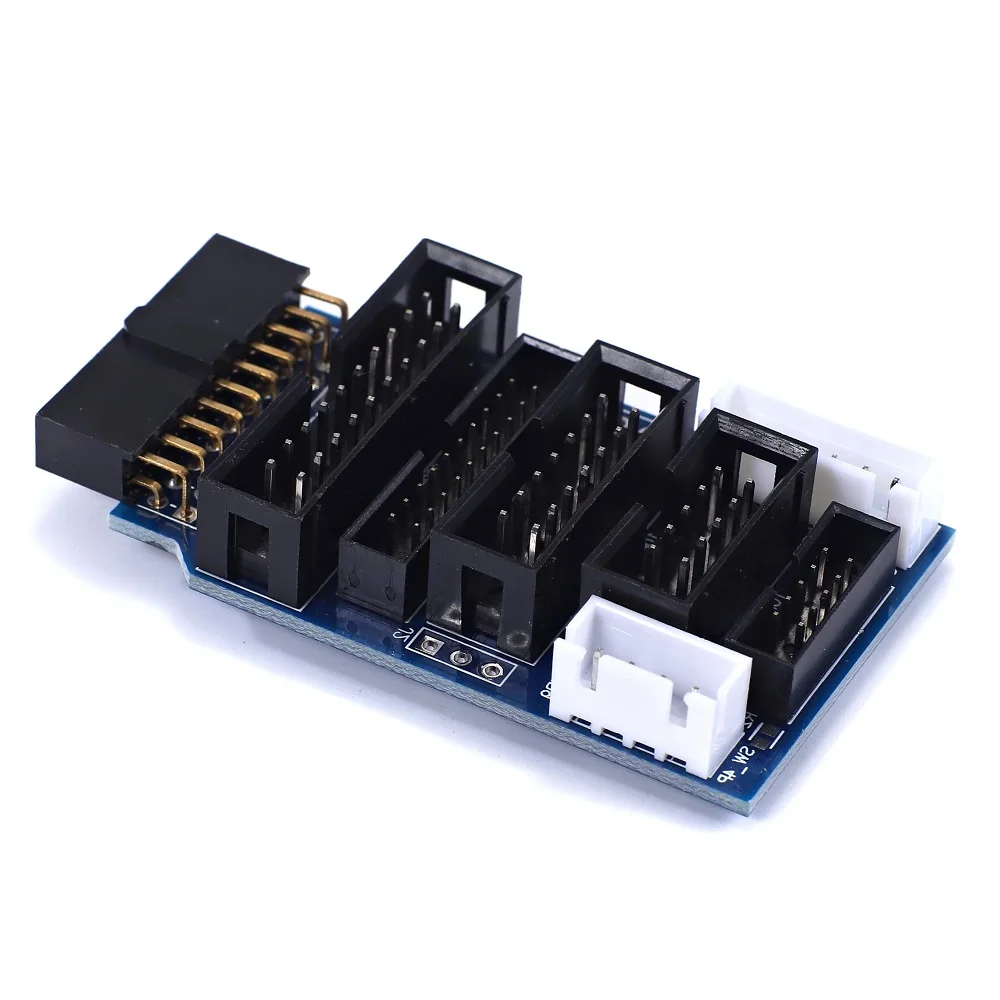

The multifunctional conversion board provides the following interfaces:

Interface 1:  2.54 pitch 20 pin spacing Angle seat (Can be directly connected to JTAG seat)

Interface 2:  2.54 pitch 20 pin straight socket

Interface 3:  2.0 pitch 20 pin straight socket

Interface 4:  2.54 pitch 14 pin straight socket

Interface 5:  2.54 pitch 10 pin straight socket

Interface 6:  2.0 pitch 10 pin straight socket

Interface 7:  2.54 pitch 6 pin straight socket

Interface 8:  2.54 pitch 4 pin straight socket

J-Link ARM Features:

IAR EWARM integrated development environment seamlessly connected JTAG Emulator

Support all ARM7 / ARM9 core chips, as well as cortex M3, including Thumb mode

Support for ADS, IAR, KEIL, WINARM, REALVIEW almost all of the development environment

Download speeds of up to ARM7: 600kB / s, ARM9: 550kB / s, through the DCC up to 800 kB / s

The maximum JTAG speed 12 MHz

Target board voltage range 1.2V-3.3V, 5V compatible

Auto speed recognition

Monitoring all JTAG signals and target board voltage Fully plug and play

Use the USB power supply (but not the target board power supply)

With a USB cable and 20-core flat cable

Support multi-device JTAG serial connection

Standard 20-core JTAG emulation connector

Optional 14-core JTAG emulation connector

Optional adapter for 5V targets board

Differences between JLink V9 and Jlink v8:

Speeds: V8 supports up to 10M (JTAG debugging mode)/4M (SDW debugging mode), while Jlink V9 supports up to 20M (JTAG debugging mode)/15M (SDW debugging mode).

Stability: V9's drive IC has the ability of voltage adaptation, which can automatically adapt to the cpu voltage of the target board when the wiring is correct. Both 1.8-5.5V CPUs can be debugged, while V8 can only debug 3.3V CPUs, and the stability of debugging 5v cpu is poor.

Jlink V8 is easy to lose its firmware. Many V8s have hung up, and need to rewrite the firmware. Ordinary users can only let it be, while V9 does not.

V8 no longer support some of the latest CPU , while V9 supports almost all ARM CPU.

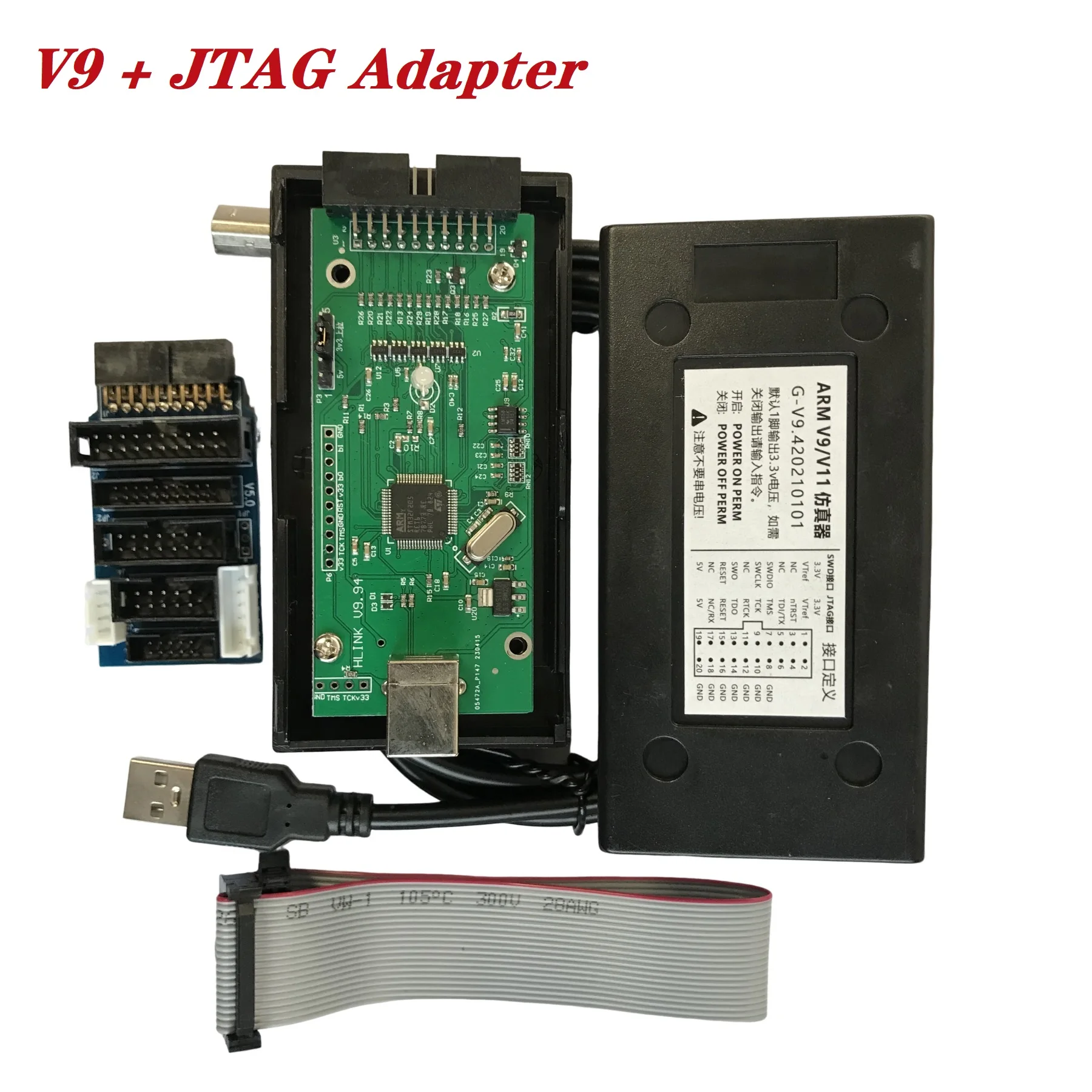

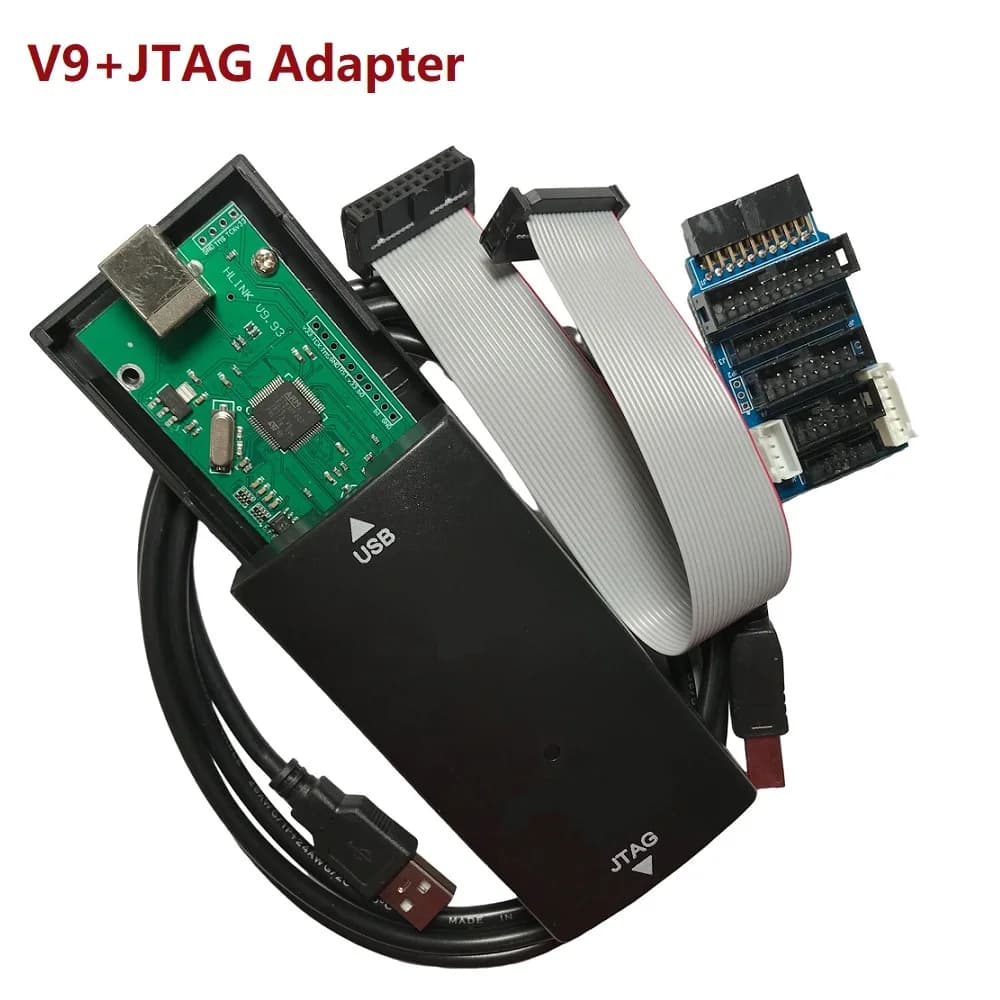

Packing List:

1x Jlink V9.0 Emulator

1x Multi-function adapter board

1x 20P Line of a Standard JTAG

1x USB cable
