Ronan 3inch Matrix Auxiliary Hyperboloid Bi-LED Laser Projector Lens D19M 60W 5600LUX for 3R G5 Car Headlight Retrofit Upgrade

Model : 3 inch Bi-LED Matrix Projector Lens D19M
Voltage :12V
Cut Line : LHD
Have Inverters : NO ( Built-in driver )
Low Beam Wattage : 48W/PC, 96W/set
High Beam Wattage : 60W/PC, 120W/set (With Matrix LED chips module)
Low Beam LUX :2600LUX/PC, 5200LUX/set (Test by 5 meters)
High Beam LUX :5600LUX/PC, 11200LUX/set (Test by 5 meters, With Matrix LED chips module)
Low beam LED chips quantity: 12pcs/Module
Matix beam LED chips: 1pc Osram LED chips

Package Include

2PCS Bi-LED Projector Lens D19M

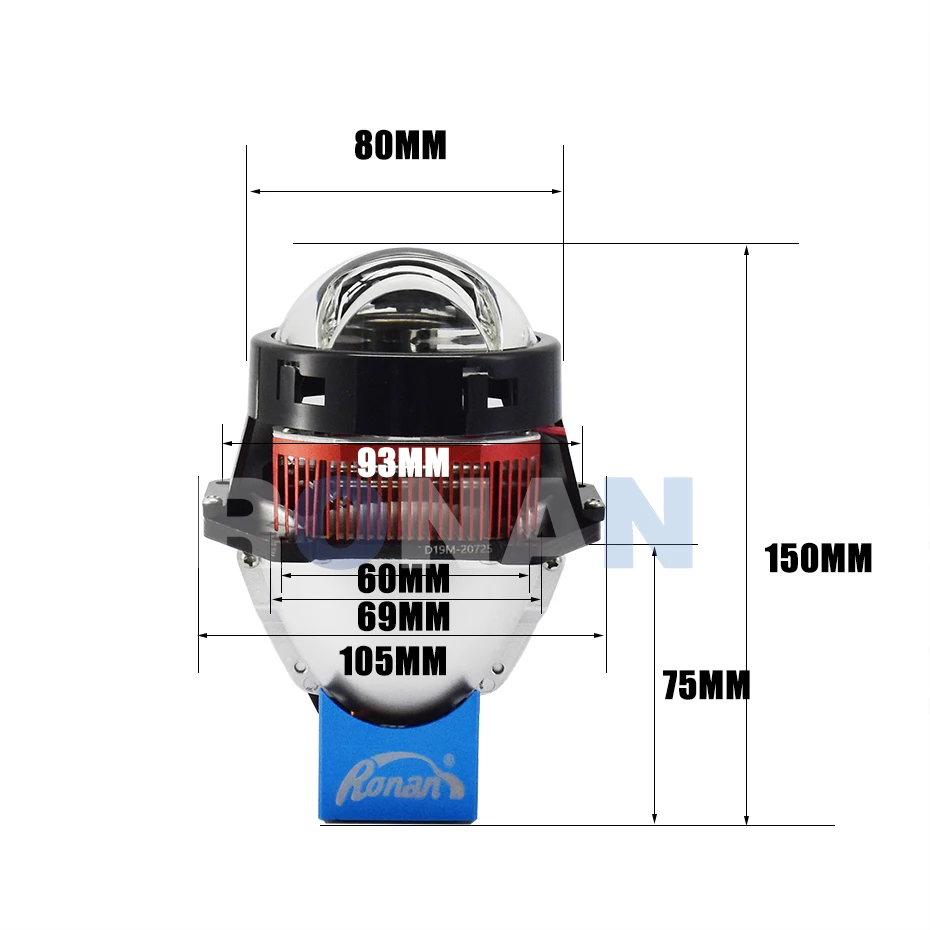

Product Size

Please check the product size with your car headlight space , if space enough it , that fit
(The measure may be have 1~2mm error )

Product Details

HD Matrix Hyperboloid Glass Lens

Independent Matrix LED OSARM Chips Module (with inverters by self）

Function: Matrix High Beam More Brightness, Special Using It On Remote Area Road

Big LED Chips Module (12pcs small led chips) and Built in Inverter/Driver (It has Temperature Control function)

Cooling System：
High-speed Rotary Fan

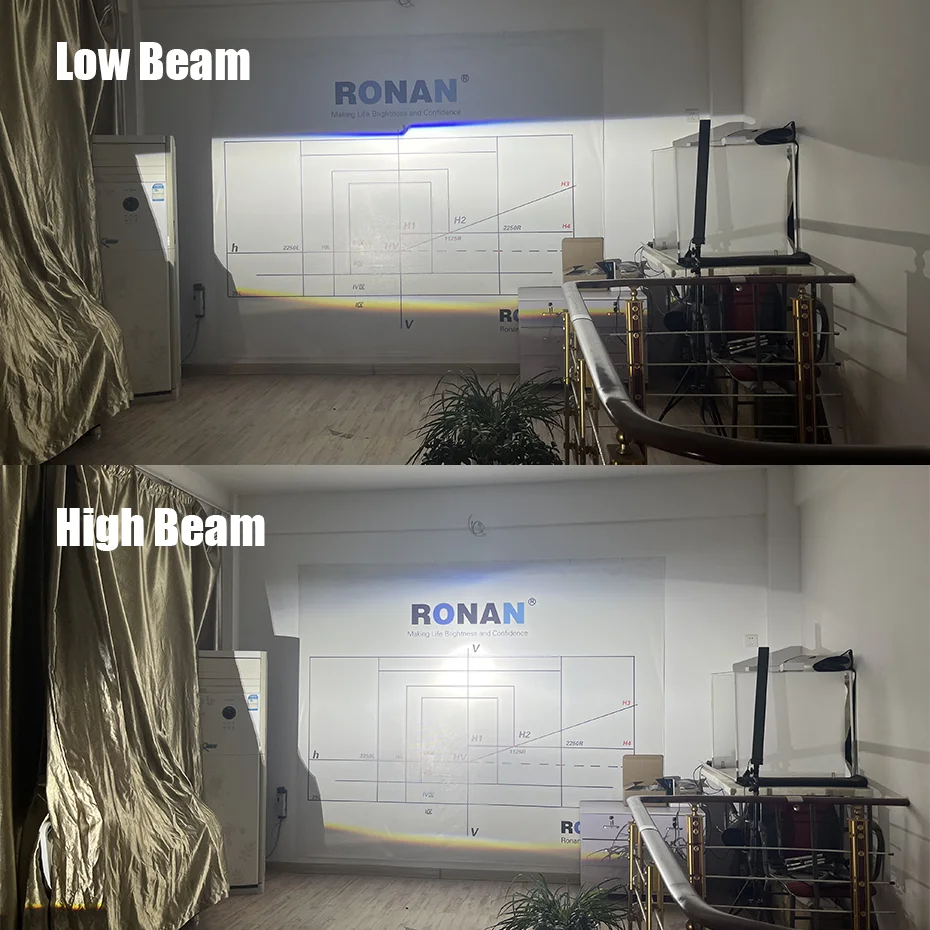

Light Test

@ 5meters

Wire Connection

There total 6 wires , 2 control low beam , 2 control high beam ,2 control third light

First red and black on lens body : red connect car light power "+",black connect car light power "-" .
Blue and white wire on moto , cotrol hiogh beam , connect high beam "+" and "-" , 2 wire no pole difference.
Second red and black control third on third light parts , red connect high beam "+" , black connect high beam "-".

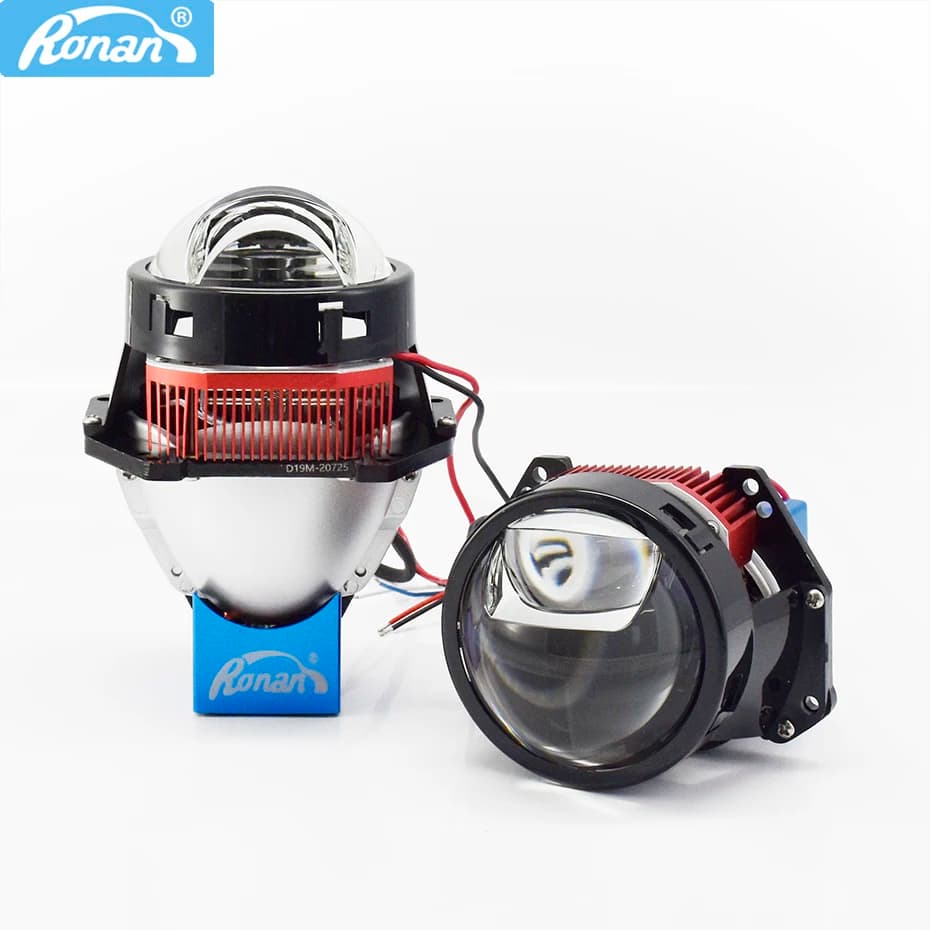

Product Display
