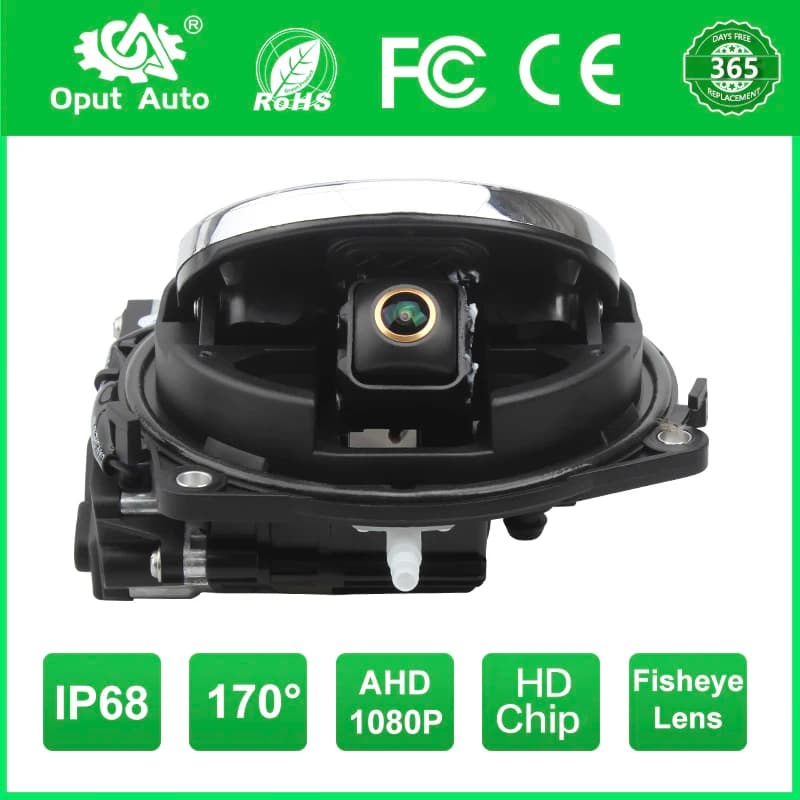

170° AHD 1080P Flip Emblem Rear View Reverse Backup Camera For VW Golf 6/7/8 Polo CC Beetle Magotan B6 B7 B8 EOS T-roc Passat

170° AHD 1080P Flip Emblem Rear View Reverse Backup Camera For VW Golf 6/7/8 Polo CC Beetle Magotan B6 B7 B8 EOS T-roc Passat

* AHD technology produces High-definition video signal, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.

* Highly integrated 2053 HD chip, Max HD 1080P resolution. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.

* The Camera supports both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

* Note: The AHD trajectory camera does not need CANBUS or OBD interfaces, the camera has a built-in reversing tracking module. It adjusts the guideline automatically according to the moving position and speed of car body and direction instead of steering wheel control. It only works with monitors supports AHD 720P video signal .

* Chip: HD Sony/OV2053HD

* Viewing Angle: 155~175 Degrees Visible Range .

* Effective Pixels: CVBS: 1280x720P (NTSC/30HZ), AHD: 1920x1080P (PAL/25HZ)

* Signal Format: NTSC or PAL

* Image Resolution: 92W/200W pixels

* Video Output: AHD Video Signal or CVBS Video Signal

* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.

* Night Vision Image: Automatic Gain Control, Auto White Balance, Auto Backlight Compensation

* Lens: 14/16MM Fisheye 6 glass Lens .

* Waterproof: IP68 /IP69

* Working Power Supply: DC 12V~24V, 2A

* Working Temperature: -30 °C ~ +70°C

* Maximum Power: 3W

Tips:

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)

3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
