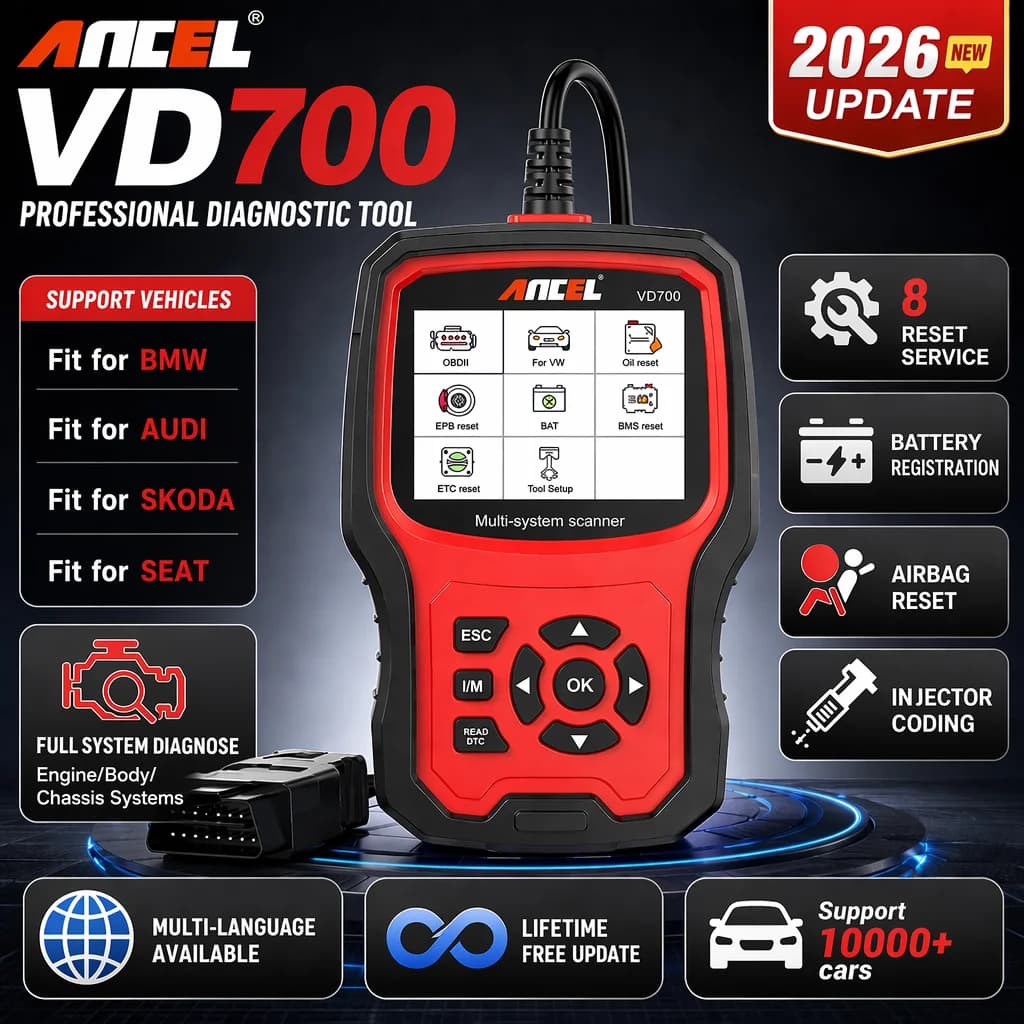

ANCEL VD700 Professional OBD2 Scanner for VW for Audi for Seat for Skoda Oil EPB SAS TPMS Reset Full System Code Reader

ANCEL VD700 Professional OBD2 Scanner for VW for Audi for Seat for Skoda Oil EPB SAS TPMS Reset Full System Code Reader

Ancel VD700 is the powerful handheld car OBD2/EOBD full system diagnostic scanner,special design for 12V 16pin for VW, for Audi, for Skoda, for Crafter,for Seat,for BUGATTI,for LAMBORGHINI,for BENTLEY cars. Including check All system working condition, read, clear error codes, turn off MIL light. Also support car maintenance function such as Oil service reset, EPB brake pad reset, throttle position check Battery reset etc reset service function. No need battery with fast scanning speed and lifetime free upgrade online, offer a better car diagnose experience for car DIY owner.

Ancel VD700 can do Full System Diagnose for VAG cars and Retrieves VIN Info:

1.Engine system
2.Auto transmission system
3.ABS brake system
4.Auto HVAC system
5.Center electronic system
6.Airbags system
7.Steering wheel system
8.Instrument system
9. Immobiliser system
10.Navigation system
11.Radio system
12.Diesel pump system
13.Electric drive
14.Battery regul
15.Battery charger
16.Parking brake
17.Steering angle
18.Suspension alect
19.Sound system
20.Chassis control
21.Tire pressure
22.Active steering
23.Door electric system, drive/pass/rear left/rear right
24.Slide door, right/left
25.Automatic light
26.HAVC Heating, Ventilation and Air Conditioning
27.Air Condition Clutch
and more...

Basic function OBD/EOBD Scan

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

More Rest Services to be Provided---Save your time and money.

VD700 OBD2 scanner can do basic setting, adaptation and access authorization on VAG vehicles(if needed). Such as: throttle position adaption, brake pad reset, TPMS reset, steering angle learning, oil reset, injector coding,D-P-F reset and battery registration etc.

●TPMS Reset

You can use VD700 to clear the codes and turn off the TPMS warning light after you replaces the tire.

● D-P-F Regeneration

The most common reasons for D-P-F failures are: Short journeys where the engine doesn't reach optimum operating temperature. Clogged E-G-R Valve increasing diesel soot passed to the D-P-F. Faulty fuel injectors sending too much fuel to the air/fuel mixture. VD700 will perform a forced regeneration, turn off the D-P-F light and reset ECU after the filter has been replaced, and reset the additive light after topping up.

● TPS Throttle position Adaption

If these problems occurs: engine may be stalling or misfiring, poor engine performance, lack of power, transmission (gear) may not be shifting correctly, it means that you need to get the throttle position sensor (TPS) inspected. After that, the trouble codes will need to be cleared. VD700 can clear codes and reset the TPS.

● Injector Learning

Once you have replaced the car injector, you will need to write a new injector code to inform the ECU how much compensation is required to achieve the optimum in lowering emissions and provide smooth running. VD700 can help you complete this process.

● Steering Angle Sensor Calibration

You can use VD700 to read the fault codes, perform the sensor calibration if needed, and clear the codes when you done.

SRS(airbag) Reset
Reads and clears trouble codes,turns off airbag warning light and reset SRS

● Oil Service Reset

When you want to reset your oil service after you changing the oil or simply want to reset your vehicle inspection warning light(please make sure your vehicle is in well condition), this is the device you need.

● Electrical Park Brake (EPB) Reset

VD700 is a essential tool required to release rear electric parking brake unit when replacing rear pads or discs so that the caliper piston can be moved back. It can also clear codes and turn off the EPB light when it’s done.

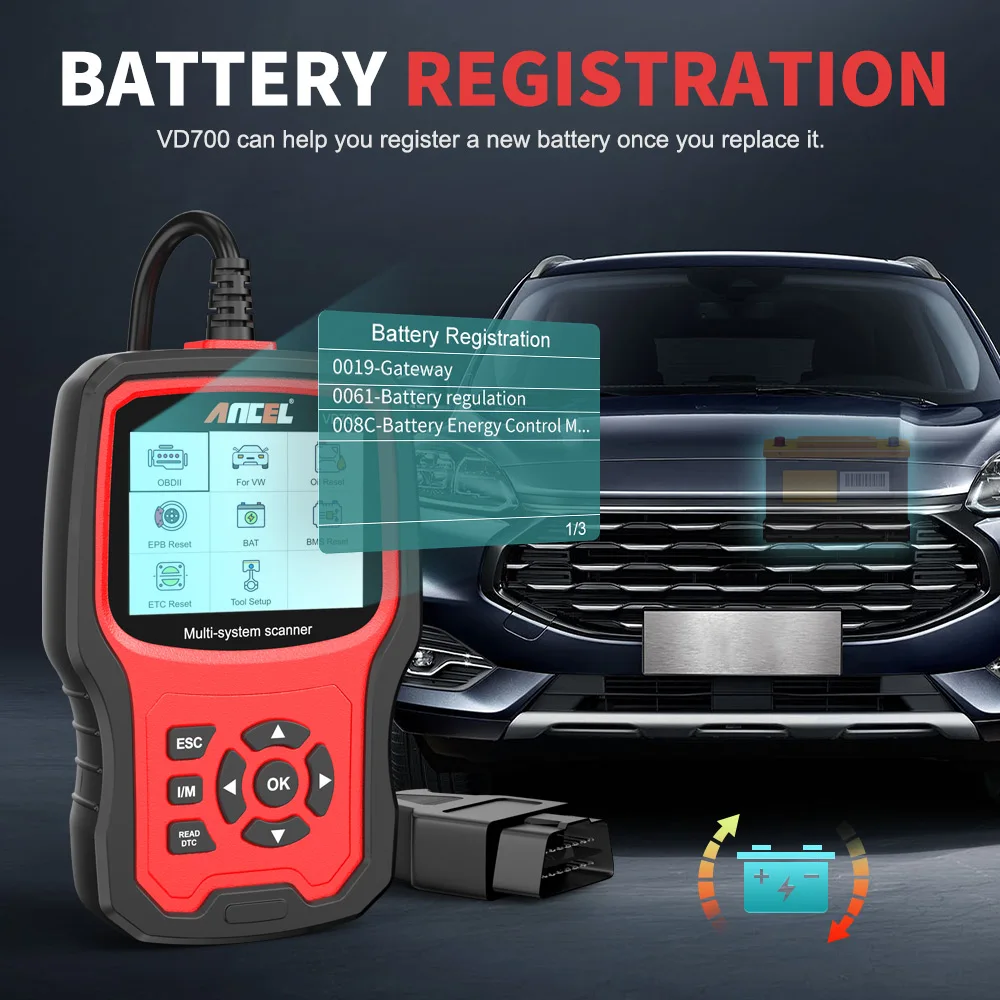

● Battery Registration

Disregarding the need to register and code for a new battery may result in improper charging. VD700 can help you register a new battery once you replace it. Just click for VW - special function - battery registration.

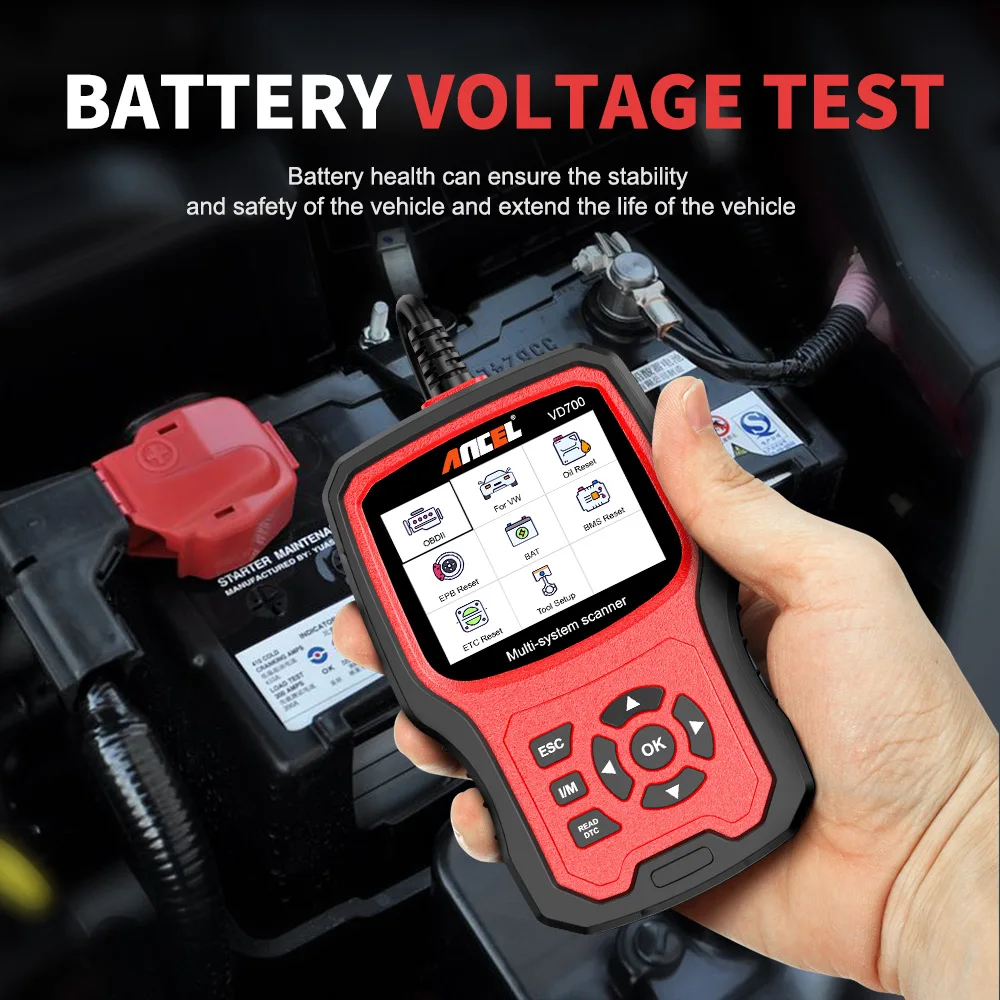

●Battery Voltage Test

Ancel VD700 OBD2 Scanner Vehicle Testing Coverage list

Please Note: if you are not sure whether your car supported, or you focus on some function, please remember to tell me, and then send me your car models and year as below: xx car brand, xx car model,xx car release year. thanks

1.For Volkswagen before 2024 year 12V cars

for CC, for EOS, for Golf, for GTI, for Jetta, for Passat, for Phaeton, for Polo, for Rabbit, for Sharan, for Tiguan, for Touran, for Touareg etc

2.For Audi before 2024 year 12V cars,

for A3, for A4, for A6, for A7, for A8, for A5, for Q3, for Q5, for Q7, for R8, for RS3, for TT, for RS, for RS5, for S4, for S6 etc

3.For Skoda before 2024 year 12V cars,

for Octavia, for Rapid, for Yeti, for Kodiaq, for Fabio, for Superb etc

4.For SEAT before 2024 year 12V cars;

for leon, for Ateca, for Ibize, for Altea, for Cushion,for Cord, for Alhambra etc

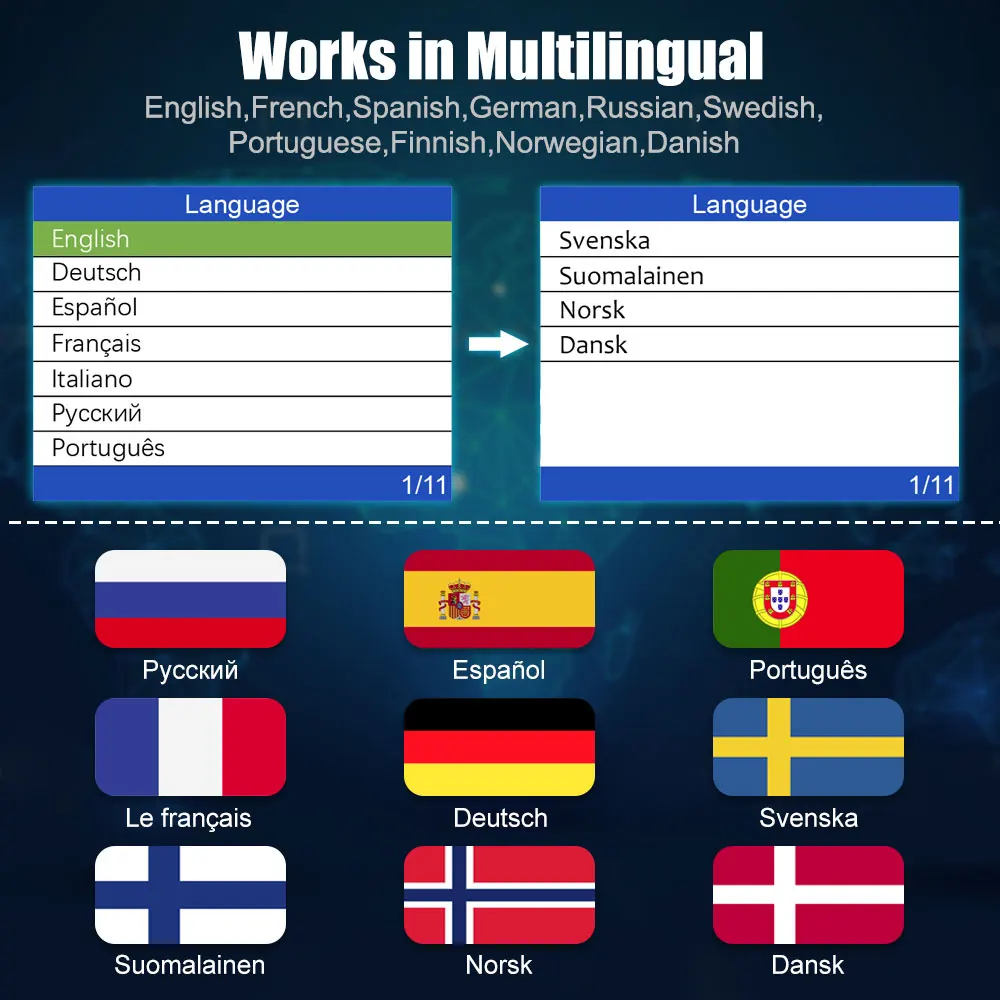

Multi-language Available

English, French, Spanish, German, Russian, Swedish, Portuguese, Finnish, Norwegian, Danish.

Lifetime free update
