48V 20A 500W Brushless Motor Sine Wave Universal Controller TF-100 TF100 LCD Display Throttle Kit for kugoo M4 Electric Scooter

Controller Introduction

This controller is for KuGoo M4 Scooter and is used as a direct replacement for a damaged controller, the rest of the accessories do not need to be removed.

This controller comes with self-learning wires, a great feature for more perfect compatibility with your motor.

This controller is a sine wave single mode controller, it does not support hall damaged motors, if your motor hall is damaged, you can use other dual mode models from our store.

After installation, please plug in the self-learning wire to detect and compatible with your motor, disconnect after compatible OK, drive your motor perfectly.

LCD is TF-100 6pin, if you want to use it for other brands of scooters then just connect the wires correctly then everything is perfect.

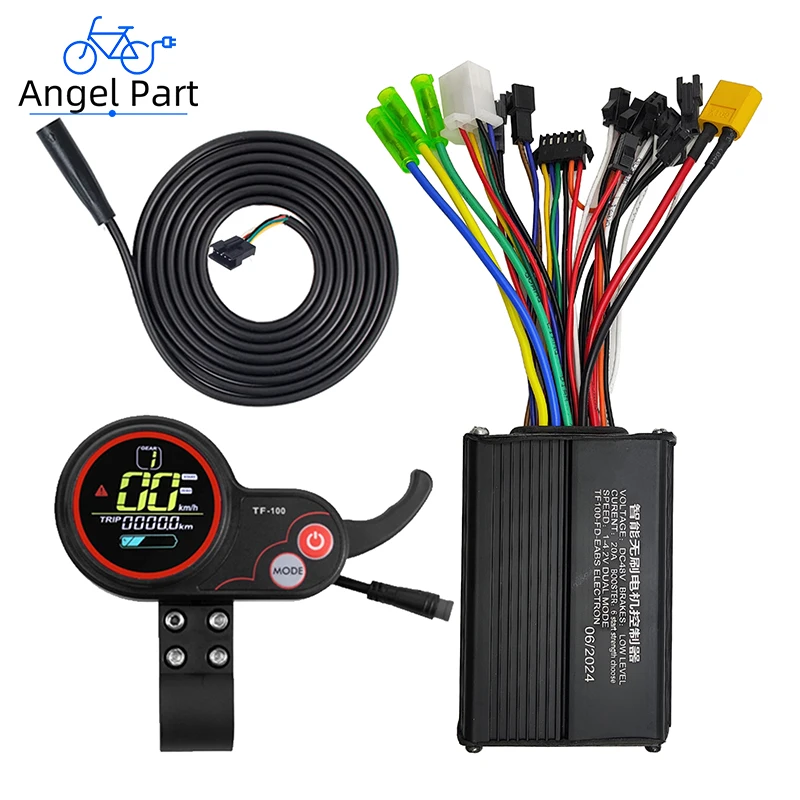

Packaging:
1pcs Controller
1pcs TF-100 6pin
1pcs Extension Cable

48V 20A KuGoo M4 Electric Scooter Brushless Motor Controller Kit

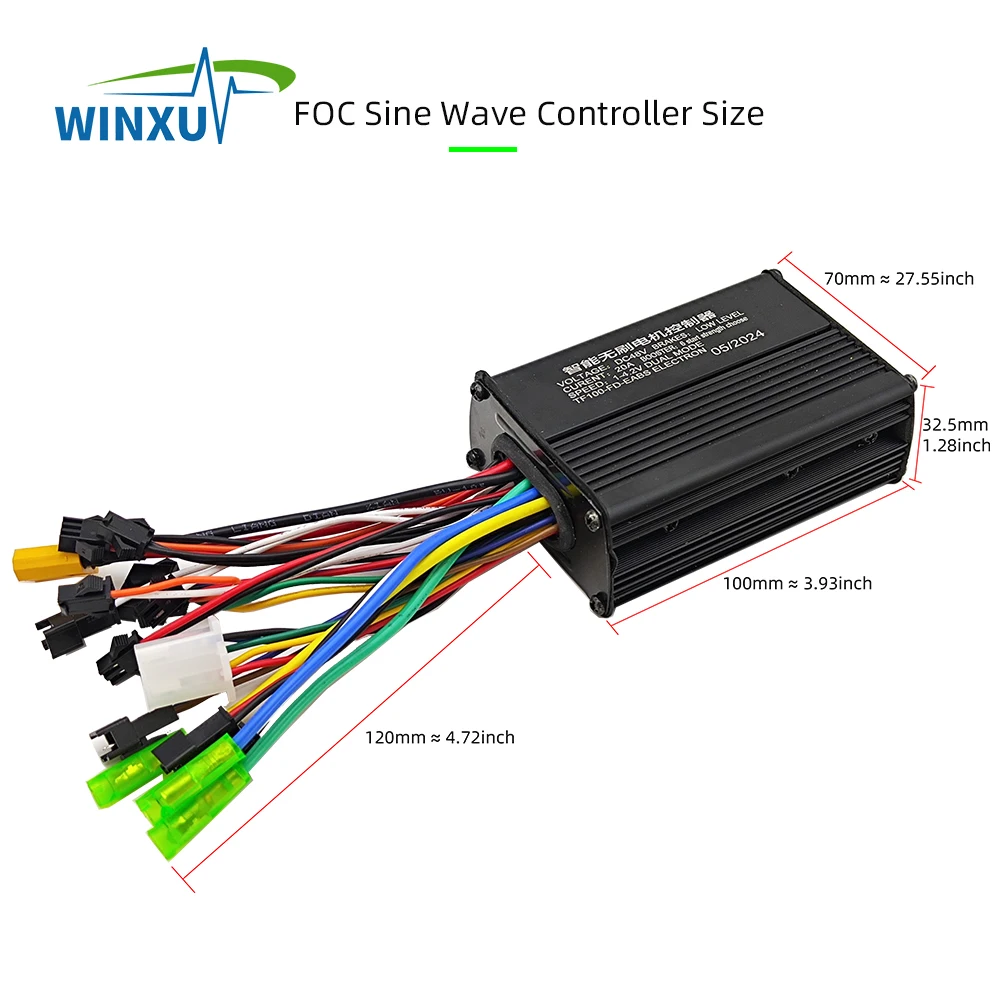

WinXu® Brushless Controller Size

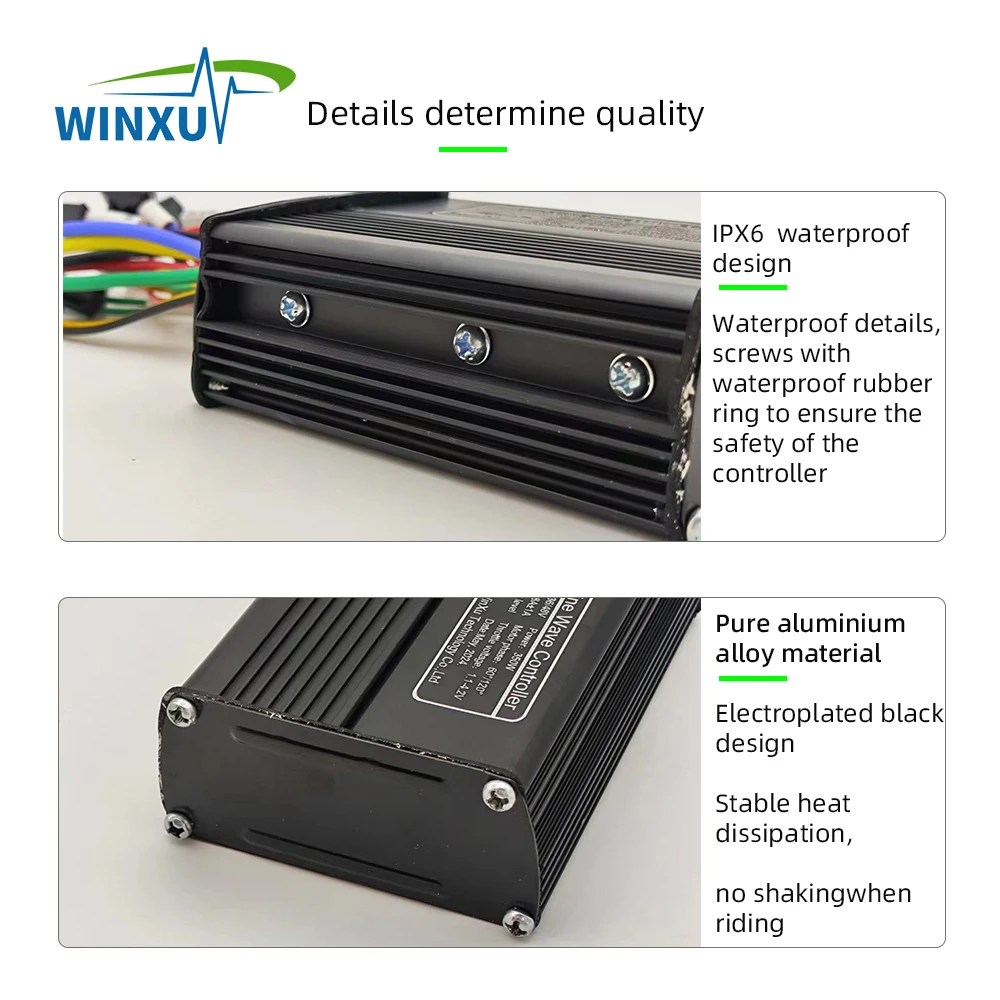

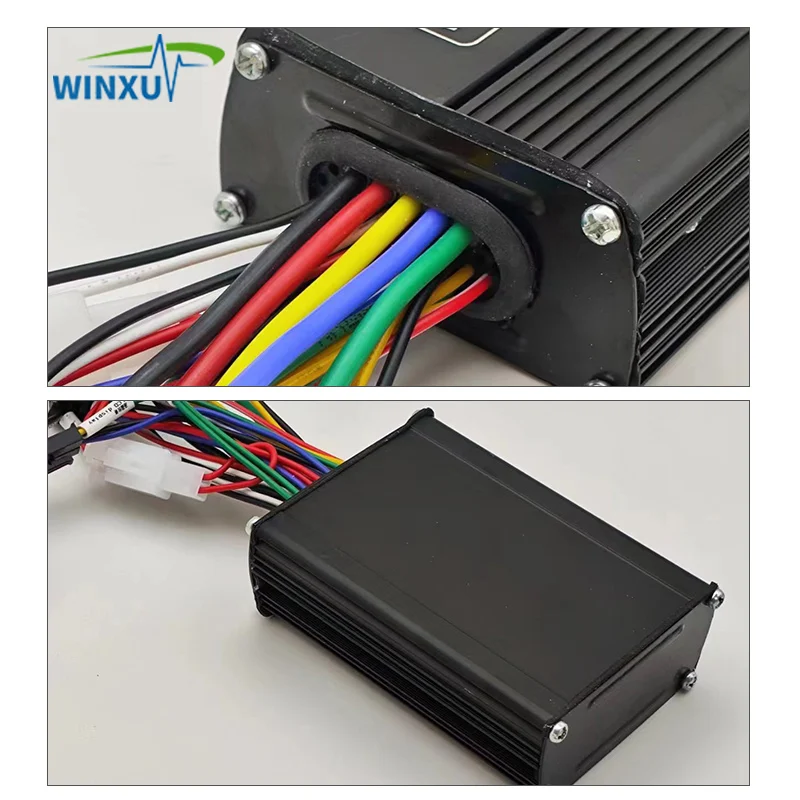

WinXu® Brushless Controller Details

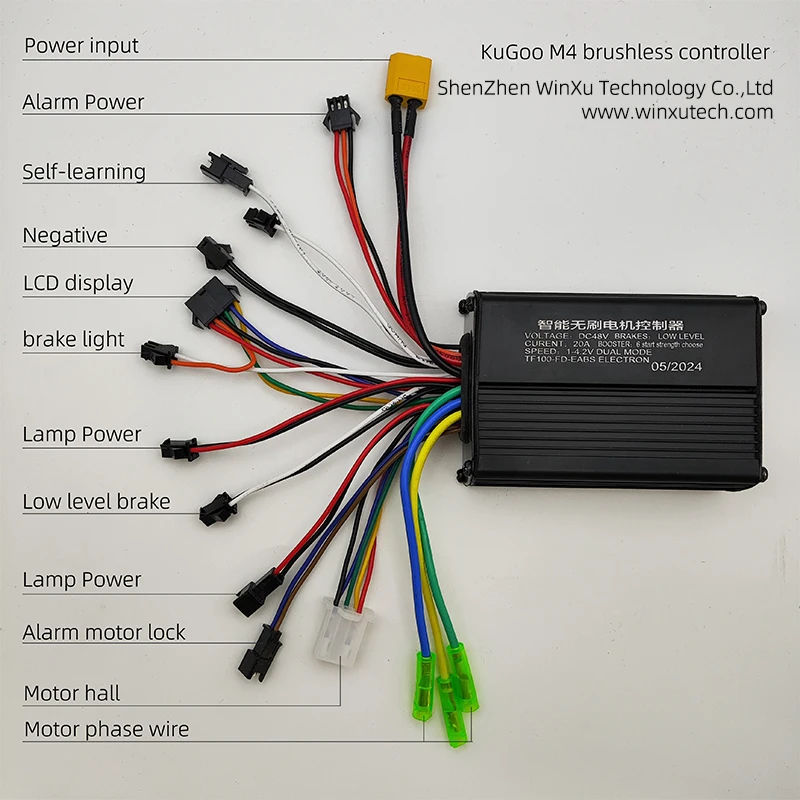

M4 Controller Wiring Diagram

Features:
This controller with self-learning wires is compatible with different types and brands of scooters.
