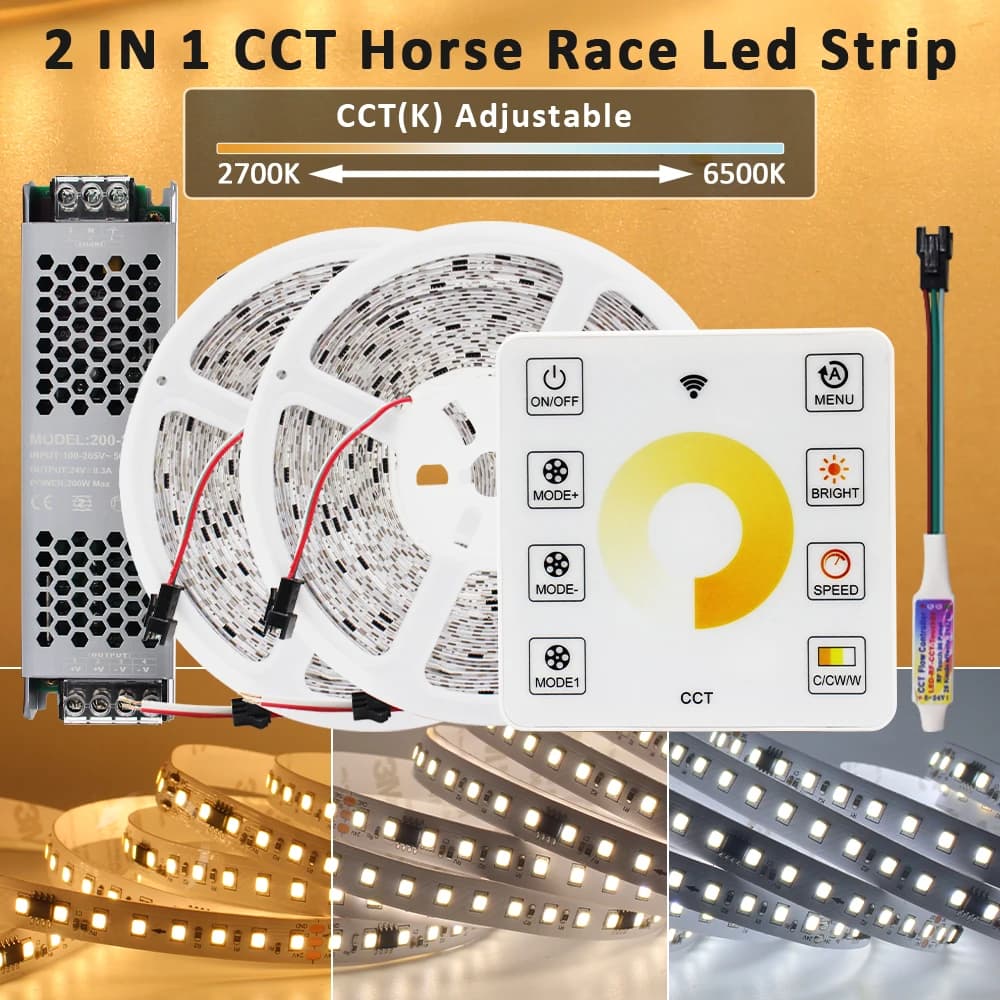

SMD2835 Water Flowing LED Strip Light DC 24V 10M Flex Ribbon Horse Race Chasing Effect 126 Diode CCT Liner Lamp with Touch Panel

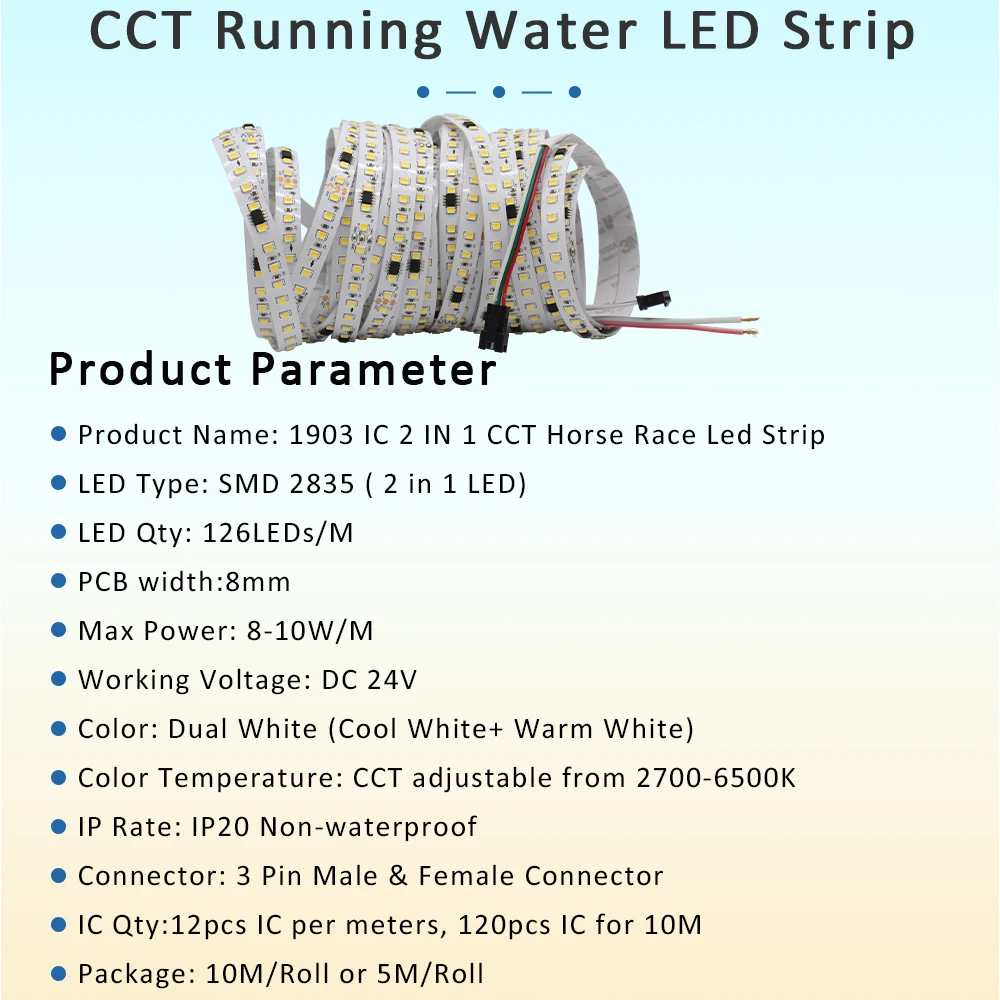

Parameters:

Product Name: 1903 IC 2 IN 1 CCT Horse Race Led Strip
LED Type: SMD 2835 ( 2 in 1 LED)
LED Qty: 126LEDs/M
PCB width:8mm
Max Power: 8-10W/M
Working Voltage: DC 24V
Color: Dual White (Cool White+ Warm White)
Color Temperature: CCT adjustable from 2700-6500K
IP Rate: IP20 Non-waterproof
Connector: 3 Pin Male & Female Connector

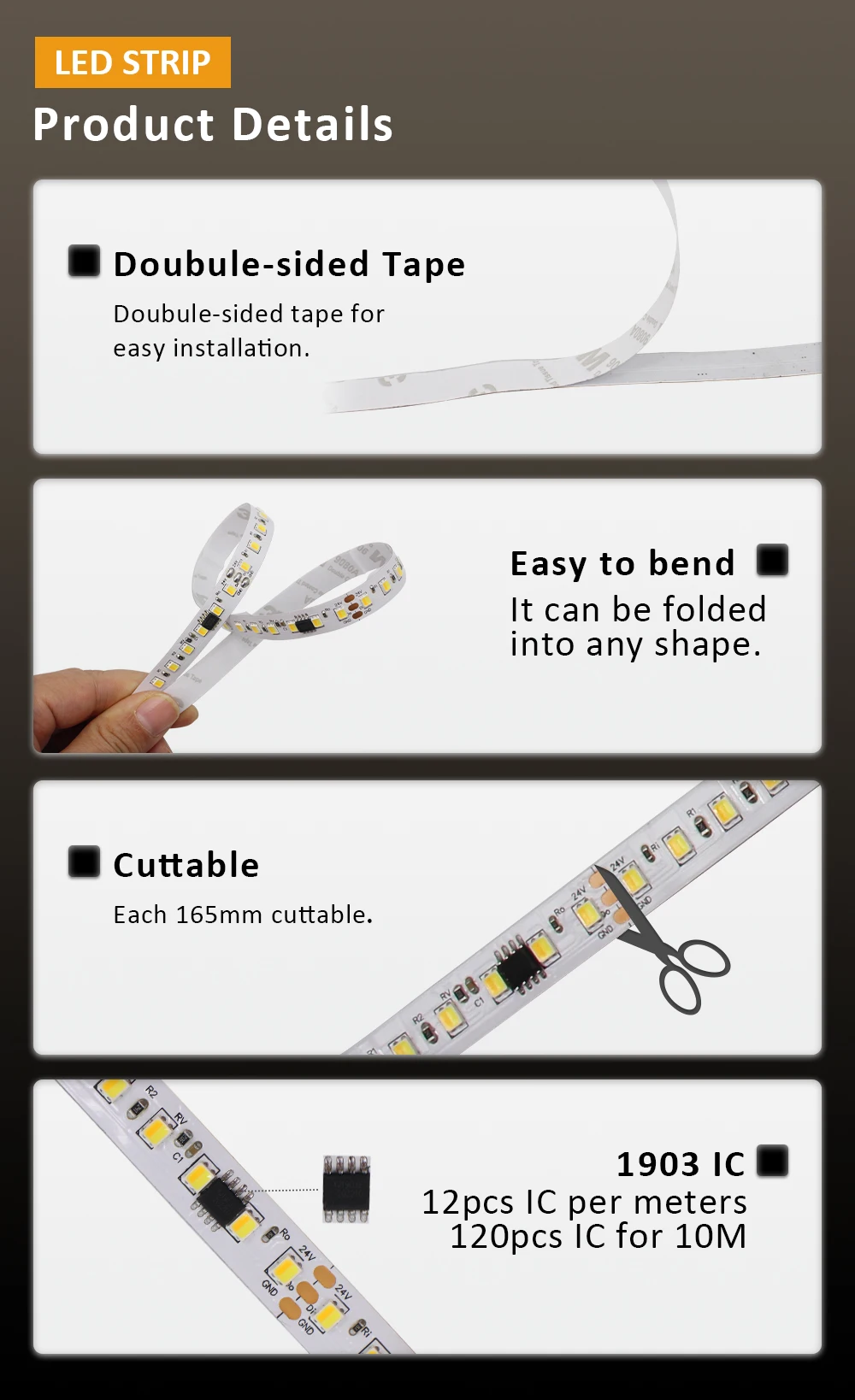

IC Qty:12pcs IC per meters, 120pcs IC for 10M
Cuttable Size: Each 165mm cuttable
Package: 5M/Roll or 10M/Roll

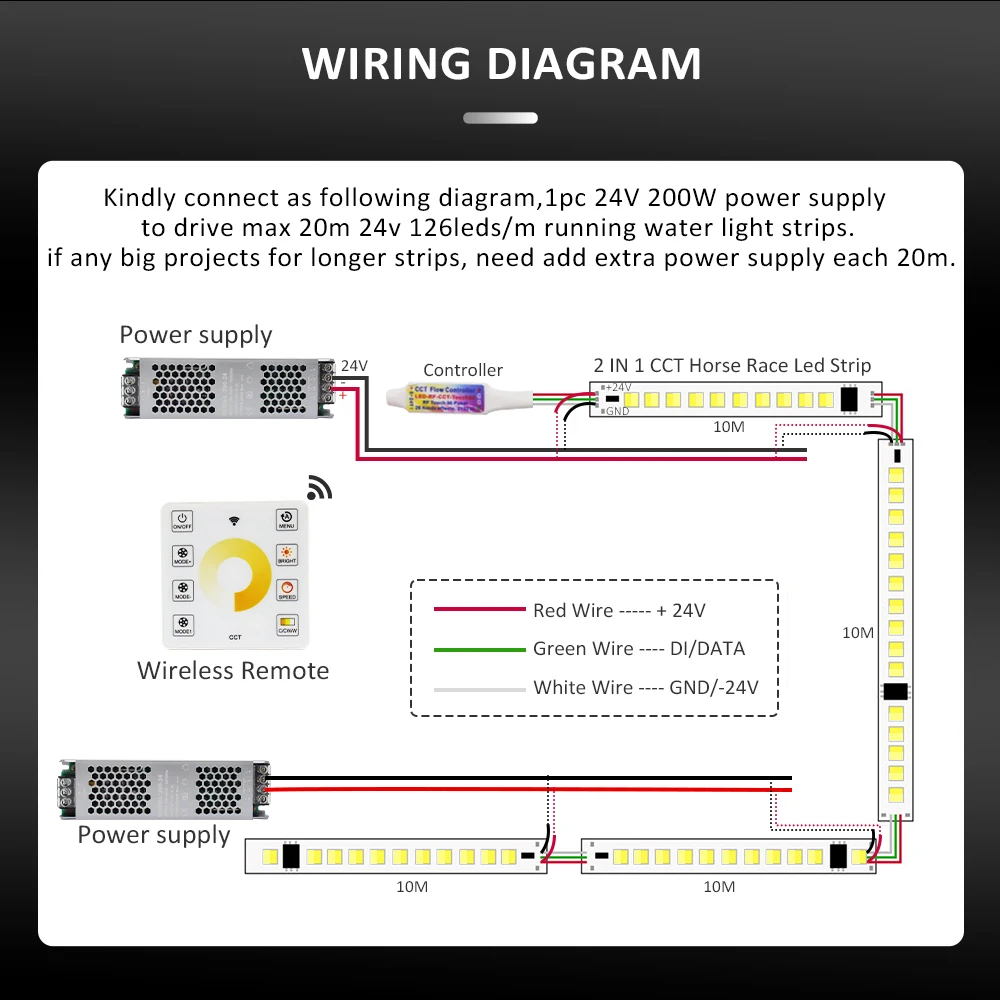

Connection:

Red Wire: +24V
Green Wire:DI/DATA
White/Black wire: GND / -24V

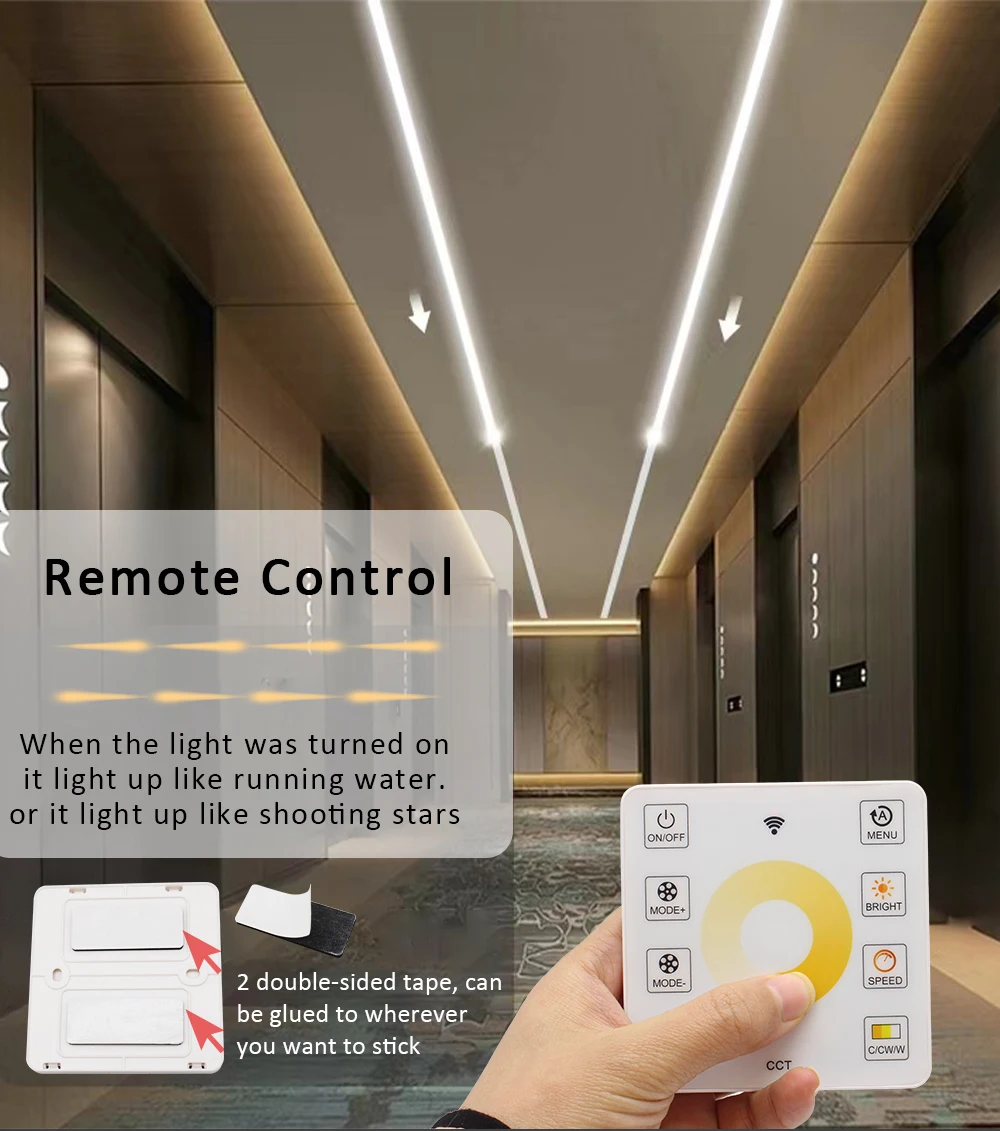

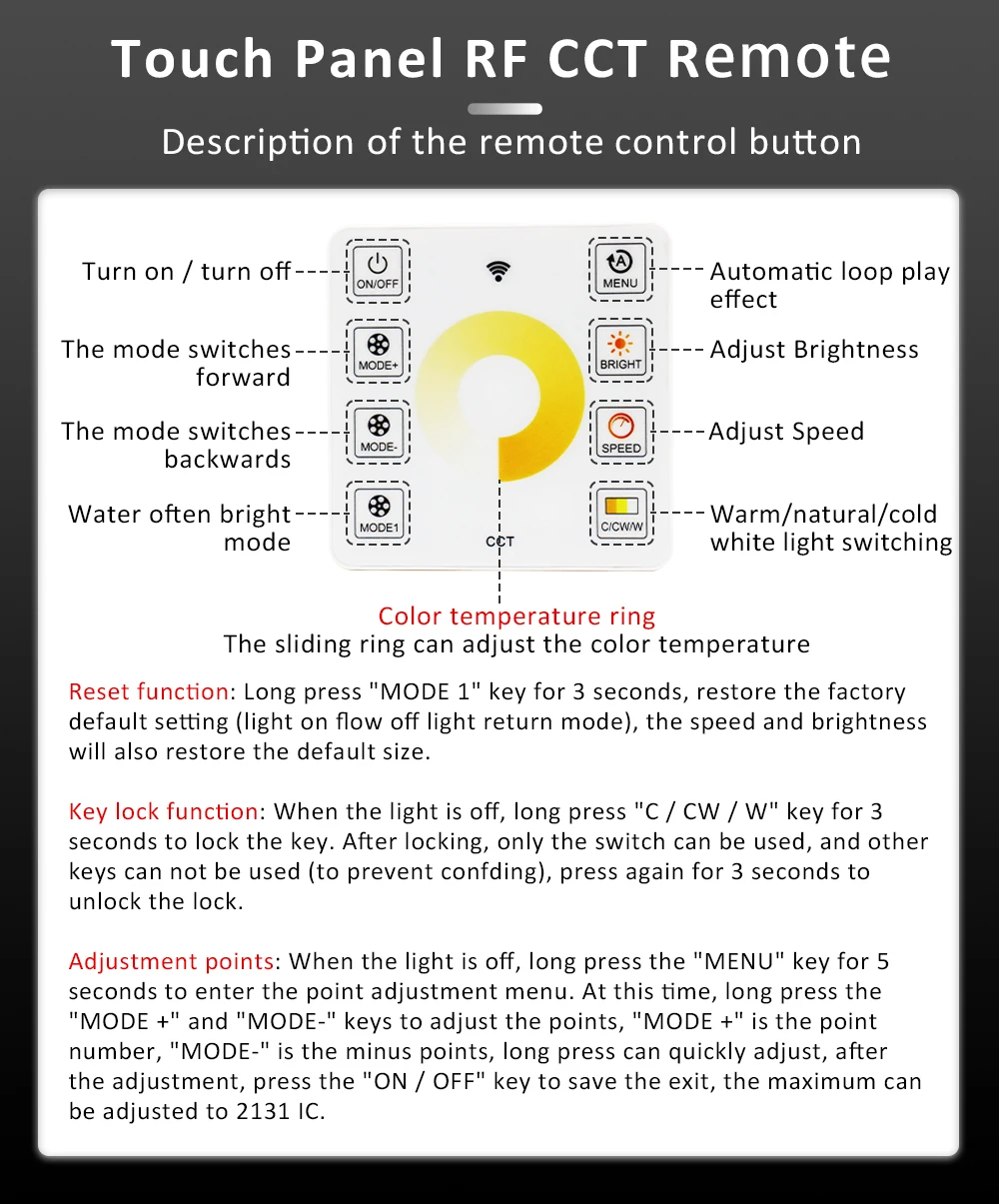

Touch Panel RF CCT Running Water Led Strip Controller:

Working Voltage: DC 5-24V
Control Distance: < 30m
Color Temperature Adjustable: 2700-6500K warm white to natural white to cool white.
Battery Type: CR2032 button cell ( Not included)
Modes: 26 Different modes built-in controller.
Max Pixel Control: 2132 Pixels each controller,one controller max control about 150m CCT running water flow light strips. if your projects is more than 150m, just add some amplifier.
Installation: With 2pcs double-side tape,anywhere to stick.
Basic Touch Key: ON/OFF, Model Key, Brightness UP/Down,Speed UP/Down, Cool White/Natural White/Cool White changable.

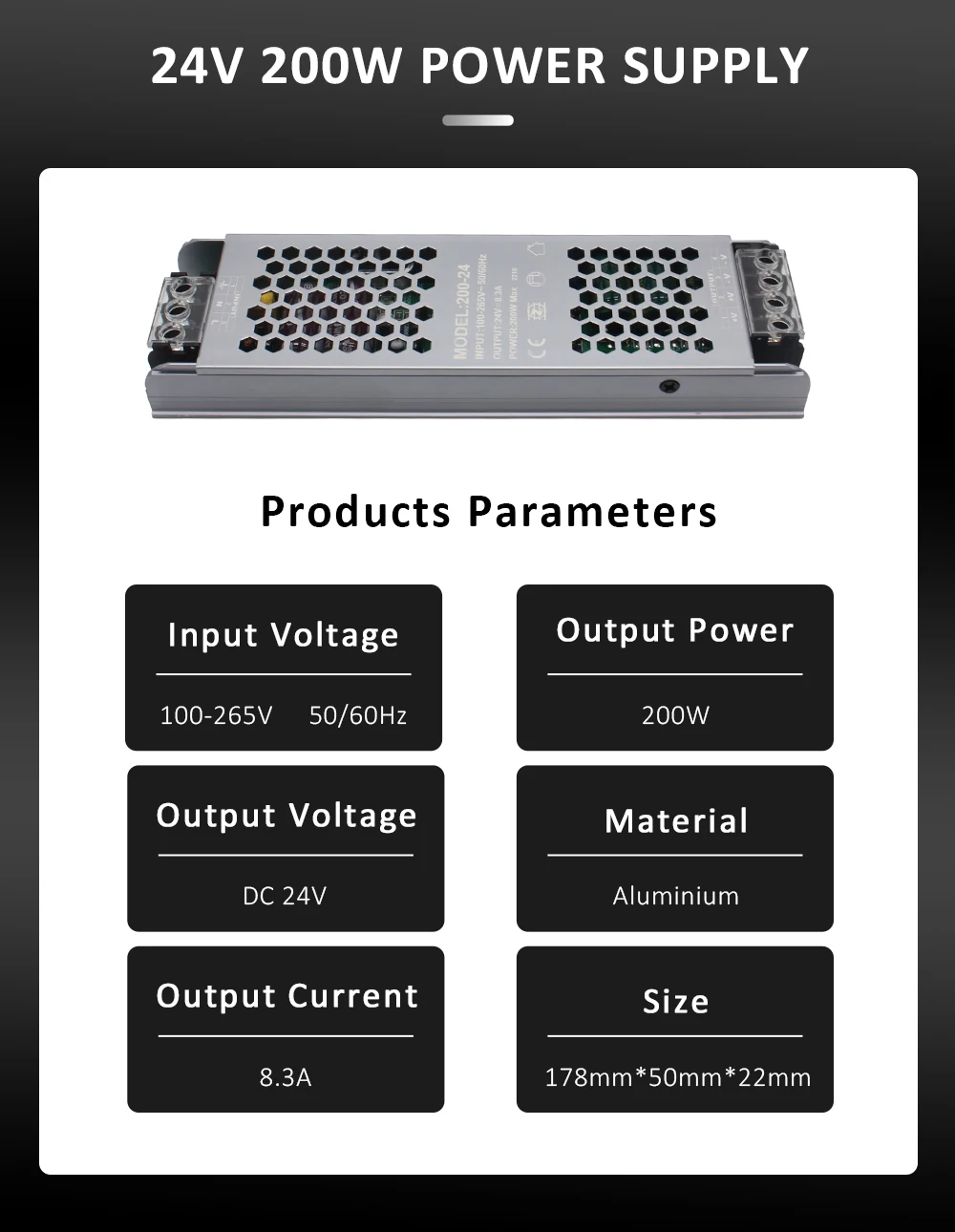

DC 24V Power Supply:

Input Voltage: 110V / 220V AC
Output Votage: 24V DC
Output Power: 200W
Features: No Noise, Real power output, long life-span.
Advise: 1pc 24V 200W power supply to drive max 20m 24v 126leds/m running water light strips. if any big projects for longer strips, need add extra power supply each 20m.
