36V 48V 60V 72V 2000W Brushless Motor Controller 45A 60A for Electric Bike/Trycycle/E-Scooter/Dual Mode Hall/ Hallless Sensor

36V-84V 2000W-3000W all can work brushless controller

Name: Intelligent dual-mode brushless controller

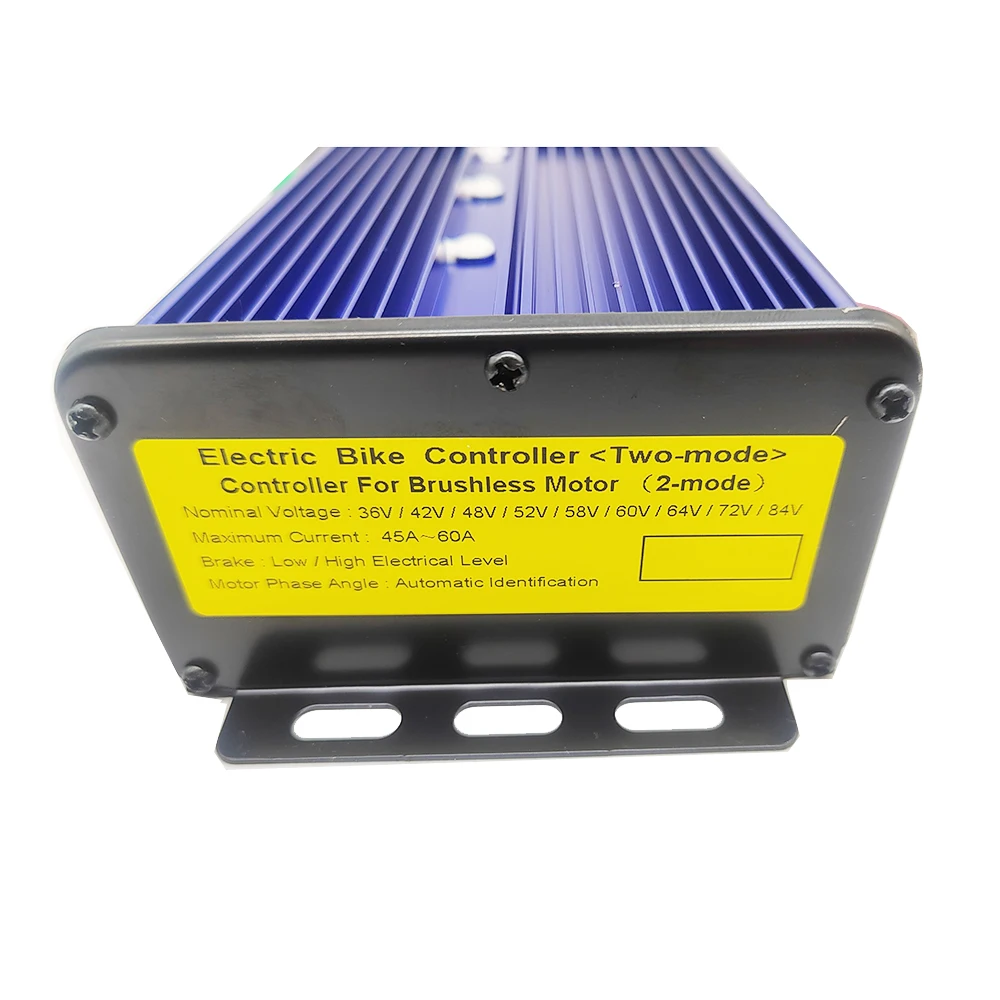

Rated Voltage: 36V-84V

Low Voltage : 32V

Rated Power: 2000W-3000W

Limit Current: 60A

Number of brushless controller tube：18

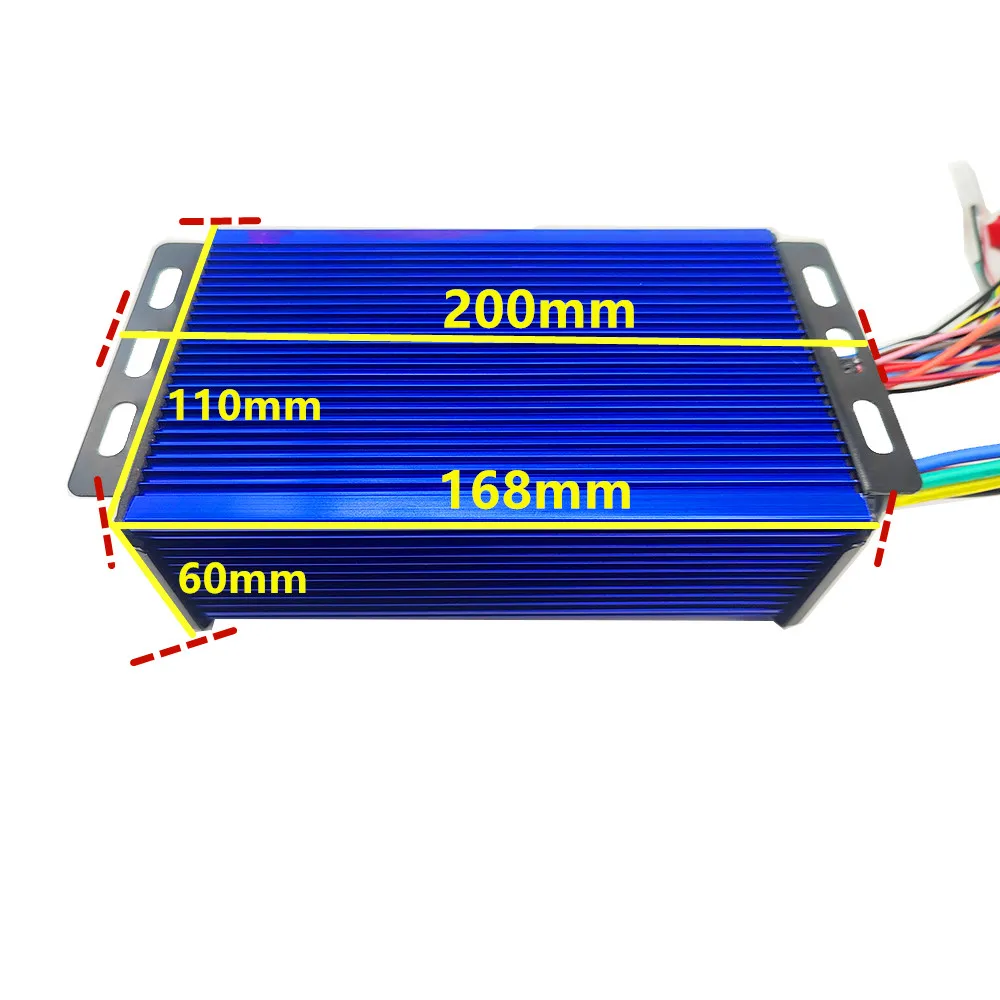

Weight：1000g

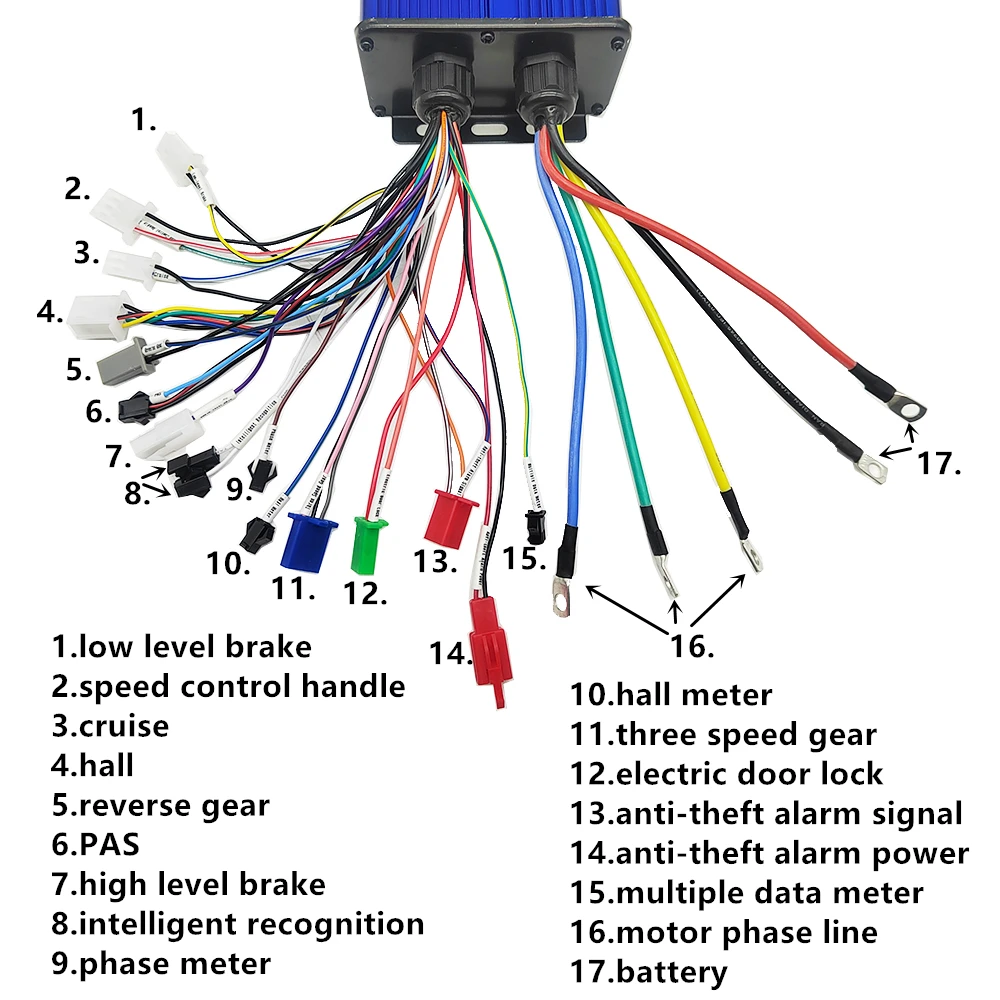

Brushless controller function：

1.low level brake

2.speed control handle（throttle）

3.cruise

4.hall

5.reverse gear

6.PAS

7.high level brake

8.intelligent recognition（self-learning）

9.phase meter

10.hall meter

11.three speed gear

12.electric door lock（must connect）

13.anti-theft alarm signal（is connect to alarm，if not have alarm，not need connect）

14.anti-theft alarm power（is connect to alarm，if not have alarm，not need connect）

15.multiple data meter

16.motor phase line

17.battery

How to connect controller？

1.connect the motor phase line(color to color）

2. connect the hall line,color to color connect.(if motor without hall line, don't need connect)

3. connect the battery line(red:battery+ , black:battery-)

4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.

(1.if wheel forward ,Separate the intelligent recognition line.

2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.)

This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.

5. connect the controller throttle to throttle and need color to color connect,

connect controller electric door lock to throttle electric door lock

（if throttle not have electric door lock,let controller electric door lock short,

so controller electric door must connect ）

NOTE:when use throttle control speed,two intelligent recognition line must separate.

6.other functions can be connected as needed.

The color of the controller is based on the received physical image, sometimes silver or blue. Please do not mind the color. However, the functions are the same.

48-64V 2000W controller can work with hall connect sensor or not connect hall sensor

Rated Voltage: 48V-64V

Low Voltage : 42V±0.5V

Rated Power: 2000W

Limit Current:45A

1.self-learning

2.cruise line

3.reverse line

4.high brake

5.low brake

6.3-speed (low/middle/high)

7.throttle

8.electric lock

9.hall line

10.LCD instrument line

11.Anti-theft power supply

12.Anti-theft signal

13.battery (red battery+, black battery-)

14.motor

15.pointer meter line

1.connect the motor line (color to color，if motor without hall line, don't need connect hall line）

2. connect the battery line(red:battery + , black:battery-)

3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock

（if throttle not have electric lock,the electric lock 2 wires of the controller can be docked together）

4.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，

if wheel forward ,Separate the self-learning line.) Self-learning is to adapt to the supply voltage

5.other functions can be connected as needed.
