Dual Drive Controller with LCD Display 25A +25A in 1 Piece For Motor 36V 48V 60v 800W 1000W 1200w

Kindly please note,

a, this controller needs work with hall sensor, please don't buy it if there is no hall sensor wire from your motor.

b.24v motor or battery, it will not work.please don't buy it if motor and battery is 24v

C.  2 accelerator method.  Accelerator from lcd display or add new accelerator on controller with standby accelerator.

When you add extra accelerator, the accelerator on lcd dsiplay will not work.

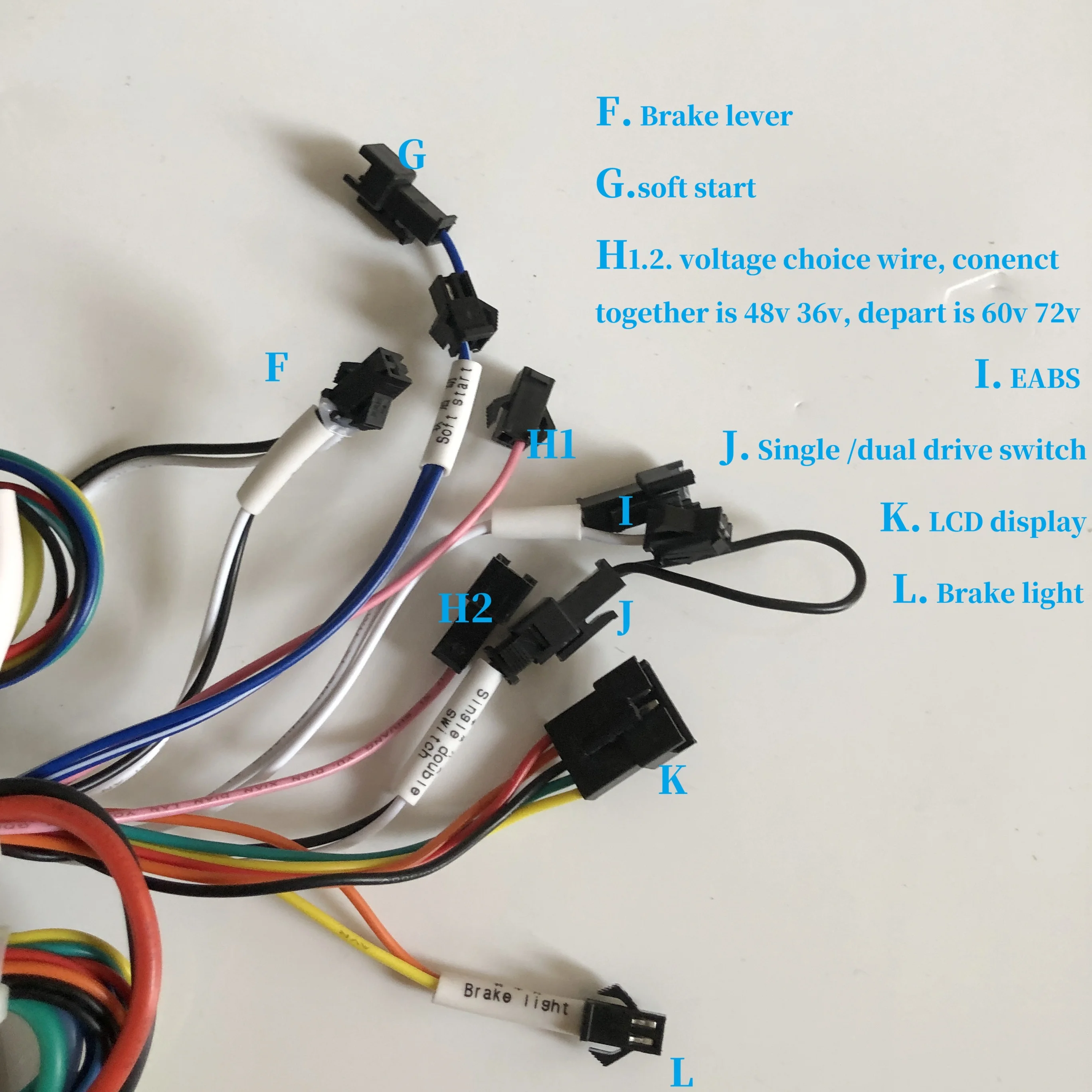

wire of controller

What's included in the package?

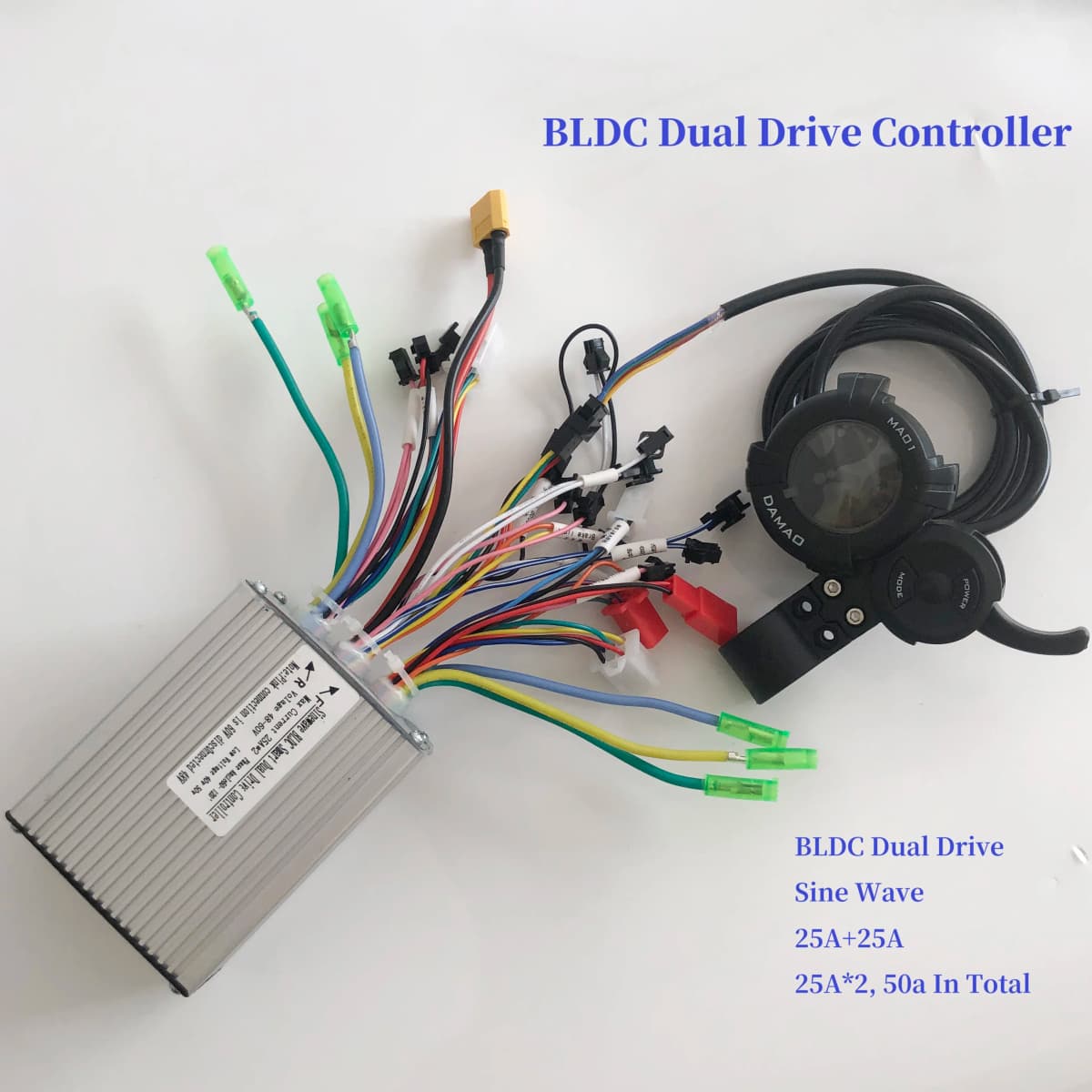

1 piece 36v 48v 60v dual drive controller+lcd display

2 pcs 3 wire mount box

Technical data of the hub motor,

Voltage: 36v 48v 60v

Low Voltage, 28v /40v

Suitable for motor power 500w-1200w （the controller will not work if battery voltage is 24v, please don't choose this controller if the motor power smaller to 500w）

Max current 25A for single side motor

Angle 120 degree

controller size, 80*110*50mm, wire length 120-150mm

Function of the controller

Single/dual drive choice

Auto-learn wire

Soft/hard start

Standard by accelerator

Accelerator Lcd display

LCD DISPLAY SETTING

Wire from LCD display

Red (vcc)      Lcd display power wire

Blue(K)        Controller power wire

BLack(GND)    LCD display GND wire

Green (RX)     LCD display data receiving wire

Yellow (TX)     LCD display data sending wire

LCD display data setting, Long press power key and mode key into setting page.

Power key for page change and mode key for data change

P01 Lightness, 1 is dark and 3 is lightest

P02 Mileage km or mph

P03 Voltage setting 36v-72v

P04 Sleeping time, 0 is none and other data is 1-60 minutes

P05 Assistant level 0-3

P06 Wheel size inch in 0.1inch

P07 Magnet pcs

P08 Speed limited 0-100km/h, 100 means no speed limited

P09 Zero start or non-zero start

P10 Drive mode 1 electric drive

P11:PAS none

P12 Start hardness, from 0-5

P13 PAS setting (NONE, IT CAN’T BE REALIZED SINCE THERE IS NO PAS WIRE FORM CONTROLLER)

P14 Controller current Limited set

P15 Controller voltage short setting 48v is, 60v is ,72v is.

P16 None

P17 Cruise, 0 is no cruise, 1 is yes

P18 ABS brake hardness, 0-3, soft to hard (not work, this controller is low and high brake choice)

Error Code or Driving situation

0 Normal

1 Stay

2 Brake fault

3 None

4 6km/h

5 Cruise

6 Battery Voltage Short

7 Motor fault

8 Accelerator fault

9 Controller fault

10 Lcd display receiving fault

11 Lcd display sending fault

12 BMS communication fault

13 Front light fault
