Customized 22mm Waterproof Metal Rotary Selector Switch 2 3 Pin 1NO1NC 2NO2NC 12V LED Stainless Steel Push Button Knob Switch

YIDI 22mm Waterproof Metal Rotary Selector Switch 2 3 Postion 1NO1NC 2NO2NC 12V Red Green LED Stainless Steel Push Button Latching Knob Switch

Attention:

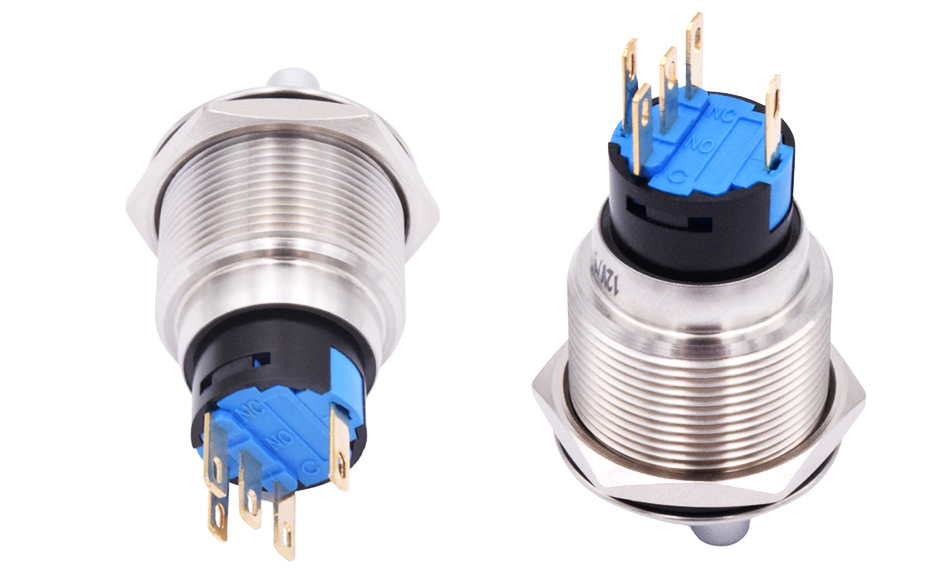

1. The number of switch pins depends on the switch function.
1NO1NC without LED - 3 pins
1NO1NC with LED - 5 pins
2NO2NC without LED - 6 pins
2NO2NC with LED - 8 pins

2. The harness is not included. If needed, please click the photo below to buy.

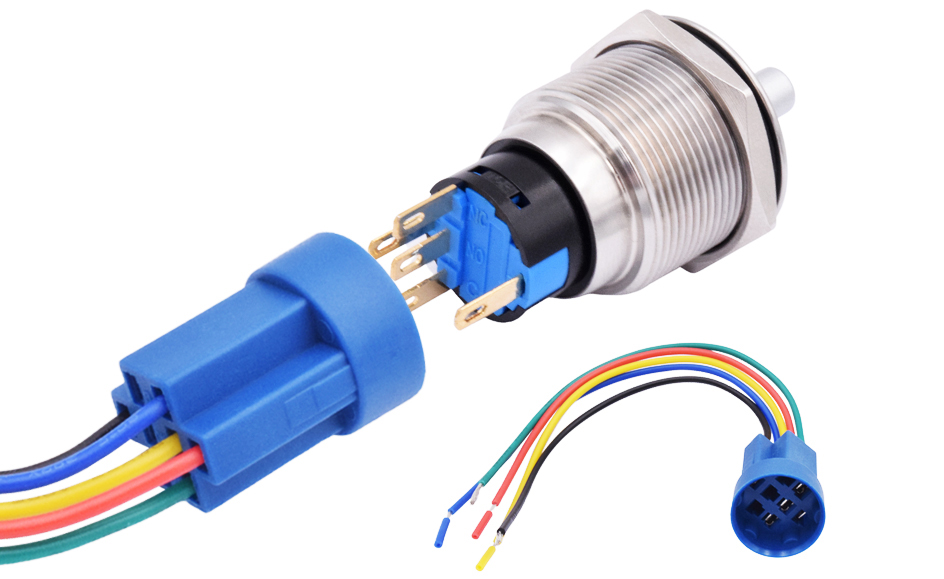

Mating Harness Connector

Specification:

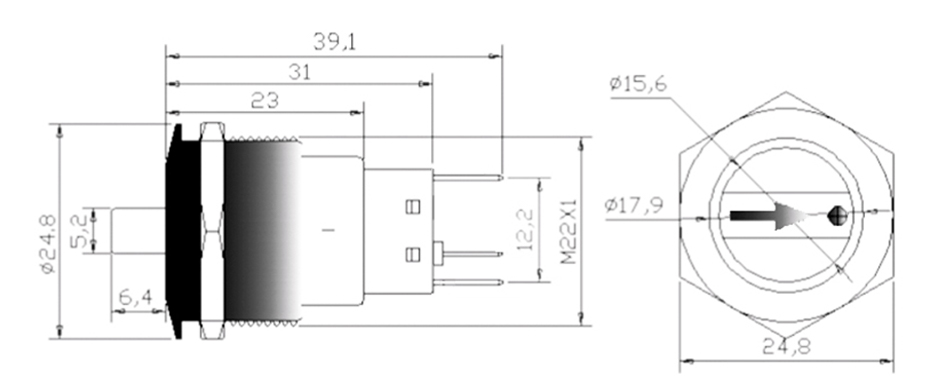

Mounting Hole Diameter: 22mm
Material: Stainless Steel, Plastic
Position: 2 or 3 position
Switch Combination: 1NO1NC / 2NO2NC
Switch Function: Latching
Rating: 3A/250VAC

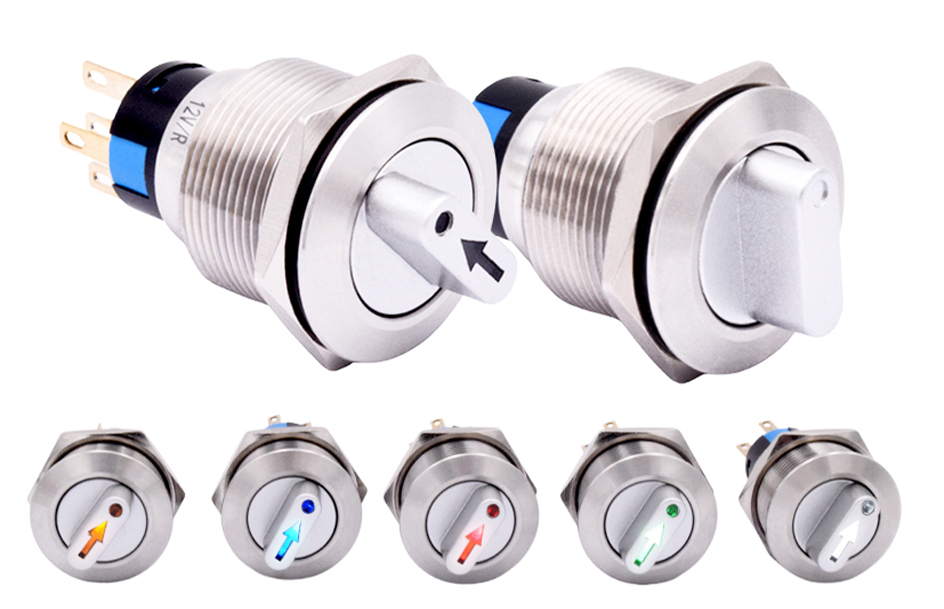

LED Color: No LED/ Red / Green / Blue / Yellow / White
LED Voltage: 3-6V/12V-24V/110V-220V (if need other voltage, contact us or leave message when place order)

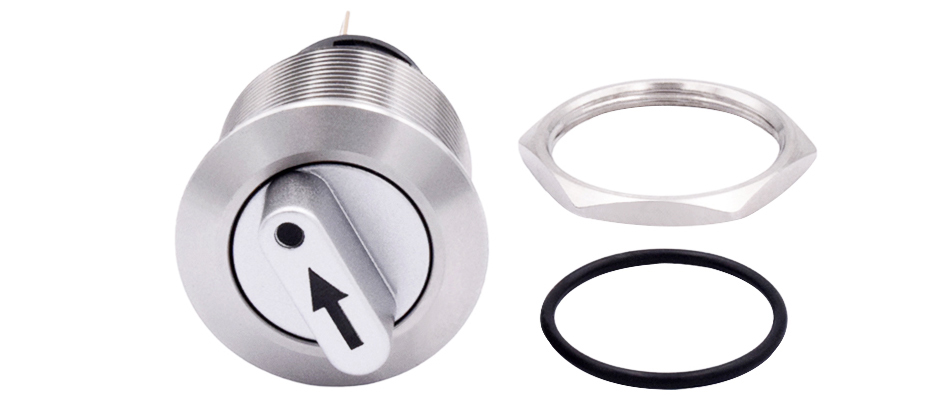

Packing: 1 switch + 1 o ring + 1 nut
