Ecowitt WS69 7-in-1 Wireless Solar Powered Outdoor Weather Sensor for Home Garden Farm, Sensor Only, Can't be Used Alone

Compatibility Table for Ecowitt Products

Ecowitt WS69 7-in-1 Wireless Solar Powered Outdoor Weather Sensor for Home Garden Farm, Sensor Only, Can't be Used Alone

7-in-1 Wireless Outdoor Sensor:

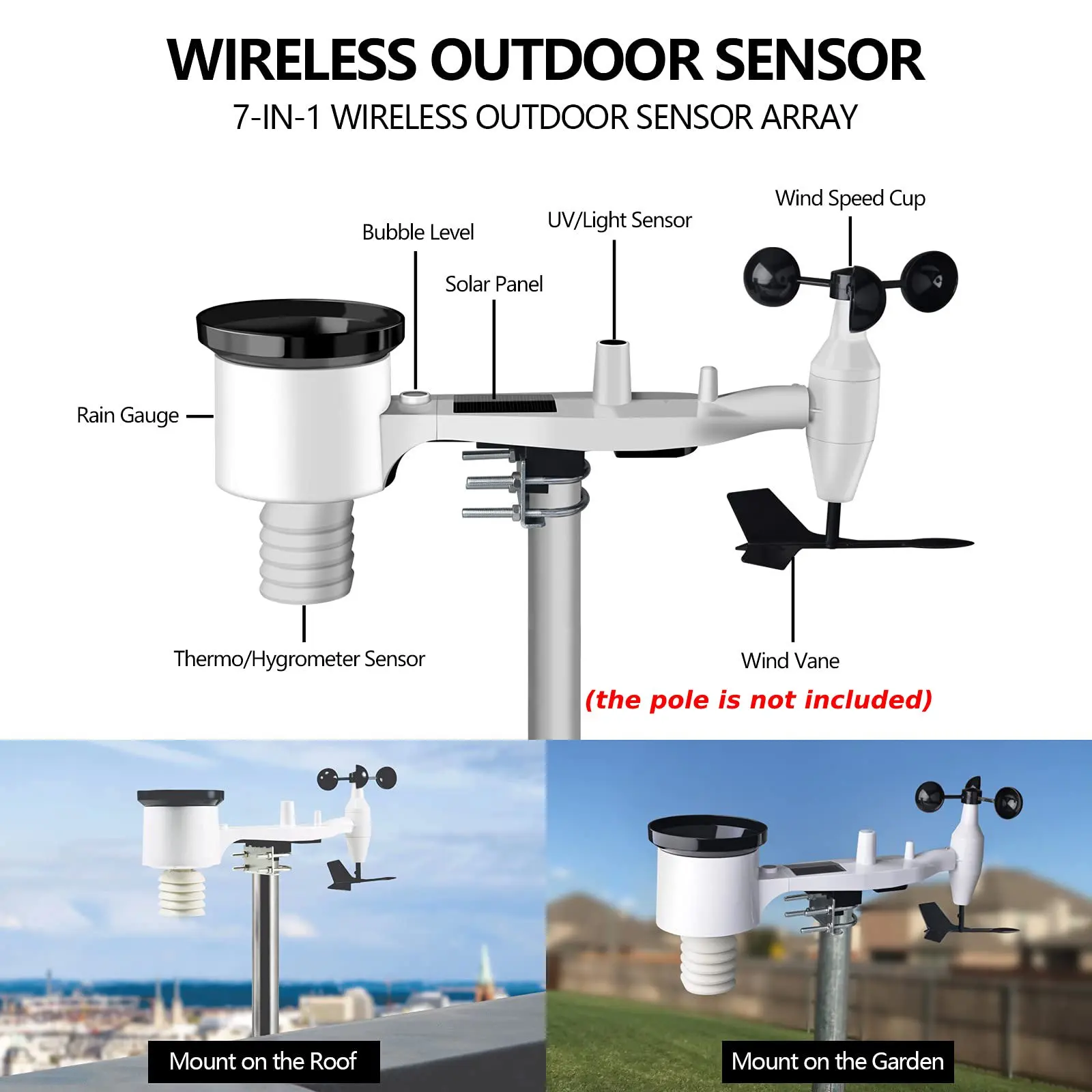

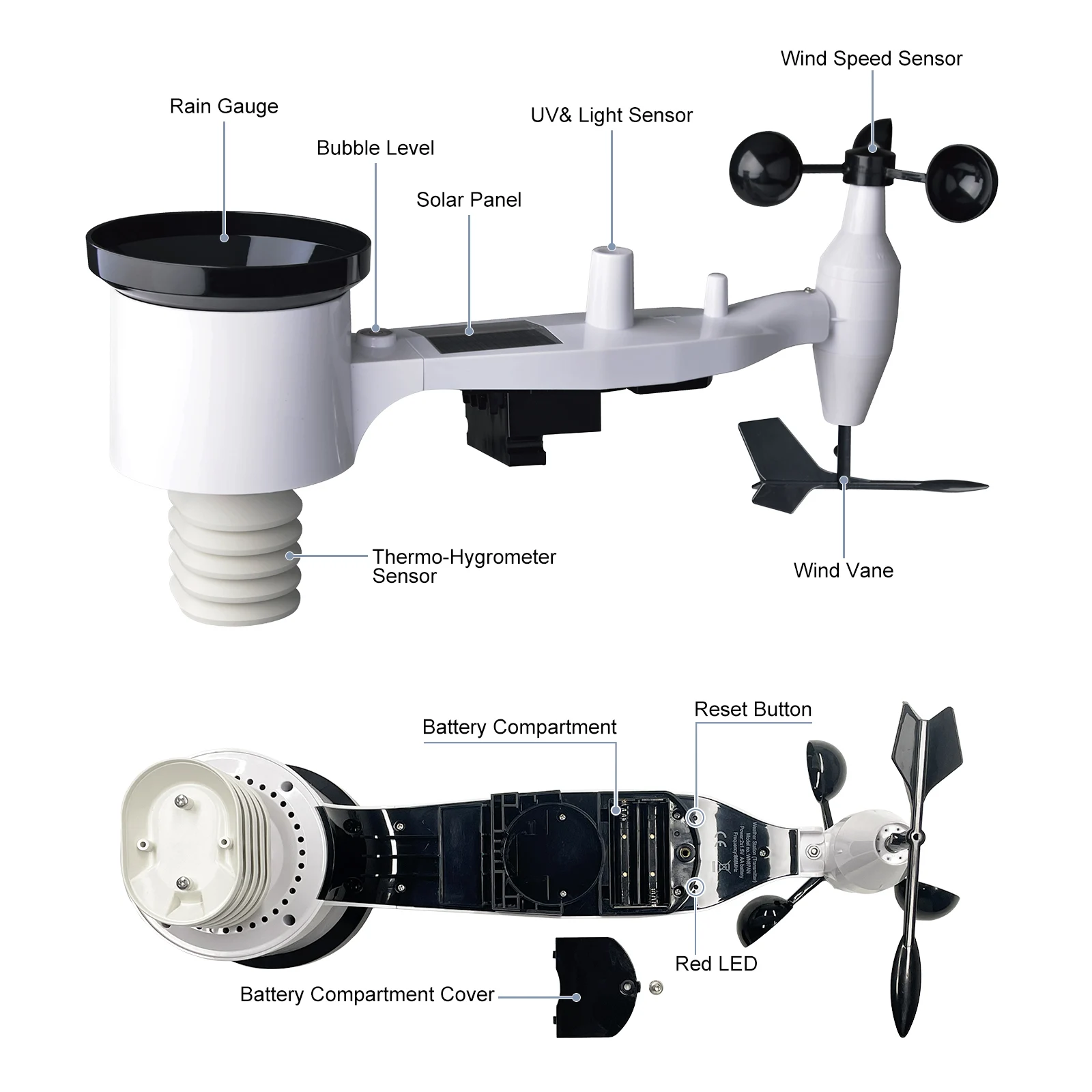

WS69 weather station equips with Thermo-hygrometer / Rain Gauge / Wind Speed Sensor/ Wind Direction Sensor / Light and UV sensor / Solar panel. Comparing with WN67 weather sensor, WS69 not only can be powered by 2 pcs AA batteries(NOT included), but also can be powered by solar energy. Easy to mount. Wireless transmission distance is up to 100m/33ft. Sensor reporting interval is 16 seconds.

Compatible with Ecowitt Gateway/Display Consoles:

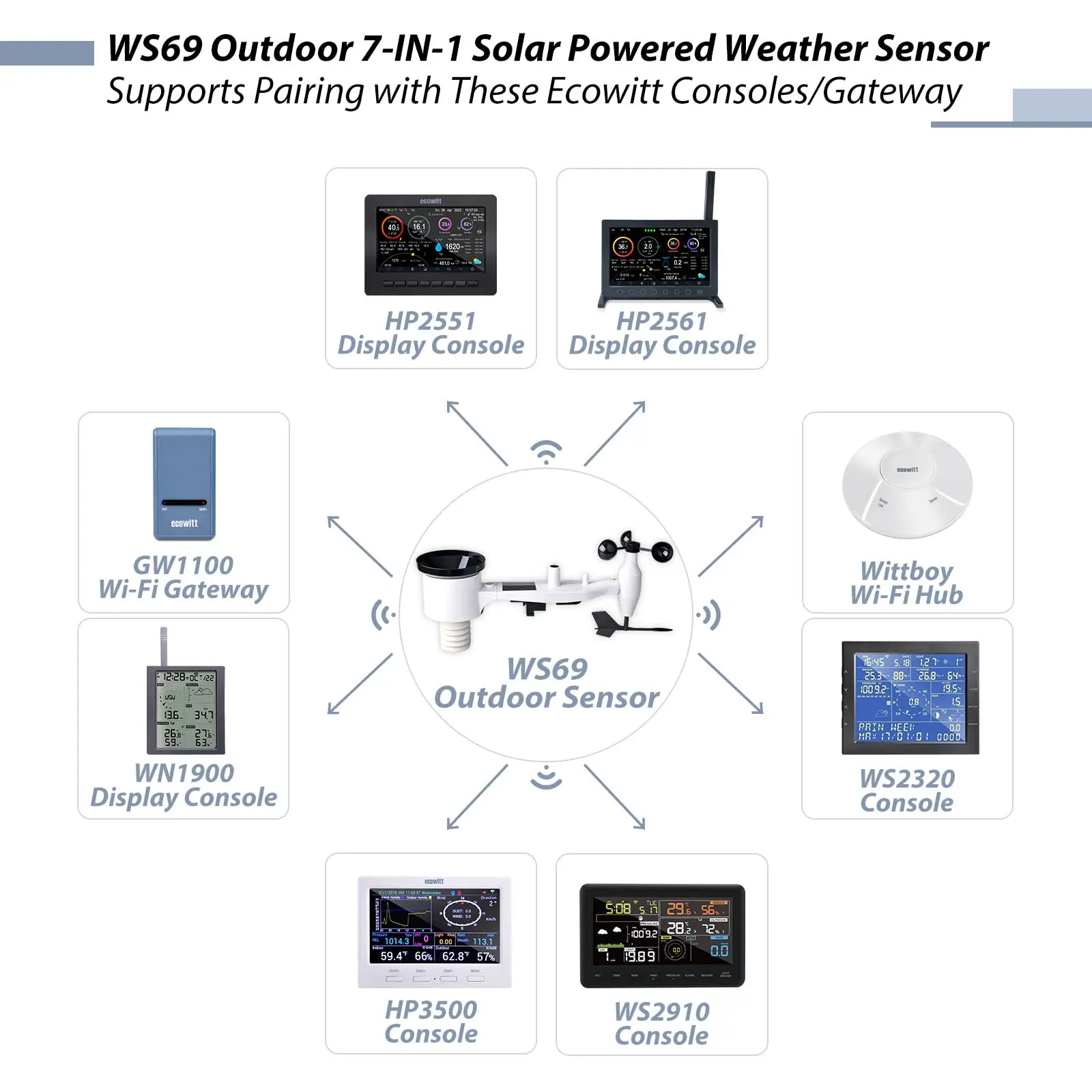

Works with GW1100/Wittboy Wi-Fi gateway and WS2910 / HP2551 / HP3500 / WS2320 / HP2561 / HP3501 weather station display console(sold separately). The outdoor sensor and display console should be at the same frequency.

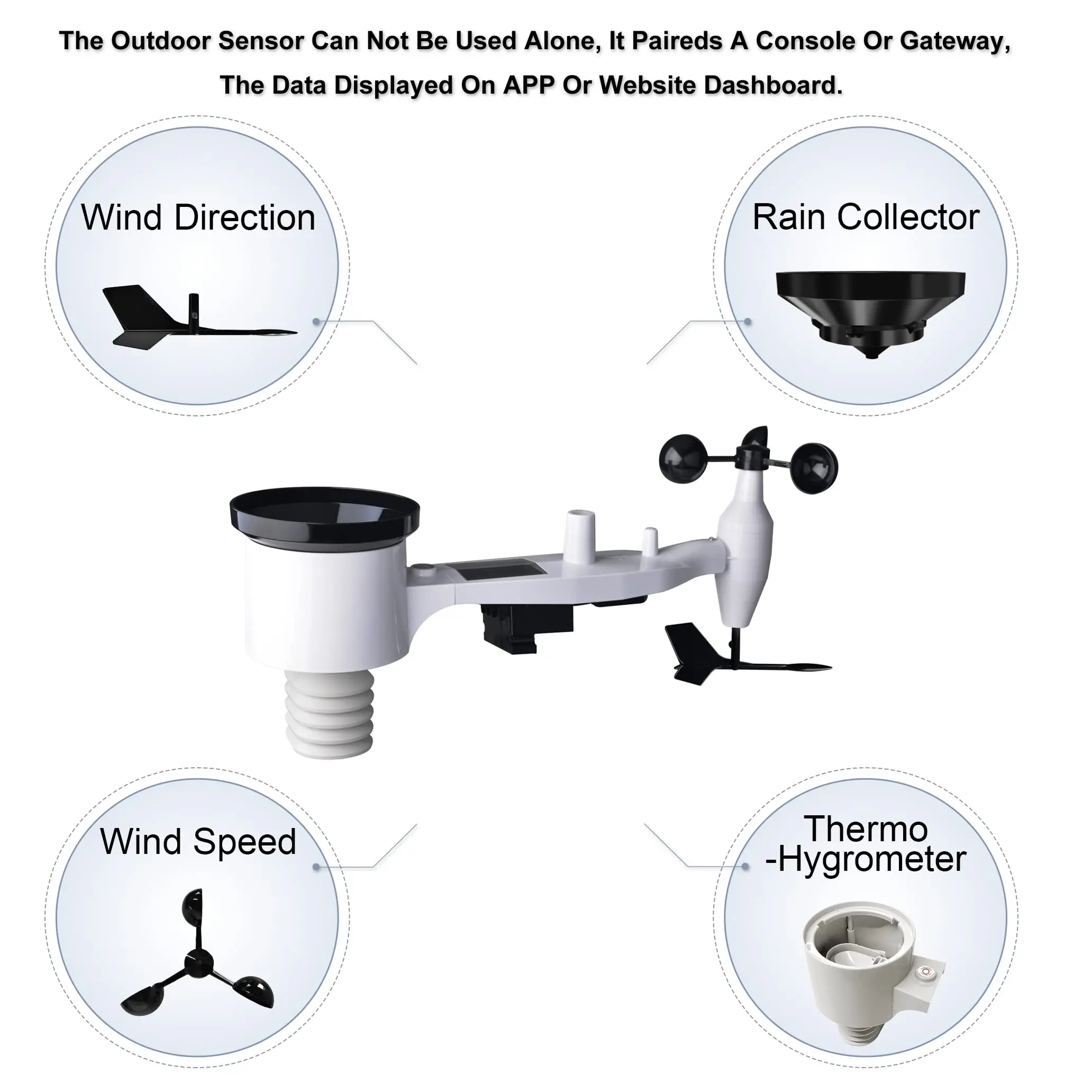

Just A Sensor, Can Not Be Used Alone:

No display, need to work with the WIFI gateway to complete the WIFI configuration on our WS View Plus/ Ecowitt App. After the WIFI configuration, the live weather data can be viewed directly on the WS View Plus/ Ecowitt App.

Support Uploading to Internet:

You can view the data on ecowitt free WS View Plus or Ecowitt APP aftert Wi-Fi configuration. Supports uploads to WU/Weather Cloud/WOW. The history graph of your WU station ID can be viewed on the WU Dashboard on the WS View Plus/ Ecowitt App.

Specifications

Wind speed Range: 0m/s to 50m/s
Wind speed Accuracy: ±1 m/s (speed < 10 m/s);
± 10% (speed ≥ 10 m/s)
Wind speed Resolution: 0.1m/s

Wind direction Range: 0° to 359°
Wind direction Accuracy: ± 15°
Wind direction Resolution: 1°

Temperature Range: -40°C to 60°C
Temperature Accuracy: ±0.3°C (± 0.6°F)
Temperature Resolution: 0.1°C (± 0.1°F)

Humidity Range: 1% to 99%
Humidity Accuracy: ±3.5%
Humidity Resolution: 0.01

Light Range: 0Klux to 200Klux
Light Accuracy: ±25%
Light Resolution: 0.1Klux

UVI Range: 1~15
UVI Accuracy: ±2
UVI Resolution: 1

Rain Range: 0~9999
Rain Accuracy: ± 10%
Rain Resolution: 0.3 mm (for volume < 1000 mm);
1 mm (for volume ≥ 1000 mm

Package List

1* WS69 sensor
1* Wind speed cups (to be attached to outdoor sensor body)
1* Wind vane (to be attached to outdoor sensor body)
2* U-Bolts for mounting on a pole
4* Threaded nuts for U-Bolts (M5 size)
1* Metal mounting plate to be used with U-Bolts
1* Wrench for M5 bolts
