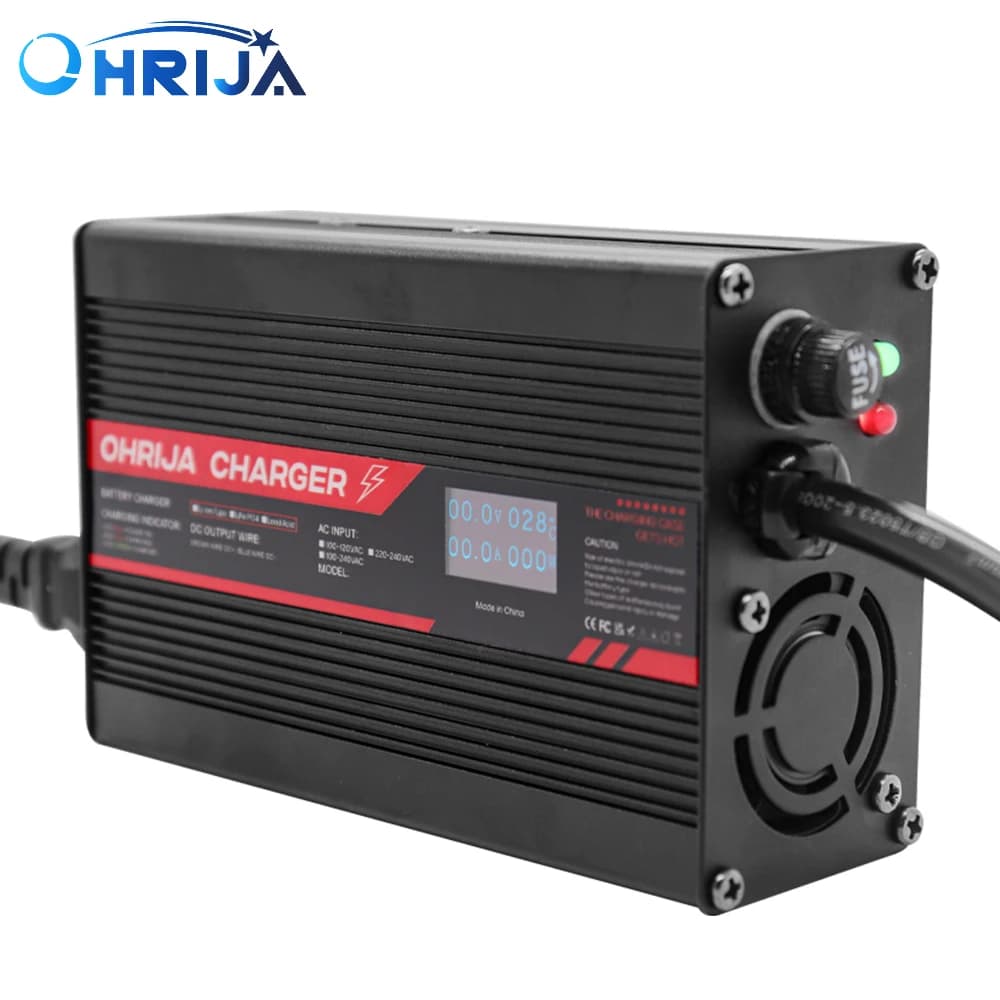

24V 10A Charger Smart Aluminum Case Is Suitable For 2S 24V LCD Dispay Lead Acid Battery OLED Display Fast Charger OHRIJA

The display screen will have a certain error of 10%, please do not buy if you mind

This charger is only suitable for lead-acid batteries and must not be used on other lithium iron phosphate batteries

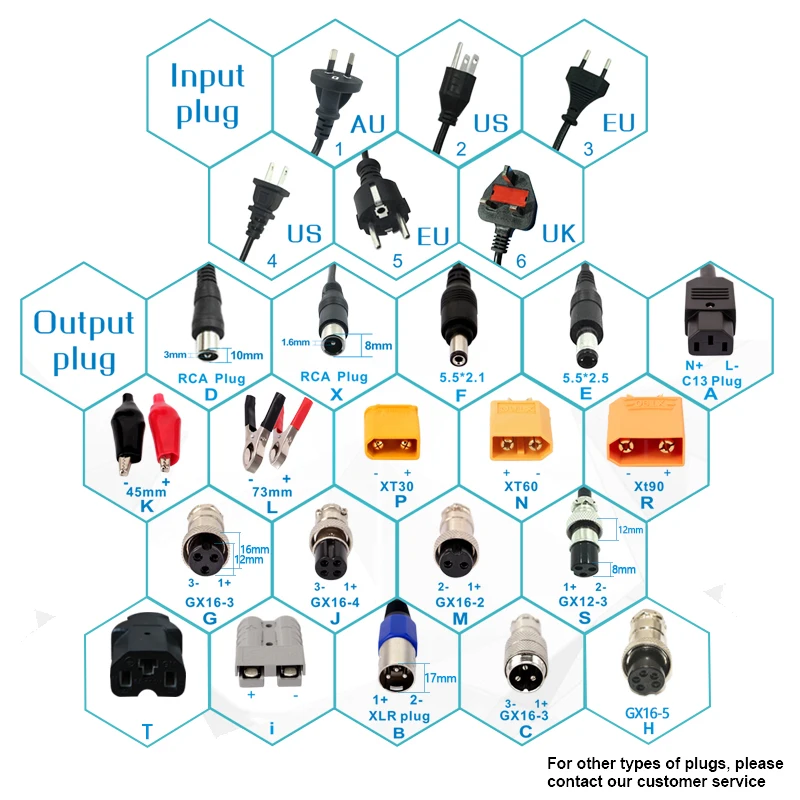

Please select the connector and input plug that match the battery

Model: HRH300

Applicable battery type: Lead Acid battery

Size/Net Weight: 135*90*50/ 0.8KG

Shell material: aluminum alloy

Input voltage: AC100-110V /200-264V, 50-60HZ

Output voltage and current: DC：24V（27.6V）

Output current: 10A

Charging method: CC-CV-trickle/floating/maintenance charging

Cooling method: fan

Work efficiency: >85%

Maintenance charging current: Lithium battery 5-10%

Working environment temperature: -5℃~+45℃

Storage environment temperature: -40℃~+70℃

Performance characteristics: safety design, based on power safety specifications, with short circuit, overcharge, overvoltage, overtemperature, reverse polarity, surge protection, charging indication

Interface type: input and output interface can be customized

Appearance color: color, label can be customized

Package Contents: Charger*1, DC 1m Output Cable*1, Input Power Cable 1m*1, Instruction Manual*1

Scope of application: battery packs, power tools, electric vehicles, sightseeing cars, golf carts, robots, etc.

Compliant with standards: FC, CE, ROHS

The default color of the order is: the color of the first main picture, please note other colors

The noticeable sound of rushing air from the fan is a normal part of the cooling process on your rapid charger.

2.How warm do chargers get?

The battery chargers can reach 140o F. They may get warm in an enclosed area. The maximum recommended air temperature for charging batteries is 105o F. When the charger is hot, the output current will drop to protect the charger and thebattery

3. Will I damage my batteries if I leave the charger plugged in over long periods of non-use (like storage)?

No. chargers float the battery voltage in the “maintenance” stage (3rd stage). This will allow you to keep your battery charger plugged in for long periods of  time without “boiling the battery dry.”

4. Why do the LED’s on my charger stay illuminated for a period of time after unplugged from AC power?

This is normal and does not affect your batteries. It is simply a function of the precision  charging, ensuring the charger is disconnected prior to terminating the charge cycle.

1.How loud should the charger be?
