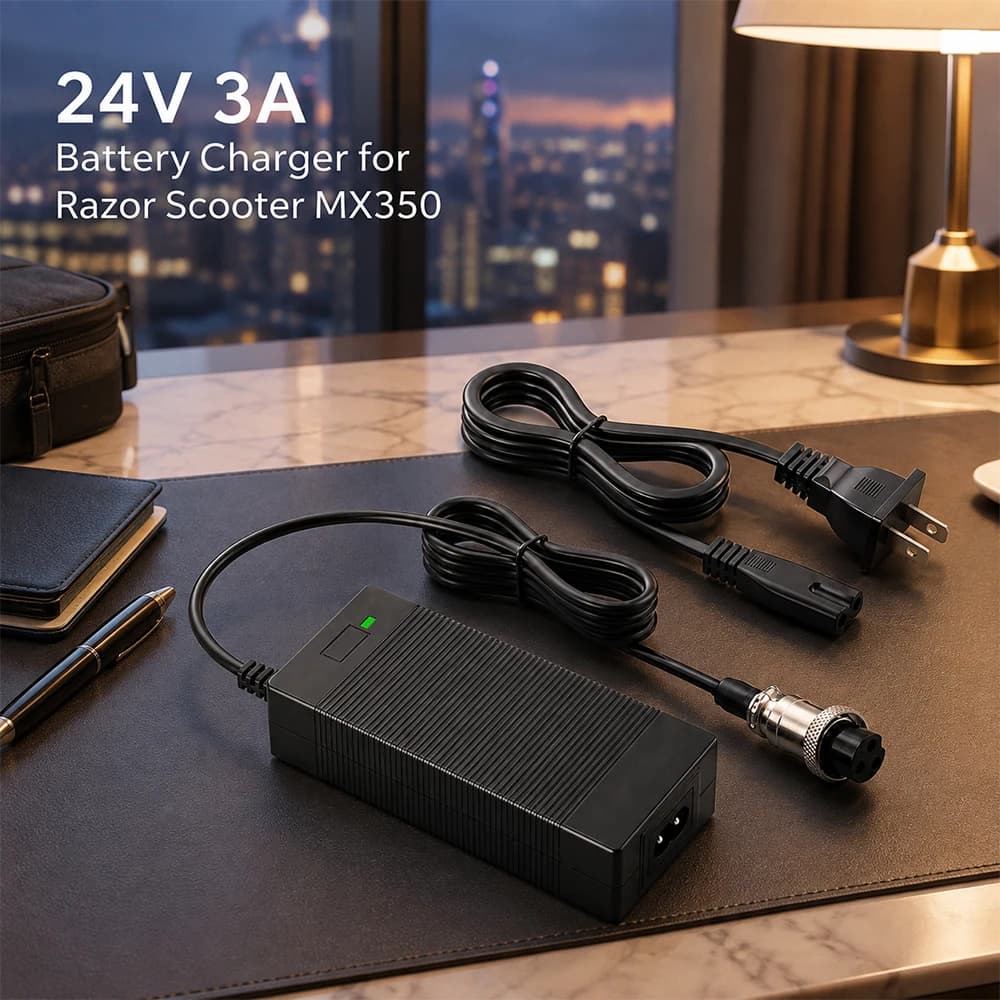

24V Battery Charger for Razor E100 E200 E300 E125 E150 E500 E175 PR200, E225S E325S MX350, Pocket Mod, Sports Mod, and Dirt Quad

# 24V 3A Battery Charger for Razor MX350 MX400 E100 E125 E150 E175 E200 E300 E500 Pocket Mod Dirt Quad Crazy Cart 3-Pin Plug Cable

## Product Overview

This 24V 3A battery charger is designed for compatible Razor electric scooters, dirt bikes, Pocket Mod scooters, go-karts, electric ATVs and other rechargeable vehicles.

It features a stable 72W output, intelligent charging control, multiple safety protections and a clear red/green LED indicator.

---

## Main Specifications

* Input: AC 100–240V, 50/60Hz
* Output: DC 24V 3A
* Maximum Power: 72W
* Connector: M16/GX16-style 3-pin aviation plug
* Connector Type: Female, 3 holes
* Connector Diameter: Approximately 12mm
* Pin 1: Positive (+)
* Pin 2: Not connected
* Pin 3: Negative (−)
* Indicator: Red charging / Green fully charged or standby
* Housing Color: Black

---

## M16/GX16 3-Pin Connector

The charger uses a round metal three-hole aviation connector.

### Connector Wiring

* Pin 1 = Positive (+)
* Pin 2 = Not connected
* Pin 3 = Negative (−)
* Diameter = Approximately 12mm

Please compare the connector shape, diameter, hole position, locating groove and polarity with your original charger before ordering.

Similar-looking connectors may use different wiring configurations.

---

## Product Features

### Stable 3A Charging

The 3A output provides efficient charging for compatible batteries and charging systems that support 3A charging.

It can charge faster than many standard 1A, 1.5A or 2A chargers.

### Universal AC Input

Supports AC 100–240V, 50/60Hz for use in many countries and regions.

### LED Charging Indicator

* Red light: Charging
* Green light: Fully charged, standby or no battery detected

### Intelligent Charging Control

The charger automatically manages the charging process and adjusts the current as the battery approaches full charge.

### Multiple Safety Protections

* Overvoltage protection
* Overcurrent protection
* Short-circuit protection
* Overload protection
* Overtemperature protection
* Automatic charging control

---

## Compatible Applications

Suitable for selected compatible:

* Electric scooters
* Electric dirt bikes
* Pocket bikes
* Pocket motorcycles
* Pocket Mod scooters
* Mini electric choppers
* Electric ATVs
* Electric four-wheelers
* Electric go-karts
* Electric dune buggies
* Crazy Carts
* Battery-powered ride-on vehicles

---

## Compatible Razor Models

### Electric Scooters

* E100 / E100S
* E125 / E150 / E175
* E200 / E200S
* E225 / E225S
* E235 / E275
* E300 / E300S
* E325 / E325S
* E500 / E500S
* Power Core E100
* Trikke E2
* eSpark

### Dirt Bikes and Pocket Bikes

* MX350 Dirt Rocket
* MX400 Dirt Rocket
* SX350
* ZR350
* RSF350
* PR200 Pocket Rocket
* Mini Chopper
* Rebellion Chopper

### Pocket Mod Series

* Bella
* Betty
* Bistro
* Daisy
* Kiki
* Sweet Pea
* Vapor
* iMod
* CC2420

### Go-Kart and ATV Series

* Dirt Quad
* Dune Buggy
* Ground Force Go-Kart
* Ground Force Drifter
* Crazy Cart

---

## Other Selected Brands

May also fit selected compatible models from:

* Boreem
* SunL
* X-Treme
* Rad2Go
* City Express
* Freedom
* Schwinn
* eZip
* iZIP
* Currie Technologies

Compatibility depends on the output voltage, charging current, connector size and pin polarity.

The same model may use different chargers depending on the production year and vehicle version.

---

## Compatibility Information

Before ordering, please confirm:

* Required output is DC 24V
* Battery supports 3A charging
* Connector is a female 3-hole aviation plug
* Connector diameter is approximately 12mm
* Pin 1 is positive
* Pin 2 is not connected
* Pin 3 is negative
* Connector groove and hole positions match

The voltage, current, connector and polarity must match your original charger.

---

## Charging Time Reference

Estimated charging time:

**Battery Capacity ÷ 3A × 1.1–1.2**

* 6Ah: About 2.2–2.4 hours
* 8Ah: About 2.9–3.2 hours
* 10Ah: About 3.7–4 hours
* 12Ah: About 4.4–4.8 hours
* 15Ah: About 5.5–6 hours
* 20Ah: About 7.3–8 hours

Actual charging time depends on the battery level, battery condition and charging system.

---

## How to Use

1. Switch off the vehicle.
2. Check that the charging port is clean and dry.
3. Align the connector groove correctly.
4. Connect the charger to the vehicle.
5. Connect the AC plug to the wall outlet.
6. Confirm that the LED turns red.
7. Wait until charging is complete.
8. Disconnect the AC power first.
9. Remove the connector carefully.

Do not pull the cable when disconnecting the charger.

---

## Safety Information

* Use indoors in a dry area.
* Keep away from water and moisture.
* Do not cover the charger during use.
* Keep away from flammable materials.
* Do not use damaged cables or connectors.
* Do not open or modify the charger.
* Place it on a hard and ventilated surface.
* Disconnect it after charging is complete.

Moderate warmth during charging is normal.

Stop using the charger if you notice excessive heat, smoke, unusual odor or abnormal noise.

---

## Package Includes

* 1 × 24V 3A Battery Charger
* 1 × AC Power Cable
* 1 × User Manual

The AC plug type may vary according to the selected option and destination country.
