24V 36V 48V 250W 350W S866 Waterproof LCD Display Screen Panel Electric Bicycle Scooter Brushless Motor Controller Universal Kit

Ebike Brushless Controller & S866 LCD Display Screen Kit

E-bike/Scooter Repair & Conversion Universal Kit

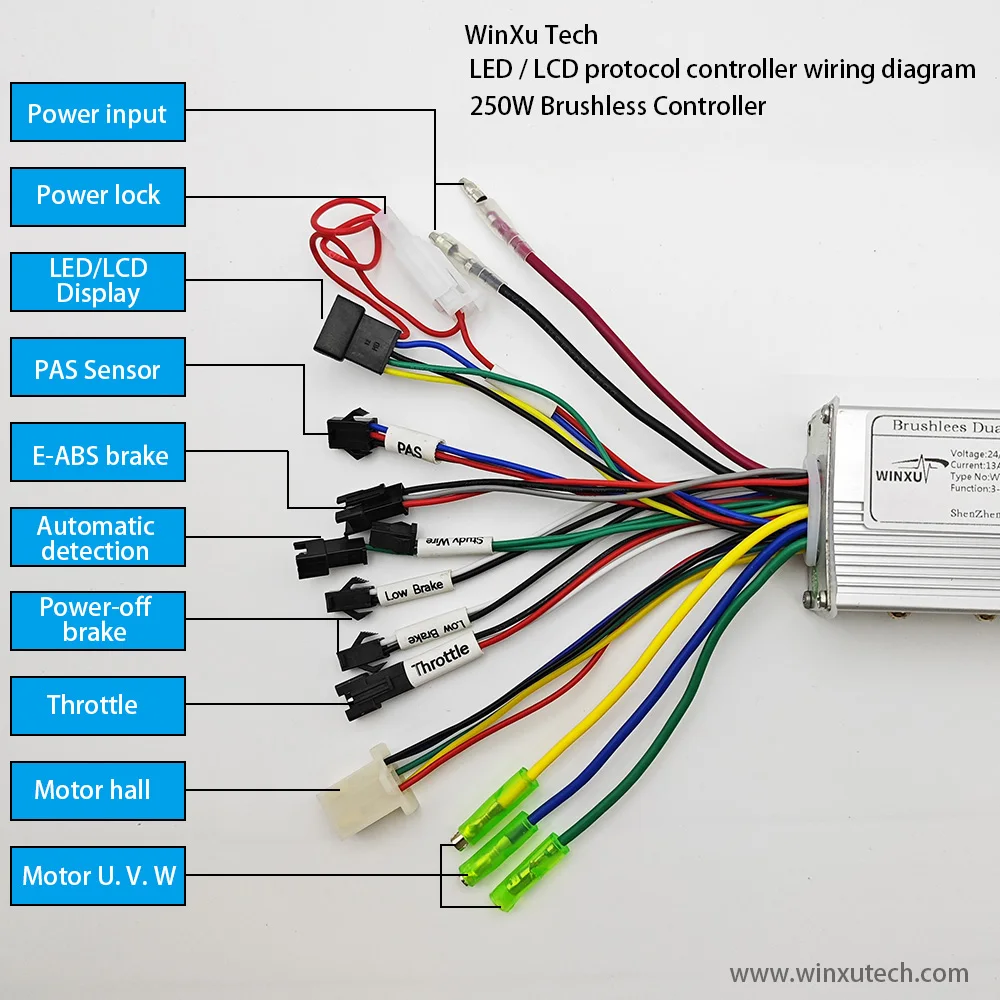

Controller wiring diagram

Features:

▶ This display adopts good quality materials, lightweight, rainproof, sturdy and durable.

▶ LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use.

▶ The controller is brushless type, working silently and sensitive to the state of electric bike.

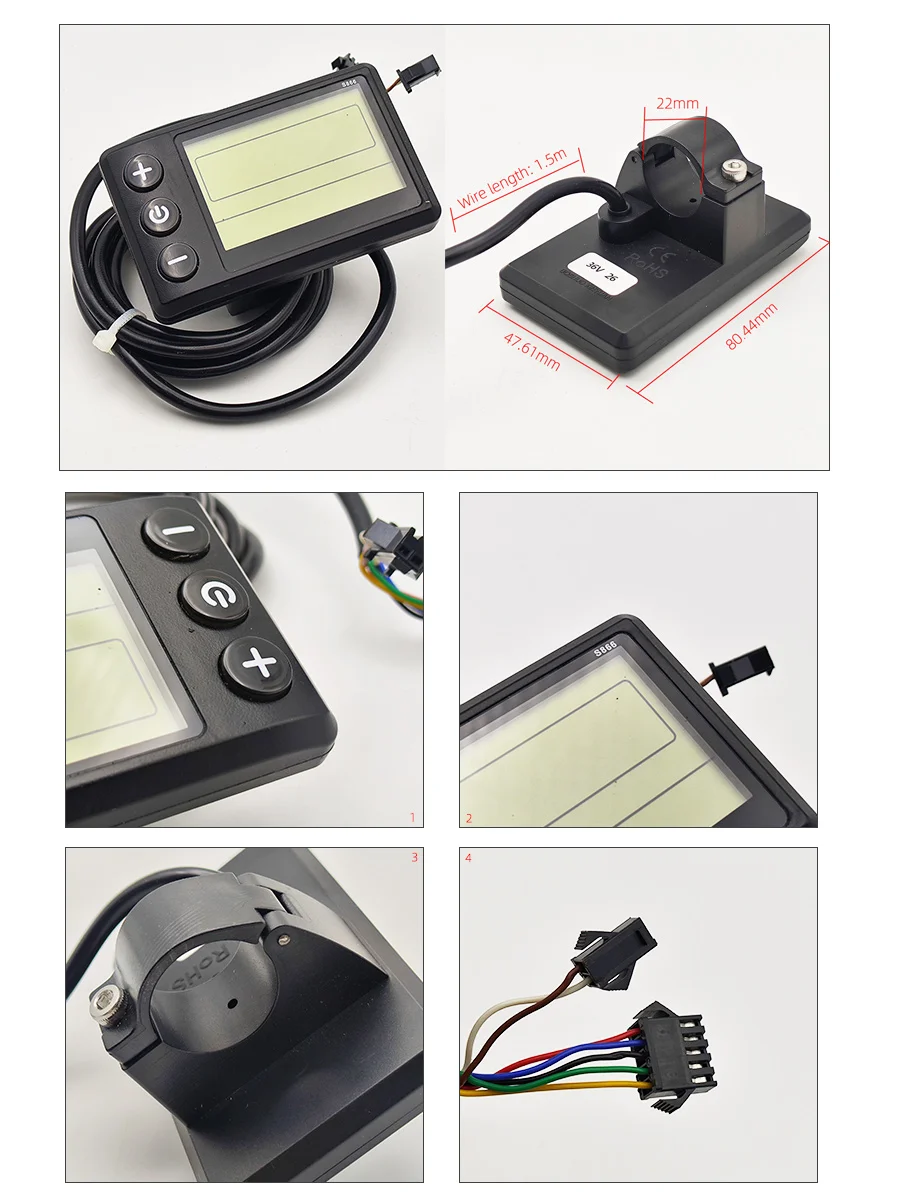

▶ Easy to install and use, comes with mount for LCD display and suitable for 22.5mm handlebar.

▶ Can set the power‑on password, control the lights, cruise and boost. The vehicle speed is divided into gears, the number of gear positions is 3/5/9 gears optional, and turn the handle can be selected to be divided into gears or not.

▶ Suitable for electric bicycles, scooters.

Specification:

Material: Plastic + LCD + Metal

Color: Shown as picture

Options: 1#24V-36V; 2# 36V-48V

Power: 250W/350W

Low-voltage Protection: 1# 24V-36V: 19V/30V; 2# 36V-48V: 30V-41V

Waterproof: Rainproof

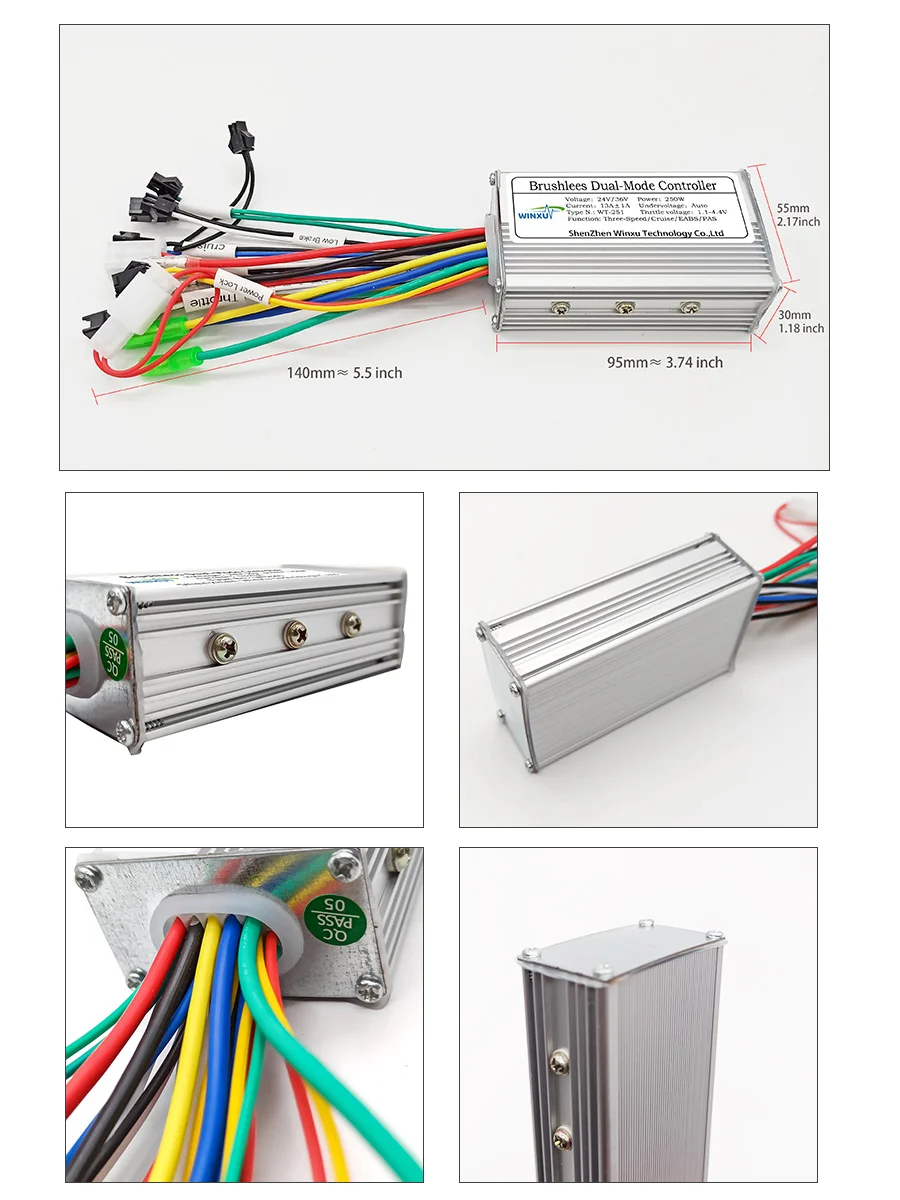

Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch

Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch

Weight: Approx. 332g

Package List:

1 x LCD Display

1 x Controller

Note:

Each cable is labeled with color for different uses.

Red: power positive electrode

Black: power negative electrode

Yellow: power output

Brown: lamp positive electrode

White: lamp negative electrode

Blue: indicator signal

Green: signal receive



Please note that the controller model will be sent randomly, and make sure you will not mind before ordering.

WinXu Tech Controller Detail Show
