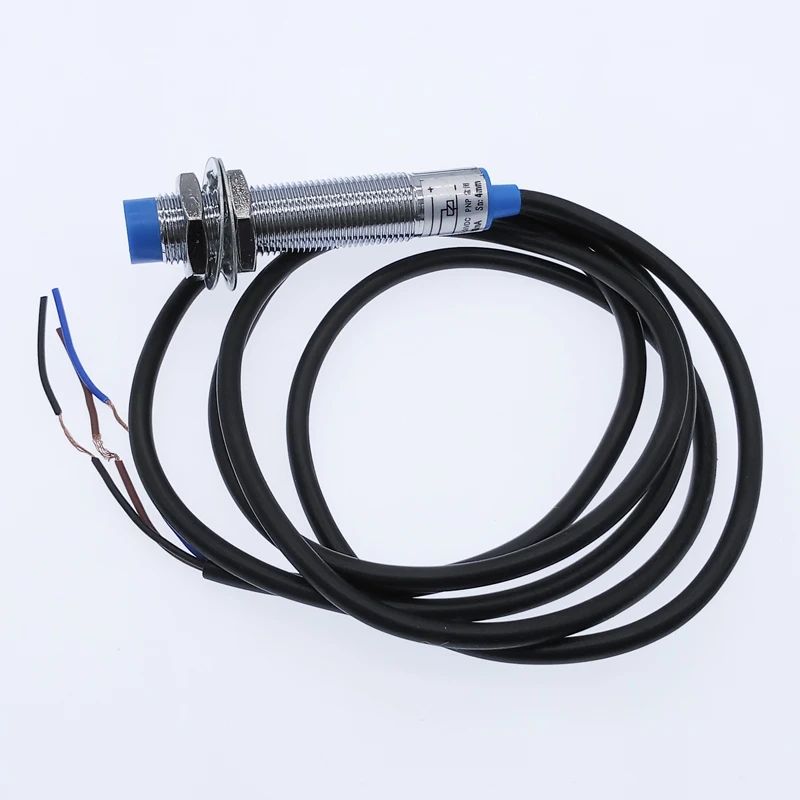

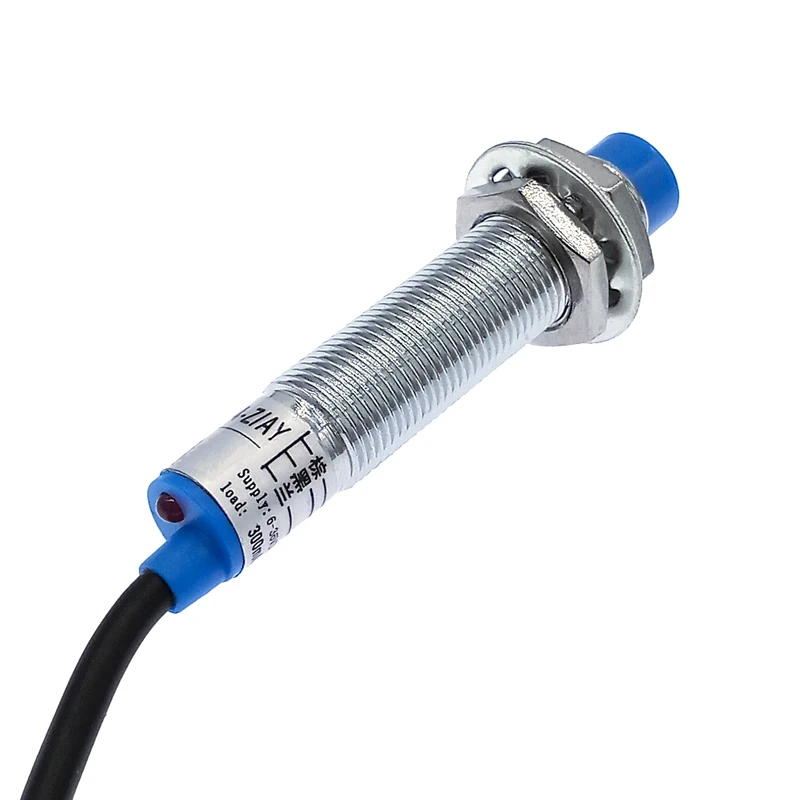

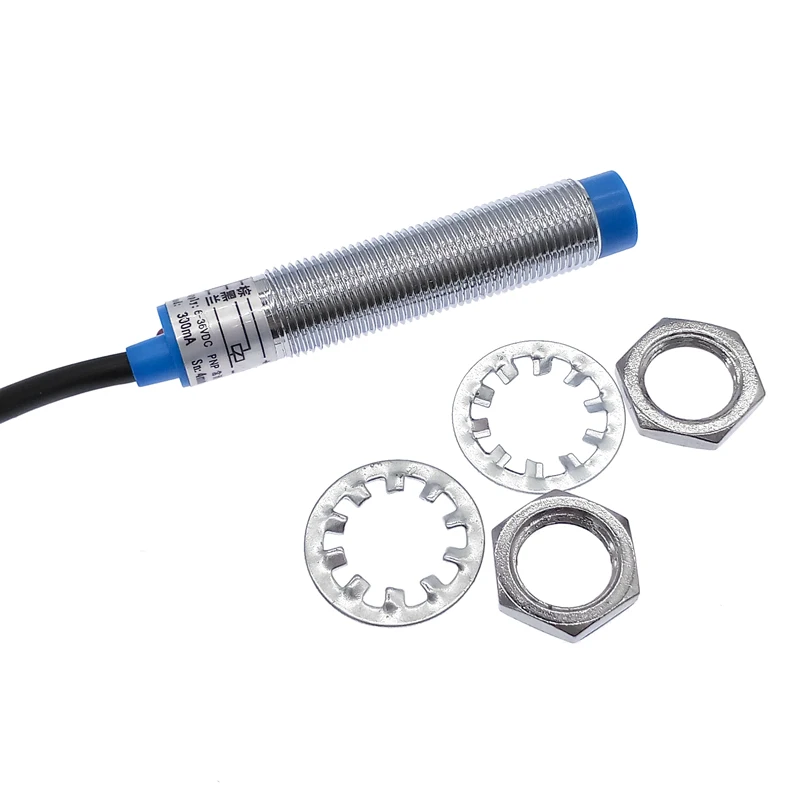

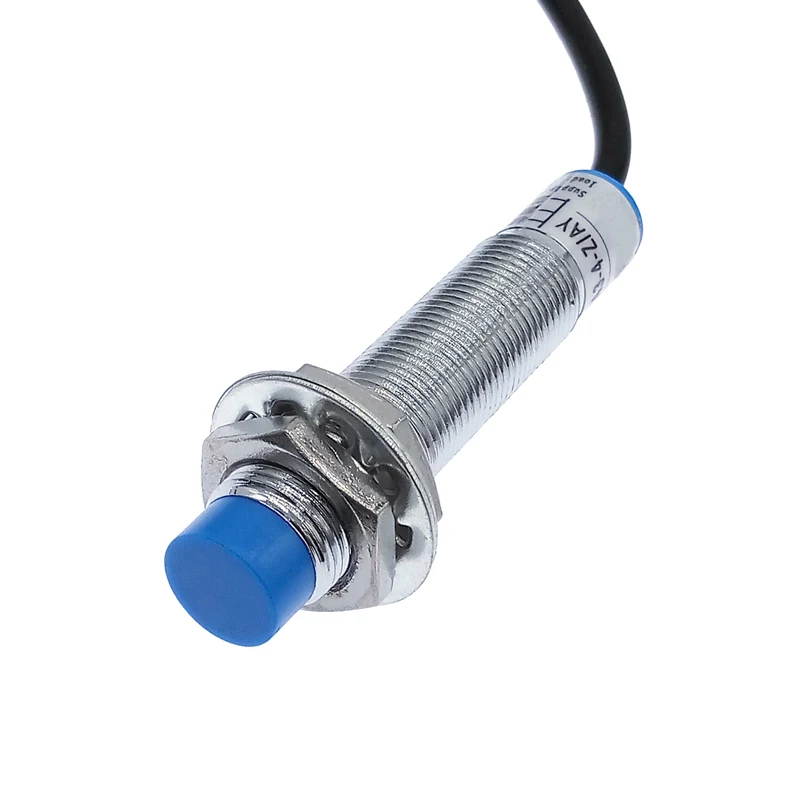

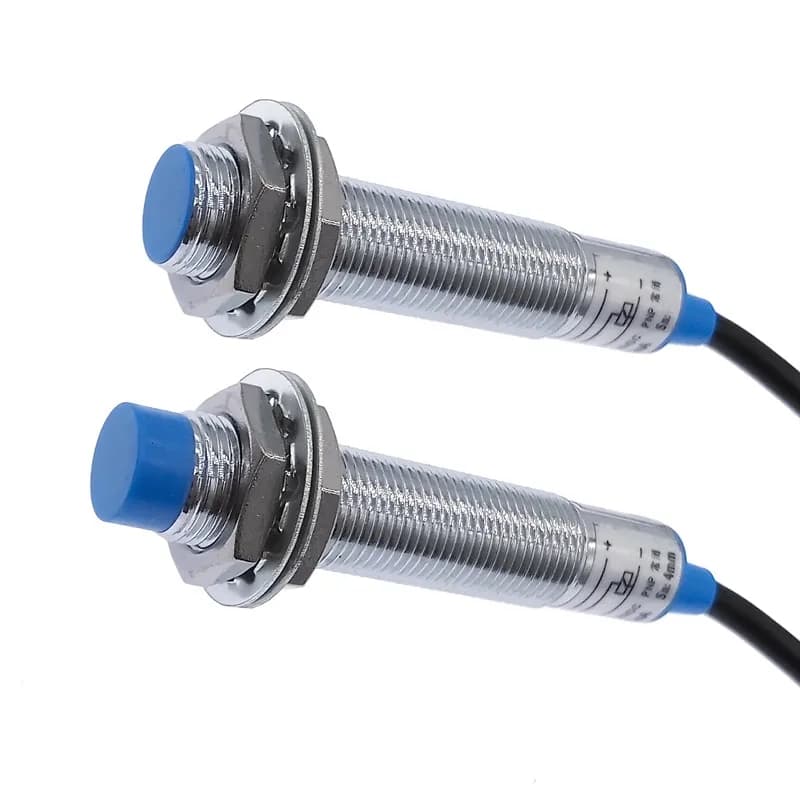

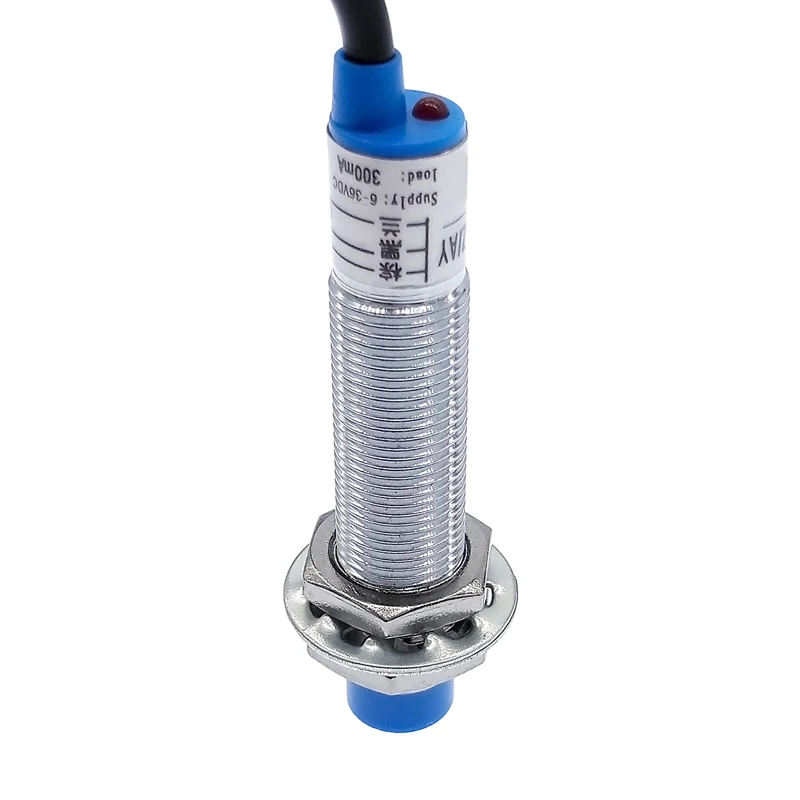

10PCS Inductive Proximity Switch LJ12A3-4 BX BY AX AY LJ12A3-4-J/EZ NPN Z/CY PNP Sensor NO NC DC6~36V 4mm Detection Distance

LJ12A3-4-Z/BY:  PNP NO 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/AY:  PNP NC 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/BX:  NPN NO 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/AX:  NPN NC 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/CX:  NPN NO+NC 4-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/CY:  PNP NO+NC 4-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/EX:  NO 2-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/DX:  NC 2-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-J/EZ:  NO 2-Line AC type 12mm diameter ; 4mm detection distance

LJ12A3-4-J/DZ:  NC 2-Line AC type 12mm diameter ; 4mm detection distance

[Main Parameter]

Detection distance :4mm ± 10%

Set distance:0~3.6mm

Current: 6V 360mA, 12V 200mA, 24V 96mA,   maximum instantaneous current 2A

Delay distance:10% below of the detection distance

Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)

Stand detection object:Iron 15*15*1mm

Response frequency:DC:0.5kHz

Supply voltage:DC type:DC12V DC24V DC36V(6~36V)impulse(p-p)10% below

Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing

Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)

Protection influence:IP67(IEC specification)

This product can be applied to control relays, counters,PLC, etc.!
